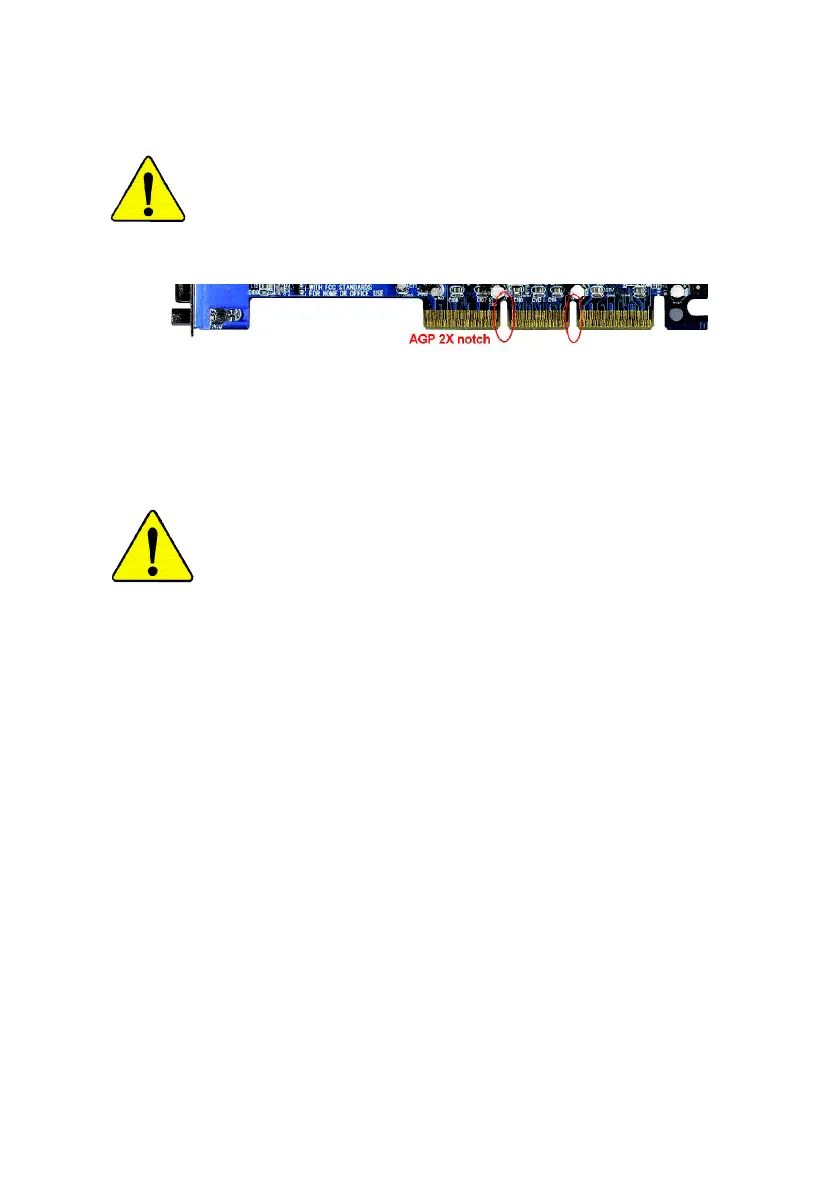

When you installing AGP card, please make sure the following

notice is fully understood and practiced. If your AGP card has

"AGP 4X/8X(1.5V) notch"(show below), please make sure your AGP

card is AGP 4X/8X(1.5V).

Caution: AGP 2X card is not supported by SiS

648/648FX. You

might experience system unable to boot up normally. Please insert

an AGP 4X/8X card.

Example 1: Diamond Vipper V770 golden finger is compatible with 2X/4X

mode AGP slot. It can be switched between AGP 2X(3.3V) or 4X(1.5V)

mode by adjusting the jumper. The factory default for this card is

2X(3.3V). The GA-8SG800/GA-8S648FX (or any AGP 4X only)

motherboards might not function properly, if you install this card without

switching the jumper to 4X(1.5) mode in it.

Example 2: Some ATi Rage 128 Pro graphics cards made by "Power

Color", the graphics card manufacturer & some SiS 305 cards, their

golden finger is compatible with 2X(3.3V)/4X(1.5V) mode AGP slot, but

they support 2X(3.3V) only. The GA-8SG800/GA-8S648FX

(or any AGP 4X only) motherboards might not function properly, If you

install this card in it.

Note : Although Gigabyte's AG32S(G) graphics card is based on

ATi Rage 128 Pro chip, the design of AG32S(G) is compliance

with AGP 4X(1.5V) specification. Therefore, AG32S (G)will work

fine with SiS

648/648FX based motherboards.
