Gigabyte Sumo 4112 Bruksanvisning

Gigabyte dator box Sumo 4112

Läs gratis den bruksanvisning för Gigabyte Sumo 4112 (12 sidor) i kategorin dator box. Guiden har ansetts hjälpsam av 2 personer och har ett genomsnittsbetyg på 4.4 stjärnor baserat på 1.5 recensioner. Har du en fråga om Gigabyte Sumo 4112 eller vill du ställa frågor till andra användare av produkten? Ställ en fråga

Ladda ner PDF

Sida 1/12

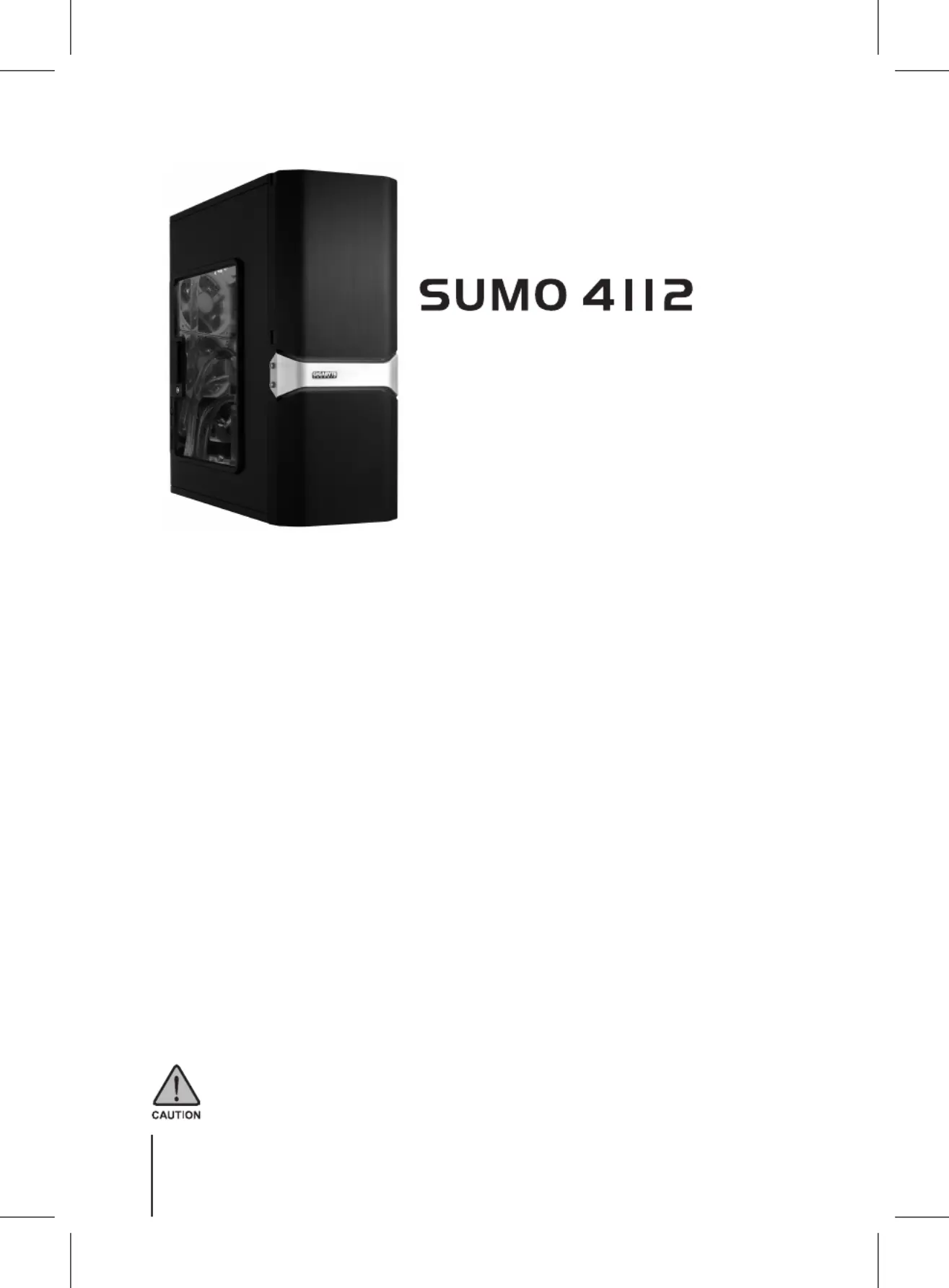

English User's Manual

Thank you for purchasing a GIGABYTE Chassis. GIGABYTE is

dedicated to the integration of water/air-cooling chassis solutions to

provide users with the most optimal solution for thermal dissipation.

For further information and specifications of the “SUMO” series,

please visit GIGABYTE website. (http://www.gigabyte.com.tw)

The following is not covered by warranty:

1. Using the product incorrectly or in a manner other than its designed purpose.

2. Nonobservance of its proper operation as provided in documentation.

3. Malfunction due to interference from other devices.

4. Unapproved modification of the product.

5. Consequential damage to other objects.

6. Malfunction arising from natural hazards, e.g. earthquake, lightning, fire, and floods.

7. Warranty void if label has been removed or tampered with.

8. The devices inside, including power supply, hard disk, CD-ROM drive, motherboard, ventilator, etc, are not

detached from the casing prior to transportation of the computer system, resulting in damage to the casing

or other computer-related devices.

9. Any loss/damage caused by failure to follow the installation process with in the user manual.

Failure to wear gloves during installation of computer products may cause bodily harm or damage to your devices. Incorrect connector

installation may possibly burn out the motherboard and other components. Be sure to observe the instructions in the installation

manual.

English

Content

1. Components Introduction 4

1-1 Casing’s Internal Structure 4

1-2 Casing’s Panel Structure 5

1-3 Removal of Side and Front Panels 6

2. Features 6

3. Specifications 7

4. Installation Instructions 8

4-1 Installation of Power Supply 8

4-2 Installation of Motherboard 8

4-3 Installation of Add-On card 8

4-4 Installation of Top Multi-Media I/O Ports 9

4-5 Connection of Fan Power Cable 10

4-6 Installation of 5.25” Front Drive Bay 10

4-7 Installation of 3.5” Front Device Bay 10

4-8 Installation of 3.5” Internal Device Bay 10

4-9 Installation of 2.5” Enclosure 11

4-10 Application of DIY inter-changeable LED lighting 11

4-11 Application of Security locks 11

4-12 Application of Foot Support 11

4-13 Application of Liquid Cooling System 11

4-14 Recommended GIGABYTE Thermal Solution products 12

English

Produktspecifikationer

Varumärke:	Gigabyte
Kategori:	dator box
Modell:	Sumo 4112
Vikt:	11300 g
Bredd:	205 mm
Djup:	522 mm
Höjd:	500 mm
Ljudutgång:	Ja
Modell:	PC
Expansionsplatser:	7
Produktens färg:	Svart
Formfaktor:	Midi Tower
Antal USB 2.0 anslutningar:	2
Ljudanslutning:	Ja
Antal eSATA portar:	1
Anta IEEE 1394/Firewire anslutningar:	1
Externa expansionsfack:	4x 5.25", 1x 3.5"
Interna expansionsfack:	5x 3.5"
Ventilationsfläkt:	3 x 12cm
