Extension Insert/Short-stroke pushbutton

Installation Instructions

Short-stroke pushbutton 28/99 Page: 1 of 2

System 2000

Extension Insert Order No.: 0333 00

Function

Extension insert for operating dimmers (universal

dimmers) or switches from an extension.

The extension insert permits the establishing of

installations with the functions of two-way wiring

and cross connection with minimum installation

expenditure.

The functionality of the extension insert depends

upon the main centre used (dimmer, switch) and is

described in the Operating Instructions manual of

the main centre.

Warning

Caution llatio embly of electrical equipment may only be performed by a

skilled electrician.

Non-observance of the installation instructions may cause fire or other hazards.

Installation Instructions

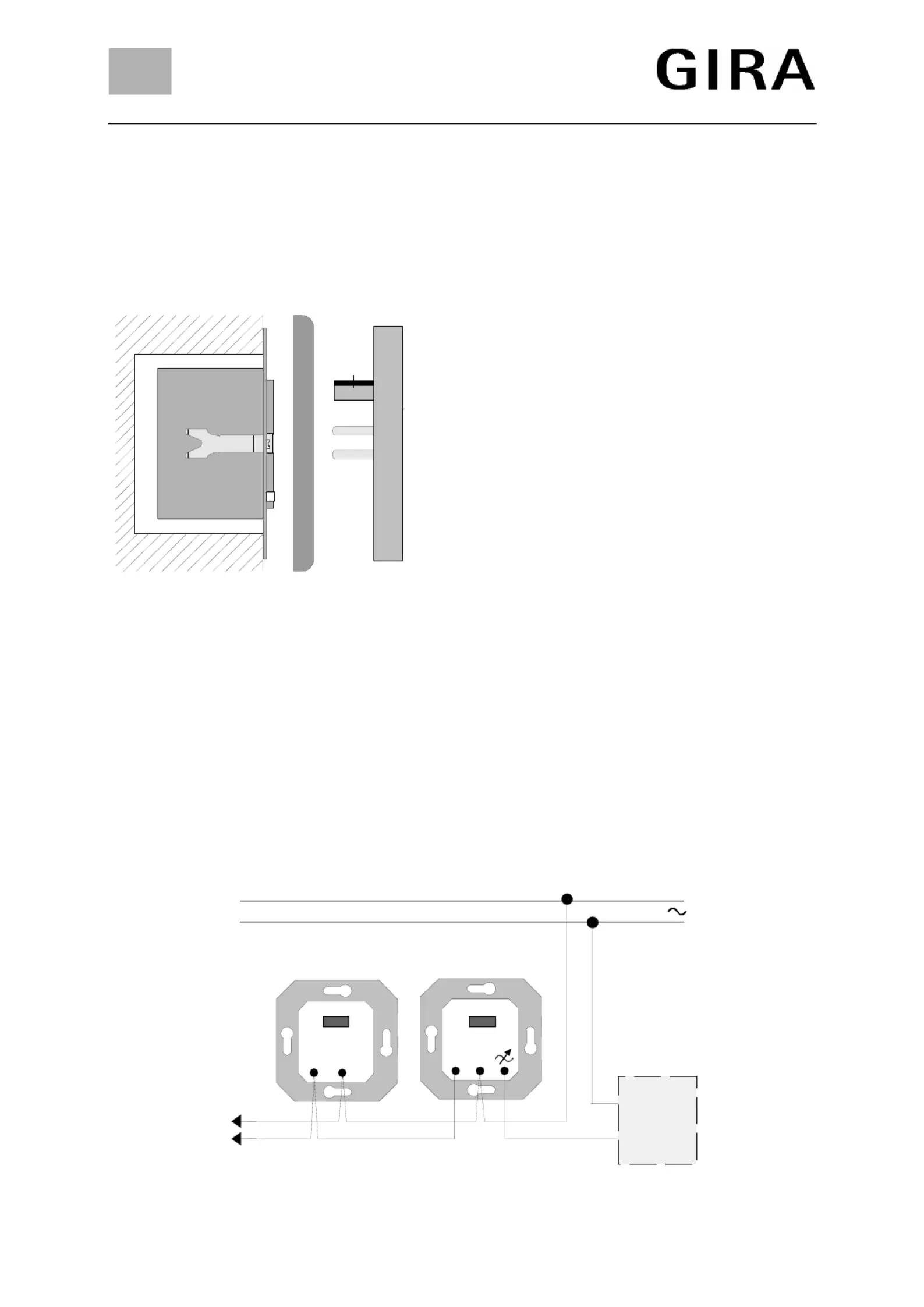

Install extension insert c in a connection box according to DIN 49073 (Fig. A).

The connection terminals of the insert must be down.

The extension insert can only be used in combination with the short-stroke pushbutton. Plug short-

stroke pushbutton d onto the insert together with frame e.

Electrical contacting is established through plug f.

1 L

Nebenstelle

weitere Nebenstellen

Hauptstelle

Last

Load

Last

AC 230 V

For the connection, refer to Fig. B.

Extensions Main centre

GIRA

Info

Extension Insert/Short-stroke pushbutton

Installation Instructions

Short-stroke pushbutton 28/99 Page: 2 of 2

Specifications

Rated voltage: 230 V AC, 50 / 60 Hz

Connected to: main centre

Number of extensions: unlimited

Acceptance of guarantee

We accept the guarantee in accordance with the corresponding legal provisions.

Please return the unit postage paid to our central service department giving a brief description

of the fault:

Gira

Giersiepen GmbH & Co. KG

Service Center

Dahlienstrasse 12

D-42477 Radevormwald

The CE sign is a free trade sign addressed exclusively to the authorities and does not include

any warranty of any properties.

Gira

Giersiepen GmbH & Co. KG

Postfach 1220

D-42461 Radevormwald

Telefon: +49 / 21 95 / 602 - 0

Telefax: +49 / 21 95 / 602 - 339

Internet: www.gira.de

Produktspecifikationer

Varumärke:	Gira
Kategori:	Smart hem
Modell:	033300
Produkttyp:	Omkopplings-/dimmerställdon
Inbyggd display:	Nej
Certifiering:	CE
Spänning:	230 V
Produktens färg:	Metallisk
Ingångsfrekvens:	50/60 hz
Temperatur vid drift:	-20 - 45 ° C
Monteringssätt:	Infälld
Strömkälla av typen:	AC
Inbyggt djup:	22 mm
