Sida 1/8
1
INSTRUCTIONS FOR OPERATION AND CARE
XVSGH GRATER/SHREDDER HOUSING
AND ATTACHMENTS
Our slicer attachments can be used for slicing potatoes (from 1/16''
to 5/8'' thickness); cutting vegetables for salads and coleslaw; or for
slicing fruits and nuts. An adjustable slicer plate with shaft are included
with the XVSGH attachment.
Our versatile grater/shredder attachments can be used to grate and shred cheeses, raw
vegetables, nuts, breadcrumbs, etc. depending on the plate or disc selected. Our S/S discs
are available with 3/32'', 3/16'', 1/4'', 5/16'', or 1/2'' size holes and a special grating disc for
breadcrumbs & hard cheeses is available. A plate holder with shaft and one 3/16'' plate are
included with the XVSGH attachment.
WARNING
There are sharp rotating knives behind the door; keep hands out of
hopper and use a pusher plate or stomper to push product into the
hopper — do not use your fingers. Always stop power unit before
opening front for changing, cleaning, or servicing anything on this
unit. Only trained and qualified persons 18 years and older should
use these attachments.
XVSGH
The XVSGH is made up of the following three basic components:
1. XVSH Housing
2. XVSD Door or Hopper
3. XVSP Pusher Plate
Plate Holder or Adjustable Slicer Plate units
• XASP Adjustable Slicer Shaft with S/S “S” knife
• XPH Plate Holder with Shaft
PLATE HOLDER WITH SHAFT
Shredder discs are available with 3/32'', 3/16'', 1/4'', 5/16'', or 1/2'' hole sizes. These
plates have keyhole slots for attaching to shouldered studs on the plate hubs.
DOOR OR HOPPER
The door is a hopper and lever feed design. It hinges onto the back case and is held
closed with an adjustable latch. To remove door, lift latch and swing door open while
lifting it from the hinge holes.
PUSHER PLATE
The pusher plate has an integrated handle to push the food into the rotating disc or
slicer knife. It has pins at both sides of the top and hinges into door. The pusher plate
has a rubber-tipped stop screw under the handle that can be adjusted to prevent the
pusher plate from coming in contact with the disc or blade.
HOUSING OR BACK CASE
The housing or back case mounts into the attachment socket of a mixer, food cutter or
power drive unit. The housing is held on with the pointed thumbscrew that goes through
the attachment hole into the indentation on neck of the machine.
ADJUSTABLE SLICER PLATE WITH STAINLESS STEEL “S” KNIFE AND SHAFT
Stainless steel “S” knife is ideal for slicing vegetables.
1. XVSH
2. XVSD
3. XVSP
XASP
XPH
2

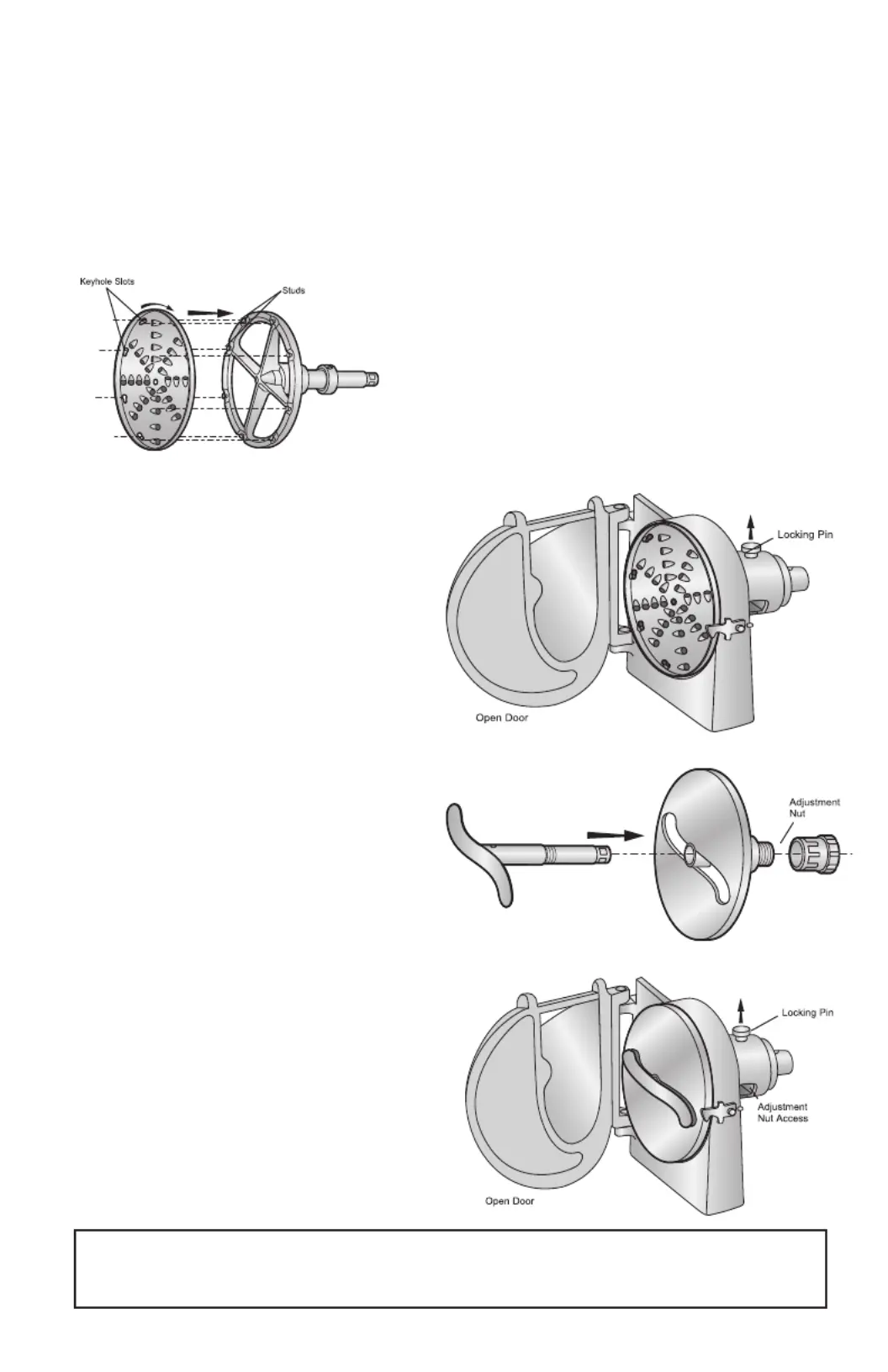

TO INSTALL SHREDDER OR GRATER DISCS
Stop the machine. Point disc with cutting edge away from shaft assembly. Engage keyhole slots on plate
and slide the wide part of keyhole slots over studs on plate holder. When plate is flush with plate holder,
rotate it clockwise to lock it in position. It is possible to loosely assemble the disc to hub (sharp edge out),
then put it on a work surface (the “teeth” on plate will mar a finished table). Press down and turn hub
until plate locks into position. The sharp “teeth” must face out on plate holder. To detach plate from hub,
reverse the installation procedure. A safe method is to use protective gloves and press the palm of one
hand against the disc to rotate it.
Note: The discs are slightly bent to supply holding pressure when in position.
SHREDDER DISC
The coarse plates are normally used for making
chopped slaw, cutting vegetables for soup stock, salad
blends or “hash brown” potatoes. The medium and finer
plates are for fine shredding of carrots, beets, turnips,
etc., and for salads. See our application chart at the end
of these instructions.
GRATER DISC
The grater plates can be used for crumbling hard
cheese or grating hard vegetables.
TO INSTALL PLATE HOLDER ASSEMBLY
Stop the machine. With door open, pull locking
pin up and put plate holder assembly in until the
square end of shaft fits snugly into power unit.
Release locking pin to hold plate holder assembly
in correct position. Close door.
ADJUSTABLE SLICER PLATE ASSEMBLY &
INSTALLATION
Turn off and unplug the machine. Adjust the
slicing thickness from approximately 1/16'' to 5/8''
by turning adjustment nut. Lift the locking pin on
top of housing. Open door and slide adjustable
slicer plate assembly back into operating position.
The square end of shaft can be manually rotated
to seat into machine socket correctly. Tighten
adjustable slicer plate assembly to machine with
locking pin on top of housing. Attach pusher plate
and close door before turning on machine.
TO ADJUST THICKNESS OF SLICES
Stop the machine. Remove adjustable slicer plate
assembly from housing and turn adjustment nut
while carefully holding adjustable slicer plate
assembly.
Note: Thickness of slices can be adjusted with
slicer plate assembly in position. Turn adjustment
nut, accessed through the adjustment nut access
in rear housing to adjust thickness of slices. Globe
recommends that the adjustable slicer plate is
removed to adjust slice thickness.
Caution: The adjustment nut turns with shaft. Adjustments must not be attempted unless the unit is
turned off and unplugged.
3

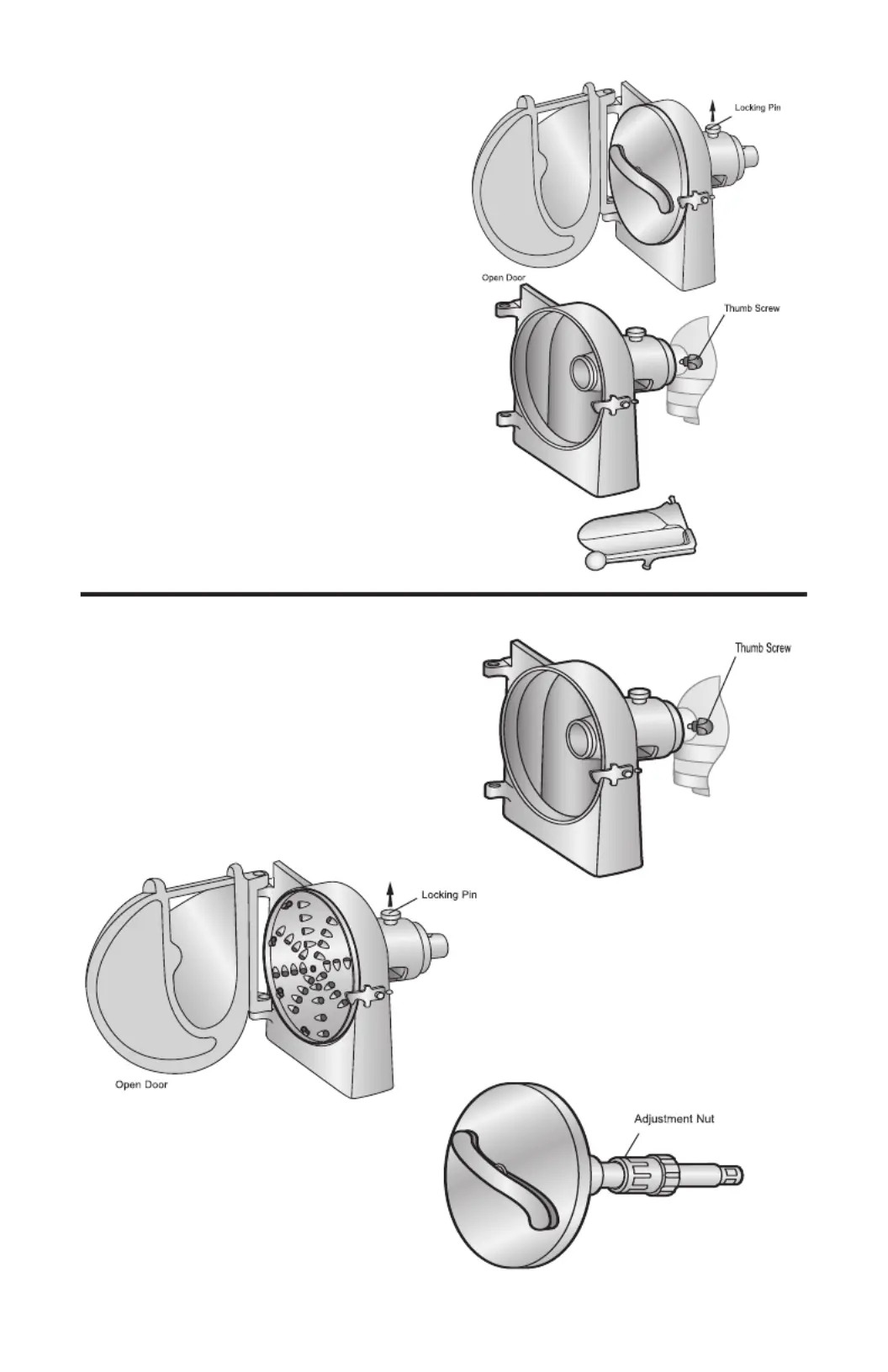

TO REMOVE ADJUSTABLE SLICE PLATE
ASSEMBLY FROM HOUSING
Open door and lift locking pin on top of housing.
Pull adjustable slice plate assembly out.
TO REMOVE ATTACHMENT FROM POWER
UNIT
Loosen thumb screw on power unit until hub is
free for removal from unit.
PUSHER PLATE REMOVAL
Raise pusher plate and slide out of slot in door.
OPERATION
1. Stop power unit (mixer, food cutter, chopper,
power drive etc.)
2. Attach housing of slicer to attachment socket of
companion machine with thumb screw.
3. Select grater/shredder or slicer assembly
to be used. Lift locking pin and put
plate and shaft assembly into drive
position. Release locking pin.
Set adjustable slicer plate (if used) to the
proper thickness.
