METRACLIP 61
Clip-On Ammeter
Operating Instructions 3-349-173-37
3/11.20
2 Gossen Metrawatt GmbH

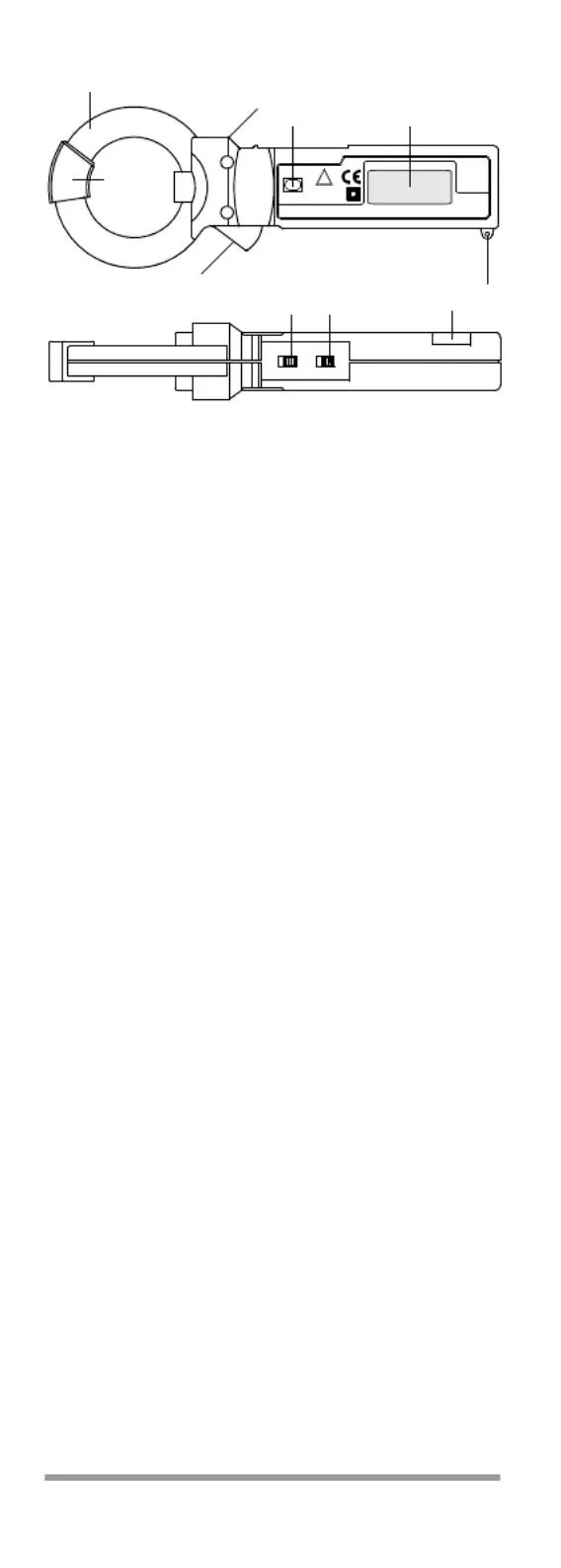

1 Clip jaw
2 Clip guide
3 Clip clearance safety barrier:
Do not reach beyond the safety collar!
4 Button for opening clip
5 DATA HOLD key: saves measured value
6 Display (LCD)
7 Eyelet for carrying strap
8 Measuring range switch (RANGE)
9 On/off switch (POWER)
10 Battery compartment lid (secured with Phillips head
screw)
Table of Contents Page
1 Safety Precautions .....................................3
2 Operation ....................................................4
2.1 Initial Start-Up ...................................................... 4
2.2 Stipulations for All Measurements .......................... 4
2.3 Measuring Leakage Current at Grounded Conductors ...4
2.4 Measuring Leakage Current at
Single-Phase or 3-Phase Systems ......................... 5
2.5 Measuring Line Current ......................................... 5
3 Characteristic Values ..................................6
4 Maintenance ...............................................7
4.1 Battery Replacement ............................................. 7
4.2 Housing ............................................................... 8
5 Repair and Replacement Parts Service
Calibration center
and Rental Instrument Service ...................8
6 Product Support .........................................8
METRACLIP 61
HOLD
600V CAT II
MAX.
300A~
DATA
300V CAT III
!
1
2
3
4
POWERRANGE
810
5 6
7
9
Gossen Metrawatt GmbH 3
1 Safety Precautions
The METRACLIP 61 clip-on ammeter has been
manufactured and tested in accordance with
safety regulations IEC 61010-1/EN 61010-1/VDE
0411-1 and IEC 61 010-2-032/EN 61010-2-032/
VDE 0411-2-032.
If used for its intended purpose, safety of the user
and of the device is assured. The device may only
be operated by properly trained personnel who are
capable of recognizing the dangers associated
with the measurement of electrical current and
voltage.
Read the operating instructions completely and carefully
before using the device, and follow all instructions
included therein.
Meanings of symbols on the instrument:
Warning concerning a source of danger
(Attention: observe documentation!)
Continuous, doubled or reinforced
insulation
Indicates European conformity
CAT II Maximum allowable voltage at the circuit
under test: 600 V, category II
The clip-on ammeter may not be used:
• If the battery compartment lid has been
removed
• If visible damage is apparent
• With damaged connector cables
• If it no longer functions flawlessly
• After lengthy periods of storage under
unfavorable conditions (e.g. humidity, dust,
temperature)
Attention!
!
Do not perform measurements in the event of
over-ranging!
Current which exceeds the measuring
range may not be measured.
Do not perform measurements at bare wires!
Do not perform measurements at busbars!
Safe Handling
• The housing and the handle must be free of
dust, grease and moisture.
!
