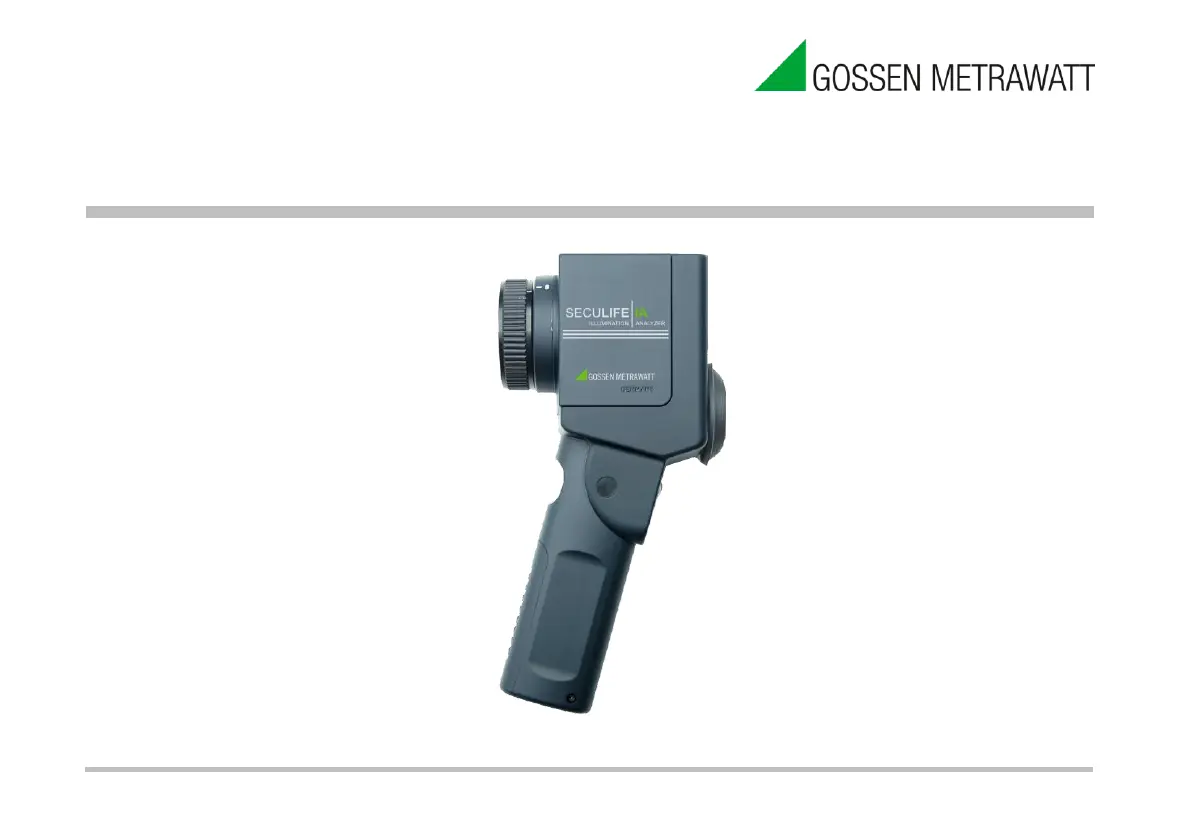

Operating Instructions
SECULIFE | IA 15365
Luminance Analyzer with 1° Measuring Angle 2/8.13
2 GMC-I Messtechnik GmbH
Table of Contents Page
1 Applications 3
2 Display Panel and Keys
2.1 The Display Panel and its Elements 5
2.2 The Keypad 6
3 Working with the SECULIFE IA
3.1 Preparation 6
Replacing the Batteries 6
Self-Test 7
Battery Indicator 7
The Protective Filter 7
3.2 Changing Default Settings (DIP) 8
Unit of Measure, cd/m² or fL 8
Modes: Standard and Compact 8
Memory Display: Individual or Groups 9
4 Operation
4.1 Switching the Instrument On 9
4.1.1 Display On-Time 9
4.2 Measurements 10
4.2.1 Overflow / Underflow Display 10
4.3 Reference Quantity Measurement 11
4.3.1 Ratio A/B 12
4.3.2 Percentage Deviation %A 13
4.3.3 Difference A-B 14
4.4 Setting Correction Factors 16
Table of Contents Page
4.5 Memory Function 19
4.5.1 Saving Measured Values 19
4.5.2 Editing Measured Values 20
4.5.3 Saving Values with Correction Factor 21
4.5.4 Reading Out Measured Values 21
4.5.5 Clearing Memory 21
4.5.6 Saving Measured Values (in groups) 22
5 Additional Applications 23
5.1 Contact Measurement Attachment 23
5.2 Stationary Use 23
6 PC Software – USB Port 23
7 Accessories
7.1 Included Accessories 24
7.2 Optional Accessories 24
7.3 Calibration Certificate 25
8 Service Notes 25
9 Technical Data 26
Declaration of Conformity
GMC-I Messtechnik GmbH 3
1 Applications
The SECULIFE IA is a high-precision measuring instrument with a measuring angle of 1°. Luminance
measurements at distances of 1 meter to infinity can be performed with the instrument. The SECULIFE IA features
mirror reflex optics with a 15° field of view, a sharply marked 1° measuring circle at the center and a focusing
mechanism.
The close-up lenses available as accessories make it possible to shorten measuring distance to 34 cm. Luminance
can be measured directly at displays with the help of the attachment for contact measurements.
The light sensitive sensor is color corrected, that is its spectral sensitivity is matched to the spectral luminous
efficiency of the human eye in daylight V(). Classification of luminance meters is specified in DIN 5032, part 7, and
in DIN EN 13032, appendix B. The SECULIFE IA fulfills class B requirements in accordance with these standards.
The instrument is equipped with a measured value memory module with up to 1000 memory locations which can
be read out and processed either directly via the keypad and display, or via the integrated USB port with the help of
the included standard software.
Suitable for the measurement of, for example:
Monitors in consideration of ambient light,
for example approval and consistency testing in the field of medical
technology in accordance with DIN 6868-57 and IEC 61223-2-5 (quality
assurance guideline dated 20 Nov. 2003)
Street, tunnel and airport illumination
Illumination at sports facilities
Contrast measurements at workstations (ASR)
Illumination in museums and public buildings
Projection screens (inspection for uniform illumination)
Warning: Do not perform measurements with the instrument pointed towards sun.
Eye damage may result, and the light sensor could be damaged as well.
