Operating Instructions

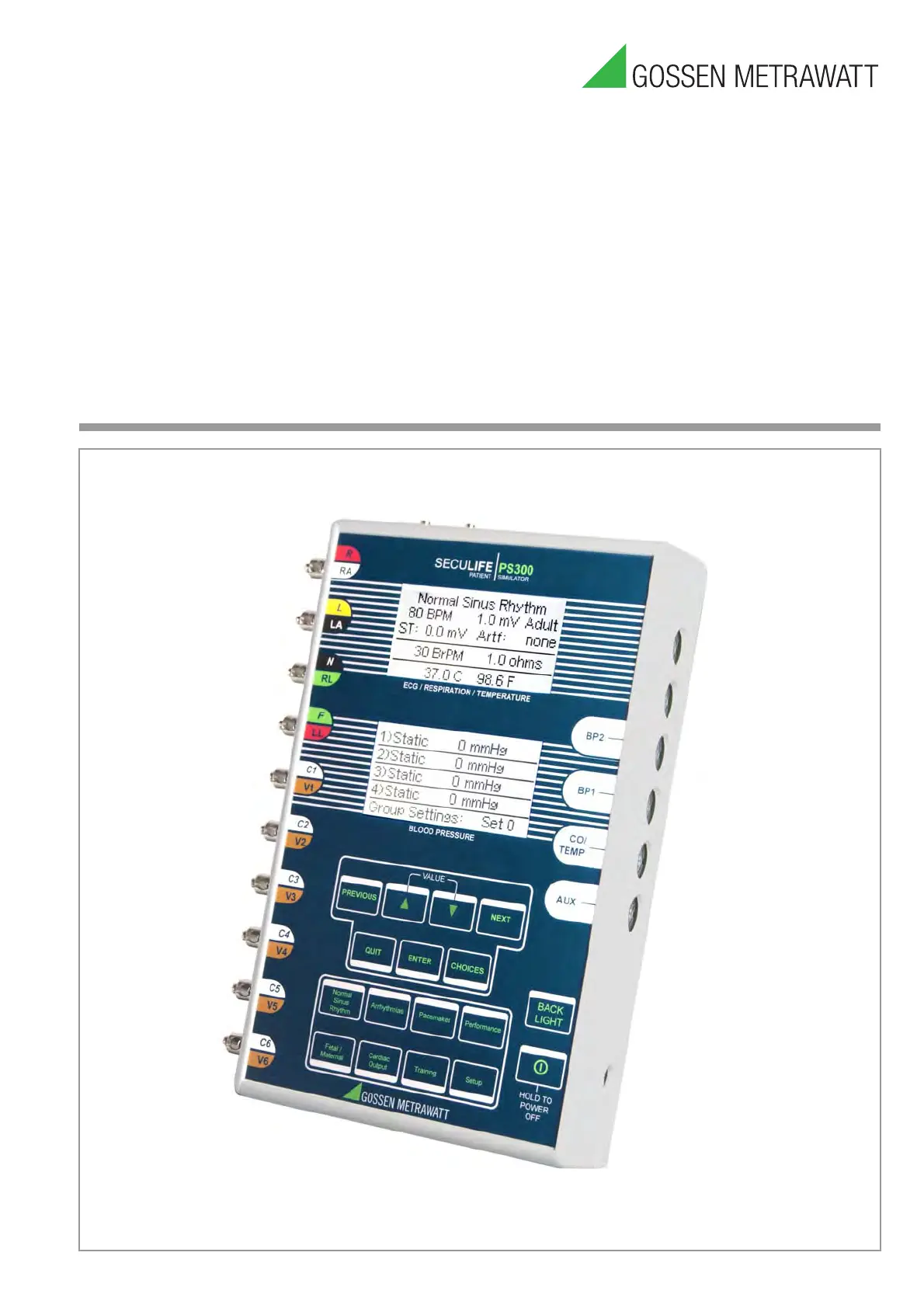

SECULIFE⏐PS300
MULTI-PARAMETER PATIENT SIMULATOR
3-349-716-03
1/05.13


GMC-I Messtechnik GmbH 3
SECULIFE⏐PS300
Page
WARNINGS, CAUTIONS, NOTICES......................................................................................................... 4
DESCRIPTION SECULIFE⏐PS300 PATIENT SIMULATOR .................................................................... 9
LAYOUT................................................................................................................................................... 15
TOUCH KEYS.......................................................................................................................................... 16
ECG – NORMAL SINUS RHYTHM ......................................................................................................... 21
ECG – ARRHYTHMIAS........................................................................................................................... 23
ECG – PACEMAKER............................................................................................................................... 29
ECG – PERFORMANCE ......................................................................................................................... 31
BLOOD PRESSURE................................................................................................................................ 33
SWAN-GANZ (OPTION).......................................................................................................................... 35
RESPIRATION......................................................................................................................................... 38
TEMPERATURE...................................................................................................................................... 40
TRAINING................................................................................................................................................ 41
SETUP..................................................................................................................................................... 45
POWER UP SETTINGS .......................................................................................................................... 48
SPO2 (OPTION) ...................................................................................................................................... 50
FETAL / MATERNAL (OPTION).............................................................................................................. 51
CARDIAC OUTPUT (OPTION)................................................................................................................ 53
OUTPUT CONNECTIONS....................................................................................................................... 56
LIMITED WARRANTY ............................................................................................................................. 57
SPECIFICATIONS................................................................................................................................... 58
TABLE OF CONTENTS

4 GMC-I Messtechnik GmbH
SECULIFE⏐PS300
WARNINGS, CAUTIONS, NOTICES
WARNING - USERS
The SECULIFE⏐PS300 Series are for use by skilled
technical personnel only.
WARNING - USE
The SECULIFE⏐PS300 Series are intended for
testing only and should never be used in
diagnostics, treatment or any other capacity where
they would come in contact with a patient.
WARNING - CONNECTIONS
All connections to patients must be removed before
connecting the DUT to the SECULIFE⏐PS300 Series.
A serious hazard may occur if the patient is
connected when testing with the SECULIFE⏐PS300
Series.
CAUTION - MODIFICATIONS
The SECULIFE⏐PS300 Series are intended for use
within the published specifications. Any application
beyond these specifications or any unauthorized
user modifications may result in hazards or
improper operation.
CAUTION - SERVICE
The SECULIFE⏐PS300 Series are intended to be
serviced only by authorized service personnel.
Troubleshooting and service procedures should
only be performed by qualified technical personnel.

GMC-I Messtechnik GmbH 5
SECULIFE⏐PS300
CAUTION - OPENING / REPAIR
The equipment may be opened only by authorized
service personnel to ensure the safe and correct
operation of the equipment and to keep the warranty
valid.
Even original spare parts may be installed only by
authorized service personnel.
In case the equipment was opened by unauthorized
personnel, no warranty regarding personal safety,
measurement accuracy, conformity with applicable
safety measures or any consequential damage is
granted by the manufacturer.
CAUTION - INSPECTION
The SECULIFE⏐PS300 Series should be inspected
before each use for obvious signs of abuse or wear.
The SECULIFE⏐PS300 Series should not be used
and should be serviced if any parts are in question.
CAUTION - CLEANING
Do not immerse. The SECULIFE⏐PS300 Series
should be cleaned by wiping gently with a damp,
lint-free cloth. A mild detergent can be used if
desired.
CAUTION - LIQUIDS
Do not submerge or spill liquids on the
SECULIFE⏐PS300 Series. Do not operate the
SECULIFE⏐PS300 Series if exposed to fluid.
CAUTION - ENVIRONMENT
Exposure to environmental conditions outside the
specifications can adversely affect the performance
of the SECULIFE⏐PS300 Series. Allow the
SECULIFE⏐PS300 Series to acclimate to specified
conditions for at least 30 minutes before attempting
to operate them.

6 GMC-I Messtechnik GmbH
SECULIFE⏐PS300

GMC-I Messtechnik GmbH 7
SECULIFE⏐PS300
NOTICE – SYMBOLS
Symbol Description
Caution
(Consult Manual for Further Information)
Center Negative
Per European Council Directive 2002/95/
EC, do not dispose of this product as
unsorted municipal waste.
NOTICE – ABBREVIATIONS
AHA American Heart Association
ANSI American National Standards Institute
BPM Beats Per Minute
BrPM Breaths Per Minute
C Celsius
cc cubic centimeters
° degree(s)
ECG Electrocardiogram
F Fahrenheit
Hz hertz
IEC International Electrotechnical Commission
IBP Invasive Blood Pressure
kHz kilohertz
LED Light Emitting Diode
L/min Liters per minute
µV microvolt(s)
mA milliamp(s)
mm millimeter(s)
mmHg millimeter(s) of Mercury
mV millivolt(s)
ms millisecond(s)
NEDA National Electronic Distributors
Association
NSR Normal Sinus Rhythm
Ω ohm(s)
Lbs pounds
RMS Root Mean Square
USA United States of America
VVolts
VDC Volts Direct Current
!

10 GMC-I Messtechnik GmbH
SECULIFE⏐PS300
ECG NSR FUNCTIONS
The unit can produce a wide variety of ECG NSR simulations. The user simply selects the parameters
that match the desired output.
• RATE: 30, 40, 45, 60, 80, 90, 100, 120, 140, 160, 180, 200, 220, 240, 260,
280, 300 BPM
• AMPLITUDE (Lead II):
0.05, 0.10, 0.15, 0.20, 0.25, 0.30, 0.35, 0.40, 0.45, 0.50, 1.0, 1.5,
2.0, 2.5, 3.0, 3.5, 4.0, 4.5, 5.0 mV
• S-T SEGMENT ELEVATION:
± 0, 0.05, 0.1, 0.2, 0.3, 0.4, 0.5, 0.6, 0.7, 0.8 mV
•ARTIFACTS:
50 Hz, 60 Hz, MUSCLE, BASELINE WANDER, RESPIRATION
• QRS INTERVAL:
ADULT (80 ms) OR PEDIATRIC (40 ms)
• AUTOMATIC MODE
ARRHYTHMIA FUNCTIONS
The unit can simulate 36 different arrhythmias. For ease of selection, they are grouped into four basic
categories. Where applicable, both manual and automatic triggering of the waveform is available.
• 36 DIFFERENT ARRHYTHMIAS
• FOUR GENERAL GROUPS:
SUPRAVENTRICULAR
PREMATURE
VENTRICULAR
CONDUCTION
• MANUAL AND AUTOMATIC TRIGGERING
PACEMAKER FUNCTIONS
Seven different pacemaker waveforms may be simulated. Additionally, the width and amplitude of the
pacer pulse may be selected.
• WAVEFORMS:
ATRIAL PACER, ASYNCHRONOUS, NON-CAPTURE,
NON-FUNCTION, DEMAND - OCCASIONAL,
DEMAND – FREQUENT, AV - SEQUENTIAL
• PULSE HEIGHT:
1, 2, 3, 4, 5, 6, 7, 8, 9, 10 mV
• PULSE WIDTH:
0.1, 0.5, 1.0, 1.5, 2.0 ms

GMC-I Messtechnik GmbH 11
SECULIFE⏐PS300
ECG-PERFORMANCE FUNCTIONS
The unit will generate Sine, Square, Triangular and Pulse waveforms with adjustable amplitudes for
performance testing. A special Automatic mode is available to auto sequence through the entire range of
waveforms. Also, a R-Wave (Havertriangle) waveform may be selected with separate amplitude and width
settings.
•SINE:
0.1, 0.5, 5, 10, 40, 50, 60, 100 Hz
• SQUARE:
0.125, 2.0 Hz
•TRIANGLE:
2.0, 2.5 Hz
• PULSE:
30, 60, 120 BPM; 60 ms WIDTH
• AMPLITUDE (Lead II):
0.05, 0.10, 0.15, 0.20, 0.25, 0.30, 0.35, 0.40, 0.45, 0.50, 1.0, 1.5,
2.0, 2.5, 3.0, 3.5, 4.0, 4.5, 5.0 mV
• AUTOMATIC MODE
• R WAVE RATE:
30, 60, 80, 120, 200, 250 BPM
• R WAVE WIDTH:
8, 10, 12, 20, 30, 40, 50, 60, 70, 80, 90, 100, 110, 120, 130, 140,
150, 160, 170, 180, 190, 200 ms
• R WAVE AMPLITUDE (Lead II):
0.05, 0.10, 0.15, 0.20, 0.25, 0.30, 0.35, 0.40, 0.45, 0.50, 1.0, 1.5,
2.0, 2.5, 3.0, 3.5, 4.0, 4.5, 5.0 mV
RESPIRATION
Respiration is simulated at 8 different rates, with the ability to select from 4 Baseline Impedances, the
Lead in which it will appear, and the Delta Ohms (amplitude) of the signal. Additionally, an Apnea period
may be selected.
•RATE:
15, 20, 30, 40, 60, 80, 100, 120 BrPM
• BASELINE IMPEDANCE:
500, 1000, 1500, 2000 OHMS
• LEAD:
LA or LL
• DELTA IMPEDANCE:
0.1, 0.2, 0.5, 1.0, 2.0, 3.0 OHMS
• APNEA:
12, 22 and 32 SECONDS PLUS CONTINUOUS
