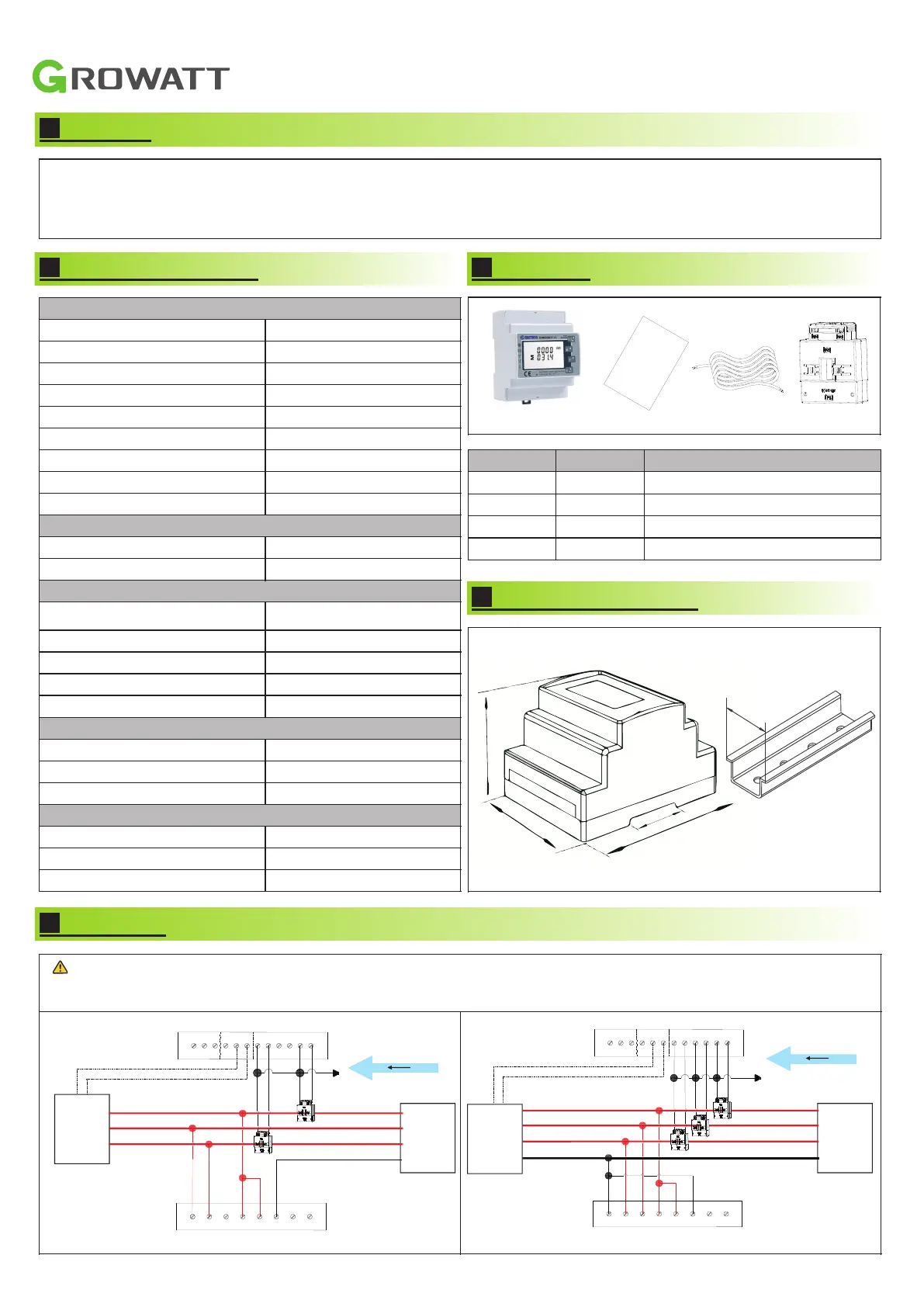

SDM630MCT V2 is a multi-functional din-rail meter designed for accurate measurement and display of parameters in 3P3W/3P4W power
grid systems, such as voltage, current, power, frequency, active power, reactive power, positive energy, reverse energy, total harmonics,
etc. It is an ideal choice for real-time power monitoring, featuring a wide range of functions and applications with high stability over
extended service life. The meter works with an external current transformer and can be applied in both high and low voltage power grid. It
comes with an RS485 communication interface, which supports a maximum baud rate of 38400 bps and enables remote communication.
TPM-CT-E-EU(SDM630MCT V2) Three-phase
Smart Meter Quick Guide
General Specifications
Rated voltage
3×230/400Vac
Rated frequency
50/60Hz
L-N voltage range
100 ~ 276Vac
L-L voltage range
173 ~ 480Vac
Auxiliary power voltage range
85 ~ 275Vac or 120 ~ 380Vdc
AC withstand voltage
4KV for 1min
Input current range
1A or 5A
Short-term overcurrent
20*IMAX for 0.5s
Max. Reading
9999999.9kWh/kVArh
Accuracy
Active power
0.5% of range maximum
Reactive power
0.5% of range maximum
Environment
Regulated working temperature
range
-25℃～+55℃
Limited working temperature range
-40℃～+70℃
Relative humidity annual average
≤90％
Installation category
CAT III
Degree of pollution
RoHS compliant
Communication
Communication
RS485 output for Modbus RTU
Baud rate
9600bps(default)
Pulse
3200imp/kWh
Mechanics
Outline dimensions
94.5x72x65mm(LxWxH )
Din rail dimensions
DIN rail 35mm
Protection level
IP51 (indoor)
Item
Quantity
Description
A
1
Three-phase meter
B
1
Quick Installation Guide
C
1
RS485 cable (standard length: 15m)
D
3
Current Transformer

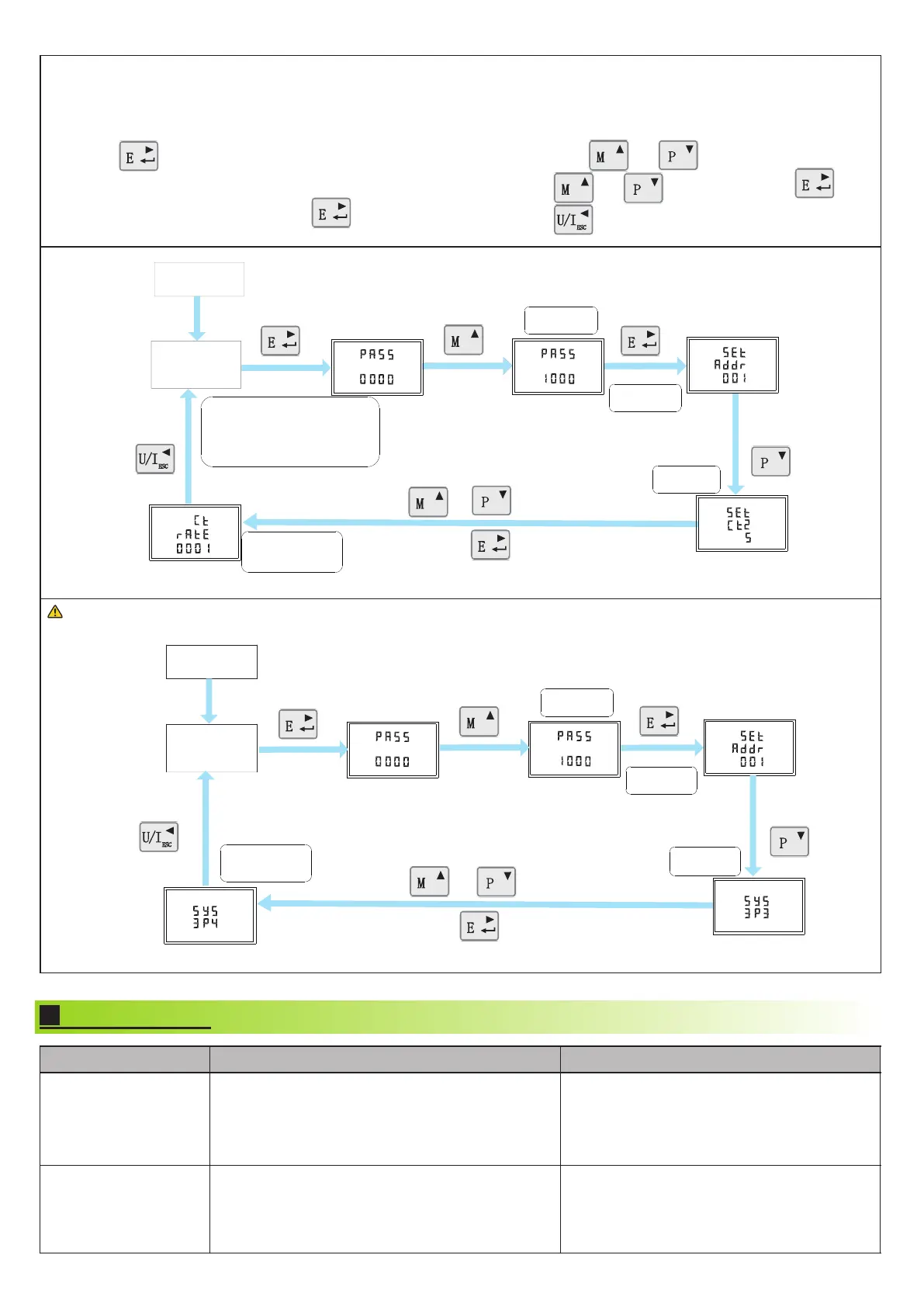

There are four touch buttons on the panel, arranged from top to bottom as follows: “ESC(←)V/A”, “↑(Alt)MD/PH/HZ”, “↓(Shift)P”,
“ENTER(→)E”. These buttons can be operated in two ways: long press (pressing for more than two seconds) and short press (pressing for
less than one second).
NO.
Button
Features
Viewable content(short press)
1
Short press:
display voltage and current, ←
Long press: ESC
Phase voltage,Line voltage, Phase current, Neutral
current, Voltage harmonics, Current harmonics
2
Short press: display power factor and
frequency, ↑
Long press: Alt
Phase(Total) frequency, Total power factor, Phase(Total)
maximum current demand
3
Short press: display power, ↓
Long press: Shift
Phase(Total) active power, Phase(Total) reactive power,
Phase(Total) apparent power
4
Short press:
display electric energy, →
Long press: Enter
Total active electric energy, Total reactive electric energy,
Positive active electric energy, Reverse active electric
energy, Positive reactive electric energy, Reverse
reactive electric energy
ESC
1.
Overview
2.
Technical Parameters
3.
Unpacking
Q
u
i
c
k
i
n
s
t
a
l
l
a
t
i
o
n
m
a
n
u
a
l
A B C D
4.
Dimensions (Unit: mm)
5.
Installation
1. The Growatt Storage Inverter and the Hybrid Inverter are hereinafter referred to as "the Storage/Hybrid Inverter".
2. The grid is on the right side and the current flows from P1 to P2 (from the grid to the load).
Note:
Storage/
Hybrid
Inverter
Grid
L1
L2
L3
N
1
2 3
4
5
6
7
8
9 10
11
12
13
14
15
16
17
18 19
20
L
N
L
N
Voltage inputs
So
Current inputs
RS485
RS485-A
RS485-B
S2 S1
S2
S1
3P3W
PE
1
2 3
4
5
6
7
8
9 10
11
12
13
14
15
16
17
18 19
20
L
N
L
N
Voltage inputs
So
Current inputs
RS485
RS485-A
RS485-B
S2
S1
S2
S1
S2
S1
3P4W
PE
P2
P1
A. Voltage sampling and power supply wiring
3P3W:
Wiring of the L1 voltage sampling line: corresponding to meter Pin 4
Wiring of the L2 voltage sampling line: corresponding to meter Pin 1
Wiring of the L3 voltage sampling line: corresponding to meter Pin 2
3P4W:
Wiring of the L1 voltage sampling line: corresponding to meter Pin 4
Wiring of the L2 voltage sampling line: corresponding to meter Pin 3
Wiring of the L3 voltage sampling line: corresponding to meter Pin 2
Wiring of the N voltage sampling line: corresponding to meter Pin 1
B. Current transformer wiring
Please refer to the diagram above. The grid is on the right and the
current flows from K to T (from the grid to the load).
Wiring of the L1 CT: S1 Line corresponding to meter Pin 16, S2 Line
corresponding to meter Pin 15
Wiring of the L3 CT: S1 Line corresponding to meter Pin 20, S2 Line
corresponding to meter Pin 19
Wiring of the L1 CT: S1 Line corresponding to meter Pin 16, S2 Line
corresponding to meter Pin 15
Wiring of the L2 CT: S1 Line corresponding to meter Pin 18, S2 Line
corresponding to meter Pin 17
Wiring of the L3 CT: S1 Line corresponding to meter Pin 20, S2 Line
corresponding to meter Pin 19

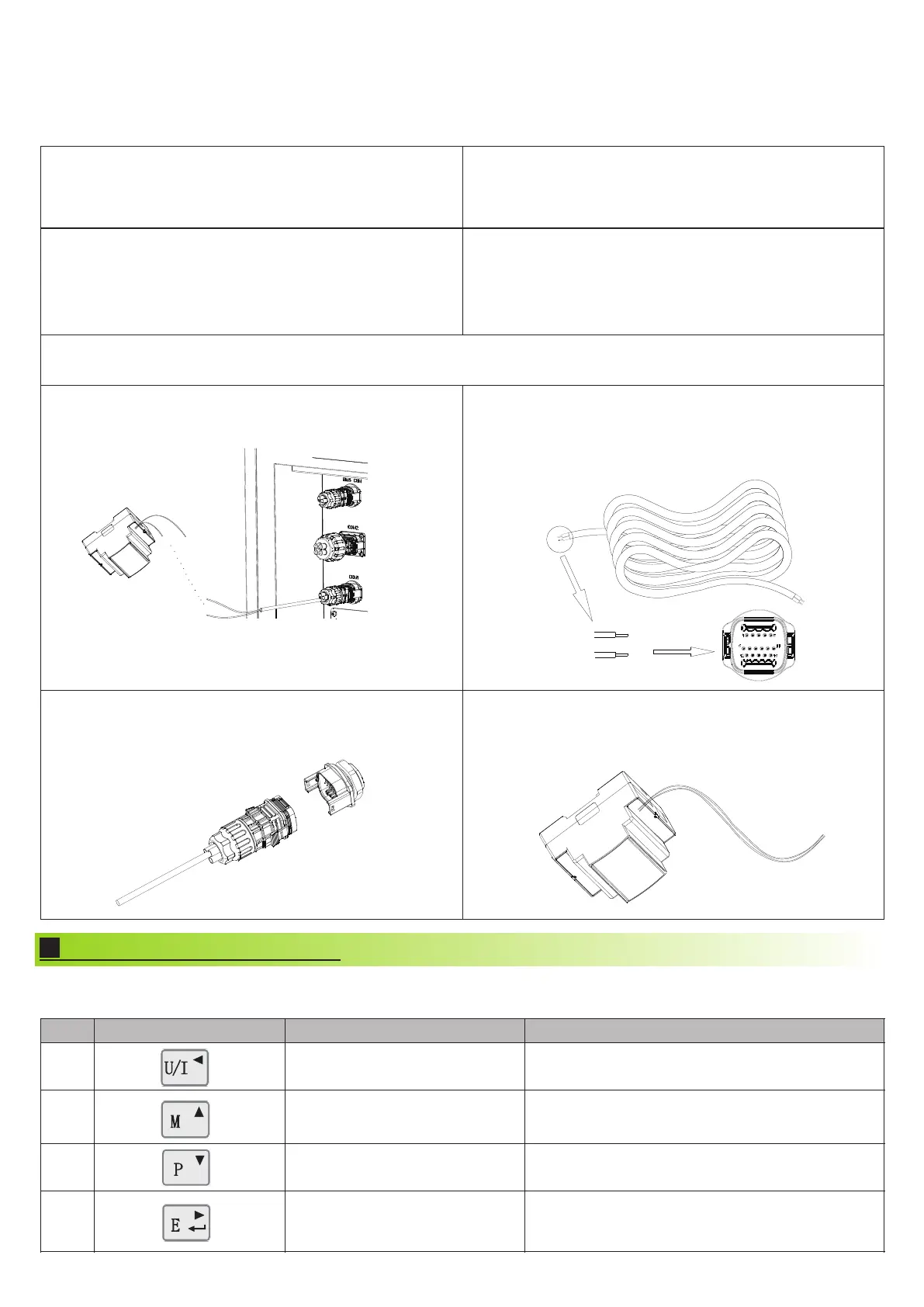

C.RS485 cable wiring
Connect the RS485A to Pin 14 and RS485B to Pin 13 (The network cables delivered with the inverter are labeled as 485-A and 485-B; if
you are using the cables purchased yourself, make sure to differentiate between 485-A and 485-B.)
D. Connecting the meter to the Growatt Three-phase
Storage/Hybrid Inverter
E. When connecting the smart meter to the inverter, connect one
end of the cable to Terminal 13 (485B) and Terminal 14 (485A) of
the smart meter and the other end to Pin 6 (485A) and Pin 7 (485B)
of the COM1 port.
Note: In most cases, the red cable is used for 485A and the black
cable for 485B.
G. The standard RS485 cable length is 15m. If a longer RS485
cable is required, please use an intact cable and make sure the
RS485 cable is less than 100m (the recommended length is less
than 25m).
F. Dismantle the 16-pin connector delivered with the inverter and
set aside the water-proof plug. Route the cables through each part
sequentially, then connect them to Pin 6 and Pin 7. Finally, connect
the connector to the COM1 port of the inverter.
6.
Button Description and Display
3
5m
m
35mm
9
4.5mm
72m
m
65
m
m
Red(485A)---COM1(6)
Black(485B)---COM1(7)
COM1
P2
P1
Storage/
Hybrid
Inverter
COM1(6、7）
