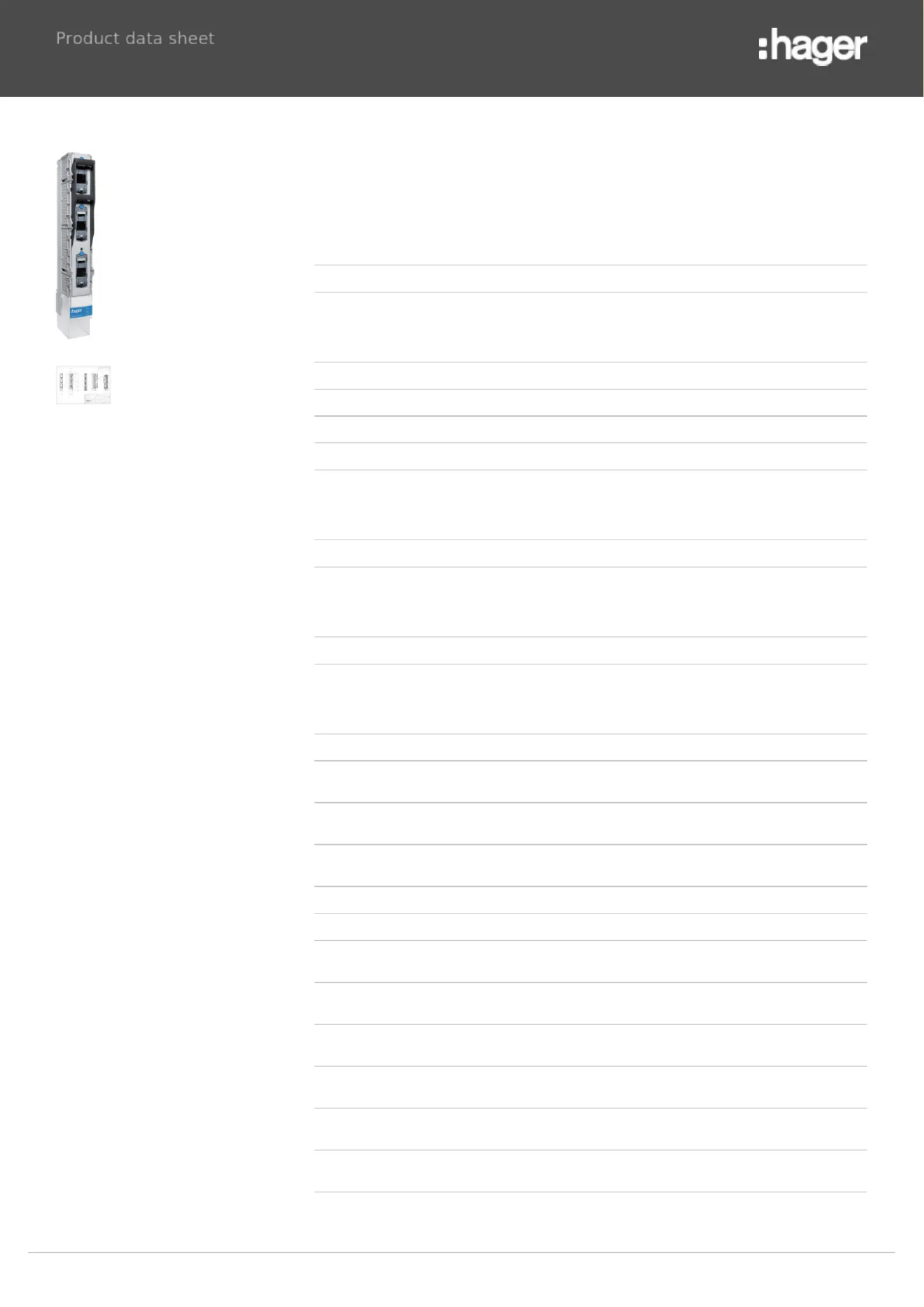

Sida 1/3
LVSG1CPX
LVSG1CPX
NH-Fuse-switch vertical design LV size 1 185mm 3pole M12
Technical properties
Architecture
Number of poles 3 P
Type of pole 3 P
Configuration
Distance between rail centre, 40 mm No
Distance between rail centre, 50 mm No
Distance between rail centre, 60 mm No
Distance between rail centre, 100 mm No
Distance between rail centre, 185 mm Yes
Main electrical features
Rated operational voltage Ue 690 V
Frequency 50/60 Hz
Voltage
Rated insulation voltage 1000 V
Rated impulse withstand voltage 12 kV
Electric current
Cut off current 120 kA
Rated current for Ue=400V AC according to
IEC 61439-1 5.3.2 250 A
Rated current for Ue=500V AC according to
IEC 61439-1 5.3.2 250 A
Rated current for Ue=690V AC according to
IEC 61439-1 5.3.2 250 A
Rated current 250 A
Rated short-time withstand current 1s 10 kA
Rated conditional short-circuit current for
Ue=400V IEC 61439-1 3.8.10.4 120 kA
Rated conditional short-circuit current for
Ue=690V IEC 61439-1 3.8.10.4 100 kA
Fuse-links test rated cond. short-circuit
current Ue=400V IEC 61439-1 3.8.10.4 250 A
Fuse-links test rated cond. short-circuit
current Ue=500V IEC 61439-1 3.8.10.4 250 A
Fuse-links test rated cond. short-circuit
current Ue=690V IEC 61439-1 3.8.10.4 200 A
Conventional free air thermal current with
Trennmesser and std. cross section 320 A
Conv. free air therm.current w/fuse-links
and std.cross sect. IEC60947-1 4.3.2.1 250 A
Subject to technical modifications
Acceptable current rating with AC22
category B 250 A
Acceptable current rating with AC23
category B 250 A
Rated conditional short-circuit current for
Ue=500V IEC 61439-1 3.8.10.4 120 kA
Electric current / temperature
Rating current 40°C 250 A
Rating current 45°C 237.5 A
Rating current 50°C 225 A
Rating current 55°C 212.5 A
Rating current 60°C 200 A
Rating current 65°C 187.5 A
Rating current 70°C 175 A
Fuse
Fuse Size NH1
Dimensions
Depth of installed product 190 mm
Height of installed product 671 mm
Length 671 mm
Width of installed product 100 mm
Width of the busbars 5 / 10 mm
Busbar distance 185 mm
Power
Total power loss under IN 27 W
Loss power at full load 96 W
Maximum Power loss of the Fuse-Link
installed in device 23 W
Dissipated energy in cable 50.44 W
Endurance
Electric endurance in number of cycles 200
Number of mechanical operations 1400
Total service life (mechanical and electrical
endurance) IEC 60947-3 Table 4 1600
Materials
Copper weight of the product 1699 g
Silver weight of the product 2.18 g
Material Plastic/metal
Installation, mounting
Tightening torque 32Nm
Torque at mounting on busbar 32 Nm
Connection
Connection cross-sect. flexible conductor 35 - 300mm²
Connection cross-sect. rigid cable 35 - 300mm²
Subject to technical modifications
Type of connection Screw connection
Standards
Rated duties according to IEC 60947-1 4.3.4 Continuous operation
Operation of switching devices according to
IEC 60947-1 2.4
depending manual operation (of a mechanical
switching device)
Utilisation category for Ue=400V AC
according to IEC 60947-3 Table 5 AC-23B
Utilisation category for Ue=500V AC
according to IEC 60947-3 Table 5 AC-22B
Utilisation category for Ue=690V AC
according to IEC 60947-3 Table 5 AC-21B
European directive WEEE concerned
Standard cross section according to IEC
60947-1 Tables 9 and 10 120 mm²
Safety
Protection index IP IP2X
Halogen free Yes
Use conditions
Operating temperature -25…55 °C
Degree of pollution according to IEC 60664 /
IEC 60947-2 3
Storage/transport temperature -40…70 °C
Subject to technical modifications
