NETWORK VIDEO RECORDER

Quick Guide

QRN-420S/QRN-820S/QRN-1620S

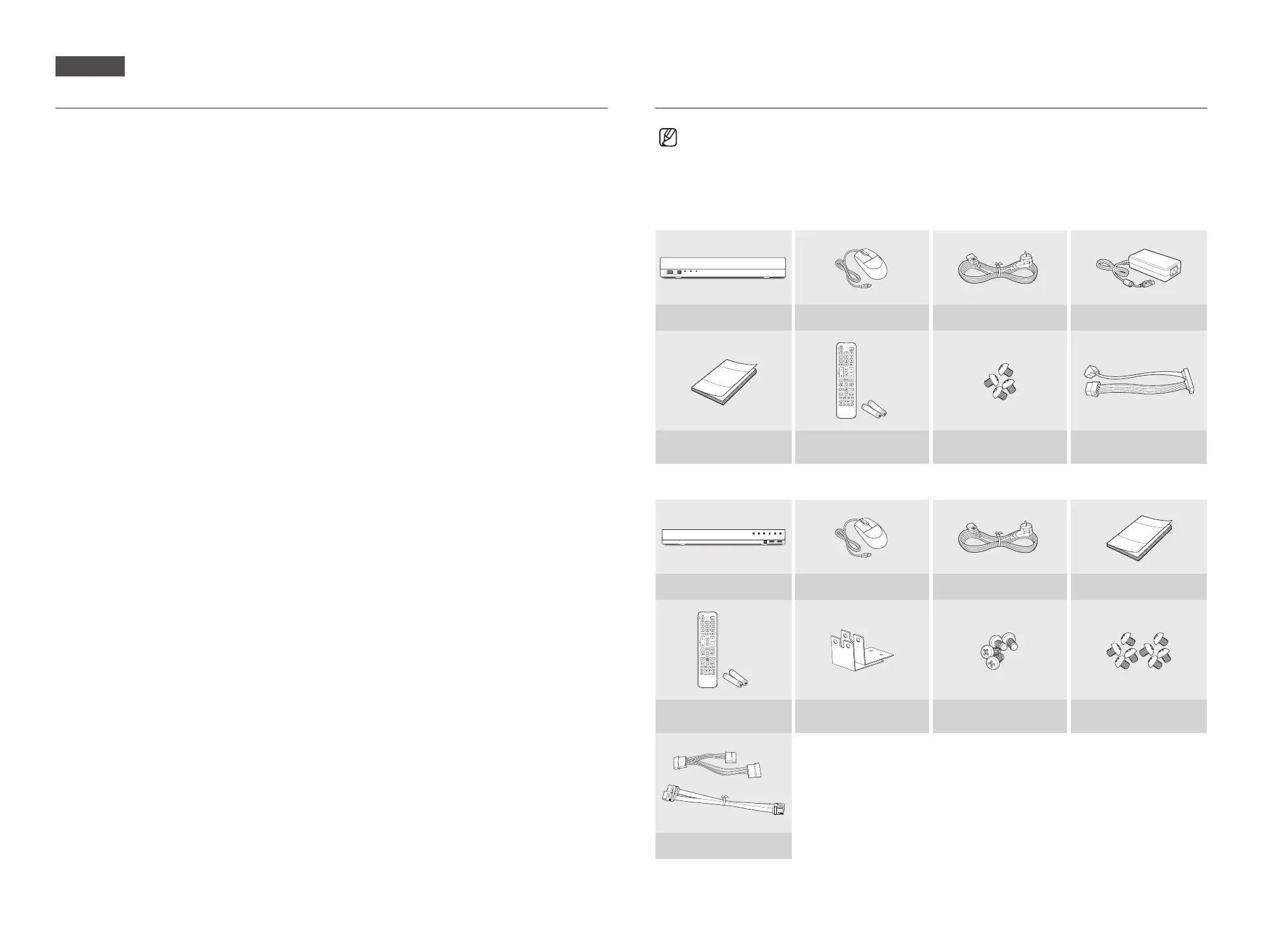

Package Contents

` The actual parts may differ from the images.

` Accessories and quantities may vary by sales region.

` For some regions, HDD is not pre-installed. The quantities of HDD fixing screws and SATA cable vary depending on the number of

fixed HDD.

QRN-420S/QRN-820S

USB

REC

LAN POWER

NVR Mouse Power Cord Power Adapter

Quick Guide

Remote Control /

Remote Control Battery (AAA)

HDD Fixing Screw

(For models having no installed HDD)

SATA Cable

(For models having no installed HDD)

QRN-1620S

REC HDD ALARM NETWORK BACKUP POWER

NVR Mouse Power Cord Quick Guide

Remote Control /

Remote Control Battery (AAA)

Bracket Racks Bracket Fixing Screw HDD Fixing Screw (8 EA)

SATA Cable

English

Features

The product records video and audio from cameras to a hard disk, and enables playback from the hard disk.

It also provides remote monitoring environment for video and audio over the network using a remote computer.

• User-friendly UI

• Supports a range of 4K camera resolutions

• Outputs a 4K high definition image using HDMI

• Record and play video

• Record and play audio

• Supports ONVIF Profile S standard and RTP / RTSP protocols

• Display the HDD operation status by HDD SMART

• HDD overwrite enabled

• Backup using USB protocols and external HDD

• Simultaneous play of 4, 8 channels

• Various Search Modes (Time, Event, Smart, Text, Backup, ARB)

• Supports ARB (configuration feature for saving period by channel)

• Various Recording Modes (Normal, Event, Scheduled Recording)

• Alarm Input / Output

• Remote Monitoring function by Windows Network Viewer

• Live monitoring of the network camera

• Installation Wizard Function (Easy Setup, Quick Setup)

• Supports the smartphone remote monitoring feature by P2P support

• Provides smartphone event alarm (sending real-time event messages)

IMPORTANT

• Please check ‘Manuals’ from our website, before connecting to the Supply,

https://www.hanwha-security.com/en/data-center/download-data/video-recorder/

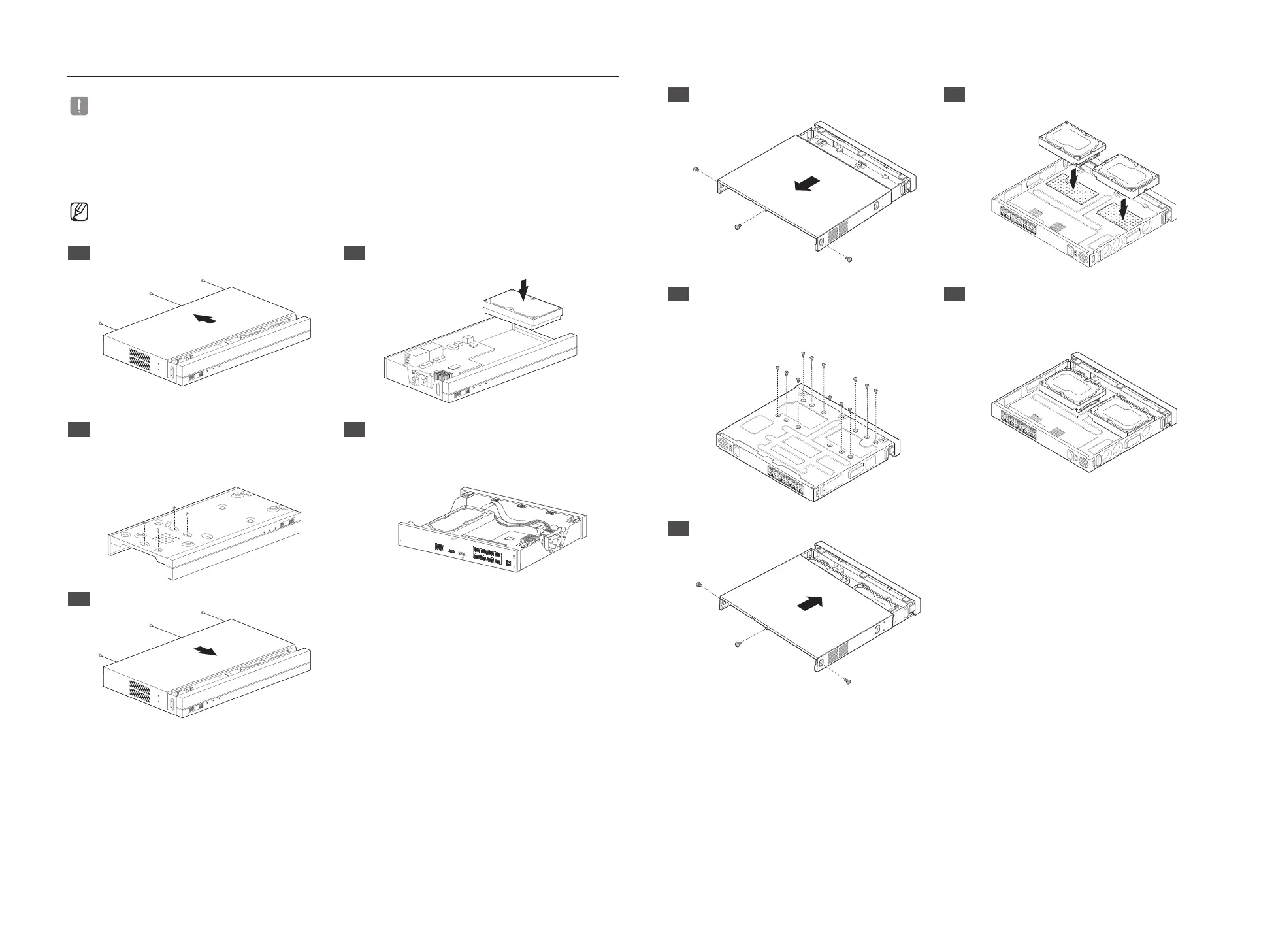

HDD Installation

` If you are adding a new or previously used HDD to this product in addition to the HDD(s) originally installed, format the new HDD

manually in the set before use.

To learn how to format, see "Device/Format" in the Wisenet Recorder User Manual.

QRN-420S/QRN-820S

` The images below are based on the QRN-820S model.

1 After unscrewing, push back and remove the cover. 2 Connect the SATA/power cables of the HDD to the

connectors on the mainboard.

USB

REC

LAN POWER

USB

REC

LAN POWER

3 Using the screws, fix the HDD to the bottom of the

set.

4 Check for any problems in the connection terminal

and the wiring in the product, close the cover and fix

it with screws.

` Be careful not to damage the cables when you close the cover.

USB

REC

LAN POWER

PoE CAMERA

VIEWER

USB

DC 54V

HDMI

5 Close the cover, and tighten a setscrew in the back.

USB

REC

LAN POWER

QRN-1620S

1 After unscrewing, push back and remove the cover. 2 Connect the SATA/power cables of the HDD to the

connectors on the mainboard.

3 Using the screws, fix the HDD to the bottom of the

set.

4 Check for any problems in the connection terminal

and the wiring in the product, close the cover and fix

it with screws.

` Be careful not to damage the cables when you close the cover.

5 Close the cover, and tighten a setscrew in the back.
