NETWORK VIDEO RECORDER

Quick Manual

XRN-2010/2011/2010A/2011A

XRN-3010/3010A

XRN-1610/1610S/1610A/1610SA

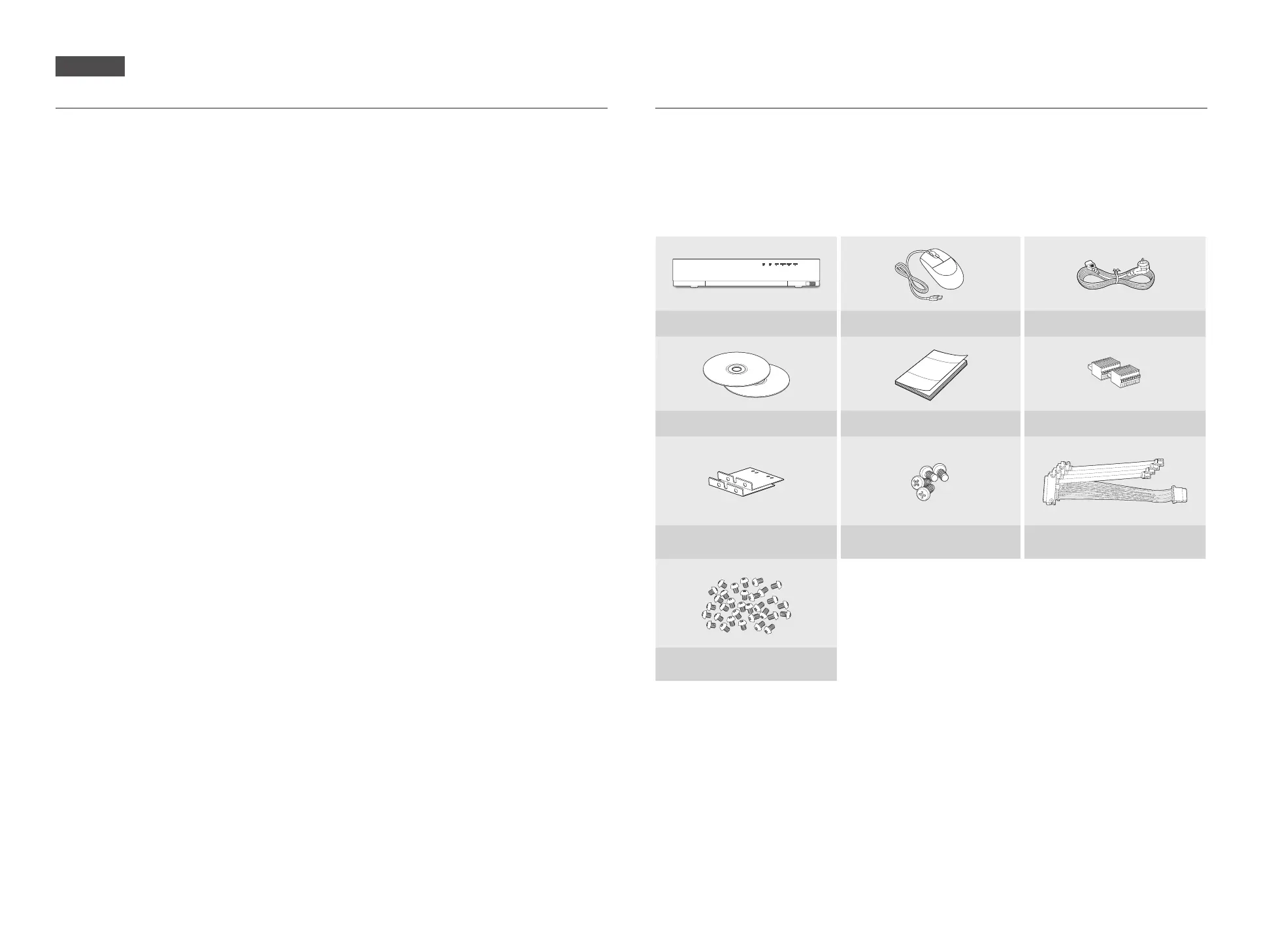

Package Contents

` The appearance of the components may differ from the image shown.

` Accessory category and quantity may differ depending on sales region.

` For some regions, HDD is not pre-installed. HDD Fixing Screw, SATA Power Cable, SATA data cable and SATA power/data cable

quantity vary depending on the model.

XRN-2010/2011/2010A/2011A/3010/3010A

USB

NETWORK VIDEO RECORDER

NVR Mouse Power Cable

Network Viewer Software /

User Manual CD

User Manual or Quick Manual Terminal block

Bracket Rack Bracket Fixing Screw

HDD SATA/Power cable

(N/A on XRN-2011/2011A)

HDD Fixing Screw

(N/A on XRN-2011/2011A)

Features

The product records video and audio from network cameras to a hard disk, and enables playback from the hard disk.

It also provides remote monitoring environment for video and audio over the network using a remote computer.

• User-friendly UI

• Supports a range of 4K camera resolutions (3840X2160, 4096X2160, 4000X3000)

• Outputs a 4K high definition image using HDMI

• Record and play video

• Record and play audio

• Supports ONVIF Profile S standard and RTP / RTSP protocols

• Display the HDD operation status by HDD SMART

• HDD overwrite enabled

• Backup using USB 2.0, 3.0 protocols and external HDD

• Simultaneous play of 16 channels

• Various Search Modes (Time, Event, Smart, Text, Backup, ARB)

• Various Recording Modes (Normal, Event, Scheduled Recording)

• Alarm Input / Output

• Remote Monitoring function by Windows Network Viewer

• Live monitoring of the network camera

• Installation Wizard Function (Easy Setup, Quick Setup)

• Supports the smartphone remote monitoring feature by P2P support (XRN-2010A/2011A/3010A/1610A/1610SA)

English

XRN-1610/1610S/1610A/1610SA

USB

NETWORK VIDEO RECORDER

NVR Mouse

Power Cable Terminal block

Remote Control /

Remote Control Battery (AAA)

Network Viewer Software /

User Manual CD

User Manual or Quick Manual Bracket Rack

HDD Fixing Screw Bracket Fixing Screw

HDD SATA/Power cable (XRN-1610/1610A)

SATA Power Cable (XRN-1610S/1610SA) SATA Data Cable (XRN-1610S/1610SA)

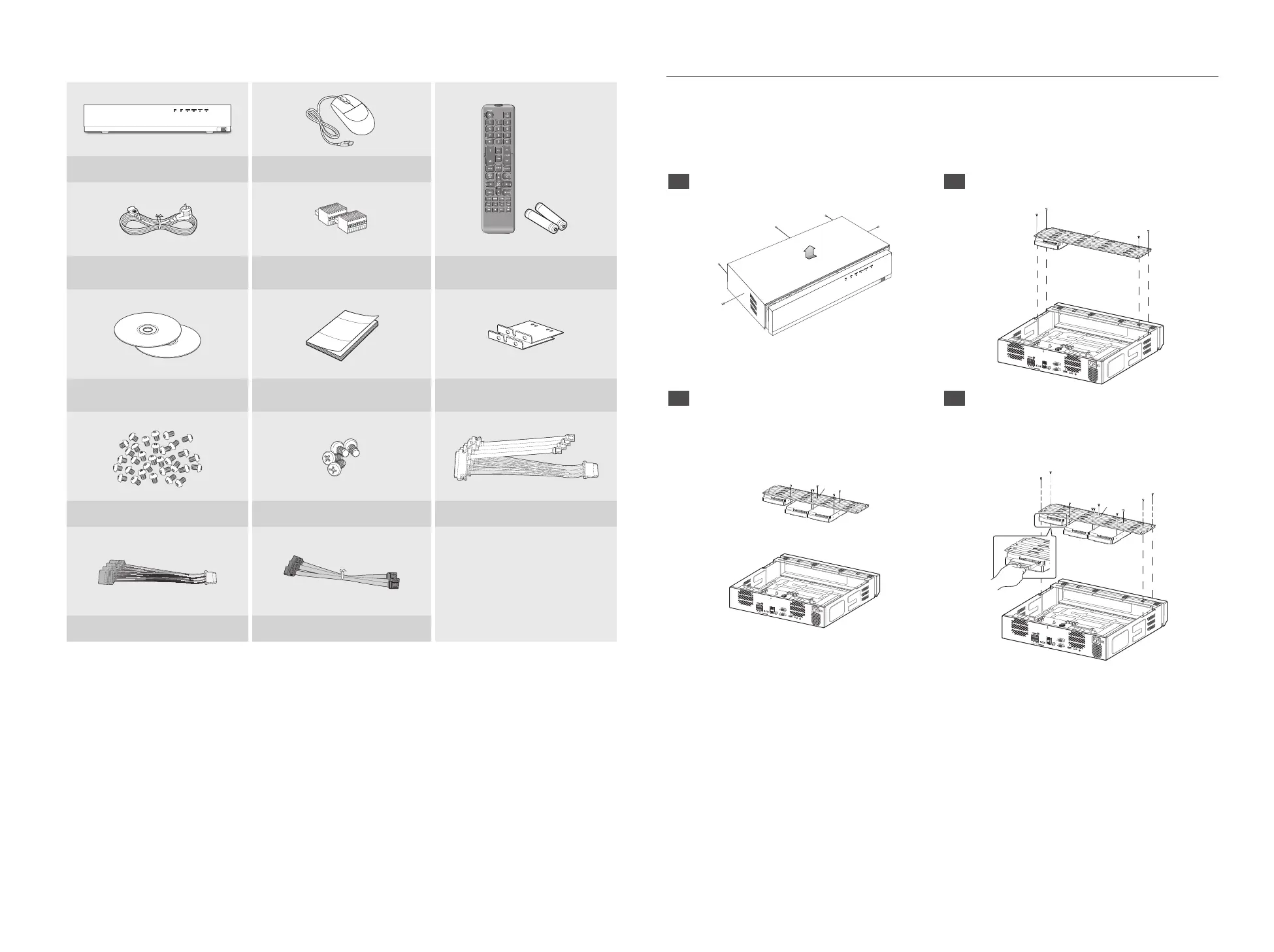

HDD Installation

` If you are adding a new or previously used HDD to this product in addition to the HDD(s) originally installed, format the new

HDD manually in the set before use.

To learn how to format, see “Device/Format” in the Wisenet NVR User Manual.

XRN-2010/2010A/3010/3010A/1610/1610A/1610S/1610SA

1 Remove the screws located on the left/right side

and on the back side first, then remove the cover.

2 Remove the screws on the left/right side (4 screws)

and remove the bracket.

USB

HDMI USB

eSATA

VGA OUT

RS-232C

AUDIO OUT

NETWORK 2

NETWORK 1

CONSOLE

1 23 45 67 8

COM COM COMCOM

NCNO NO NO

1 2 3 4

ALARM IN

ALARM OUT

ALARM

RESET

Bracket

3 Mount HDDs to the bracket and fix it with screws. 4 Connect the cable to the HDD by matching the HDD

SATA/power cable number to the HDD position

number on the bracket.

` For the HDD location number on the bracket, please refer to

the figure below.

HDMI USB

eSATA

VGA OUT

RS-232C

AUDIO OUT

NETWORK 2

NETWORK 1

CONSOLE

1 23 45 67 8

COM COMCOM COM

NCNO NO NO

1 2 3 4

ALARM IN

ALARM OUT

ALARM

RESET

Bracket

HDMI USB

eSATA

VGA OUT

RS-232C

AUDIO OUT

NETWORK 2

NETWORK 1

CONSOLE

1 23 45 67 8

COM COM COMCOM

NCNO NO NO

1 2 3 4

ALARM IN

ALARM OUT

ALARM

RESET

Bracket
