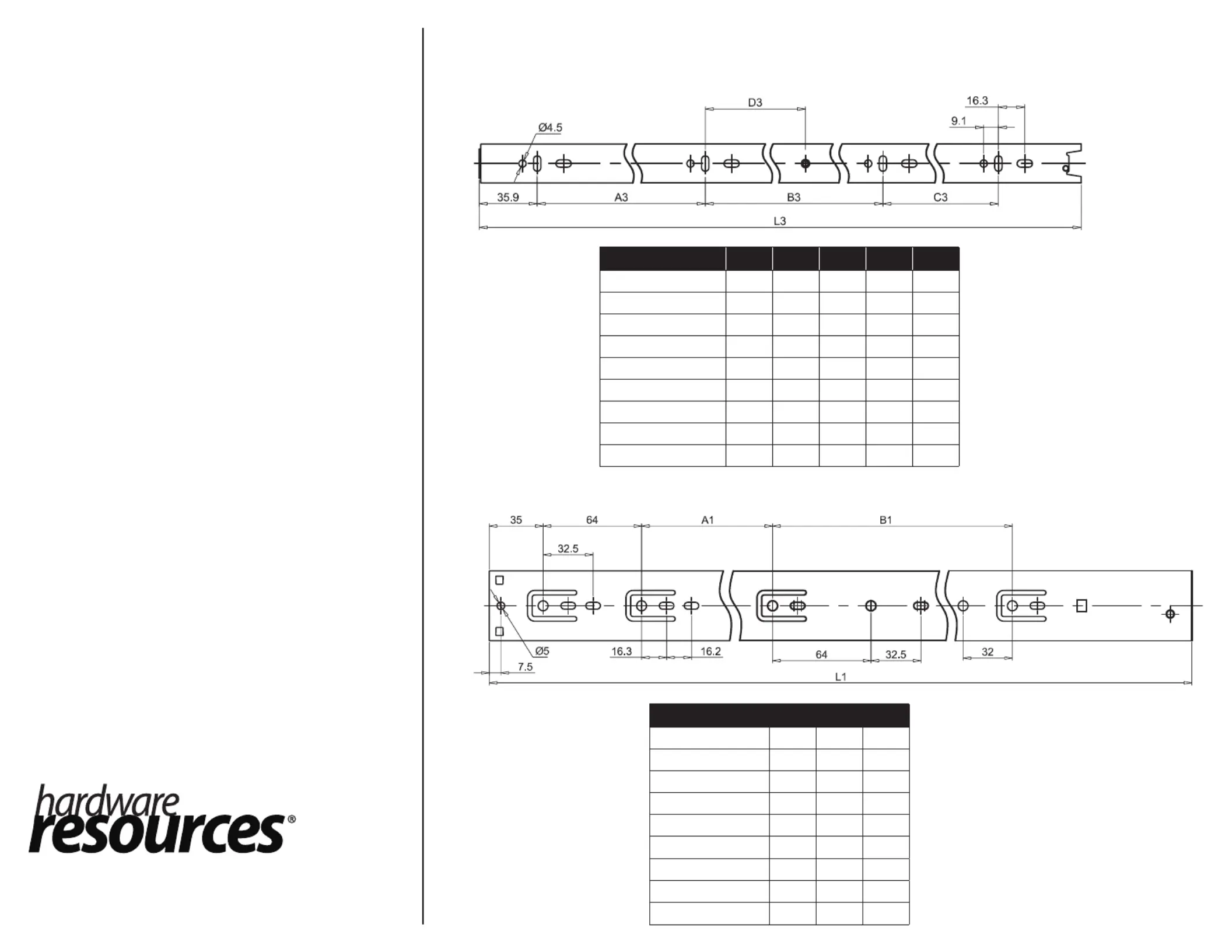

Hole Pattern and Length Specications

DRAWER MEMBER

CABINET MEMBER

SpecificationsL3A3B3C3D3

303FUSFT12 -12”29896128-88

303FUSFT14 - 14”348128128-75

303FUSFT16 - 16”398128192-106

303FUSFT18 - 18”448160192-94

303FUSFT20 - 20”498192224-87

303FUSFT22 - 22”548224224-85

303FUSFT24 - 24”598192320-142

303FUSFT26 - 26”648192224160167

303FUSFT28 - 28”698192256160227

SpecificationsL1A1B1

303FUSFT12 -12”30094-

303FUSFT14 - 14”350128-

303FUSFT16 - 16”400160-

303FUSFT18 - 18”450224-

303FUSFT20 - 20”500256-

303FUSFT22 - 22”550288-

303FUSFT24 - 24”600352-

303FUSFT26 - 26”650206224

303FUSFT28 - 28”700256224

1. Cabinet Member Instructions:

Press release clip to disconnect drawer

member from cabinet member.

Align cabinet member (using level if

necessary) and place edge ush with

the edge of the cabinet. Attach to

cabinet using 3 #8 x 7/16” screws. 5

screws can be used for supporting

heavy loads.

2. Drawer Member Installation:

Place front edge of each member

against the rear face of the drawer

front. Screw member with 3 #8 x 7/16”

screws.

3. Drawer Installation:

Align drawer members with cabinet

members and slide into cabinet. When

fully closed, the drawer slide release

clip will lock into place.

• Note:

Face Frame Bracket is optional and

can be used if drawer guide is not

supported in the bottom of the corner

of the cabinet opening.

Installation Instructions

303FUSFT Series

Heavy Duty Slides

Bossier City, LA

www.HardwareResources.com

800.463.0660
