Bottom Measurements
NOTE: Illustrations for measurement only.
1.25”
2.5”
14.6”
2”
Rear Bracket Measurements
1-3/16”
11/32”
15/16”
1-3/4”
1-5/32”
IMPORTANT:
Before you begin, make sure you familiarize yourself with all the
parts and fully read the instructions.
CUSTOMER SERVICE:
Toll-free customer help line available weekdays between
7:00am and 6:00pm Central Time at 800-463-0660.
TOOLS NECESSARY:
Screw gun or Phillips screwdriver and tape measure. NOTE: If
screw gun has a clutch, set to lowest setting so as not to over
tighten and/or strip screws.
PARTS IDENTIFICATION:
AMounting Base1 pcs
BBase Pullout Unit1 pcs
C4” x 6” Stainless Steel Canister4 pcs
D#10 x 3/4” Pan Head Wood Screw4 pcs
E#8 x 5/8” Pan Head Wood Screw4 pcs
F#8 x 5/8” Flat Head Wood Screw4 pcs

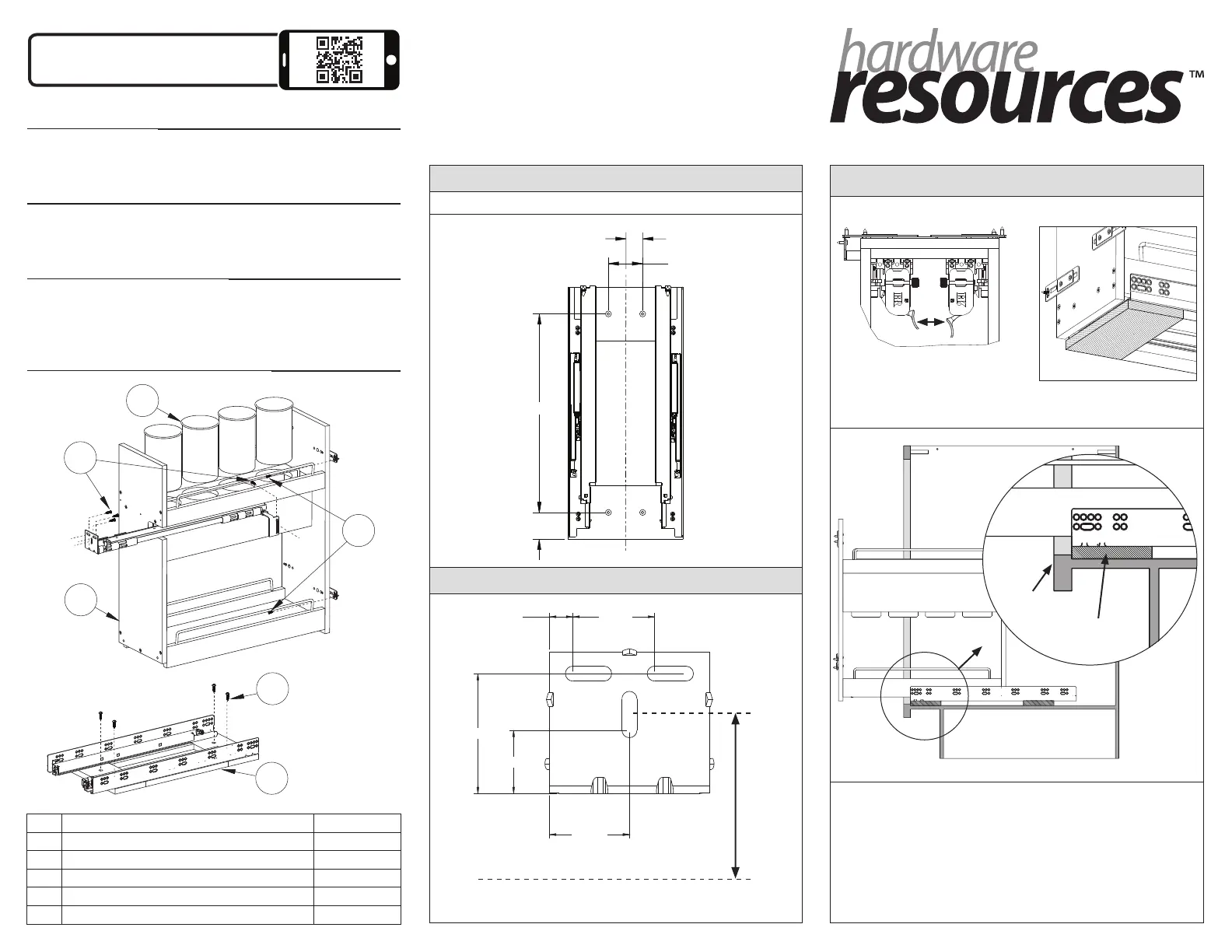

Utensil Bin Base Pullout
Installation Instructions
for the UBPO Series
A
E
D
F
C
B
Scan to watch the installation video
http://delivr.com/265Z6
20-7/8”
Bottom of cabinet
STEP 1 - Install Base
Front plywood runner
Pull out
Face frame
Front plywood
runner
Remove the base from the unit by releasing the slide clips. In
framed cabinets, center the unit in the opening making sure
the front plywood runner is pulled tight against the back of
the face frame. For frameless cabinets, place the unit within
1-1/2” of the left of the cabinet and the front plywood runner
needs to be set back 3/4”. Install with the four (4) #10 x 3/4” Pan
Head Wood Screws provided in the four pre-drilled holes in the
runners. Re-install the unit onto the slides.
