Owner’s Manual

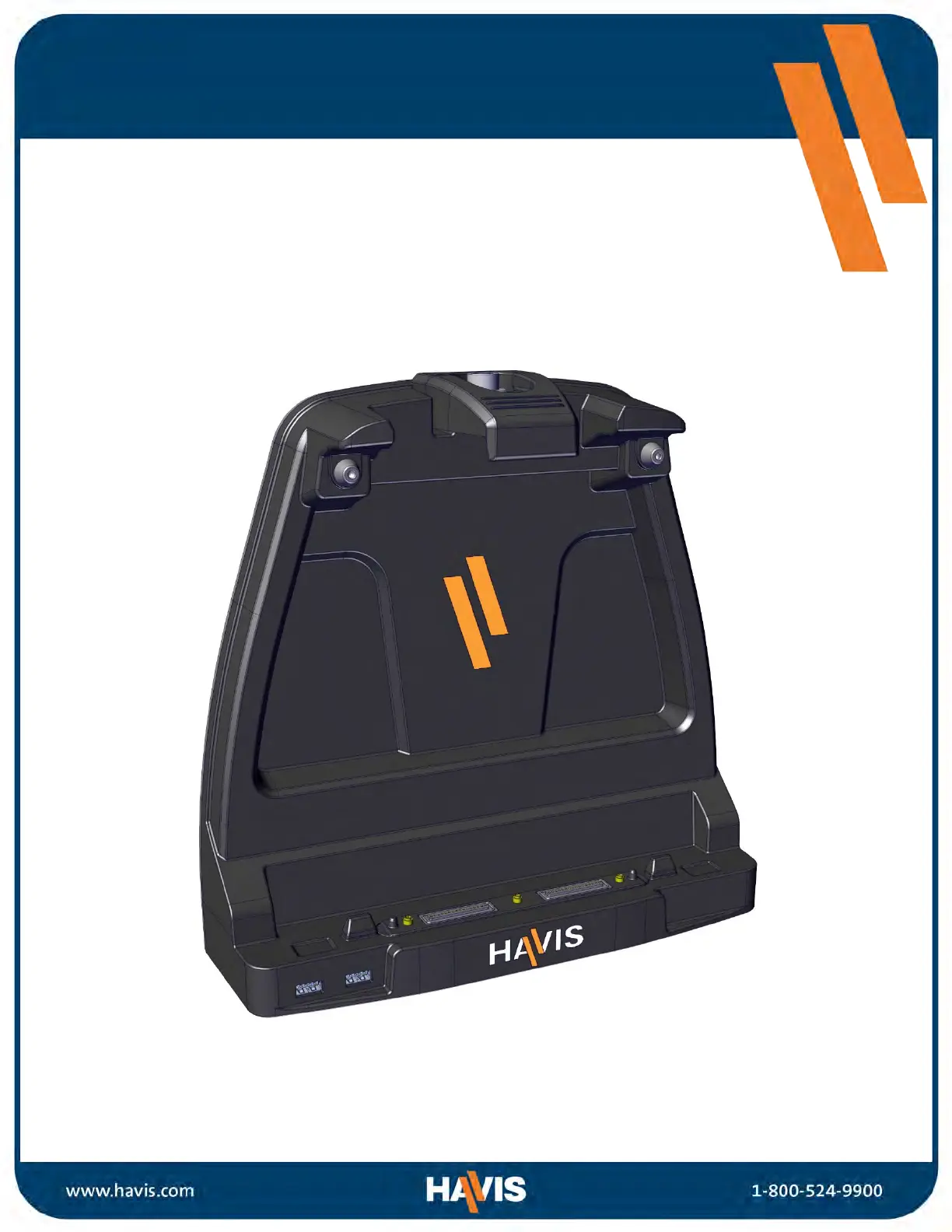

Havis Docking Station

For Getac K120 Tablet

DS-GTC-900 Series

DS-GTC-901

DS-GTC-901-3

DS-GTC-902

DS-GTC-902-3

DS-GTC-903

DS-GTC-903-3

DS-GTC-906

DS-GTC-906-3

DS-GTC-900-SERIES_OMN_10-18

Havis, Inc.

75 Jacksonville Road

Warminster, PA 18974

Before Beginning

Havis is pleased to provide this Owner’s Manual to aid in the proper installation and use of the

DS-GTC-900 Series Docking Station for the Getac K120 Tablet.

For questions regarding the set-up of your DS-GTC-900 Series Docking Station,

please contact Havis at 1-800-524-9900 or visit www.havis.com for additional product support and information.

This Owner’s Manual applies to the following Part Numbers:

DS-GTC-901

DS-GTC-901-3

DS-GTC-902

DS-GTC-902-3

DS-GTC-903

DS-GTC-903-3

DS-GTC-906

DS-GTC-906-3

• CUSTOMERS USING HAVIS K120 DOCKING STATIONS WITH PORT REPLICATION:

DO NOT CONNECT A SECOND POWER SOURCE DIRECTLY TO THE POWER INPUT JACK OF A DOCKED COMPUTER AS

THIS MAY CAUSE DAMAGE TO THE COMPUTER OR POWER SOURCES.

• NEVER STOW OR MOUNT THE DOCKING STATION DIRECTLY IN A VEHICLE AIRBAG DEPLOYMENT ZONE.

• DO NOT USE COMPUTER WHILE DRIVING.

• READ A

LL INSTRUCTIONS THOROUGHLY BEFORE BEGINNING INSTALLATION.

• DO NOT STORE, INSTALL, OR OPERATE THE DOCKING STATION WHERE WATER, MOISTURE, STEAM, DUST, ETC.

ARE PRESENT

• DO NOT

DOCK OR UNDOCK YOUR COMPUTER UNLESS IT IS POWERED OFF. DOCKING OR UNDOCKING WITH YOUR

COMPUTER IN ON, STANDBY, HIBERNATION, OR SLEEP MODES CAN CAUSE PERMANENT DAMAGE.

• FOR T

HE DS-GTC-901, DS-GTC-901-3, DS-GTC-902, & DS-GTC-902-3 DOCKING STATIONS: DO NOT CONNECT

DIRECTLY TO VEHICLE VOLTAGE SOURCE: This product requires a certified, automotive grade, Getac approved

120W power source rated for a continuous, regulated 19VDC output (Havis Part Number LPS-140 or equivalent).

Failure to comply with this requirement will cause product damage that is NOT repairable and is NOT covered

under warranty.

• FOR THE DS-GTC-903, DS-GTC-903-3, DS-GTC-906 & DS-GTC-906-3 DOCKING STATIONS: DO NOT CONNECT

DIRECTLY TO VEHICLE VOLTAGE SOURCE: The Getac K120 Tablet requires a certified, Getac approved power source

rated for a continuous, regulated 19VDC output. Failure to comply with this requirement will cause product

damage that is NOT repairable and is NOT covered under warranty.

• FOR D

OCKING STATION MODELS EQUIPPED WITH A BUNDLED POWER SUPPLY (DS-GTC-902, DS-GTC-902-3, DS-

GTC-906, & DS-GTC-906-3) REFER TO THE SUPPLIED GETAC POWER SUPPLY REFERENCE GUIDE.

• WHEN TABLET IS DOCKED, THE BATTERY WILL ONLY CHARGE BETWEEN 2°C to 50°C (35°F to 122°F).

PLEASE REFER TO GETAC K120 TABLET OWNER’S MANUAL FOR MORE INFORMATION.

Precautions

• Do not place metal objects or containers of liquid on top of the Docking Station

• If a

malfunction occurs, immediately unplug the Power Supply and remove the laptop

• Use o

nly the specified Power Supply (Part # LPS-140) with this Docking Station

• Do n

ot connect cables into ports other than what they are specified for

• Do n

ot leave the Docking Station in a high temperature environment (greater than 85°C, 185°F) for a long period of

time

Specifications

Power Supply Input External Power Supply

LPS-140 DC-DC

INPUT

11-32 V DC-In

OUTPUT

19V DC

Dimensions 11.4” (28.9 cm) H x 11.9” (30.2 cm) W x 3.7” (9.4 cm) D

Weight 3.72 lbs. (1.69 kg)

Operating Environment -21° C to 60° C (-6° F to 140° F)

Storage Environment -51° C to 71° C (-60° F to 160° F)

EC DECLARATION OF CONFORMITY in accordance with EN 50498

Manufacturers Name: Havis, Inc.

Manufacturers Address: 75 Jacksonville Road, Warminster, PA 18974 USA

Declares under our sole responsibility that the product:

Product name: Havis Docking Station For Getac K120 Tablet Only

Model: DS-GTC-90X, where ‘X’ may be any alphanumeric character and which describes product options.

May be followed by any alphanumeric characters which describe product options.

Product Options: This declaration covers all options of the above product which bear the CE Marking.

Is in conformity with the following standards or other normative documents:

Automotive EMC Directive EN 50498:2010, Electromagnetic compatibility (EMC) -

2004/108/EC: Product family standard for aftermarket electronic equipment in vehicles

Directive 2011/65/EU Restriction of the use of certain hazardous substances (RoHS)

Supplementary Information:

The product herewith complies with the requirements of the Automotive EMC Directive 2004/108/EC, Annex I, 6.5, 6.6, 6.8, and 6.9. This product requires the

use of a recommended e-Marked automotive power supply when used within vehicles.

Warminster, PA, USA September 20, 2018 Bruce Jonik, Director of Engineering , Havis, Inc.

FCC 47CFR, Part 15 compliance: This is an FCC Class B device. Any changes or modifications to the model DS-GTC-90X not expressly

approved by Havis, Inc. could void the user's authority to operate this equipment.
