1. INTRODUCTION

Heatit ZM Dimmer is an inwall dimmer for installation in

European electrical wall boxes. The dimmer enables the user

to control light sources from the Z-Wave network and/or an

external switch.

The Heatit ZM Dimmer works on most low loads of both

LEDs and other light ﬁxtures without causing ﬂickering. When

connecting low loads it is recommended to use a bypass.

The dimmer may be connected to two external switches

that can be used to control the lights, associated devices and

scenes.

Heatit ZM Dimmer has active power metering and it gives you

real time information about your power consumption.

NB! DIMMING

Dimming may be challenging, and we recommend checking

the compatibility of dierent light sources before installation.

We are happy to answer any questions.

2. STATEMENT REGARDING PRODUCTS FROM MULTIPLE

MANUFACTURERS

Please read this before installation

This device may be used with all devices certiﬁed with the

Z-Wave Plus™ certiﬁcate and should be compatible with

such devices produced by any manufacturer. Every primary

controller is dierent depending on the manufacturer, their

target audience and intended use/application. Please review

the functionalities implemented by the primary controller you

intend to use with our Z-Wave Plus certiﬁed device to ensure

that it provides the necessary controls to take full advantage of

our product’s capabilities.

3. BEHAVIOUR WITHIN THE Z-WAVE NETWORK

This device may be operated within any Z-Wave™ network

with Z-Wave-certiﬁed devices from other manufacturers. All

non-battery-operated nodes within the network will act as

repeaters regardless of manufacturer to increase the reliability

of the network. On delivery, the device does not belong to any

Z-Wave network. The device needs to be added to an existing

network to communicate with the other devices within it.

Devices may also be removed from a network. The add/

remove processes are initiated by the primary controller of the

Z-Wave network.

TABLE OF CONTENTS

1. Introduction

2. Statement regarding products from multiple

manufacturers

3. Behaviour within the Z-Wave network

4. Quick start

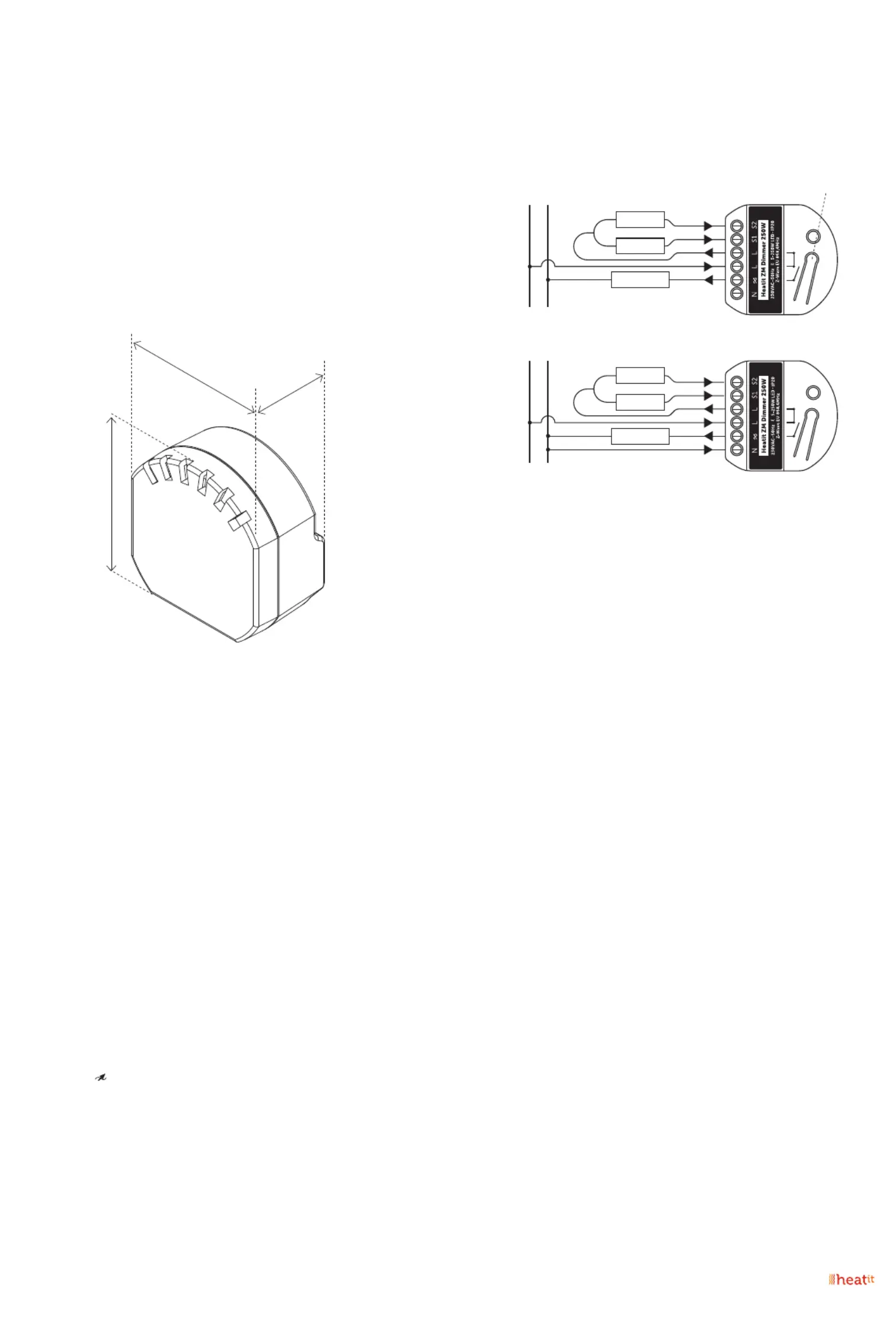

5. Illustrations

6. Installation guidelines

7. External switch

8. Add/remove

8.1 Standard (Manual)

8.2 SmartStart (Automatic)

9. Factory reset

10. Startup

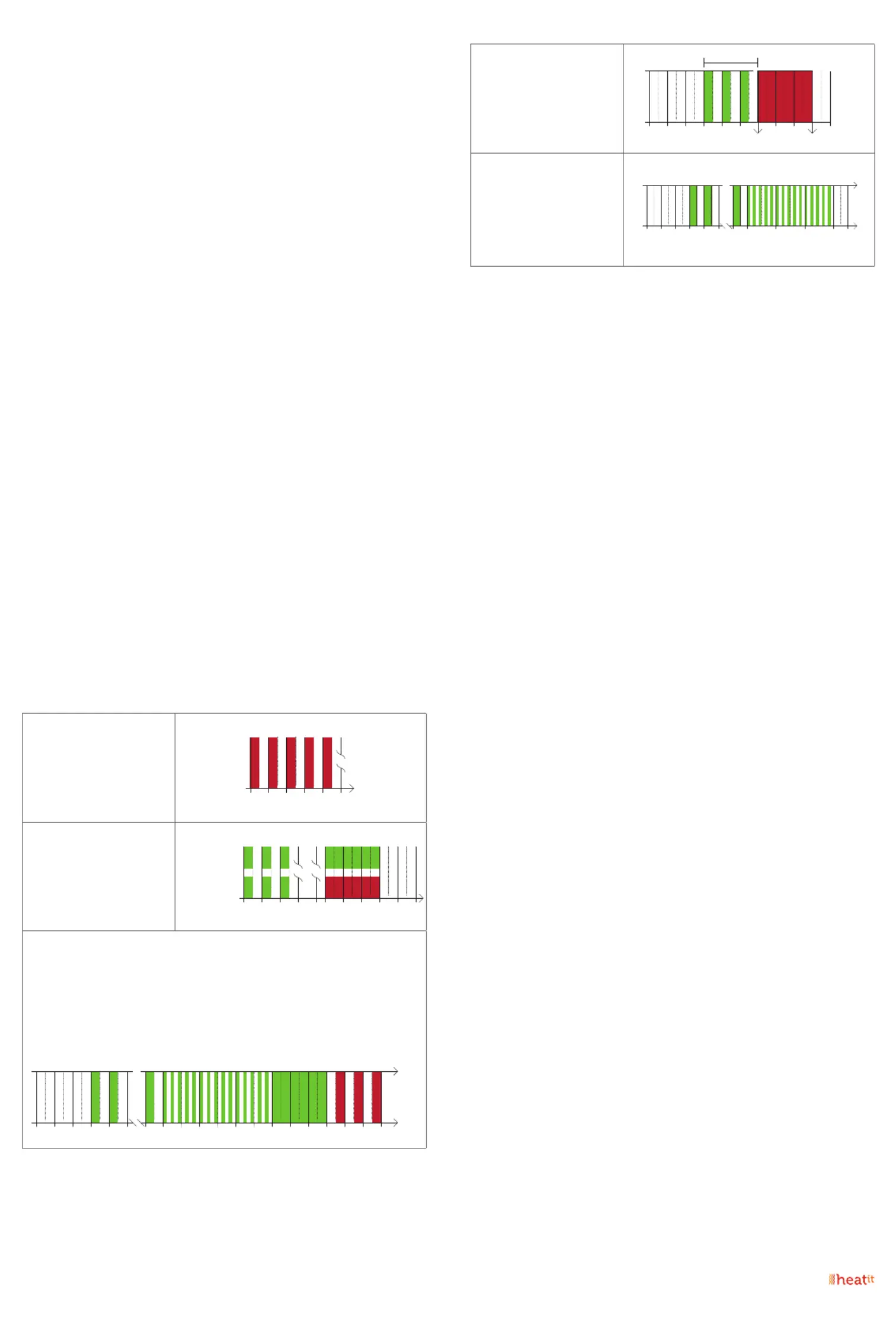

11. LED blinking patterns description

12. QR-code placement (DSK)

13. Security

14. Node Information Frame

15. Associations

15.1 Setting and removing associations

16. Association groups

17. Conﬁguration parameters

18. Autocalibration of maximum dim level

19. Manual calibration of minimum dim level

20. ON/OFF functionality

21. Overload protection

22. Command Classes

22.1 Basic Command Class

22.2 Multilevel Switch Command Class

22.3 Meter Command Class

22.4 Indicator Command Class

22.5 Central Scene Command Class

22.6 Notiﬁcation Command Class

23. Supported Command Classes

Product info

HEATIT ZM

DIMMER

Installers manual

Firmware version Document version

FW 1.0 2023-B

Article no. Document date

14 444 49

01.06.2023

Org. doc. date 01.02.2023
