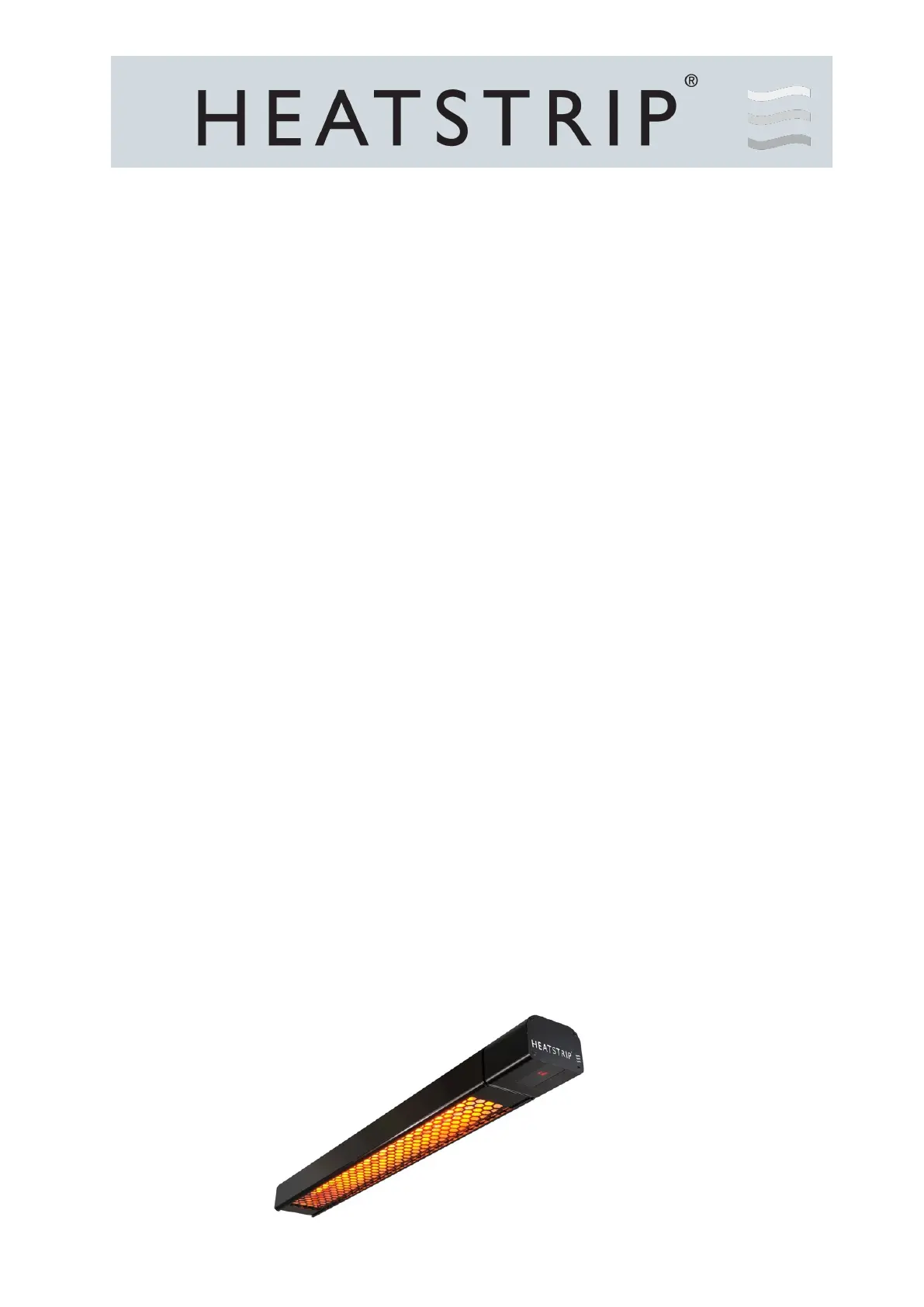

Sida 1/18
Intense with Remote & App Control
(THB-BA)
Product Manual
Ph: 03 9562 3455 | E: sales@thermofilm.com.au
HEATSTRIP® Intense with Remote & App Control
www.heatstrip.com.au
March 2023 Revision 3
Innovative, High Performance Electric Heating Technology
Features & Benefits
High Output radiant heat
HEATSTRIP
®
Intense with remote & app control electric radiant heaters produce radiant heat that travels through the air
directly to people and surfaces below – similar to the heat rays emitted by the Sun. Radiant heating is the only viable option for
outdoor or tough indoor sites.
Maximum heat performance – multiple applications
The high temperature output of the HEATSTRIP
®
Intense with remote & app control is perfect for exposed outdoor sites, high
ceilings and hard-to-heat indoor and outdoor applications.
Suitable for permanent outdoor mounting, no protection needed.
For outdoor applications, the HEATSTRIP
®
Intense with remote & app control is suitable for both permanently exposed (eg.
courtyards and patios) and undercover installations - does not need to be fully protected from the elements.
Corrosion protection
Built from corrosion resistant alloy, it is suitable for use in most applications, including difficult corrosive environments such as
coastal areas.
Multi-Purpose Mounting Options
The HEATSTRIP
®
Intense with remote & app control is supplied with flexible mounting options. The standard bracket will allow
both ceiling and wall mounting, at various angles, as well as suspension by chains/wires and metal rods.
DIY
The THB2200BA is supplied with a lead and plug, and is therefore ideal for DIY installations with brackets included.
The THB3200BA must be installed by a licensed electrician.
Element
Carbon filament infra-red heating element provides high performance instant heat.
Warranty
2–year residential and 1-year commercial warranty.
Material & Design
Anodised alloy casing and end caps with a powder coat hexagon grille.
MODEL
POWER
(WATTS)
CURRENT
(AMPS)
DIMENSIONS
(mm)
WEIGHT
(Kg)
LEAD
LENGTH
(mm)
PLUG COLOUR
THB2200BA 2200 9.2 900 x 122 x 90 6 1000 YES Black
THB3200BA 3200 13.3 1040 x 122 x 90 7 1000 NO Black
Specifications - Australia
MODEL
HEATER TYPE High intensity electric radiant, infra-red overheat heater with carbon filament
element.
OUTPUT 2200 watts or 3200 watts
POWER 230-240 Volts Nominal at 50—60 Hertz, Single Phase
CONNECTION 3 Core Cable 2.5mm
2
APPROVALS AUSTRALIA / NZ / EU
MOUNTING HEIGHT MINIMUM
RECOMMENDED
MAXIMUM
2.1 m
2.3 m - 2.5 m
2.8m Outdoors and 3m Indoors
(For higher ceiling heights, units can be
lowered using optional brackets kits)
MOUNTING OPTIONS
Suitable for ceiling, wall, and beam mounting as well as suspension by chains &
wires using standard brackets. Optional mounting accessories include extension
mount poles and flush ceiling mount kit.
PROTECTION RATING IPX5 Protection from water ingress from all directions
MATERIALS OF CONSTRUCTION Anodised alloy casing and end caps with powder coat grille
(THB2200BA & THB3200BA)
THB2200BA
THB3200BA
