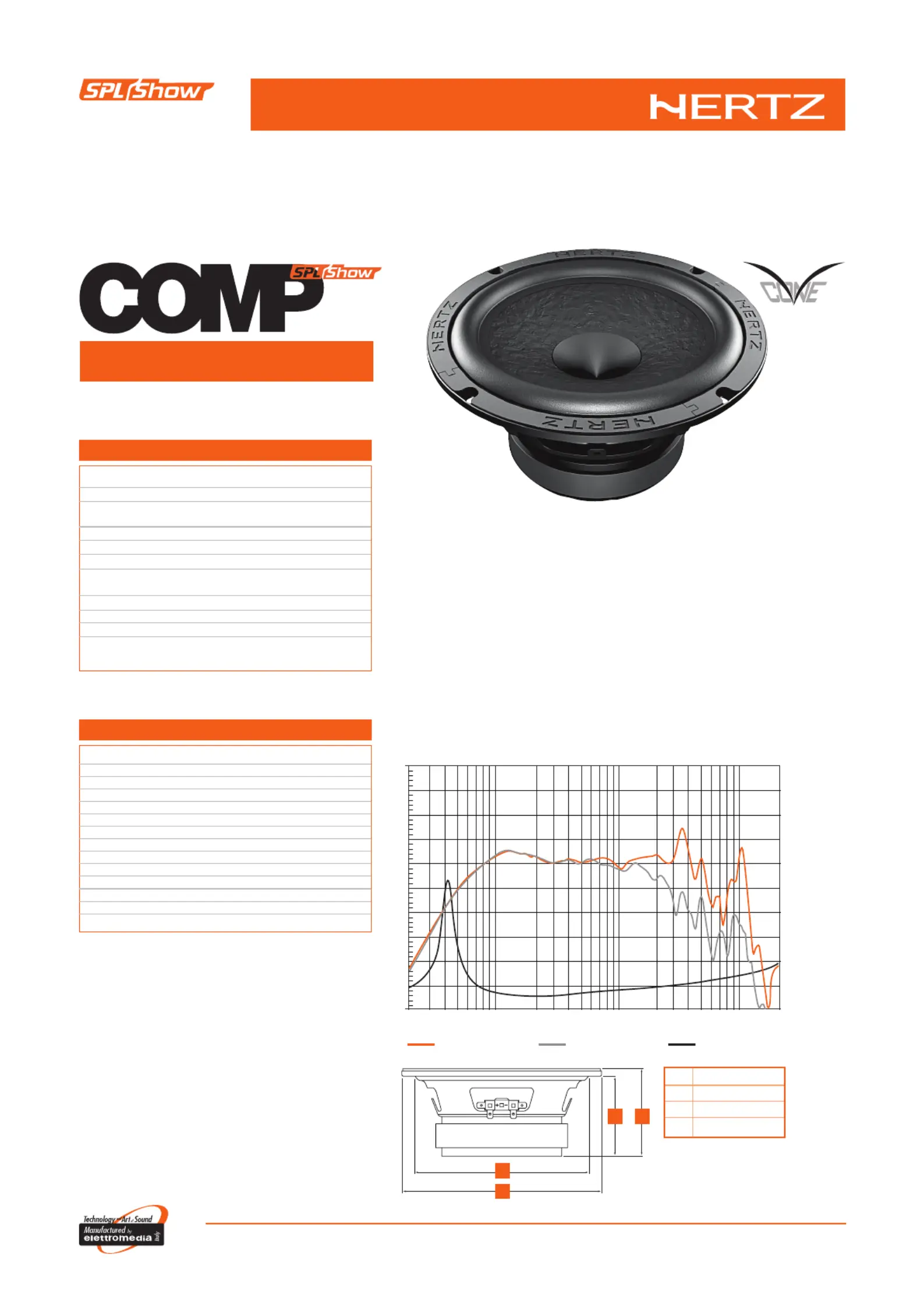

www.hertzaudiovideo.com

Elettromedia - 62018 Potenza Picena (MC) Italy - T +39 0733 870 870 - F +39 0733 870 880 - www.elettromedia.it

All Specications Subject to Change Without Notice_12.B

1. High magnetic permeability plates provide constant, even ux.

2.High density ux ferrite magnet, for top SPL performance.

3.Double layer copper voice coil, wound on KSV former; for excellent

thermal and mechanical capability.

4.Vented bottom plate; improves linearity and thermal dissipation.

5.High current, tin-plated terminals.

6.Pulp cone mixed with cotton bre; for powerful low frequency response.

7.V-cone

®

; for the best off-axis dispersion and mid frequency detail.

8.Lossless polymer rubber surround; for long throw and maximum damping.

SV 200L

500 W

B

D

A

C

A 209 mm (8.3 in.)

B 178 mm (7 in.)

C 91 mm (3.6 in.)

D 82 mm (3.2 in.)

20501002005001k2kHz5k10k20k

60.0

70.0

80.0

90.0

100.0

110.0

dB SPL

0.0

20.0

40.0

60.0

80.0

100.0

Ohm

On-Axis45° Off-AxisImpedance

Technical Specifications

Electro-Acoustic Parameters

Component SPL Woofer

Sizemm (in.) 200 (8)

Power handlingW peak 500

W continuous 250

ImpedanceΩ 4

Freq. responseHz 45 ÷ 4,5k

SensitivitydB/SPL 94,5

Magnet size mm 120 x 60 x 20

D·d·h (in.) (4.7 x 2.4 x 0.8)

Voice coil Ømm (in.) 50 (2)

Magnet High density ux ferrite

Cone Ultra light, non pressed paper

Weight of one

componentkg (lb) 2,32 (5.1)

Dmm 168

Xmaxmm 4,5

ReΩ 3

FsHz 44

LemH @ 1 kHz 0,75

LemH @ 10 kHz 0,08

Vasl 29

Mmsg 31,5

Cmsmm/N 0,42

BLT•m8,6

Qts 0,33

Qes 0,36

Qms 3,32

SpldB 94,5
