HOMEOWNER’S OPERATING MANUAL
Humidifier
69-2414EFS-01
Humidifier
NEED HELP? For assistance with this product please visit Resideo.com
Read and save these instructions.
?
Humidifier 69-2414EFS—01
EVERYDAY
OPERATION
INTRODUCTION SERVICE WARRANTY
CLEANING AND
MAINTENANCE
1
YOUR NEW
HUMIDIFIER
INTRODUCTION
Safety Definitions and Precautions . . . . . . . . . . . . . . .2
Welcome .........................................3
How is the humidifier different from other
flow-through humidifiers? . . . . . . . . . . . . . . . . . . . . .3
How should I get started? . . . . . . . . . . . . . . . . . . . . . .3
How does the humidifier work? . . . . . . . . . . . . . . . . . . .4
YOUR NEW HUMIDIFIER
Which humidifier model do I have? . . . . . . . . . . . . . . . .5
How is my humidifier installed? . . . . . . . . . . . . . . . . . . .6
What humidifier parts do I need to know? . . . . . . . . .7
What should I expect from my humidifier? . . . . . . . .8
EVERYDAY OPERATION
How do I operate the humidifier? . . . . . . . . . . . . . . . . .9
How do I use the humidity control? . . . . . . . . . . . .9
What should my humidity setpoint be? . . . . . . . . .9
What is a frost setting? . . . . . . . . . . . . . . . . . . . . . . . .9
Humidifier lights and button 10 . . . . . . . . . . . . . . . . . . . .
CLEANING AND MAINTENANCE
Replace the humidifier pad 11 . . . . . . . . . . . . . . . . . . . . .
What should I do at the end of the season? 12 . . . . . .
Troubleshooting 13 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
WARRANTY
5Year Limited Warranty 14 . . . . . . . . . . . . . . . . . . . . . . . .
INTRODUCTION
Congratulations on your new humidifier.
The Humidifier provides the comfort of humidified air, with easier maintenance than traditional humidifiers.
We are sure the humidifier will be a welcome addition to your home.
• How is the humidifier different from other flow-through humidifiers?
All Models:
- The humidifier operates automatically, just like a thermostat, to keep your home’s humidity at the desired
level.
- The humidifier is easier to maintain: just change the pad once a year. The pad is easily accessible and
does not require tools to change it.
- The humidifier can deliver humidity when it’s needed, not just when the heat is on. This allows you to
achieve ideal humidity levels in your home year-round.
Advanced Models:
- The humidifier wastes less water than other flow-through humidifiers.
• How should I get started? Your humidifier must be installed by an HVAC professional. If the humidifier has
just been installed, it should either be running and humidifying your home, or waiting for a humidity call
from the humidity control.
Once the humidifier is running, all you have to do is use the humidity control to change the humidity to
your desired comfort.
Welcome!
Please read this manual completely for tips on getting the most out of your humidifier.
Read your humidity control manual and make sure you know how to operate your system.
If you have questions, now or later, please refer to this manual or ask your installer.
Humidifier 69-2414EFS—01 3
INTRODUCTION

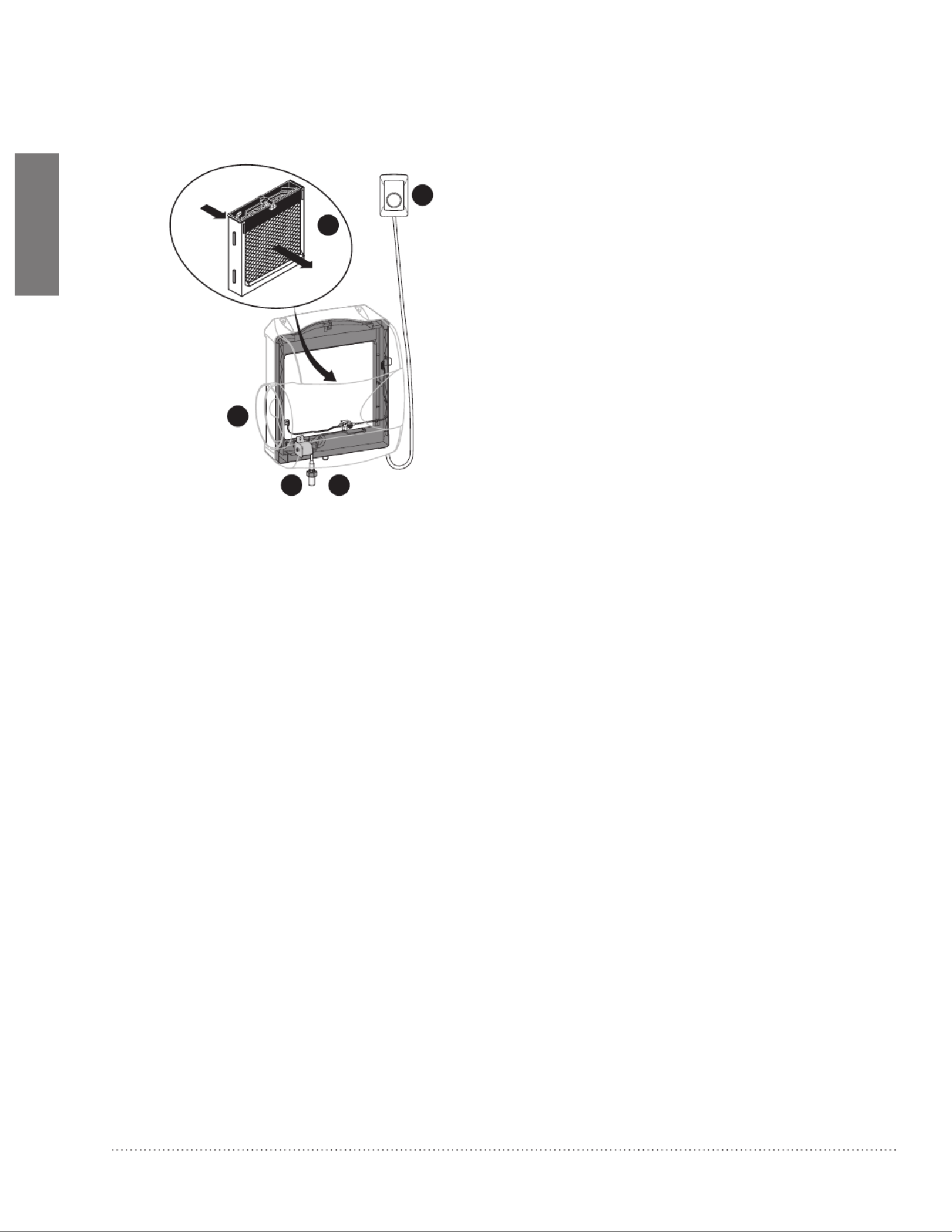

1. A call for humidity comes from the humidity
control provided with the humidifier. The humidity
control is connected to the humidifier with wires.
2. The solenoid turns on, allowing water to run
through the humidifier pad.
3. Air from your HVAC system flows through the pad,
picking up moisture from the humidifier pad.
4. Your HVAC system fan delivers the humidified air
throughout your home.
5. When humidity in your home reaches the setpoint,
the humidity call ends and the solenoid turns off
the water flowing across the pad.
H8908
10
OFF ON
20
30 40
50
60
DRY AIR
HUMIDIFIED
AIR
MCR29923
How does the humidifier work?
1
2
3
4
5
Humidifier 69-2414EFS—01
4
YOUR NEW
HUMIDIFIER
The humidifier is available in five models with different sizes and/or features:
Some activities in your home may create longer operating times for the humidifier. Vented fireplaces, high
exhaust from fans, or driers can reduce humidity in your home and make the humidifier work harder.
Your professional installer or salesperson will have considered these and other factors when choosing the
best humidifier model for your unique situation.

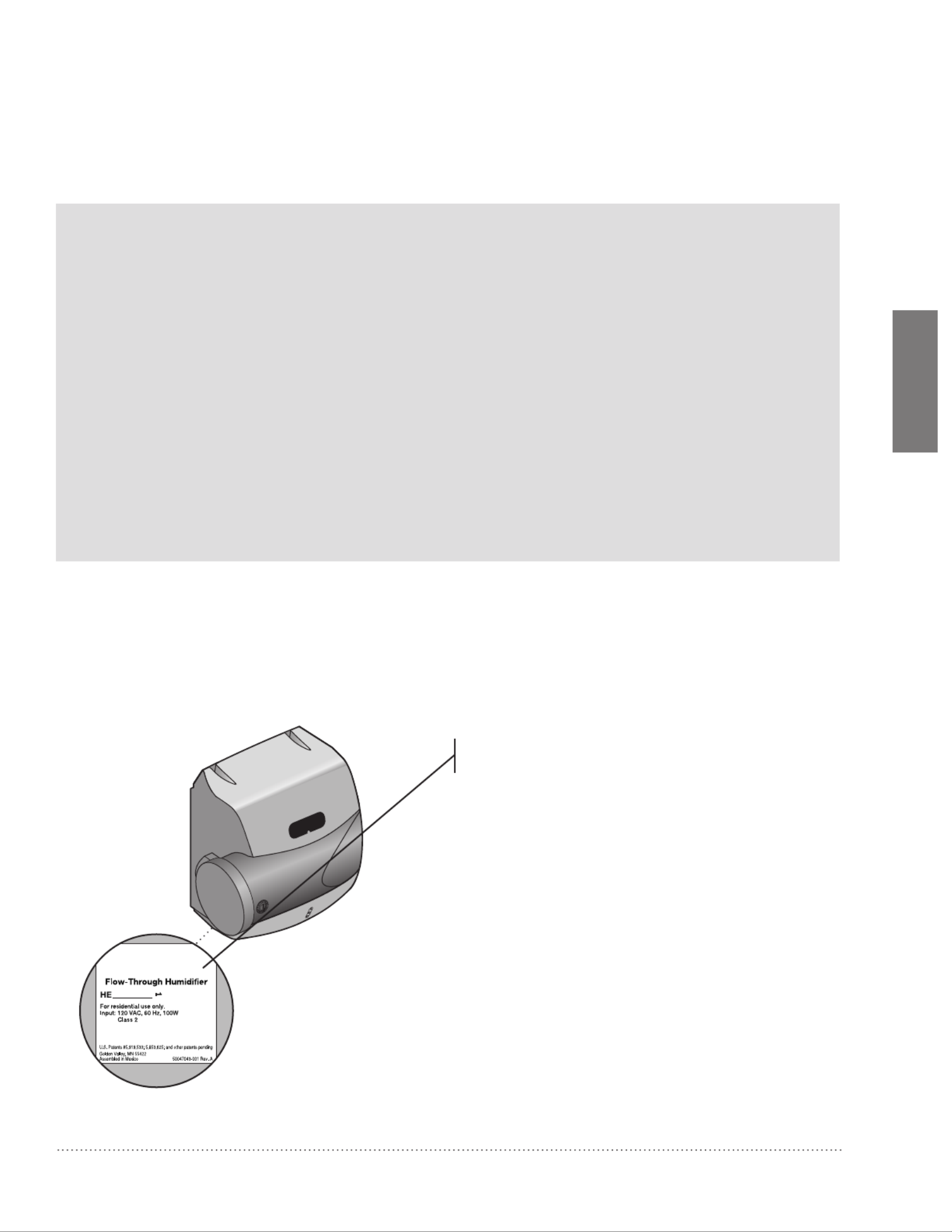

MCR29924
This label displays the model number and date code
of your humidifier.
HE100 Delivers up to 12 gallons of humidity into your home. Suitable for homes up to 16,000 cubic
feet in size.
HE150 Delivers up to 12 gallons of humidity into your home. Suitable for homes up to 16,000 cubic
feet in size. Includes automatic damper, status, maintenance, service LEDs, and advanced
operation.
HE200 Delivers up to 17 gallons of humidity into your home. Suitable for homes up to 20,000 cubic
feet in size.
HE250 Delivers up to 17 gallons of humidity into your home. Suitable for homes up to 20,000 cubic
feet in size. Includes automatic damper, status, maintenance, service LEDs, and advanced
operation.
HE300 Delivers up to 18 gallons of humidity into your home. Suitable for homes up to 24,000 cubic
feet in size. Includes automatic damper, status, maintenance, service LEDs, and advanced
operation.
Which humidifier model do I have?
Humidifier 69-2414EFS—01 5
YOUR NEW
HUMIDIFIER

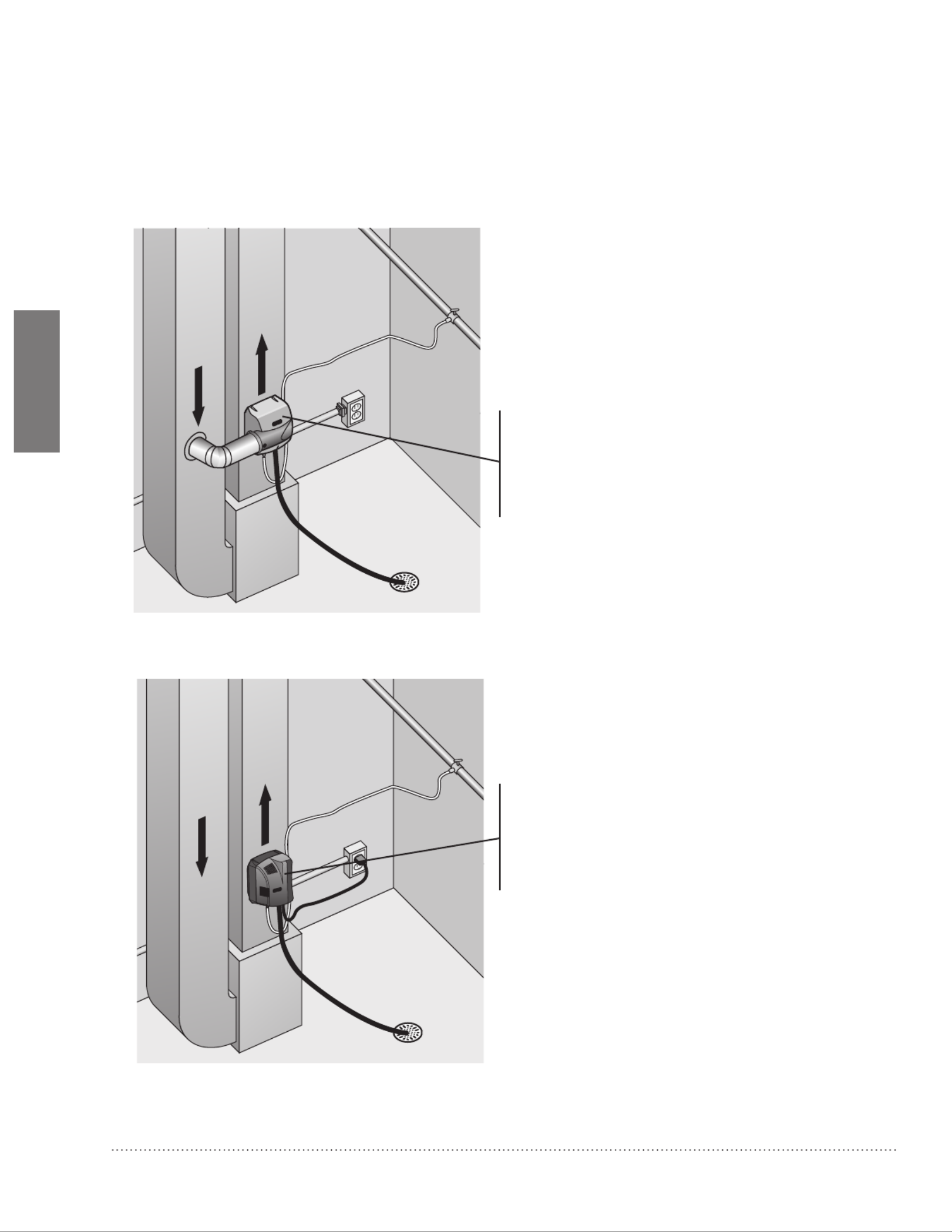

Your HVAC professional installer will install the humidifier in a proper location in your home, on either the Return
or Supply duct of your HVAC system.
The humidifier bypass model is installed directly
onto the Supply (hot) or Return (cool) air duct of
your HVAC system. Air flows through the humidifier
pad in the humidifier into the duct for distribution
throughout your home.
The humidifier fan model is commonly installed
directly onto the Supply (hot) air duct of your HVAC
system. The humidifier’s fan draws air through the
humidifier pad in the humidifier and back into the
duct for distribution throughout your home.
The fan model can be installed on the Return (cool)
air duct, if the location permits. If a return-side
installation is used, it is highly recommended to
plumb warm water since humidity is produced by
evaporation.
MCR29869
RETURN
SUPPLY
How is my humidifier installed?
RETORNO
SUMINISTRO
MCR29947
Humidifier 69-2414EFS—01
6
YOUR NEW
HUMIDIFIER
MCR29925
COVER OFF

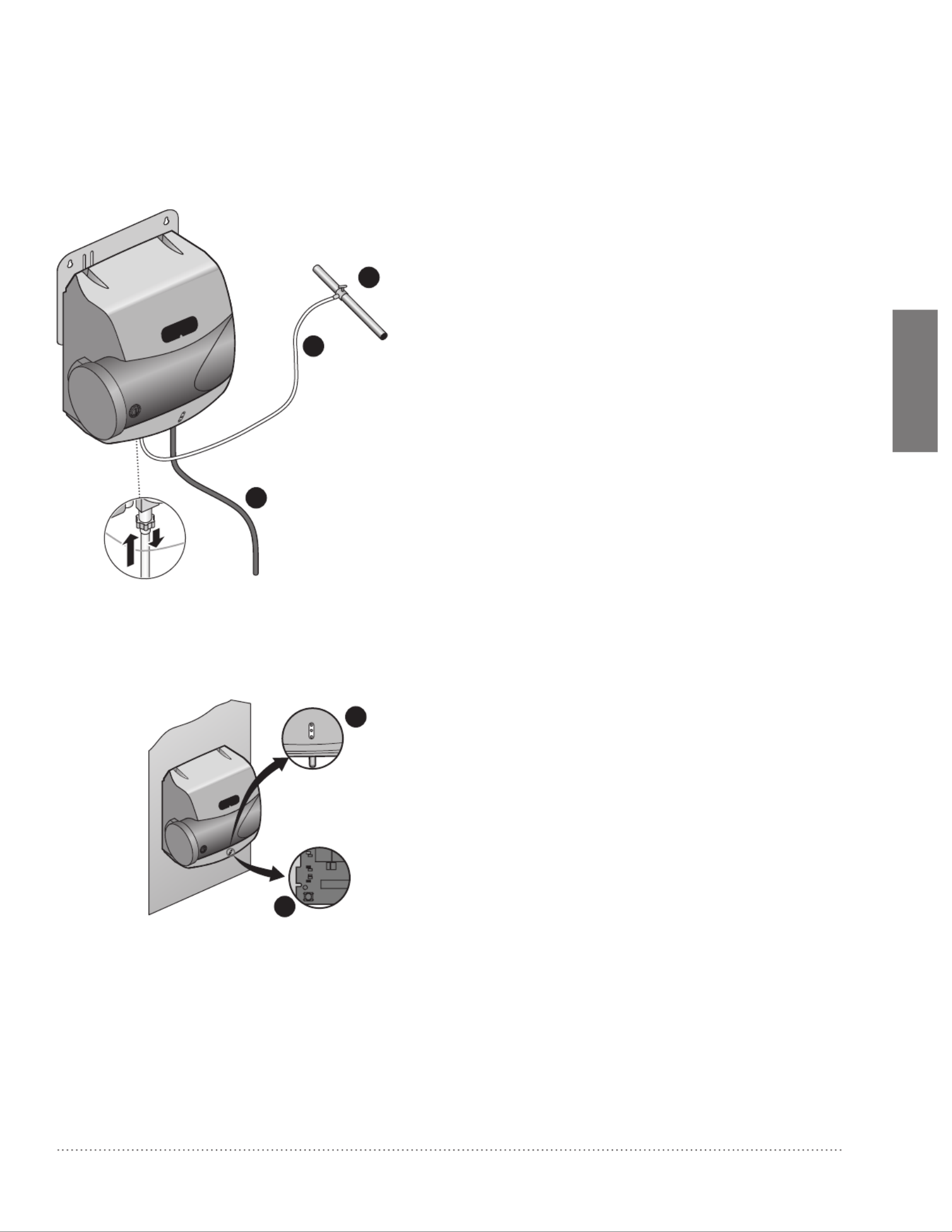

Your humidifier installation includes the following parts and components that you should be familiar with:
A. Water Connection with Shutoff Valve
Provides the connection from your home water
supply to the humidifier. Your installer may
have used the saddle valve that came with the
humidifier, or may have chosen a different type
of connection. This connection must include a
shutoff valve for you to turn off water supply to
the humidifier, if necessary.
B. Water Supply Line
This 1/4-inch line brings water to the humidifier
from the water connection. Your installer may have
used plastic or copper supply line.
C. Water Drain Line
This 1/2-inch hose drains water from the
humidifier to a drain in your home.
D. LEDs (HE150/HE250/HE300 only)
The three lights indicate the humidifier’s
operational status and when service is required.
See “Humidifier lights and button” on page 10.
E. RESET Button (HE150/HE250/HE300 only)
The RESET button is the only user button located
on the humidifier. Use the RESET button to
manually reset the humidifier when the Change
Pad or Service LEDs are on. See “Humidifier lights
and button” on page 10.
Power
The Fan model is plugged into a 120 volt AC
household electrical outlet. Unplug the power cord
to turn off power.
The Bypass models are wired to a 15VA
transformer. To turn off power to these models, trip
the circuit to the junction box the transformer is
connected to.
MCR29880
A
B
C
D
E
What humidifier parts do I need to know?
Humidifier 69-2414EFS—01
7
YOUR NEW
HUMIDIFIER
Resideo wants to make sure you know what to expect from your humidifier. Feel free to discuss these items
with your installer:
• Achieving Humidity Setpoint. It may take up to a week of continuous operation to achieve the humidity
setpoint, especially if the home is dry when the humidifier is installed. This also depends on such factors
as weather, size of home, furnishings in the home, and insulation.
• Ideal Humidity. Home building industry experts cite 35% relative humidity as ideal for comfort and
safeguarding the home during the typical dry season. Adjust your humidity control to your comfort or until
there is condensation on the windows. Lower the setpoint if condensation appears.
• Unit Not Humidifying. If the humidifier is not running but the humidity is below the setpoint, the humidity
control may have a frost protection setting to prevent window condensation from appearing. See “What is a
frost setting?” on the next page.
• Home Ventilation. Excessive ventilation sends moist air outside and replaces it with dry air. If the home
is drafty or has mechanical ventilators installed, it may be hard to maintain the humidity setpoint.
If installing a ventilator, use a solution that retains moisture. An Energy Recovery Ventilator (ERV) is
recommended.
• Cleaning Requirements. The humidifier pad should be changed at least once a year. The water trays of the
humidifier should be cleaned at that time. See Cleaning and Maintenance section for details.
• Energy Consumption. You may notice a slight increase in overall energy consumption when operating
any humidifier. However, humidified air feels warmer than dry air. This allows you to lower the temperature
setting on the thermostat. Every degree lower on the thermostat can save up to 3% on heating costs.
What should I expect from my humidifier?
Humidifier 69-2414EFS—01
8
EVERYDAY
OPERATION
Once the humidifier is installed and running, operation is automatic. Use the humidity control provided to
make any changes to the setpoint.
If you have questions about how to operate the humidifier, ask your installer.
How do I operate the humidifier?

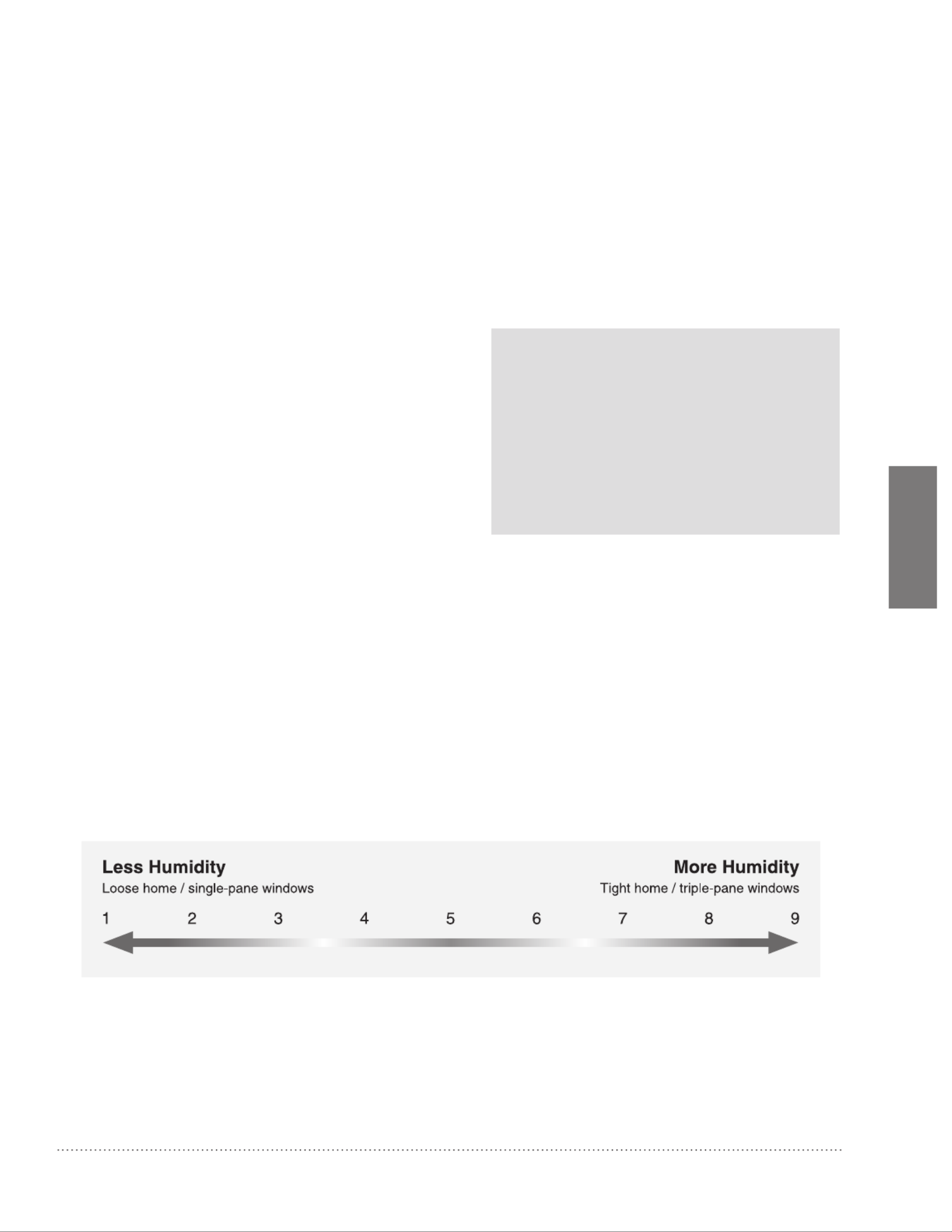

• What is a frost setting? Some humidity controls (such as Prestige, VisionPRO IAQ, and TrueIAQ) contain
a Window Frost Protection feature that limits humidity output based on outdoor conditions. For example,
on colder days, the air in your home can hold less humidity. The humidity control automatically lowers the
humidity setpoint accordingly, to prevent frost from appearing on the inside of your windows.
Lower the frost setting by one value each morning that you see frost or condensation on windows. Allow
24 hours for the new setting to take effect before re-adjusting. Once you have this set to a comfortable
level without condensation, you will not need to adjust further. You can adjust your humidity setpoint
without worrying about condensation.
Manual humidity controls (such as the H8908) do not have built-in frost settings. They require you to adjust
the humidity setpoint when the outdoor temperature changes. Use higher humidity setpoints when the
temperature is warmer, and lower setpoints when the temperature is cooler.
M27982
• How do I use the humidity control? When humidity
in the home is lower than the humidity control’s
setpoint, the control will call for humidity. Some
controls will also monitor outdoor conditions to
ensure indoor humidity does not condense on
windows and walls.
• What should my humidity setpoint be? The outdoor
air temperature affects how much humidity can be
retained by the air in your home. Use this table as a
starting point. Then adjust the humidity control to
your own comfort or until condensation appears on
the windows, at which point you should lower the
setpoint.
Outdoor Recommended Relative
Temperature Humidity Setting
20° °F (29 C) 15%
10° °F (23 C) 20%
0° °F (18 C) 25%
10° °F (12 C) 30%
20° °F (7 C) 35%
>20° °F (1 C) 35%
Humidifier 69-2414EFS—01 9
EVERYDAY
OPERATION

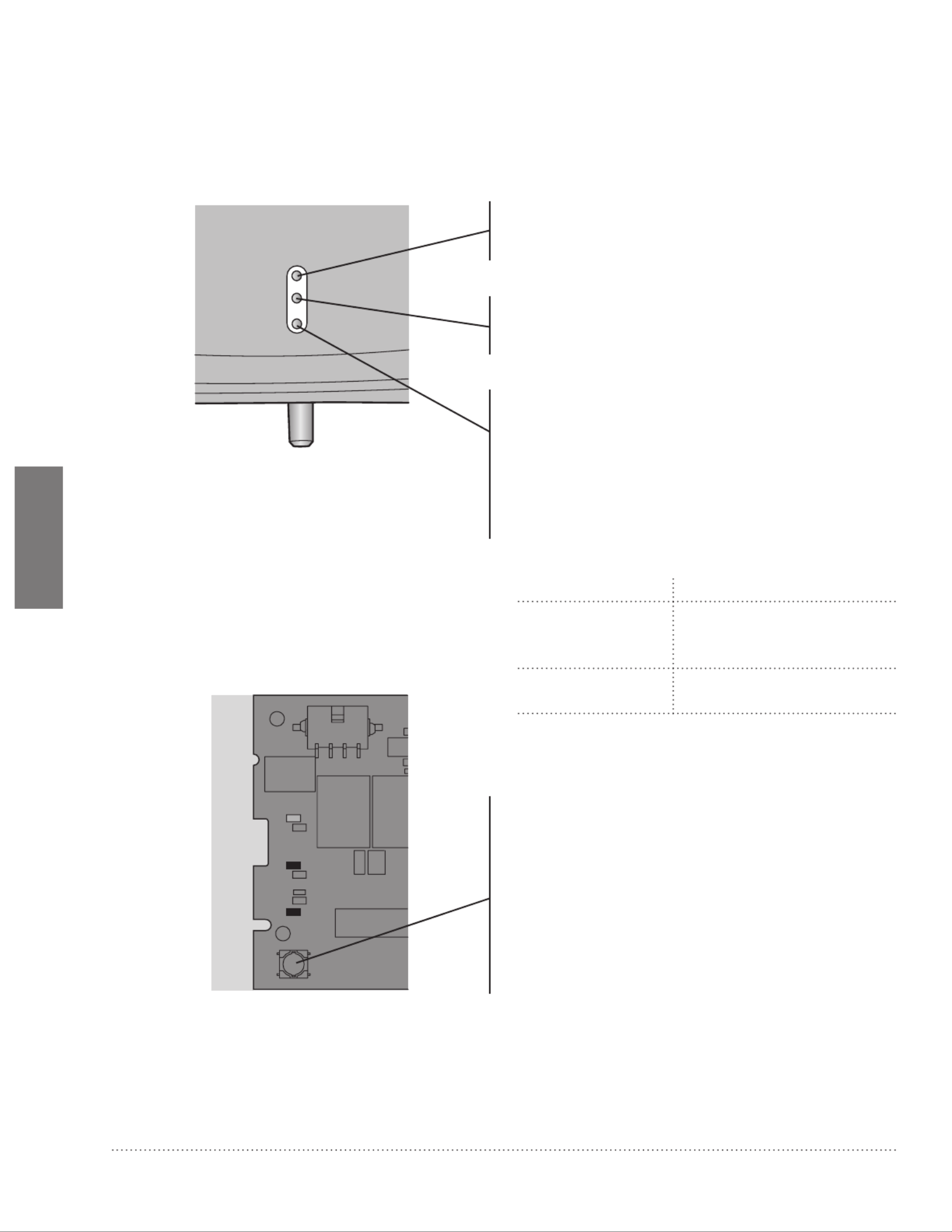

The three lights provide feedback on humidifier operation.
Humidifying
When this light is on, it indicates the humidifier is
running.
Service
When this light is on, it indicates an operational fault
has occurred. Call an HVAC professional for repair.
Change Pad
When this light is on, it indicates that it is time to
change the humidifier pad. The light should not
be reset without changing the pad. Resetting the
Change Pad light without changing the pad could
compromise the humidifier. See “Replace the
humidifier pad” on the next page.
M29926
RESET
The RESET button is under the cover. This button
resets the timer that tracks when the humidifier pad
needs changing. When you change the pad, press the
RESET button.
The RESET button also clears a Service light. If the
Service light comes back on after you press the
RESET button, call an HVAC professional for repair.
MCR29927
Humidifier lights and button (HE150/HE250/HE300 only)
Humidifier Model Replacement Pad Part Number
HE300
HE250
HE200
HC26E1004
HE150
HE100
HC22E1003
Humidifier 69-2414EFS—01
10
CLEANING AND
MAINTENANCE
The humidifier pad should be replaced at least once per year or whenever the Replace Pad light comes on.
This is critical for optimal performance of the unit. This can be done at the beginning or the end of the dry
season. The humidifier design makes this annual replacement quick and easy, providing one-step access to
Replace the humidifier pad
the pad.
2. Remove tray on top of the pad, and wipe free any sediment present within the tray.
3. Replace the old pad with the new, making sure pad is oriented correctly (see pad box). Wipe free any
sediment present inside the pad frame.
Humidifier Model Replacement Pad Part Number
HE300
HE250
HE200
HC26E1004
HE150
HE100
HC22E1003
4. Reseat the tray on top of the pad with the arrows inside the tray pointing into the duct. Then reinsert the
frame into the humidifier.

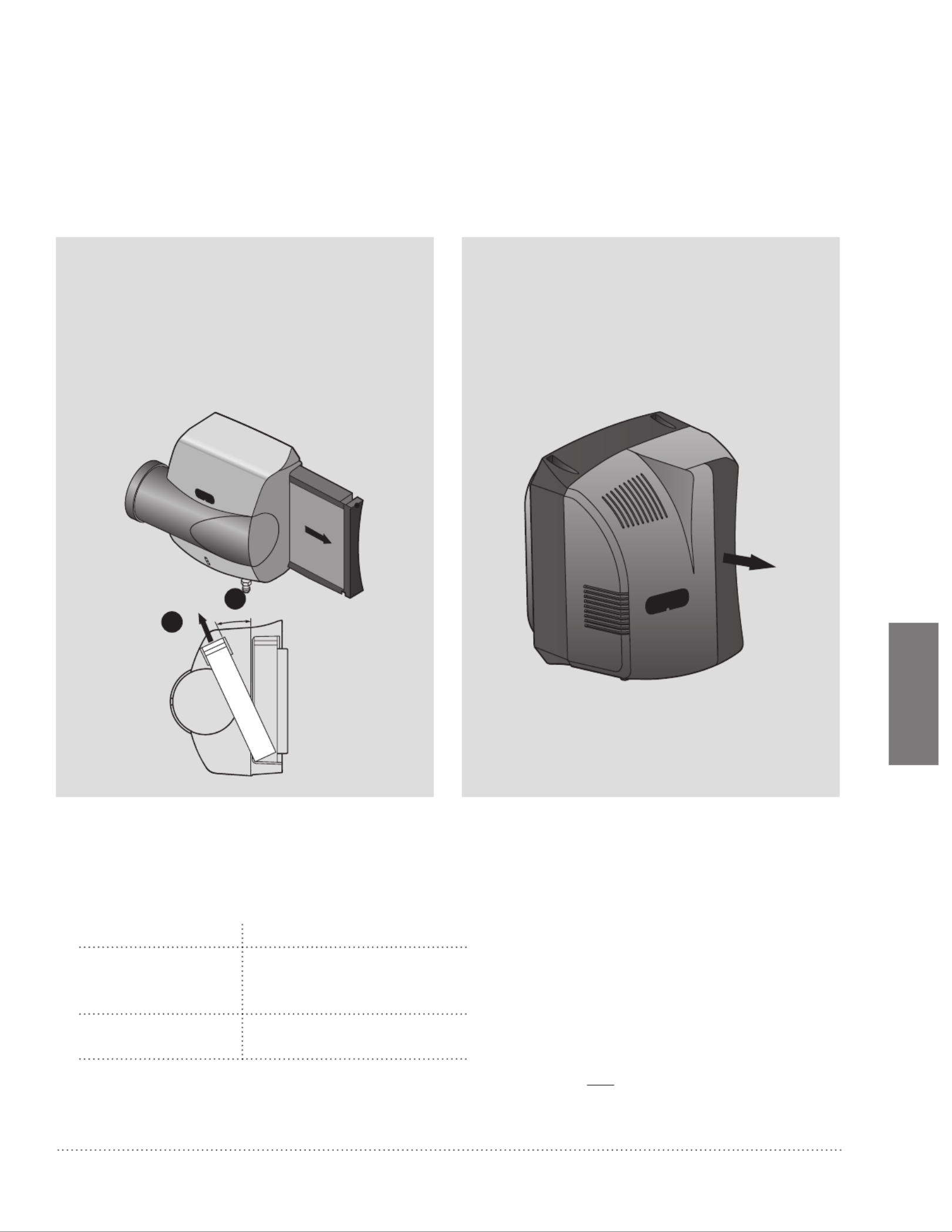

Bypass:
1a. Pad can be replaced from the side by
gripping the black handle and pulling out, or
from the front by removing the humidifier’s
top cover and rocking the pad forward and
out. Humidifier pad might remove from
other side of the humidifier, depending on
installation.
Fan:
1b. Pad can be replaced from the front by gripping
the black handle and pulling out.
MCR29886
MCR29885
25%
1
2
Humidifier 69-2414EFS—01 11
Produktspecifikationer
| Varumärke: | Honeywell |
| Kategori: | Luftfuktare |
| Modell: | HE150A1005 |
Behöver du hjälp?
Om du behöver hjälp med Honeywell HE150A1005 ställ en fråga nedan och andra användare kommer att svara dig
Luftfuktare Honeywell Manualer
27 Februari 2025
27 Februari 2025
27 Februari 2025
27 Februari 2025
16 September 2024
16 September 2024
16 September 2024
16 September 2024
16 September 2024
16 September 2024
Luftfuktare Manualer
- Inkbird
- Braun
- House & Luft
- EQ-3
- Zehnder
- Ebac
- Silvercrest
- Equation
- Mybeo
- Plugwise
- Challenge
- VAX
- Air Innovations
- Alecto
- Basetech
Nyaste Luftfuktare Manualer
15 Oktober 2025
15 Oktober 2025
14 Oktober 2025
13 Oktober 2025
11 Oktober 2025
6 Oktober 2025
6 Oktober 2025
6 Oktober 2025
6 Oktober 2025
6 Oktober 2025
