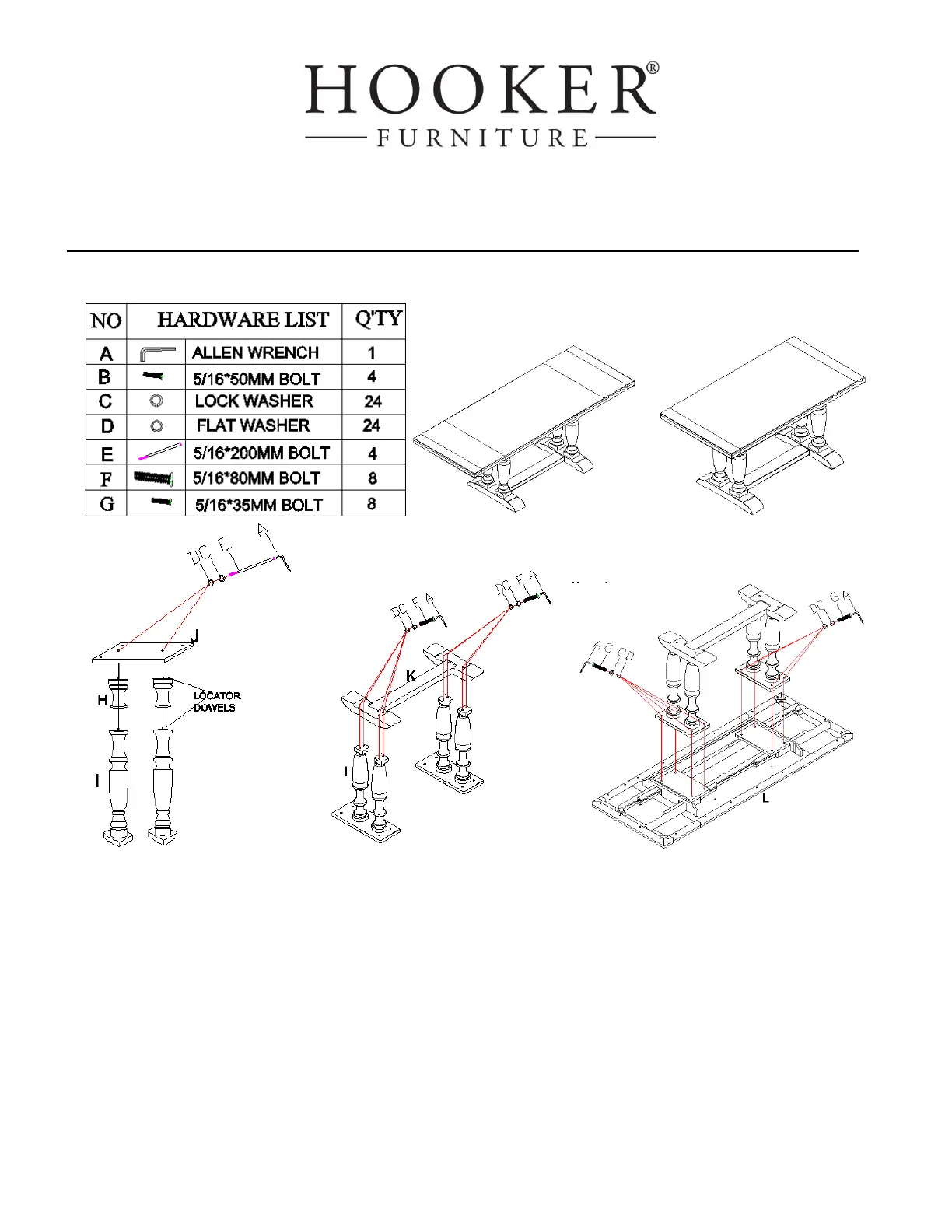

ASSEMBLY INSTRUCTION
Item# 1-75206-575 95 Friendship Table
** Please make sure you have all parts indicated below prior to assembly.
This table is heavy and can best be assembled with the help of two or more people.
Diagram 1 Diagram 2 Diagram 3
Note:
1. Leaves cannot be switchable. Follow numbers on leaves and top when assemble
2. Height of this table can be adjusted with or without extension block. (30” and 36” heights)
Assembly steps with extension blocks:
1. Attach extension blocks (H) posts (I),then attach mounting plate (J) to posts with extension to
blocks (H)by using bolts (E), lock washers (C) and flat washers (D), tighten all with allen
wrench (A). (See Diagram 1)
2/3
2. posts (I)Attach stretcher (K) to with bolts (F), lock washers (C) and flat washers (D),
sure all by allen wrench (See Diagram 2)(A)
3. Place table top (L) upside down on a soft surface to prevent it from being scratched.
Put whole base onto top to make sure all pre-drilled holes are in alignment, well insert
bolts (G), lock washers (C) and flat washers (D), tighten bolts by turning with allen
wrench (A) in clockwise direction. (See Diagram 3)
4. Turn table upright.
Assembly steps without extension blocks:
Diagram 4 Diagram 5 Diagram 6
1. Unscrew bolts (E), lock washers (C) and flat washers (D) from mounting bridge (J Then ).
remove the extension blocks (H) from the posts (I) directly, (See Diagram 4)
2. mounting plate (J) to posts using bolts (B), lock washers (C) and flat Attach by
washers (D), tighten all with allen wrench (A). (See Diagram 5)
3. Place table top (L) upside down on a soft surface to prevent it from being scratched.
Put whole base onto top to make sure all p -drilled holes are in alignment, well insert re
bolts (G), lock washers (C) and flat washers (D), tighten bolts by turning with allen
wrench (A) in clockwise direction. (See Diagram 6)
4. Turn table upright.
Instruction for table leaves:
1. There are latches at the bottom of table top, turn o the latches as shown in Diagram 7. ff
2. Pull out table top as the arrow direction shown in Diagram 8.
3. Place table leaves between and push table tops together.
4. Turn on latches. (see Diagram 7)
3/3
5. Take opposite actions to remove table leaves.
Diagram 7 Diagram 8
Cleaning Instruction: Clean finished parts with a damp cloth using a mild dishwashing liquid and water solution.
Polish the finish with soft cloth and an industry recognized furniture polish.
