Wind to Hydrogen Education Kit
WTHSEK
AA batteries=2 Units Water=100ml
Scissors
IMPORTANT: Use common sense when connecting the parts described in this guide. Improper
connections can cause failure and permanent damage to your equipment.
Assembly of the Wind Turbine:
Please refer to the Wind Energy Energy Kit Assembly Instructions included in your Kit for reference
in assembling the Wind Turbine.
Below table indicates expected RPM speed, current, voltage, and power when placing the WindPitch
in constant windspeed of 10mph when connected to load of 50 Ohms. This level of resistance may
be applied using common potentiometer (not provided) or Horizon’s variable resister module
(included in Renewable Energy Science Education Kit- FCJJ-37)
1. The water levels do not drop when the gas outlet tubes on both sides of the fuel cell are
unplugged.
Solution:
Check whether the holes on the wall of the inner cylinder are blocked. If so, turn the inner
cylinder until water enters the holes and fills up the inner cylinder.
2. The reversible fuel cell does not produce hydrogen and/or oxygen.
Solution 1:
Check whether the wires are appropriately connected, and whether there are any loose
connections. The fuel cell could be completely destroyed if the red wire of the battery pack
is connected to the blackjack of the fuel cell.
Solution 2:
Make sure the batteries are inserted with the correct polarity.
Solution 3:
Replace the old batteries with new one in the battery pack.
3. The water electrolysis process slows down.
Solution 1:
Inject water to the oxygen side of the reversible fuel cell by using the syringe and wait for
about 3minutes.
Solution 2:
Replace the old batteries with new one in the battery pack.
4. The motor does not run while there is hydrogen left in the inner container.
Solution:
Unplug the black pin of the short tube on the reversible fuel cell and quickly attach the pin
back to the tube to purge out impure gases. You should then see the motor beging to turn
again.
5. No hydrogen is produced using the wind turbine outdoors.
Solution:
If the wind speed is not sufficient electricity will not be created. Use a common desk fan
with faster
wind speed to perform the electrolysis using the reversible fuel cell, or conduct the
experiment under sufficient wind conditions.
If you have any further issues contact support@horizon .comeducational
Wind to Hydrogen Science Education Kit
Technical Support
WIND TO HYDROGEN
Science Education Kit
Assembly Guide
Battery operation instructions:
1. The removing and inserting of batteries is to be
conducted by the adults only. Unscrew the screw holding
the battery pack’s cover in place using a screw driver. Once
the screw is removed open the battery pack and take out
the batteries using your fingers. Do not use a metal
object.When inserting the batteries make sure that you are
doing so with the correct polarity (the positive end of the
battery must match up with the “+” and the negative end of
the battery must match up with the “-” indicated on the
battery pack), close the battery pack and secure its cover by
tightening the screw with a screw driver.
2. Non-rechargeable batteries are not to be recharged.
3. Different types of batteries such as rechargable, alkline
and standard batteries or new and used batteries are not to
be mixed and should be used separately.
4. The battery pack cables are not to be inserted into an AC
socket.
5. The supply terminals of the battery pack are not to be
short-circuited.
6. The two spare red&black cables are not to be inserted
into an AC socket.
7. Exhausted batteries are to be removed from the battery pack.
Warning
Model No.: FCJJ-56
To avoid the risk of property damage, serious injury or
death:
This kit should only be used by persons 14 years old
and up, and only under the supervision of adults who
have familiarized themselves with the safety measures
described in the kit. Keep small children and animals
away, as it contains small parts that could be
swallowed. Read the instructions before use and have
them ready for reference.

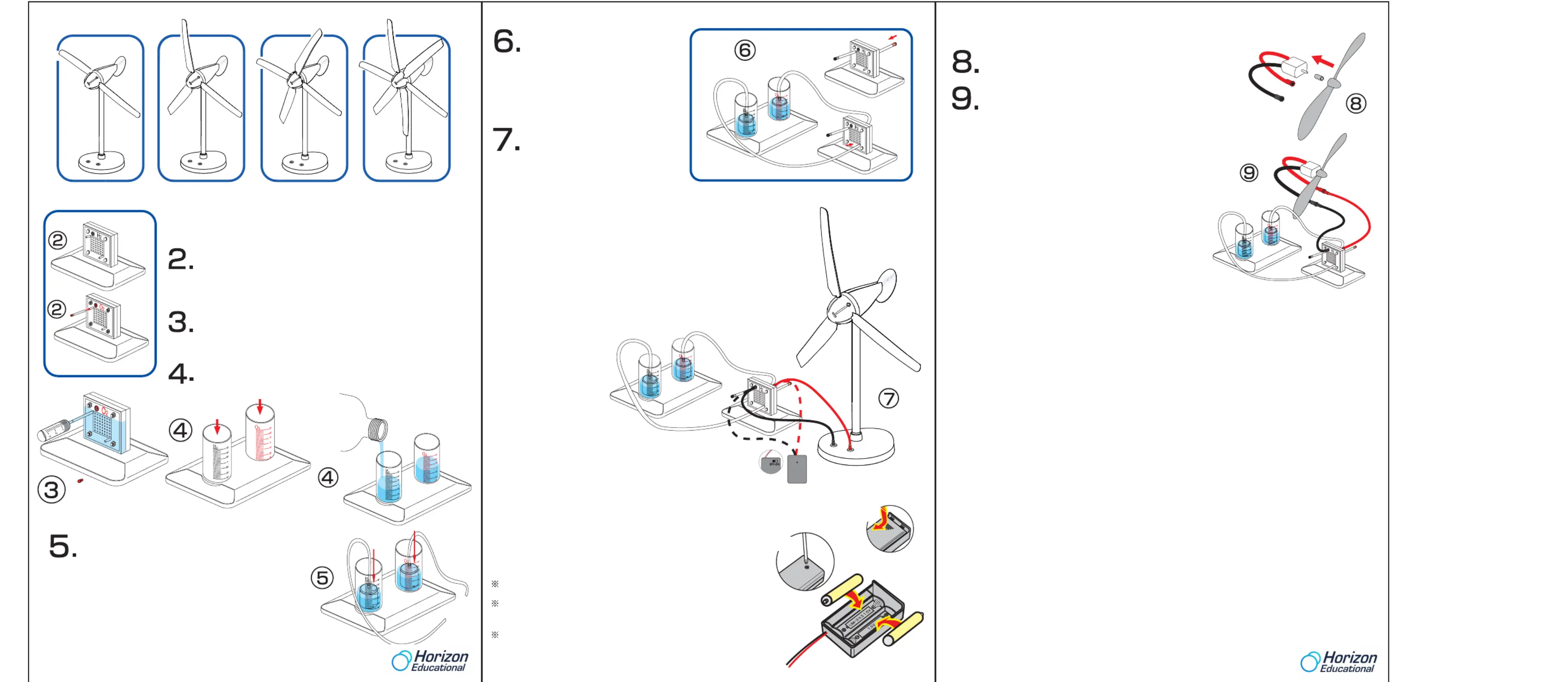

ASSEMBLY GUIDE
What you need:
FCJJ-56_WTHSEK_UM_V1.0_EN
www.horizoneducational.com
Blade Type
Blade A 3 10 50 1.15 28 0.03 400
490
705
0.04
0.125
30
50
1.35
2.50
50
50
10
10
3
3
No. of Blade Wind Speed
(mph)
Load
(Ohm)
Output Voltage
(V)
Output Current
(mA)
Output Power
(W)
Rotor Speed
(RPM)
WindPitchTechnical Specifications:
Blade B
Blade C
300001272
