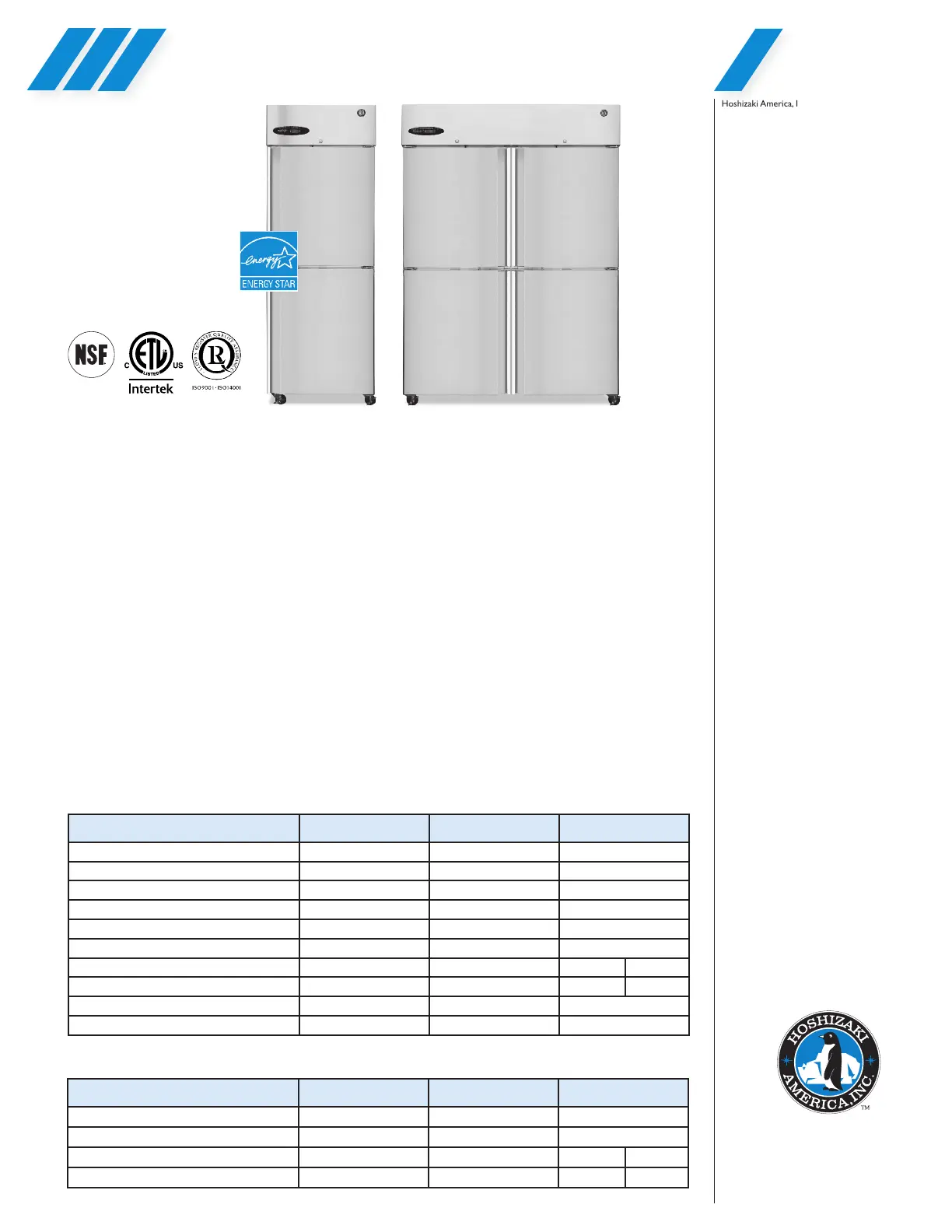

CF1-2-3B-HS(-L)

2/14

Item # 13275

HoshizakiAmerica,Inc. reserves the right to change

specifications without notice.

*AutoCad available on KCL

Item #

Project:

Qty:

• Stainless steel exterior front and sides

• Energy efficient, vacuum formed, seamless, one piece ABS interior liner

• Refrigerant flow is controlled with a TXV expansion valve

• Unique “ducted” air distribution system

• Solid state digital controller with temperature alarms and LED display (Fahrenheit or Celsius)

• Cabinet and doors are insulated with 2-3/8” of R-134a, CFC free, foamed in place polyurethane

• Doors are constructed of stainless steel exterior, an ABS interior liner and are standard with locks

• Exclusive "stepped" door design to protect recessed door gasket

• Spring assisted self closing doors with stay open feature

• Sturdy 8 gauge stainless steel hinge plate with welded hinge pin

• One piece, full length, extruded aluminum flush mount door handle

• Field reversible doors (with optional kit)

• Enamel coated evaporator coil

• Automatic hot gas condensate evaporator

• Stainless steel shelf supports

• (3) Epoxy coated wire shelves per section adjustable 1” on center

• Standard with 4" factory installed casters (two with brakes)

• Stackable (two units high) to conserve warehouse floor space

• Three years parts and labor warranty

• Five year compressor warranty

• 8 ft. cord and plug

* CF1B-HS and CF2B-HS are ENERGY STAR qualified

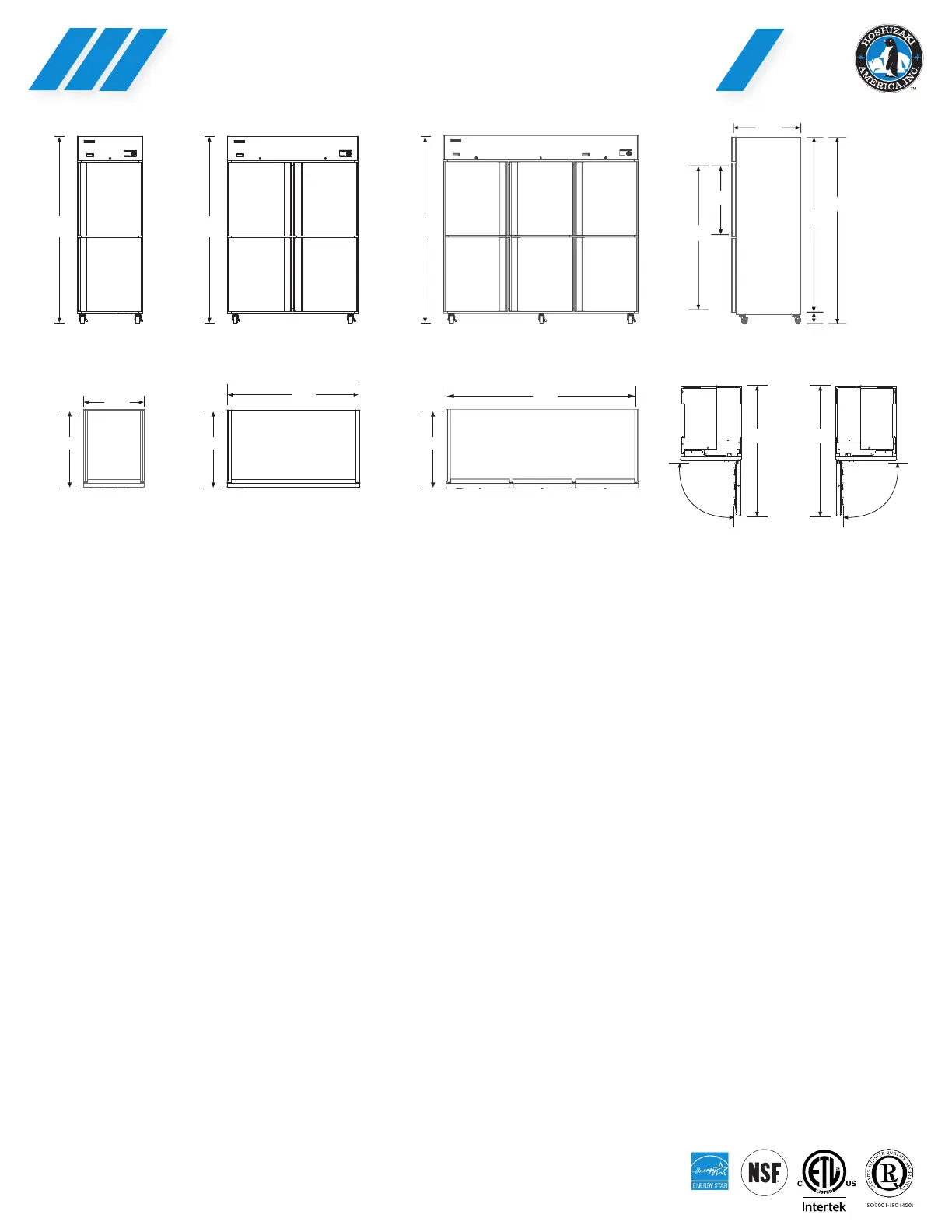

CFB-HS Dimensions

W x D x H

1

Section - 27.5” x 33.6” x 79.63”*

2 Section - 55” x 33.6” x 79.63”*

3 Section - 83” x 33.6” x 79.63”*

*

with 4” casters

Electrical/Refrigeration

Voltage

1

& 2 Section -

115/60/1

3

Section -

115/208-230/1

HACR Breaker

1 & 2 Section - 15.0

3 Section - 20.0

Electrical Connection(NEMA)

1 & 2 Section - 5-15P

3 Section - 14-20P

Voltage Range 104-126 / 208-254

Ambient Temp. Range45˚-100˚F

Control Setpoint Range-10˚F to +12˚F

*Refrigerant R-404a

Warranty

Valid in United States, Canada, Puerto Rico,

and U.S. Territories. Contact factory for

warranty in other countries.

• Three Year- Parts & Labor on entire

machine.

• Five Year- Parts on: Compressor.

Options

• Door reversal kit

• Additional epoxy shelves

• Stainless steel shelves

• Foot pedal door opener

• Air filter

Dimensions / Capacity

Electrical & Refrigeration Data

Model #One Section

CF1B-HS(-L)

Two Section

CF2B-HS

Three Section

CF3B-HS

Nominal StorageCapacity(CF)23.3 ft

3

51.0 ft

3

74.3 ft

3

InteriorStorageCapacity(CF)(AHAM)20.9 ft

3

47.0 ft

3

67.9 ft

3

Overall Width x Depth27.5” x 33.6” 55” x 33.6” 83” x 33.6”

Height (including 4” casters)79.63”79.63”79.63”

Door Opening Width x Height22.8” x 28.1” 22.8” x 28.1” 22.8” x 28.1”

Depth with Door open at 90° 59.6”59.6”59.6”

Adjustable Shelves366 (Left) 3 (Right)

Shelf Dimensions (W x D)21.25” x 26”23.9” x 24.6”23.9” x 24.6” 21.25” x 26”

Crated Shipping Weight345 lbs550 lbs900 lbs

Crated Height x Width x Depth83” x 31.5” x 39.5”83” x 59” x 39.5”83” x 90.5” x 39.5”

Model #One Section

CF1B-HS(-L)

Two Section

CF2B-HS

Three Section

CF3B-HS

Amperage

9.511.116.0

Energy Consumption (kwh/day)

ENERGY STAR

6.4211.8118.23

Heat Rejection (BTU/Hr.) @ NSF

130521372137 (Left) 1305 (Right)

Approx. Nominal Compres. BTU/HR(HP)

2466(.5HP)3000(.625HP)

3000(.625HP) 2466(.5HP)

CF1-2-3B-HS(-L)

Commercial Series Freezers

© HOSHIZAKI AMERICA, INC.

618 Hwy. 74 S., Peachtree City, GA 30269

TEL 800-438-6087

FAX 800-345-1325

www.hoshizaki.com
