Contents

Installation, 2

Positioning

Electrical connection, 3

Data plate

Description of the appliance, 4

Overall view

Control panel

Start-up and use, 5

Control panel lock

DEMO mode

Setting the clock

Setting the timer

Starting the oven

Cooking modes, 6-9

Manual cooking modes

Automatic cooking modes

Programming cooking

Practical cooking advice

Cooking advice table

Precautions and tips, 10

General safety

Disposal

Respecting and conserving the environment

Care and maintenance, 11-12

Switching the appliance off

Cleaning the appliance

Cleaning the oven door

Replacing the light bulb

Assembling the sliding rack kit

Guarantee, 13

After Sales Service, 14

Operating Instructions

OVEN

English,1

 Before operating your new appliance please read

this instruction booklet carefully. It contains

important information concerning the safe operation,

installation and maintenance of the appliance.

 Please keep these operating instructions for future

reference. Make sure that the instructions are kept

with the appliance if it is sold, given away or moved.

Positioning

 Keep all packaging materials out of the reach of

children. It may present a choking or suffocation

hazard (see Precautions and tips).

 The appliance must be installed by a qualified

person in compliance with the instructions provided.

Incorrect installation may cause harm to people and

animals or may damage property.

Built-in appliance

Use the appropriate cabinet to ensure that the

appliance functions properly.

 The panels adjacent to the oven must be made of

heat-resistant material.

 Cabinets with a veneer exterior must be

assembled with glues which can withstand

temperatures of up to 100°C.

 To install the oven under a counter (see diagram)

or in a kitchen unit, the cabinet must have the

following dimensions:

 The appliance must not come into contact with

electrical parts once it has been installed.

The indications for consumption given on the data

plate have been calculated for this type of installation.

Ventilation

To ensure adequate ventilation is provided, the back

panel of the cabinet must be removed. It is

advisable to install the oven so that it rests on two

strips of wood, or on a completely flat surface with

an opening of at least 45 x 560 mm (see diagrams).

Centring and fixing

Position the 4 tabs on the side of the oven so that

they are lined up with the 4 holes on the outer frame.

Adjust the tabs according to the thickness of the

cabinet side panel, as shown below:

20 mm thick: take off the

removable part of the tab (see

diagram).

18 mm thick: use the first

groove, which has already

been set in the factory (see

diagram).

16 mm thick: use the second

groove (see diagram).

Secure the appliance to the cabinet by opening the

oven door and inserting 4 screws into the 4 holes on

the outer frame.

 All parts which ensure the safe operation of the

appliance must not be removable without the aid of

a tool.

560 m

45 mm.

595 mm.

24 m

545 mm.

5 mm.

567 mm.

23 mm.

593 mm.

45 m

558 mm.

. m

Installation

TABLE OF CHARACTERISTICS

Dimensions

width 43.5 cm

height 32 cm

depth 40 cm

Volume

56 l

Electrical

connections

voltage: 220-240V ~ 50/60Hz

maximum power absorbed

2800 W

ENERGY LABEL

Directive 2002/40/EC on the

label of electric ovens.

Regulation EN 50304

Declared energy

consumption for Forced

convection Class

 heating mode: Gratin

This appliance conforms to

the following European

Economic Community

directives: 2006/95/EEC

dated 12/12/06 (Low

Voltage) and subsequent

amendments 

2004/108/EEC dated

15/12/04 (Electromagnetic

Compatibility) and

subsequent amendments -

93/68/EEC dated 22/07/93

and subsequent

amendments.

2002/96/EEC and

subsequent amendments.

1275/2008 stand-by/off

mode.

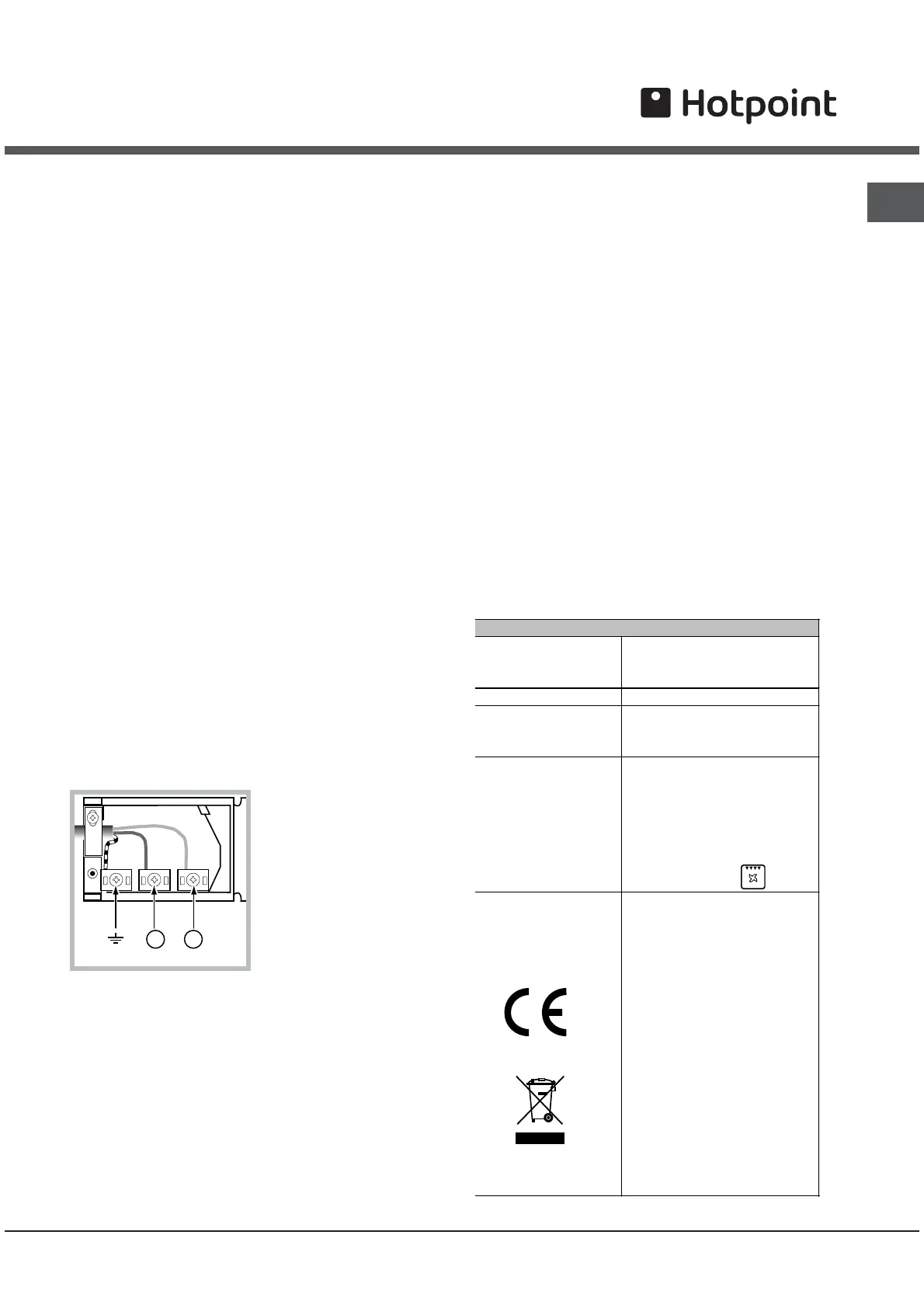

Electrical Connection

Electrical connection

The electrical connection to the mains must be made

on the appliance. The power voltage and frequency

are as indicated on the rating plate.

! THIS APPLIANCE MUST BE EARTHED.

Connecting the power supply cable

To open the terminal board:

 Using a screwdriver, press on the tabs situated

on each side of the terminal board cover.

 Pull open the terminal board cover.

To connect the power supply cable, proceed as

follows:

_ Unscrew the cable clamp screw and the contact

screws L-N-$.

 Fasten the wires beneath the screwheads using

the following colour scheme: Blue (N) Brown (L)

Yellow-Green $

 Fasten the power supply cable in the

corresponding cable clamp and close the cover.

Electrical Connection:

Voltage Frequency: 230

V-1+N 50Hz

Fuse Section: 16A

Supply cable:

3x1.5mm

You can connect your oven to the system means of

a terminal board. Refer to above information for the

minimal cable sections and the calibration of the

protective elements according to the connection.

If the appliance is installed with a junction box, an

omnipolar circuit breaker - with a minimum contact

opening of 3mm - should be installed between the

appliance and the mains.

Power cable supply connection to the electrical

mains:

We recommend you use a power supply cable which

is long enough to allow you to take the oven out of

its recess in the event of maintenance operations

(only use HAR - H 05 - RRF quality cables fitted with

a plug conforming to the regulations in force.

The plug must be accessible at all times.

Unpl ug the appliance before all operations, even

when replacing the oven lamp.

Using the appliance without correct earthing is

highly dangerous.

! After connecting the appliance

to the flexible

cable, tighten all the screws on the terminal

board.
