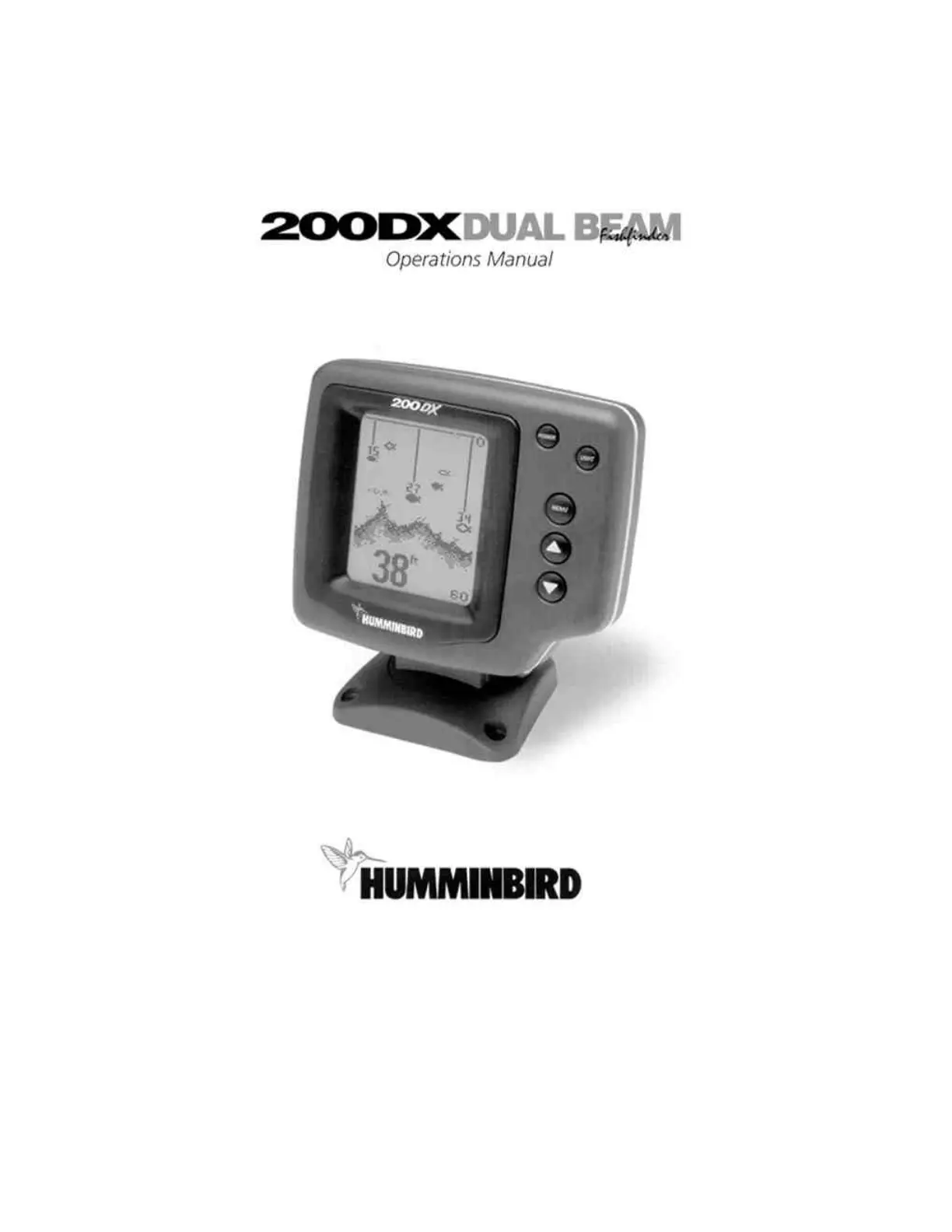

Sida 1/43

oﬀered by Busse-Yachtshop.com

TABLE OF CONTENTSTABLE OF CONTENTS

INSTALLATION PREPARATION………………………………………… 2

Parts Supplied…………………………………………………………. 2

Accessories……………………………………………………………. 2

Installation Overview………………………………………………….. 2

Alternative Transducers and Mounting Methods…………………... 4

Transducer Exchange………………………………………………… 5

INSTALLATION…………………………………………………………….. 6

Transom Installation…………………………………………………... 6

Inside the Hull Installation……………………………………………. 10

Control Head Installation……………………………………………... 12

Test the Installation…………………………………………………… 15

USING THE 200DX………………………………………………………… 16

How Sonar Works…………………………………………………….. 16

Simulator Operation.………………………………………………….. 17

What You See On Screen……………………………………………. 18

Control Functions………………………………………………………21

Menu Functions……………………………………………………….. 24

ADVANCED FEATURES………………………………………………….. 33

Using Diagnostic………………………………………………………. 33

SPECIFICATIONS…………………………………………………………. 35

MAINTENANCE AND WARRANTY……………………………………… 36

Maintenance…………………………………………………………… 36

Troubleshooting……………………………………………………….. 37

Warranty………………………………………………………………...40

Service Policy………………………………………………………….. 41

Customer Support…………………………………………………….. 42

oﬀered by Busse-Yachtshop.com

INSTALLATION PREPARATIONINSTALLATION PREPARATION

PARTS SUPPLIED

Before installing your new Humminbird fishsinder, please ensure the following parts are

included in the box:

• Fishfinder

• Transducer with 20’ (6m) of cable and mounting hardware kit

• Mounting system and mounting hardware kit

• 6’ (2m) power cable

• Publications kit

It any of these items is missing, call our Customer Support Hotline.

ACCESSORIES

Humminbird offers a wide assortment of accessories that complement and expand the

capability of your new fishfinder. These accessories are designed with the same high

standards and are backed by the same one-year warranty. The Humminbird Accessory

catalog included with your unit contains descriptions of the many accessories available

and ordering information. All Humminbird accessories are available through your full-

service Humminbird dealer or factory direct through our number listed in the Customer

Support section.

INSTALLATION OVERVIEW

Your Humminbird fishfinder consists of two primary components to install: the control

head and the transducer.

The control head contains the sonar transmit and receive circuitry, as well as the user

controls and display. It should be installed in a location that provides access to the

controls and visibility while in use. The control head mounts on a quick disconnect

mounting system that swivels and tilts providing flexibility for viewing from almost

anywhere on the boat.

The transducer converts electrical energy from the transmitter into mechanical pulses or

sound waves. The transducer also receives the reflected sound waves and converts

them back into electrical signals for display on the control head. It should be installed in

contact with the surface of the water in an area that has smooth waterflow- usually on

the transom of the boat. There are several mounting options for the transducer. Review

the following section to determine the method that works for you and your boat.
