INSTALLATION PREPARATION

PARTS SUPPLIED

Before installing your new Humminbird fishfinder, please ensure the following

parts are included in the box:

• Fishfinder

• Transducer with 20’ (6m) of cable and mounting hardware kit

• Mounting system and mounting hardware kit

• 6’ (2m) power cable

• Publications kit

It any of these items is missing, call our Customer Support Hotline.

ACCESSORIES

Humminbird offers a wide assortment of accessories that complement and

expand the capability of your new fishfinder. These accessories are designed

with the same high standards and are backed by the same one-year warranty.

The Humminbird Accessory catalog included with your unit contains descriptions

of the many accessories available and ordering information. All Humminbird

accessories are available through your full-service Humminbird dealer or factory

direct through our number listed in the Customer Support section.

INSTALLATION OVERVIEW

Your Humminbird fishfinder consists of two primary components to install: the

control head and the transducer.

The control head contains the sonar transmit and receive circuitry, as well as the

user controls and display. It should be installed in a location that provides access

to the controls and visibility while in use. The control head mounts on a quick

disconnect mounting system that swivels and tilts providing flexibility for viewing

from almost anywhere on the boat.

The transducer converts electrical energy from the transmitter into mechanical

pulses or sound waves. The transducer also receives the reflected sound waves

and converts them back into electrical signals for display on the control head. It

should be installed in contact with the surface of the water in an area that has

smooth waterflow- usually on the transom of the boat. There are several

mounting options for the transducer. Review the following section to determine

the method that works for you and your boat.

offered by Busse-Yachtshop.com

INSTALLATION PREPARATION

INSTALLATION OVERVIEW

Determining How to Mount the Transducer

Your Humminbird fishfinder includes a standard

transducer. This transducer can be mounted on the

transom of the boat or bonded to the inside of a fiberglass

hull boat.

The transom installation, which is the most widely used,

places the transducer on the outside of the boat hull. This

technique produces the least signal loss, and provides a

way to adjust the transducer after installation. The

mounting hardware included is designed to protect both

the boat and the transducer should the boat strike debris in

the water or when trailering.

As an alternative to transom mounting, it is possible on

many fiberglass-hulled boats to glue the transducer on

the inside of the boat hull. Since fiberglass has similar

sonar characteristics as water, the sonar signal can

pass through the boat hull with minimal loss. The hull

of the boat must be single layer construction (not

double-hulled) Also, any air trapped in the lamination

of the fiberglass would prevent the sonar signal from

passing through.

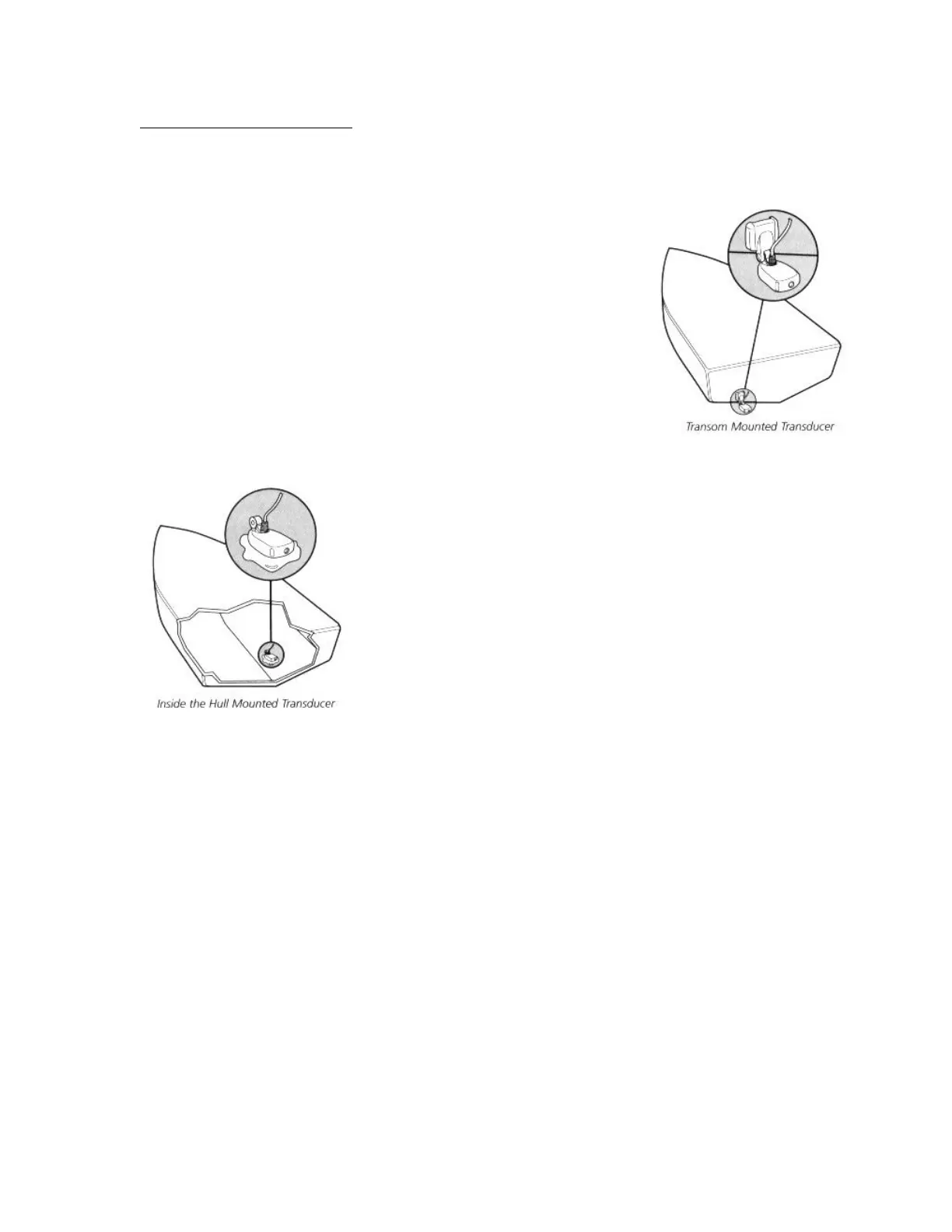

Inside the hull installations require no holes be drilled

into the boat and through experimentation, high-speed

operation comparable to transom mounting can be achieved. Two-part slow cure

epoxy (not included) is required to glue the transducer in place.
