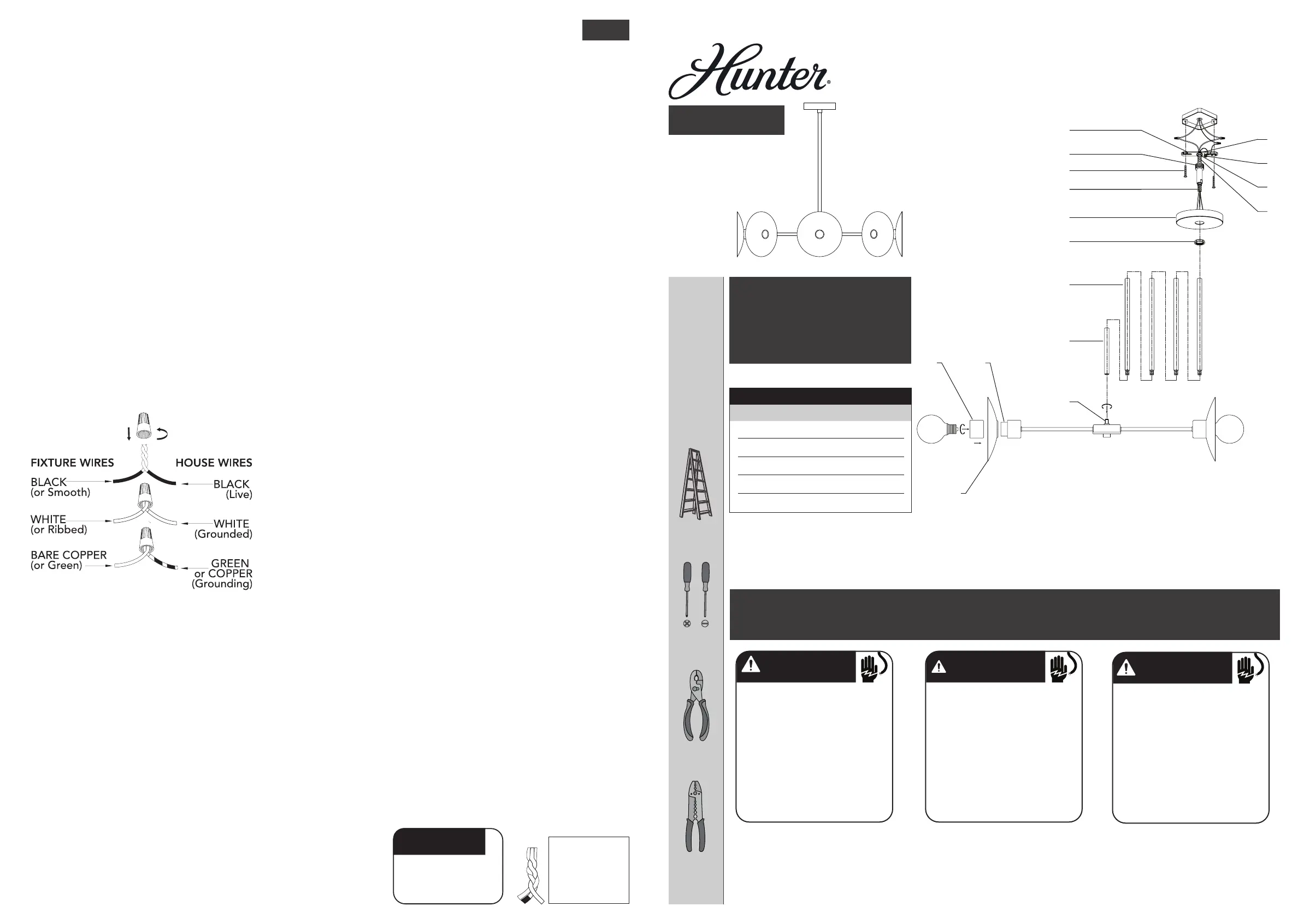

INSTALLATION INSTRUCTIONS

INSTRUCCIONES DE INSTALACIÓN/ INSTRUCTIONS D’INSTALLATION

For Models:

Para los Modelos:

Pour les Modèles:

Here are the

tools you’ll

need to

complete your

installation:

Estas son las

herramientas

que usted

necesitará para

completar su

instalación:

Voici les outils

dont vous

aurez besoin

pour réaliser

l’installation:

Ladder

Escalera

Échelle

Pliers

Alicates

Pince

Wire Strippers

Pelacables

Pince à dénuder

READ AND SAVE THESE INSTRUCTIONS

These instructions are provided for your safety. It

is very important that they are read carefully and

completely before beginning installation of the

lighting xture.

LEA Y GUARDE ESTAS INSTRUCCIONES

Estas instrucciones se proporcionan para su

seguridad. Es muy importante leerlas detenid-

amente y completamente antes de comenzar la

instalación de la lámpara.

LISEZ ET CONSERVEZ CES INSTRUCTIONS

Ces instructions sont fournies pour votre sécurité.

Il est très important de les lire attentivement dans

leur intégralité avant d’entreprendre l’installation

du luminaire.

Fixture weight ±2 lbs:

Peso ±2 lb:

Poids xe ±2 lbs:

Part #/Pieza #/Pièce #

Hardware Service Kit/Kit De Mantenimiento Del Equipo/Trousse De

Maintenance Quincaillerie

Finish/Finish/FiniModel/Modelo/Modèle

©2023 Hunter Fan Co.

ENGLISH

Light Chandelier

Luz Lámpara Tipo Araña

Lumière Chandelier

Screwdriver

Destornilladore

Tournevis

Twist or tape wire ends

together to make it

easier to pass them

through the downrods.

Threaded post may also

be removed for easier

wire access.

Hunter Pro Tip:

NOTICE

In order to use a 12in. rod by

itself you must rst remove the

threaded post from the 6in. rod

and install it on one of the ends

of the 12in. rod.

•

WARNING

• All wiring must be in accordance with national

and local electrical codes ANSI/NFPA 70. If you

are unfamiliar with wiring or in doubt, consult a

qualied electrician.

• To avoid possible electrical shock, before

installing your light xture, disconnect the power

by turning off the circuit breakers to the outlet box

associated with the wall switch location.

• The lighting xture must be grounded. If the

ground wire for the installation site is not present,

immediately STOP installation and consult a

qualied electrician.

• Todo el cableado debe realizarse de acuerdo con

los códigos eléctricos locales y nacionales ANSI/

NFPA 70. Si no está familiarizado con el cableado,

o si tiene duda, consulte a un electricista calicado.

• Para evitar una posible descarga eléctrica, antes

de instalar su lámpara, desconecte la energía

apagando los interruptores automáticos (breakers)

que alimentan la caja de salida asociada con la

ubicación del interruptor de pared.

•

ADVERTENCIA

• La lámpara se debe conectar a tierra. Si el alambre

de conexión a tierra no está presente en el sitio

de la instalación, DETENGA inmediatamente la

instalación y consulte con un electricista calicado.

•

AVERTISSEMENT

•

Tout le câblage doit être conforme aux codes

électriques nationaux et locaux en vigueur et à la

norme ANSI/NFPA70. Si vous n'avez pas l'habitude

de faire ce câblage ou en cas de doute, adressez-

vous à un électricien qualié.

• Pour éviter tout choc électrique, avant d’installer

le luminaire, coupez le courant en éteignant les

disjoncteurs de la boîte électrique associée à

l’interrupteur mural.

•

Le luminaire doit être mis à la terre. Si le l

de terre du lieu d’installation n’est pas présent,

ARRÊTER immédiatement l’installation et

consulter un électricien qualié.

B

C

D

E

F

H

A

L

K

G

M

O

NP

I

J

13089

Fernando

KG22001895

Flat Matte Black/Negro Mate

Plano/Noir Mat Dépoli13089

ML428

r_030323

7.74 lbs(3.51 kg)

8

8

8

FINISHING THE INSTALLATION

CONNECTING THE WIRES

ASSEMBLING THE FIXTURE

PREPARING FOR INSTALLATION

CLEANING TIPS

Treat the xture gently! Regular cleaning will reduce the need for deep cleaning. For regular cleaning, turn off the light

and wipe down the xture with a clean lint-free cotton or microber cloth. Never spray cleaner directly onto the xture.

Carefully remove all contents from the carton. Shut off the power at the circuit breaker and completely remove the old

xture from the ceiling, including the old mounting bracket. Remove the new mounting bracket assembly from the

bag. One end of the threaded post (D) should be attached to the mounting bracket (E) with a washer (A) and a hex nut

(C) in place. The other end should have the canopy loop (F) attached. Unscrew the canopy loop ring (J) from the canopy

loop (F). Place canopy (I) over the canopy loop (F) so that it’s ush with the ceiling. Adjust the position of threaded post

(D) on the mounting bracket (E) so that the canopy (I) covers at least half of the exterior threads on the canopy loop

(F) while it’s securely connected to threaded post (D). Once the ideal position of the threaded post (D) is determined,

tighten up the washer (A) and the hex nut (C) onto the threaded post (D) just beneath the mounting bracket (E) to

secure the threaded post (D) in place.

There are 4 12-inch rods (K), and 1 6-inch rod (L) included for each xture. Determine the correct number of rods

needed for proper hanging height. To lengthen the xture, add additional rods. To shorten the xture, trim the wires to

desired length. Leave at least 8 to 10 inches of wire in addition to the desired length and slide any excess rods off the

xture’s wiring to discard. Keep in mind that you must use at least one rod to hang the xture. Thread the wires through

the rods and pull the wires until taut before connecting the rods together. All threads should be engaged but do not

overtighten (some manual straightening of the downrods may be required). Screw rod onto threaded post (M) of the

xture. Pull the xture wires through the canopy loop ring (J), the top of the canopy, and the canopy loop (F). Screw

the top rod to hang straight (H) of canopy loop (F). Have a helper support the xture’s weight and attach the mounting

bracket (E) to the junction box by securely tightening the mounting screws (G).

Attach the xture’s wires to the power supply wires from the junction

box. Connect black to black (live); white to white (neutral); grounding

to grounding (green or copper). Twist the ends of the wire pairs

together. Then twist on a wire connector. Make sure all twists are in the

same direction. Loop xture’s ground wire around grounding screw

(B) and tighten. If there is no ground wire (green or copper) from the

junction box, contact a qualied electrician.

Place the canopy (I) ush to the ceiling and slide the canopy loop ring (J) up beneath the canopy (I). Tightly screw

canopy loop ring (J) onto the canopy loop (F) to properly secure the canopy (I) in place. Secure Shade (O) onto

the socket (N) by screwing socket ring (P) tight. Install light bulb (not included) in accordance with the xture’s

specications. Do not exceed the recommended wattage. Repeat for each socket. Turn on the power and test the xture.

Your installation is now complete.
