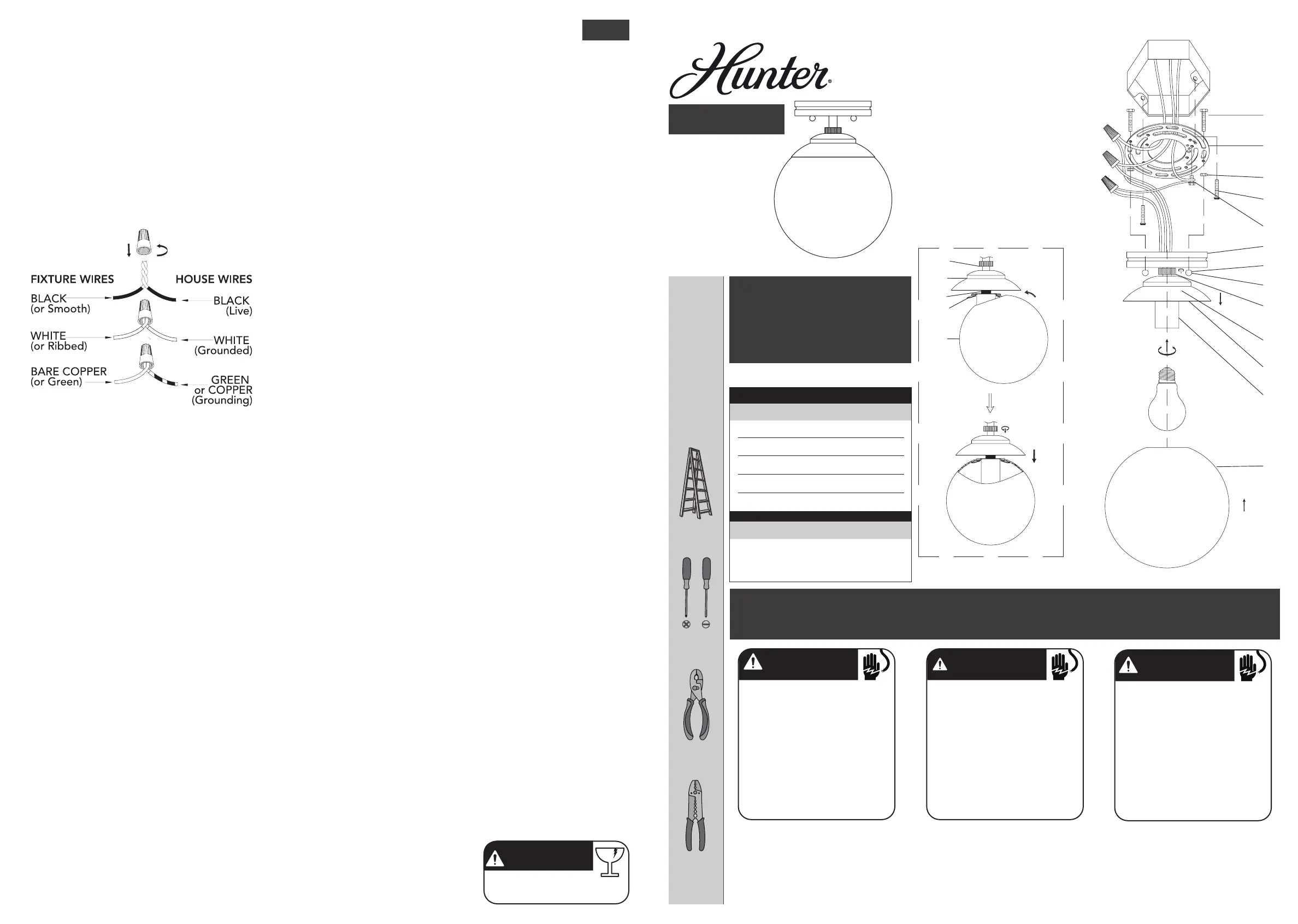

INSTALLATION INSTRUCTIONS

INSTRUCCIONES DE INSTALACIÓN/ INSTRUCTIONS D’INSTALLATION

For Models:

Para los Modelos:

Pour les Modèles:

Here are the

tools you’ll

need to

complete your

installation:

Estas son las

herramientas

que usted

necesitará para

completar su

instalación:

Voici les outils

dont vous

aurez besoin

pour réaliser

l’installation:

Ladder

Escalera

Échelle

Pliers

Alicates

Pince

Wire Strippers

Pelacables

Pince à dénuder

READ AND SAVE THESE INSTRUCTIONS

These instructions are provided for your safety. It

is very important that they are read carefully and

completely before beginning installation of the

lighting xture.

LEA Y GUARDE ESTAS INSTRUCCIONES

Estas instrucciones se proporcionan para su

seguridad. Es muy importante leerlas detenid-

amente y completamente antes de comenzar la

instalación de la lámpara.

LISEZ ET CONSERVEZ CES INSTRUCTIONS

Ces instructions sont fournies pour votre sécurité.

Il est très important de les lire attentivement dans

leur intégralité avant d’entreprendre l’installation

du luminaire.

Fixture weight ±2 lbs:

Peso ±2 lb:

Poids xe ±2 lbs:

•

WARNING

• All wiring must be in accordance with national

and local electrical codes ANSI/NFPA 70. If you

are unfamiliar with wiring or in doubt, consult a

qualied electrician.

• To avoid possible electrical shock, before

installing your light xture, disconnect the power

by turning off the circuit breakers to the outlet box

associated with the wall switch location.

• The lighting xture must be grounded. If the

ground wire for the installation site is not present,

immediately STOP installation and consult a

qualied electrician.

•

• Todo el cableado debe realizarse de acuerdo con

los códigos eléctricos locales y nacionales ANSI/

NFPA 70. Si no está familiarizado con el cableado,

o si tiene duda, consulte a un electricista calicado.

• Para evitar una posible descarga eléctrica, antes

de instalar su lámpara, desconecte la energía

apagando los interruptores automáticos (breakers)

que alimentan la caja de salida asociada con la

ubicación del interruptor de pared.

ADVERTENCIA

• L’appareil d’éclairage doit être mis à la terre.

Si le l de terre du lieu d’installation n’est pas

présent, ARRÊTEZ immédiatement l’installation et

consultez un électricien qualié.

•

AVERTISSEMENT

•

Tout le câblage doit être conforme aux codes

électriques nationaux et locaux en vigueur et à la

norme ANSI/NFPA70. Si vous n'avez pas l'habitude

de faire ce câblage ou en cas de doute, adressez-

vous à un électricien qualié.

• Pour éviter tout choc électrique, avant d’installer

le luminaire, coupez le courant en éteignant les

disjoncteurs de la boîte électrique associée à

l’interrupteur mural.

•

Le luminaire doit être mis à la terre. Si le l

de terre du lieu d’installation n’est pas présent,

ARRÊTER immédiatement l’installation et

consulter un électricien qualié.

©2022 Hunter Fan Co.

Light Flush Mount

Luz Empotrado

Lumière Montage Afeurant

Part #/Pieza #/Pièce #

Hardware Service Kit/Kit De Mantenimiento Del Equipo/Trousse De

Maintenance Quincaillerie

Finish/Finish/FiniModel/Modelo/Modèle

Glass/Domo De Vidrio/Verre

Type/Tipo/TypePart #/Pieza #/Pièce #Model/Modelo/ Modèle

ENGLISH

Screwdriver

Destornilladore

Tournevis

KC04401864

KC04401893

19020

19021

Painted Modern Brass/Bronce

Moderno Pintado/Laiton

Moderne Peint

Matte White/Blanco Mate/

Blanc Mat

KC04401214

KC04401119

19170

19872

Brushed Nickel/Níquel Pulido/

Nickel Brossé

Matte Black/Negro Mate/

Noir Mat

KA28701045

19020

19021

19170

19872

Cased White Glass/Pantalla de

Vidrio Blanco/Verre Blanc

ML002

r_050622

2.4lbs(1.09kg)

1

1

1

FINISHING THE INSTALLATION

CONNECTING THE WIRES

PREPARING FOR INSTALLATION

CLEANING TIPS

Treat the xture gently! Regular cleaning will reduce the need for deep cleaning. For regular cleaning, turn off the

light and wipe down the xture with a clean lint-free cotton or microber cloth. Never spray cleaner directly onto

the xture.

Carefully remove all contents from the carton. Shut off the power at the circuit breaker and completely remove the

old xture from the ceiling, including the old mounting bracket. Remove the new mounting bracket assembly from

the bag. Remove cap nuts (G) from mounting screws (A). Place the mounting plate (B) over the junction box so

that mounting screws (A) and nuts (C) extend out away from the ceiling. Pull the house wires through the center of

mounting plate (B). Adjust the position of mounting screws (A) so that mounting screws (A) can be exposed 5–6 mm

after passing through the canopy (F) to properly t the cap nuts. Mounting screws (A) can be adjusted by loosening

nuts (C) and loosening or tightening mounting screws (A). Once the ideal position of mounting screws (A) has been

conrmed, tighten nuts (C) on mounting screws (A) under the mounting plate to ensure that mounting screws (A)

are in place. Secure mounting plate (B) to the junction box by tightening the screws (D).

Have a helper support the xture’s weight while completing the

wiring. Attach the xtures wires to the power supply wires from the

junction box. Connect black to black (live); white to white (neutral);

grounding to grounding (green or copper). Twist the ends of the

wire pairs together. Then, twist on a wire connector. Make sure all

twists are in the same direction. Loop xture’s ground wire around

grounding screw (E) and tighten. If there is no ground wire (green

or copper) from the junction box, contact a qualied electrician.

Raise canopy (F) to mounting plate (B) and position mounting screws (A) so that they protrude through the

openings of canopy (F). Secure canopy (F) in place with cap nuts (G). lnstall light bulb (not included) in accordance

with the xture’s specications. Do not exceed the recommended wattage.

Unscrew ring (I) from threads (N) and move the cover (J) back to expose metal bracket (K). Put the metal bracket (K)

into the glass (M) and adjust until both ends are in contact with the glass (M) and the at base is parallel with the

glass opening. Then tighten the ring (I) on threads (N) to secure the cover (J) and glass (M). Repeat for each xture.

Remove the glass before maintenance. Your installation is now complete. Turn on the power and test the xture.

Hepburn

I

J

M

N

K

A

B

C

D

E

F

G

K

L

M

J

I

H

19020

19021

19170

19872

WARNING

FRAGILE GLASS

To prevent chipping/breaking of glass,

do not overtighten screws.
