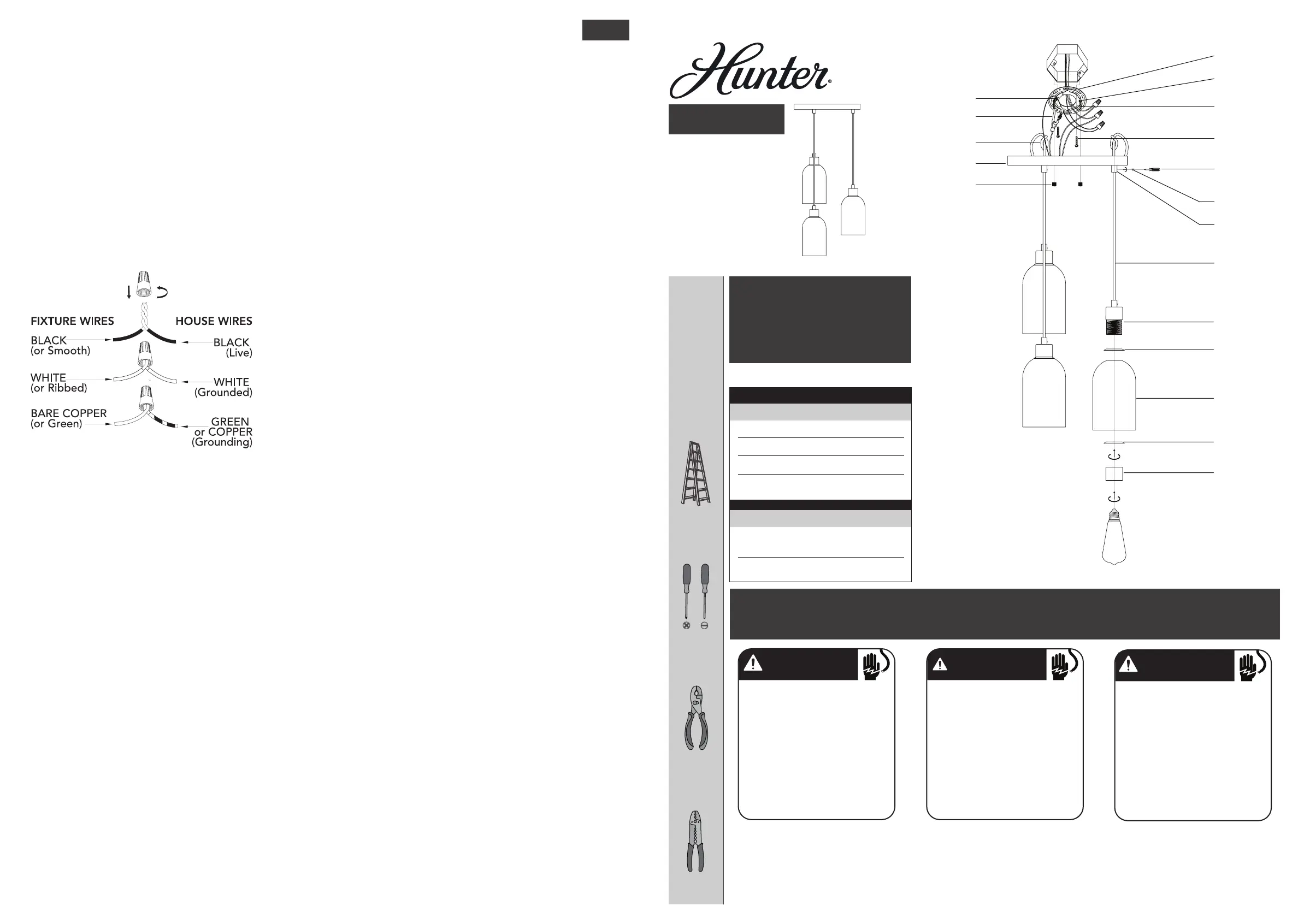

INSTALLATION INSTRUCTIONS

INSTRUCCIONES DE INSTALACIÓN/ INSTRUCTIONS D’INSTALLATION

For Models:

Para los Modelos:

Pour les Modèles:

Here are the

tools you’ll

need to

complete your

installation:

Estas son las

herramientas

que usted

necesitará para

completar su

instalación:

Voici les outils

dont vous

aurez besoin

pour réaliser

l’installation:

Ladder

Escalera

Échelle

Pliers

Alicates

Pince

Wire Strippers

Pelacables

Pince à dénuder

READ AND SAVE THESE INSTRUCTIONS

These instructions are provided for your safety. It

is very important that they are read carefully and

completely before beginning installation of the

lighting xture.

LEA Y GUARDE ESTAS INSTRUCCIONES

Estas instrucciones se proporcionan para su

seguridad. Es muy importante leerlas detenid-

amente y completamente antes de comenzar la

instalación de la lámpara.

LISEZ ET CONSERVEZ CES INSTRUCTIONS

Ces instructions sont fournies pour votre sécurité.

Il est très important de les lire attentivement dans

leur intégralité avant d’entreprendre l’installation

du luminaire.

Fixture weight ±2 lbs:

Peso ±2 lb:

Poids xe ±2 lbs:

•

WARNING

• All wiring must be in accordance with national

and local electrical codes ANSI/NFPA 70. If you

are unfamiliar with wiring or in doubt, consult a

qualied electrician.

• To avoid possible electrical shock, before

installing your light xture, disconnect the power

by turning off the circuit breakers to the outlet box

associated with the wall switch location.

• The lighting xture must be grounded. If the

ground wire for the installation site is not present,

immediately STOP installation and consult a

qualied electrician.

•

• Todo el cableado debe realizarse de acuerdo con

los códigos eléctricos locales y nacionales ANSI/

NFPA 70. Si no está familiarizado con el cableado,

o si tiene duda, consulte a un electricista calicado.

• Para evitar una posible descarga eléctrica, antes

de instalar su lámpara, desconecte la energía

apagando los interruptores automáticos (breakers)

que alimentan la caja de salida asociada con la

ubicación del interruptor de pared.

ADVERTENCIA

• L’appareil d’éclairage doit être mis à la terre.

Si le l de terre du lieu d’installation n’est pas

présent, ARRÊTEZ immédiatement l’installation et

consultez un électricien qualié.

•

AVERTISSEMENT

•

Tout le câblage doit être conforme aux codes

électriques nationaux et locaux en vigueur et à la

norme ANSI/NFPA70. Si vous n'avez pas l'habitude

de faire ce câblage ou en cas de doute, adressez-

vous à un électricien qualié.

• Pour éviter tout choc électrique, avant d’installer

le luminaire, coupez le courant en éteignant les

disjoncteurs de la boîte électrique associée à

l’interrupteur mural.

•

Le luminaire doit être mis à la terre. Si le l

de terre du lieu d’installation n’est pas présent,

ARRÊTER immédiatement l’installation et

consulter un électricien qualié.

©2021 Hunter Fan Co.

Light Cluster

Luz En Racimo

Lumière Grappe

Part #/Pieza #/Pièce #

Hardware Service Kit/Kit De Mantenimiento Del Equipo/Trousse De

Maintenance Quincaillerie

Glass/Domo De Vidrio/Verre

Part #/Pieza #/Pièce #

ENGLISH

Finish/Finish/FiniModel/Modelo/Modèle

Type/Tipo/TypeModel/Modelo/ Modèle

Screwdriver

Destornilladore

Tournevis

F

M

G

N

O

P

Q

R

L

J

I

H

B

C

K

D

E

A

19718

19719

19136

Lochemeade

KG20302214

KG20301872

Brushed Nickel/Níquel Pulido/

Nickel Brossé

Natural Iron/Hierro Natural/

Fer Naturel

KG20301834

Noble Bronze/Bronce Noble/

Bronze Noble

19718

19719

19136

KC07901046

KC07902295

Clear Seeded Glass/Vidrio

Transparente Con Burbujas/

Verre Piqueté Transparent

Smoked Glass/Vidrio

Ahumado/Verre Fumé

19718

19136

19719

ML162

R_092821

9.1 lbs(4.13 kg)

3

3

3

FINISHING THE INSTALLATION

CONNECTING THE WIRES

PREPARING FOR INSTALLATION

CLEANING TIPS

Treat the xture gently! Regular cleaning will reduce the need for deep cleaning. For regular cleaning, turn off the light

and wipe down the xture with a clean lint-free cotton or microber cloth. Never spray cleaner directly onto the xture.

Carefully remove all contents from the carton. Shut off the power at the circuit breaker and completely remove the old

xture from the ceiling, including the old mounting bracket. Remove the new mounting bracket assembly from the

bag. Then remove cap nuts (L) from mounting screws (C). Place the mounting plate (B) over the junction box so that

mounting screws (C) and nuts (A) extend out away from the ceiling. Depending on the placement of your junction box

the position of mounting screws (C) may need to be adjusted to allow the canopy to be ush with the ceiling. Adjust the

position of mounting screws (C) so that mounting screws (C) can be exposed 5-6 mm after passing through the canopy

(K) to properly t the cap nuts. Mounting screws (C) can be adjusted by loosening nuts (A) and loosening or tightening

mounting screws (C). Once the ideal position of mounting screws (C) has been conrmed, tighten nuts (A) on mounting

screws (C) under the mounting plate to ensure that mounting screws (C) are secure. Tighten the screw collar loop (I) into

mounting plate (B). Pull the house wires through the center of mounting plate (B). Secure mounting plate (B) to the

junction box by tightening the screws (D).

Loosen the screw (F) with the screwdriver (E), adjust the wire to the

desired length by sliding cord (M) through cord grip (G), and then lock

the screw (F) with the screwdriver (E) to secure the wire. Tie a knot in

each cord (M) above the canopy for strain relief [see existing knot (J)

for example]. Cut excess cord leaving enough length to reach from

each end to the center of the canopy to assure that the connections of

each of the 3 cords and house wiring can be made. Remove the outer

jacket of each cord (M) to expose individual wires (white, black, green).

Strip half an inch of jacket away from the ends of each individual

wire. Have a helper support the xture’s weight while completing the

wiring. Attach the xture’s wires [from all 3 cords (M)] to the power

supply wires from the junction box. Connect black to black (Live); white to white (grounded); grounding to grounding

(green or copper). Twist the ends of the wire pairs together. Then, twist on a wire connector. Make sure all twists are

in the same direction. Loop xture’s ground wire around grounding screw (H) and tighten. If there is no ground wire

(green or copper) from the junction box, contact a qualied electrician.

Raise canopy (K) to mounting plate (B) and position mounting screws (C) so that they protrude through the openings

of canopy (K). Secure canopy (K) in place with cap nuts (L). Secure [in order] cover (O), glass (P), and cover (Q) onto the

socket (N) in turn by screwing socket ring (R) tight. Install light bulb (not included) in accordance with the xture’s

specications. Do not exceed the recommended wattage. Your installation is now complete. Turn on the power and test

the xture.
