Ibiza Sound XTK12 Bruksanvisning

Ibiza Sound högtalare XTK12

Läs gratis den bruksanvisning för Ibiza Sound XTK12 (15 sidor) i kategorin högtalare. Guiden har ansetts hjälpsam av 2 personer och har ett genomsnittsbetyg på 4.3 stjärnor baserat på 1.5 recensioner. Har du en fråga om Ibiza Sound XTK12 eller vill du ställa frågor till andra användare av produkten? Ställ en fråga

Ladda ner PDF

Sida 1/15

MANUAL

FR - Manuel d'Utilisation - p. 4

DE - Bedienungsanleitung - S. 5

NL - Handleiding - p. 6

ES - Manual de Uso - p. 7

PT - Manual de instruções - p. 8

RO - Manual de Utilizare - p. 9

IT - Manuale di istruzioni - p. 10

SI - Navodila za uporabo - p. 11

REF:

XTK15 / XTK12 / XTK10 / XTK8

15"/38CM - 600W / 12"/30CM - 500W / 10"/25CM - 300W / 8"/20CM - 200W

CODE:

15-2413 / 15-2412 / 15-2411 / 15-2410

PASSIVE 2-WAY BASS REFLEX BOXES

ENCEINTES PASSIVES BASS REFLEX

A 2 VOIES

XTK series

8’’ 2-WAY SPEAKER BOX

OutputInput

Model : XTK8

Magnet : 20 oz

Voice coil : 1’’ KSV

Frequency Response : 50Hz - 18kHz

Sensitivity : 87dB

Impedance : 8 Ohm

RMS Power : 100W

Max Power : 200W

Designed in Belgium by LOTRONIC S.A.

Av. Z. Gramme 9 - B - 1480 Saintes

Assembled in PRC

OutputInput

Designed in Belgium by LOTRONIC S.A.

Av. Z. Gramme 9 - B - 1480 Saintes

Assembled in PRC

15’’ 2-WAY SPEAKER BOX

Model : XTK15

Magnet : 50 oz

Voice coil : 2.5’’ KSV

Frequency Response : 45Hz - 18kHz

Sensitivity : 95dB

Impedance : 8 Ohm

RMS Power : 300W

Max Power : 600W

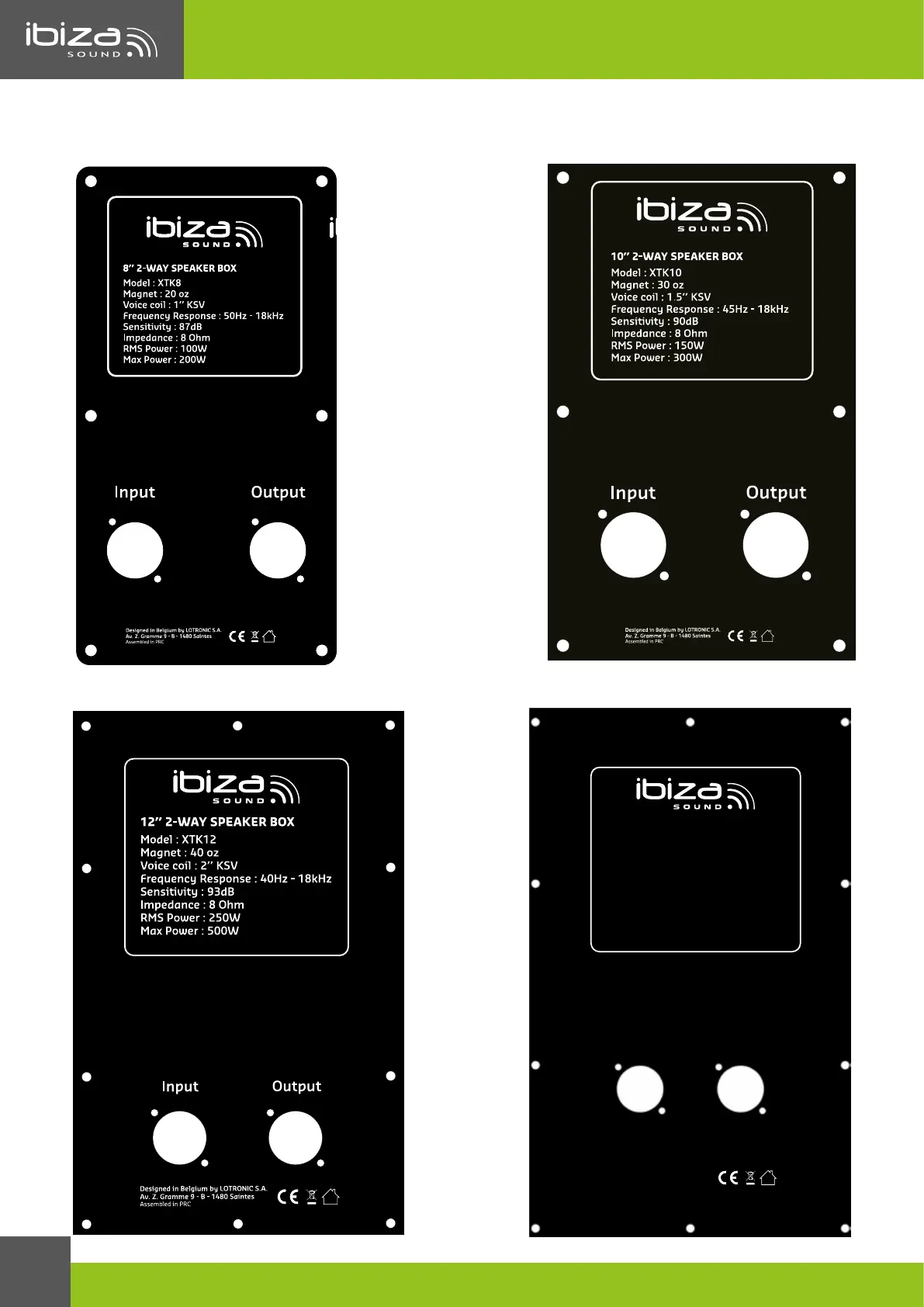

REAR PANEL / ARRIERE / RÜCKANSICHT / ACHTERKANT / PANEL POSTERIOR / PAINEL TRASEIRO

XTK series

www.ibiza-light.com

PASSIVE MOULDED PA BOXES

INSTRUCTION MANUAL

Accordance with the requirements of CE standard

The product is for indoor use only

This marking indicates that this product should not be disposed with other household wastes throughout the EU. To

prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to

promote the sustainable reuse of material resources. To return your used device, please use the return and collection

systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling.

IMPORTANT SAFETY INSTRUCTIONS AND DANGER WARNINGS

• Please read the manual carefully and keep it for future reference.

• The appliance is approved for operation in dry, closed rooms only . Do not operate the device nearby

water, such as in bathrooms or nearby swimming pools. Do not expose to excessive moisture.

• Do not expose to extreme temperatures (< +5°C / > +35°C), strong vibrations or heavy mechanical strain.

• Do not place any recipients lled with liquids, such as glasses or vases, on top of or directly next to the

appliance. Do not place any small objects, such as coins or paper clips, on the appliance since they could fall

inside the appliance. Do not place any naked ames such as burning candles on or next to the appliance

• Never place the appliance on an unstable or movable surface. Persons could be injured or the appliance

damaged by it falling down.

• Only use the appliance in a moderate climate, not in tropical environments.

STAND MOUNTING

If you use a stand, be sure to observe the following precautions:

• Check the stand specication to be certain it is designed to support the weight of the speaker.

• Place the stand on a at, level, and stable surface.

• Remove the speaker from the stand before moving the stand or adjusting its height.

• Before moving the box, remove all connected cables.

• Do not use the speaker’s handles for suspended installation. Doing so can result in damage and injury.

OPERATION

1. Connect a SPEAKON lead from an active box or an amplifier to the INPUT connector on the rear panel.

2. If the INPUT connector is connected to an amplifier, you can connect another passive box to the OUTPUT

connector .

CARE

The product should be cleaned only with a polishing cloth or a soft dry cloth. Never clean with furniture wax,

benzene, insecticides or other volatile liquids since they may corrode the cabinet.

SPECIFICATIONS

XTK8 XTK10 XTK12 XTK15

System Passive 2-way full range

Woofer 8” 10” 12” 15”

Magnet 20oz 30oz 40oz 50oz

Voice coil 1" 1.5" 2" 2.5”

RMS power 100W 150W 250W 300W

Impedance 8 Ohm

Freq. Range 50Hz – 18kHz 45Hz – 18kHz 40Hz – 18kHz 45Hz – 18kHz

Sensitivity 87dB 90dB 93dB 95dB

Connectors 2 x Speakon

Dimensions (mm) 245 x 210 x 390 305 x 235 x 470 370 x 310 x 570 400 x 370 x 680

Weight 4.34kg 6.92kg 9.78kg 13.59kg
