INPUT
PowerMatch
XBass
3
2
1
0dB
6dB 12dB
18dB
10. Balanced 4.4mm analogue input
This is a balanced analogue input.
11. Single-ended 3.5mm analogue input
For connecting single-ended 3.5mm input.
12. RCA analogue input
This is an analogue input.
13. Balanced 4.4mm analogue output
This is an analogue output via 4.4mm > XLR or other balanced
interconnects. You could use this for an active speaker.
Tip: As ZEN CAN is balanced, this is the recommended output.Signature
14. DC 5V power
Please connect ZEN CAN to the enclosed power Signature
supply, ZEN CAN must ONLY be powered by 5 volts.Signature
246

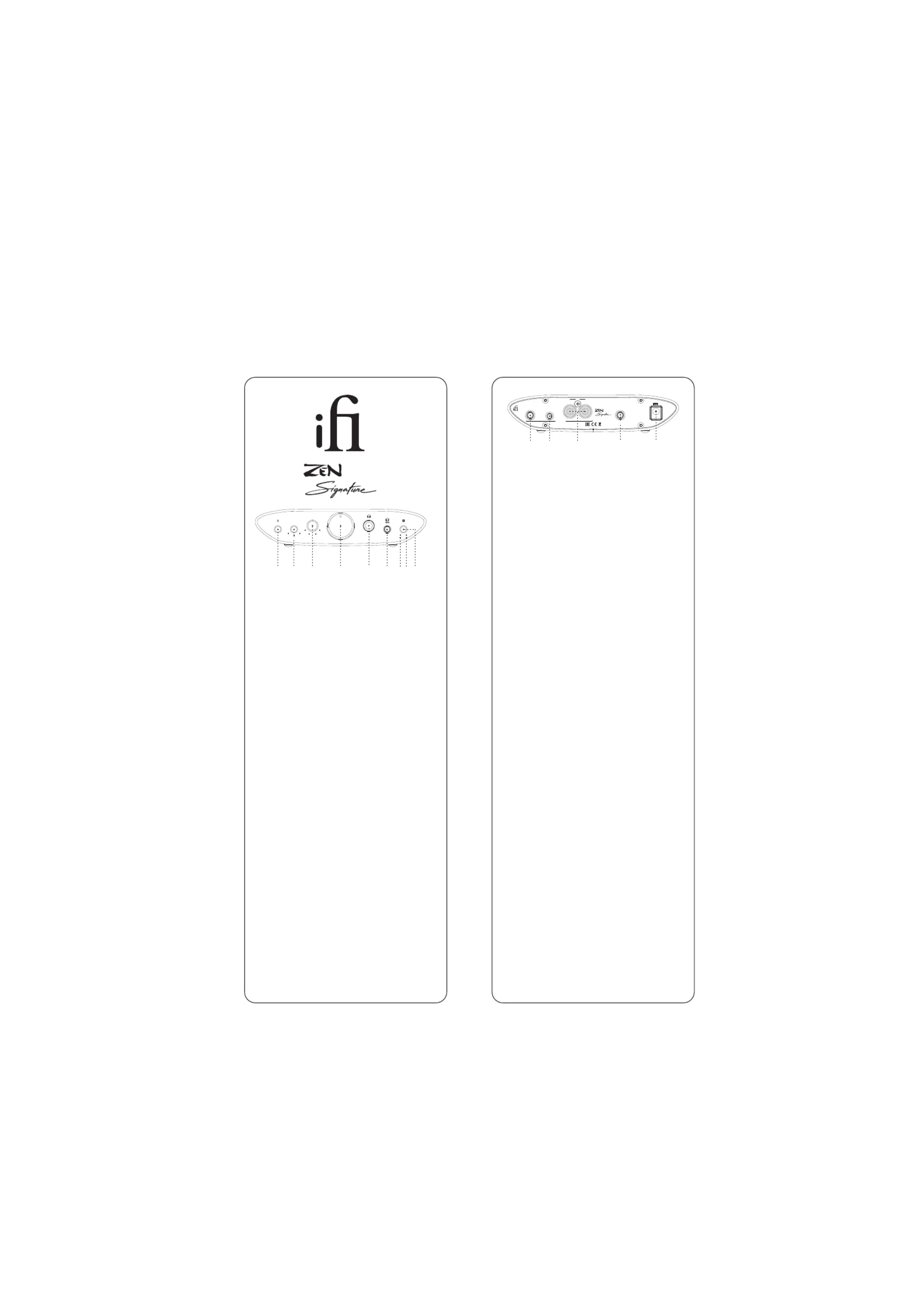

Thank you for purchasing the CAN from ZEN series. The CAN
Signature is a balanced audio amplifier.
1. Power switch
2. Input channel switch
Input 1: RCA
Input 2: Single-ended 3.5mm
Input 3: Balanced 4.4mm
3. 0dB/6dB/12dB/18dBPowerMatch selection:
We recommend starting from 0dB and then increasing the
switchable gain level to attain an enjoyable and comfortable level
of volume from the headphones.
Warning: at the outset do not use excessive gain, otherwise damage to hearing or
connected headphones may ensue. AMR/iFi audio is not responsible for any
damage/injury from misuse.
4. Analogue Volume Control
At normal listening levels, the volume control should be around the 12
o'clock position. Increase the gain level to enjoy a higher listening level.
5. Single-ended 6.3mm output
For connecting single-ended 6.3mm headphones. With single-ended
3.5mm headphones, connect with a 3.5mm to 6.3mm adapter.
6. Balanced 4.4mm analogue output
For connecting balanced 4.4mm headphones.
Tip: As ZEN CAN Signature is balanced, we recommend the 4.4mm output.
7. XBass LED
XBass (On/Off ) was uniquely designed to extend bass response
to suit different headphones. It is a pure analogue signal circuit.
8. XSpace LED
The XSpase (on/off) recreates a holographic sound field.
It is a pure analogue signal processing circuit designed for
listening to headphones as if one was listening to speakers. This
addresses the 'music inside the head' sensation, which makes
for unsettling listening.
Tip: Sonically-hindering DSP is NOT used for XBass nor Xspace systems. They use the highest-
quality discrete components and operate purely in the analogue domain. Hence all the
clarity and resolution of the original music is retained.
Ver1.0
ifi-audio.com
19
DC 5V
L
R
3
BALANCED
Technology licensed from AMR-Audio, UK Assembled in China
BALANCED
Output
Inputs
2
SINGLE
ENDED
1
1011121314
5378
9. Settings
This button chooses between:
OffXSpaceXBassXBass + XSpace (short press) > > >
Specifications
Max Output:
Balanced >15.1V/385 mW (@ 600)Ω
>6.2V/1200 mW (@ 32)Ω
UnBAL >7.6V/98 mW (@ 600Ω)
>7.2V/1600 mW (@ 32)Ω
THD + N:
Balanced <0.006% (@ 360 mW/2.4V 16)Ω
UnBAL <0.005% (@ 100 mW/1.27V 16)Ω
SNR:
Balanced >121dBA (@ 15.2V)
UnBAL >120dBA (@ 7.6V)
Max. Input:
Balanced 7.4V RMS
RCA 3.8V RMS
3.5mm 1.92V RMS
Gain: 0dB, 6dB, 12dB and 18dB
Frequency Response:10Hz - 200kHz (-3dB)
Power supply requirement:DC 5V/2.5A(centre +ve)
Power consumption:No Signal ~5W
Max Signal ~13W
Dimensions: 158 x117 x35 mm (6.2" x 4.6" x 1.4")
Net weight: 550g (1.21 Ibs)
Limited Warranty: 12 months*
*12 months typical or as permitted/required by local reseller laws.
**Specications are subject to change without notice.
CAN
CAN
XSpace
