HDDA-2

2-Output

Component Video

Distribution

Amplifier

Multimedia Accessories

WWW.INDAY.COM

Overview And Uses

The HDDA-1 is a very wideband analog Distribu-

tion Amplifier (DA) capable of buffering and split-

ting any nominal 1 to 2 Volt (peak to peak) signal

that terminates into 75 ohms. This includes any of

the following.

- HDTV Analog RGB/YPbPr signals.

- Standard Def. Analog RGB/YPbPr/Betacam

- Component DVD, Progressive or Interlaced.

- Composite Video (NTSC)

- SPDIF Digital Audio (PCM/AC3/DTS)

Each output has its own dedicated high current

Video amplifier/driver which is capable of sending

any video signal very long distances without degra-

dation.

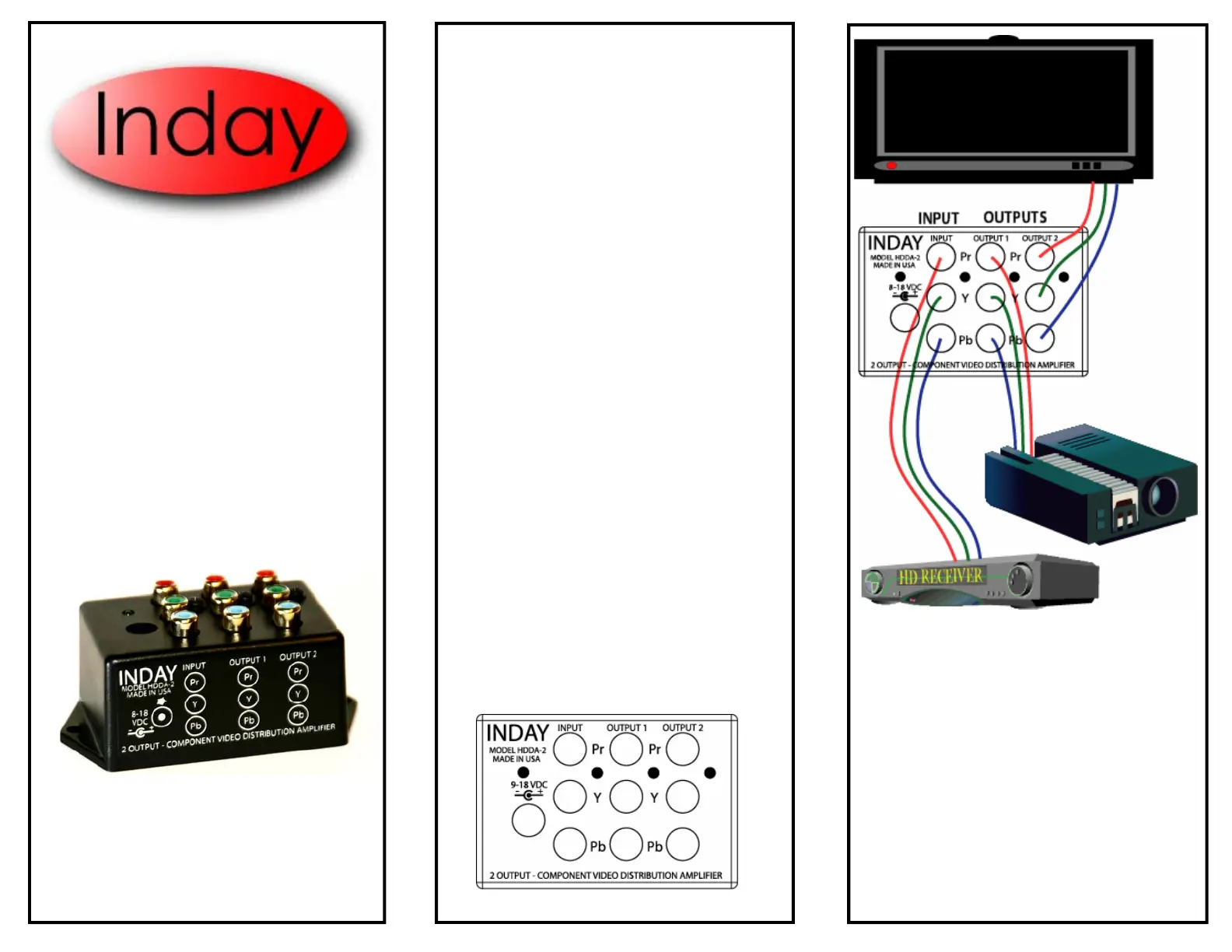

Figure 1 - Connectors

The HDDA-2 can be configured in a number of

ways. Here are the most common.

♦ A 1-In to 2-Out HDTV Receiver or Progressive

Scan DVD Splitter. Figure 2

♦ Three separate 1-In to 2-Out DA’s.

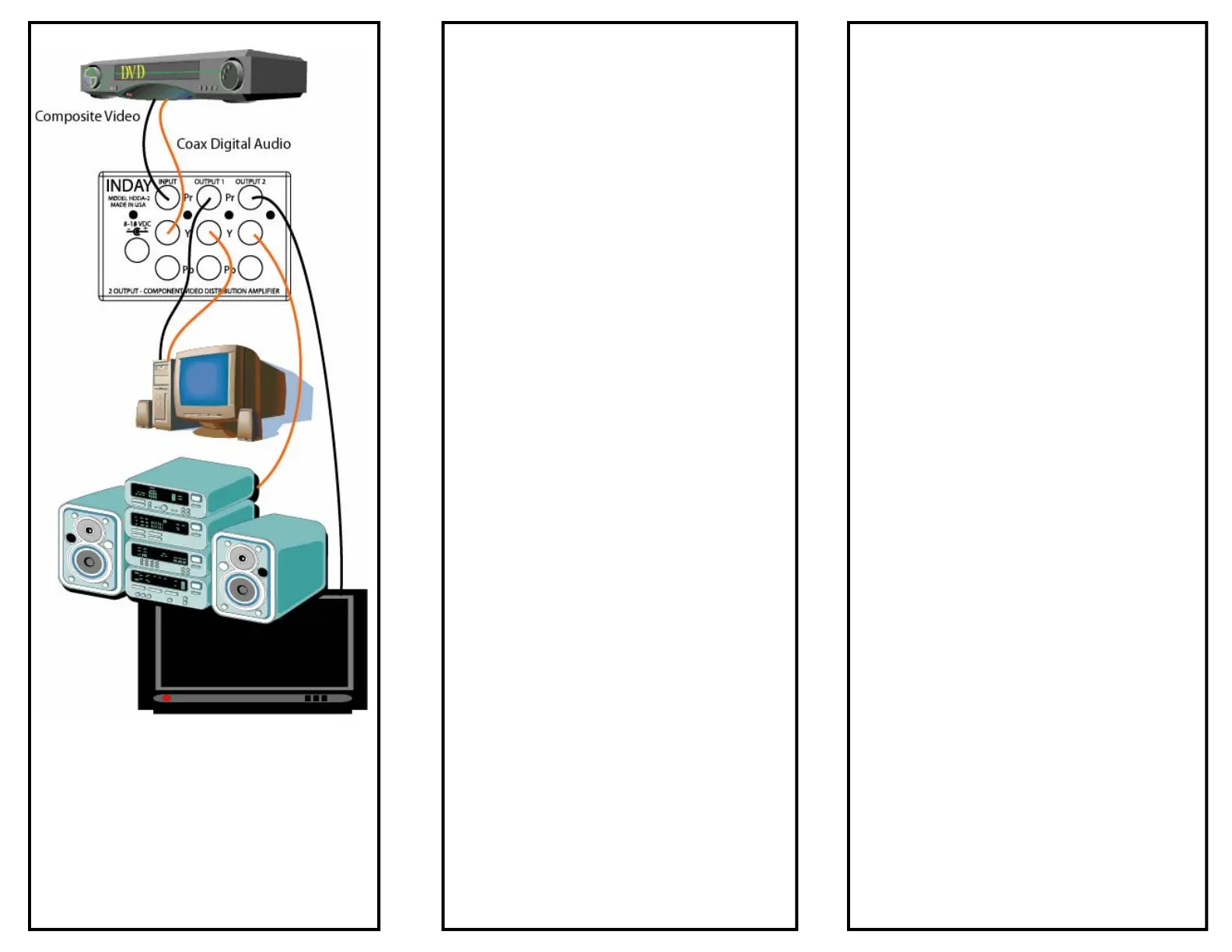

♦ Home Theater. One input distributes the Com-

posite (NTSC) video to the Displays and another

input distributes the Digital Audio to the Audio

equipment. Figure 3

The unit is supplied with the proper DC Power Sup-

ply (center pin positive +).

Configurations

Figure 2 - Component Video Distribution
