Sida 1/39

IN3102 IN3104 IN3106 IN3108

010-0710-03

Regulatory models W3220, W3240 and W3260

Declaration of Conformity

Manufacturer: InFocus Corporation, 13190 SW 68th Parkway, Portland,

Oregon 97223-8368 USA

We declare under our sole responsibility that this projector conform to the

following directives and norms:

EMC Directive 2004/108/EC

EMC: EN 55022

EN 55024

EN 61000-3-2

EN 61000-3-3

Low Voltage Directive 2006/95/EC

Safety: IEC 60950-1: 1

Edition

Trademarks

DisplayLink is a trademark of DisplayLink Corporation.

Apple, Macintosh, and PowerBook are trademarks or registered trademarks

of Apple Computer, Inc. IBM is a trademark or registered trademark of

International Business Machines, Inc. Microsoft, PowerPoint, and Windows

are trademarks or registered trademarks of Microsoft Corporation. Adobe

and Acrobat are trademarks or registered trademarks of Adobe Systems

Incorporated. DLP® and the DLP logo are registered trademarks of Texas

Instruments and BrilliantColor™ is a trademark of Texas Instruments.

InFocus, In Focus, and INFOCUS (stylized) are either registered trademarks

or trademarks of InFocus Corporation in the United States and other

countries.

FCC Warning

Note: This equipment has been tested and found to comply with the limits

for a Class B digital device, pursuant to part 15 of the FCC Rules. These

limits are designed to provide reasonable protection against harmful

interference in a residential installation. This equipment generates, uses and

can radiate radio frequency energy and, if not installed and used in

accordance with the instructions, may cause harmful interference to radio

communications. However, there is no guarantee that interference will not

occur in a particular installation. If this equipment does cause harmful

interference to radio or television reception, which can be determined by

turning the equipment off and on, the user is encouraged to try to correct

the interference by one or more of the following measures:

--Reorient or relocate the receiving antenna.

--Increase the separation between the equipment and receiver.

--Connect the equipment into an outlet on a circuit different from that to

which the receiver is connected.

--Consult the dealer or an experienced radio/TV technician for help.

Changes or modifications not expressly approved by InFocus Corporation may void

authority to operate the equipment.

Canada

This Class B digital apparatus complies with Canadian ICES-003.

Cet appareil numérique de la classe B est conforme à la norme NMB-003 du

Canada.

Agency Approvals

UL, cUL

Other specific Country Approvals may apply. Please see product

certification label.

This document applies to regulatory models W3220, W3240, and W3260.

Input ratings: 3.3 - 1.2A (W3220, W3260), 3.9 - 1.4A (W3240)

InFocus reserves the right to alter product offerings and specifications at

any time without notice.

Table of Contents

Introduction 3

Positioning the projector 5

Projector and device connector guide 6

Connecting a computer source 9

Required computer connections

(DisplayLink or VESA) 9

Optional computer connections 9

Displaying an image 10

Adjusting the image 11

Connecting a video device 12

Video device connections 13

Composite video connection 13

HDMI 1.3 connection 13

S-video connection 13

VESA connection 13

Component video connection 13

Shutting down the projector 14

Troubleshooting your setup 14

Using the remote control 22

Using the audio 23

Using the keypad buttons 24

Optimizing computer images 25

Presentation features 25

Optimizing video images 26

Customizing the projector 26

Using the menus 27

Basic Picture menu 28

Advanced Picture menu 29

Setup menu 30

Status and Service menu 32

Maintenance 33

Cleaning the lens 33

Using the security lock 33

Replacing the projection lamp 34

Important Operating Considerations for Safety

• Place the projector in a horizontal position no greater than 15 degrees

off axis.

• Locate the projector in a well-ventilated area without any obstructions

to intake or exhaust vents. Do not place the projector on a tablecloth or

other soft covering that may block the vents.

• Locate the projector at least 4' (1.2 m) away from any heating or cooling

vents.

• Use only InFocus-approved ceiling mounts. Warning: To prevent eye

injury if the projector is ceiling mounted, wear protective eyewear

before opening lamp door. A warning sticker is included with the user

documentation. Place this sticker on the lamp door if the projector is

mounted on the ceiling.

• Only genuine InFocus lamps are tested for use in this projector.

InFocus is not liable for the performance, safety or certification of any

other lamps. The use of other lamps violates the projector warranty and

voids all certification marks on this projector.

• Use only the power cord provided. A surge-protected power strip is

recommended.

• Refer to this guide for proper startup and shutdown procedures.

• Hg – Lamp contains mercury. Manage in accordance with local

disposal laws. See www.lamprecycle.org.

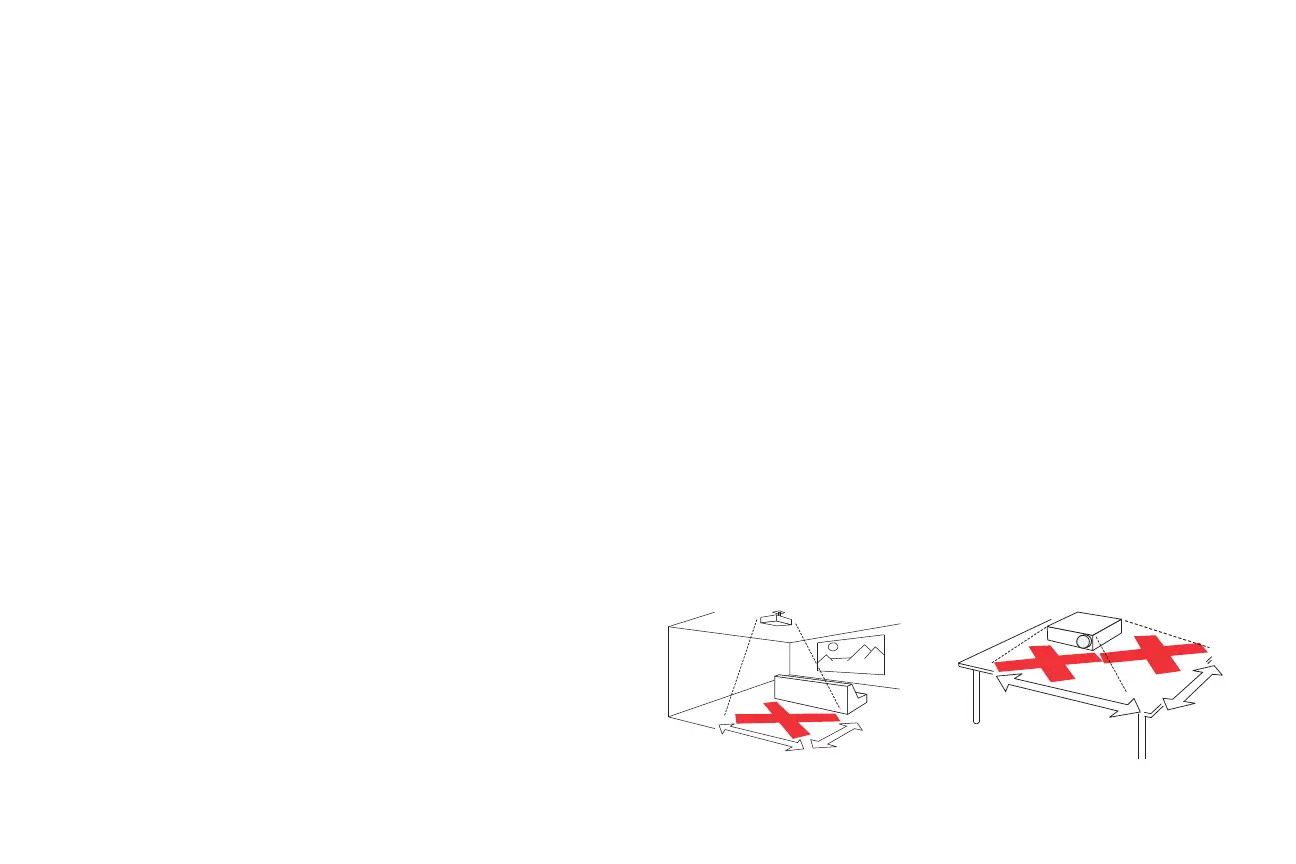

• In the unlikely event of a lamp rupture, particles may exit through the

projector side vents. When the projector is turned on, keep people,

food, and drinks out of the "keep out" area under and around the

projector, as indicated by the "X" areas below.

Follow these instructions to help ensure image quality and lamp life over

the life of the projector. Failure to follow these instructions may affect the

warranty. For complete details of the warranty, see the Warranty Booklet.

’

/1.5m

’

/2.4m

’

/1m

’

/0.6m

Produktspecifikationer

Varumärke:	InFocus
Kategori:	Beamer
Modell:	IN3108
Inbyggd display:	Nej
Vikt:	3180 g
Bredd:	315 mm
Djup:	248.9 mm
Höjd:	94 mm
Placering:	Tak
Wi-Fi:	Nej
Videolägen som stöds:	1080i, 1080p, 480i, 480p, 576i, 576p, 720p
Projektorns ljusstyrka:	3500 ANSI-lumen
Projektionsteknik:	DLP
Keystone-korrigering, vertikal:	-30 - 30 °
Matrisstorlek:	0.65 "
Antal HDMI-portar:	1
DVI-port:	Nej
Ljuskällans livslängd:	2000 h
Typ av ljuskälla:	Lampa
Inbyggda högtalare:	Ja
Antal inbyggda högtalare:	2
Zoomförhållande:	1.1:1
Full HD:	Nej
HDCP:	Ja
RS-232 port:	1
Grafikupplösningar som stöds:	1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 800 (WXGA), 1400 x 1050 (SXGA+), 1440 x 900 (WXGA+), 1680 x 1050 (WSXGA+), 640 x 480 (VGA), 800 x 600 (SVGA)
Bildförhållande:	16:10
USB-anslutning:	Mini-USB B
Fjärrkontroll ingår:	Nej
Seriellt gränssnitt:	RS-232
Produktens färg:	Silver
Analogt signalformatsystem:	NTSC, PAL, SECAM
Vikt inkl. förpackning:	6490 g
Inbyggd kortläsare:	Nej
Uteffekt (RMS):	6 W
Strömförbrukning (vanlig):	228 W
Temperatur vid drift:	5 - 35 ° C
AC-inspänning:	100 - 240 V
Ljuskällans livslängd (ekonomiläge):	3000 h
3D kompatibilitet:	Nej
Brännviddsintervall:	- mm
Nätverksansluten (Ethernet):	Nej
Växelström Frekvens:	50 - 60 hz
Strömkälla:	AC
Ljudnivå Lc IEC:	35 dB
Strömförbrukning i vänteläge:	- W
Kontrastförhållande (medel):	2000:1
Native bildförhållande:	16:10
Förpackningsstorlek (B x D x H):	447.5 x 223.5 x 332.7 mm
Kvalitet på VGA (D-Sub) porten:	2
Vertikalt sökområde:	50 - 85 hz
Horisontellt sökområde:	15.75 - 100 kHz
Lampeffekt:	280 W
Antal S-Video-ingångar:	1
Ingående kompositvideo:	1
Komponentvideo in (YPbPr / YCbCr):	1
Som stöds bildformat:	4:3, 5:4, 16:9, 16:10
Projektorns naturliga upplösning:	WXGA (1280x800)
Skärmavstånd:	1.95/11.02 m
Kompatibla skärmstorlekar:	0.99 - 5.08 "
Avståndsförskjutning:	1.95 - 2.15:1
Förskjutning:	115 %
