PACKAGE CONTENTS

• In-wall outlet with USB

• White decora-style wall plate

• Wall plate screws (2)

• Outlet mounting screws (2)

• Quick Setup Guide

FEATURES

• 2 grounded outlets let you plug in electronics and

appliances

• USB (5V/2.4A) and USB-C (5V/3A, 9V/2.22A) ports

charge USB-enabled electronic devices

• 32W total USB power quickly charges your devices

• Replaces standard duplex outlets

• Fits your existing decora-style outlet cover

Professional installation recommended

SAFETY

Warnings:

• RISK OF ELECTRIC SHOCK — Use only in dry

locations and only indoors.

• DO NOT use with any aquarium equipment.

• DO NOT install in an outlet that is not grounded.

Notes to the installer:

• This device must be installed in accordance with

national and local electrical codes.

• To prevent severe shock or electrocution, always

turn power o at the service panel before working

with wiring.

• This device should be used with copper or

copper-clad wire. DO NOT use with aluminum

wire.

• DO NOT install this device into a shallow wall box.

The wall box must be deep enough to house the

charger outlet. If the box is too shallow, the

charger outlet will not t securely into the wall.

• Professional installation is not a requirement but is

highly recommended

INSTALLING THE OUTLET

Warning: DISCONNECT POWER. Failure to do so

can result in severe injury or death.

1 Make sure that you disconnect power to the

circuit by removing the fuse from the circuit or

turning o the circuit breaker.

2 Remove the wall plate and mounting screws

that cover the old outlet. Save the screws.

3 Carefully remove the existing outlet from the

wall box.

4 Disconnect the wiring from the old outlet. Note

the wire positions.

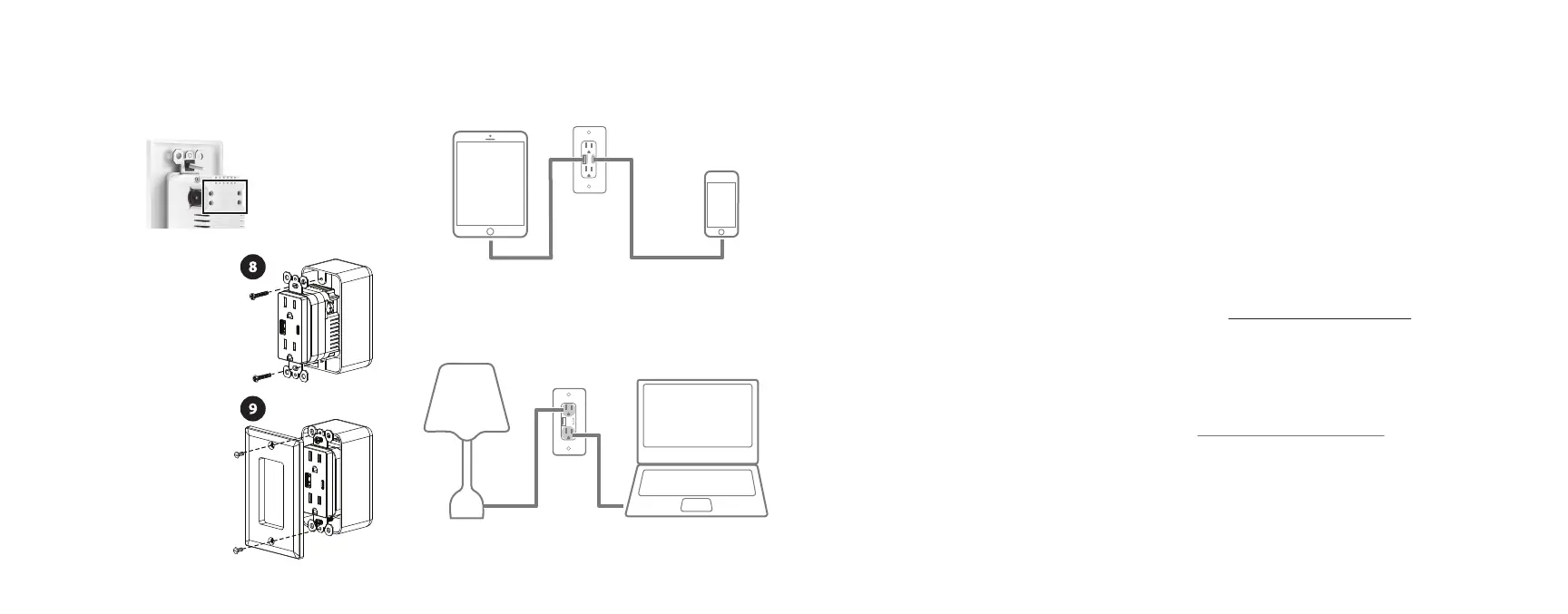

5 Connect the wires to the new outlet:

• Black lead attaches to the hot wire(s)

• White lead attaches to the neutral wire(s)

• Green lead attaches to the ground wire(s)

Note: Installers should use previous wire positions as

a guide.

Hot (black)

Neutral (white)

Ground (green)

QUICK SETUP GUIDE

In-Wall Outlet

With USB

NS-HW1A1C22

Before using your new product, please read these instructions to prevent any damage.

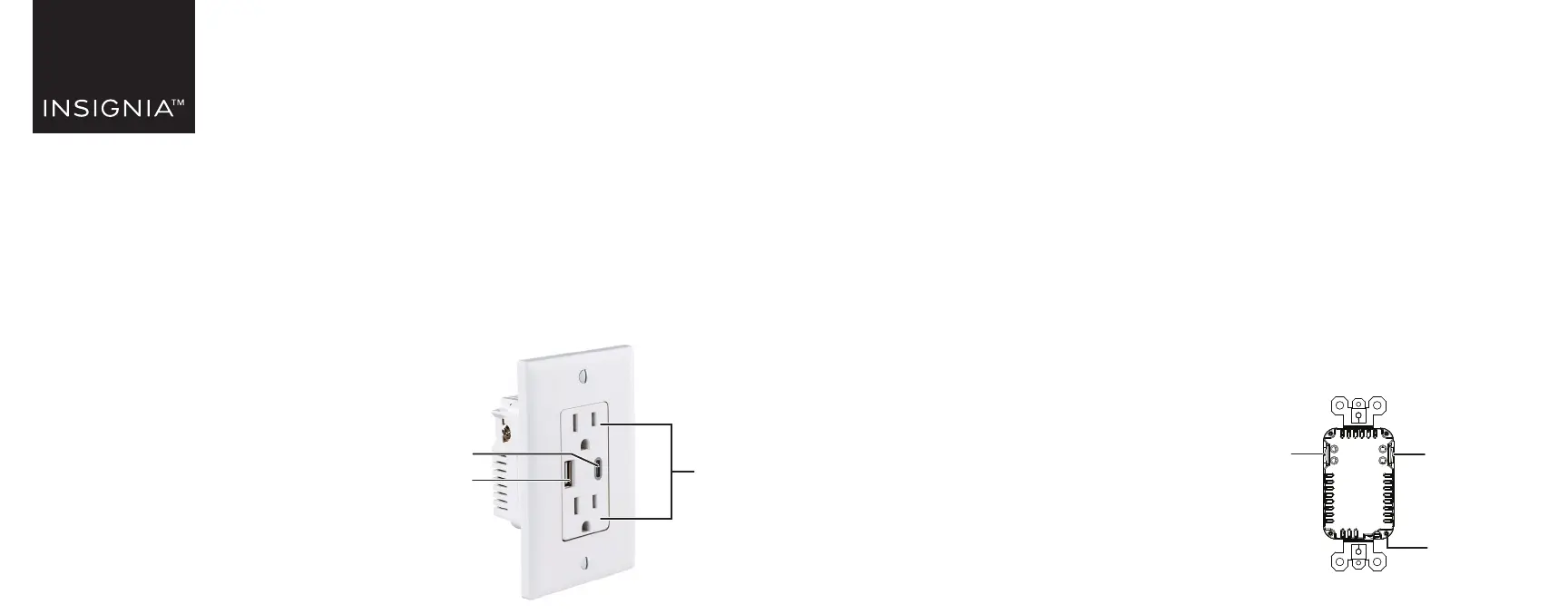

Electrical outlets

USB-C port

USB port
