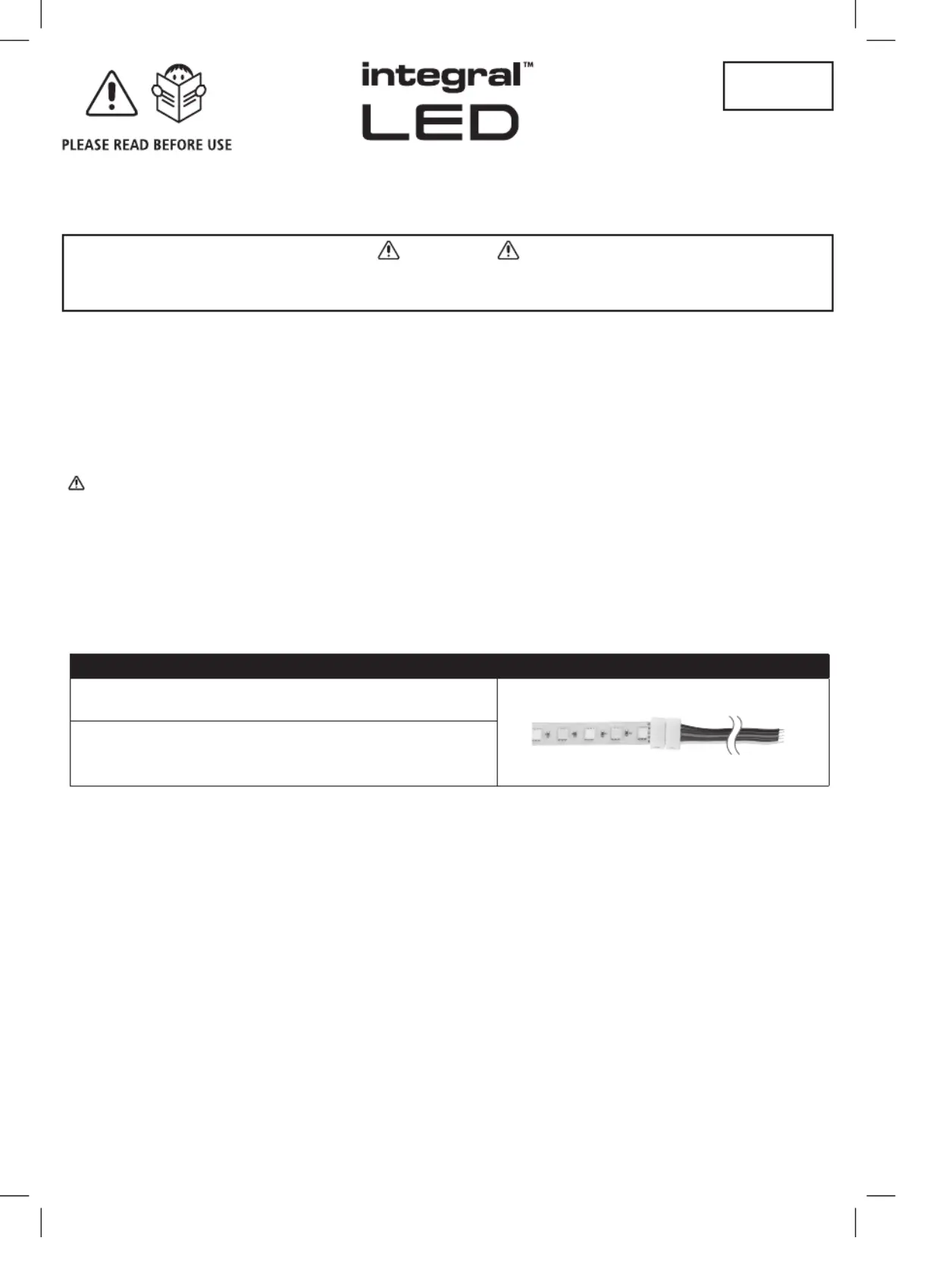

Flexible 24V INTEGRAL LED RGBW Strip IP33

Installation Guide

IMPORTANT NOTICE

• This product should be installed according to the instructions in this guide and by a qualied electrical installer.

• All electrical work must be completed in accordance with the latest IET wiring regulations (formally IEE) for the UK or in accordance with all applicable

regulations and laws in the country in which it is being installed. This product falls under a low voltage Class circuit category.III

• Switch OFF power at the mains before installing the LED strip.

• Strip must only be installed indoors, in a dry area.

• Avoid looking directly at the strip when turned on, for a long period of time.

• Observe the operating temperature of the LED strip: -25C to +60C.

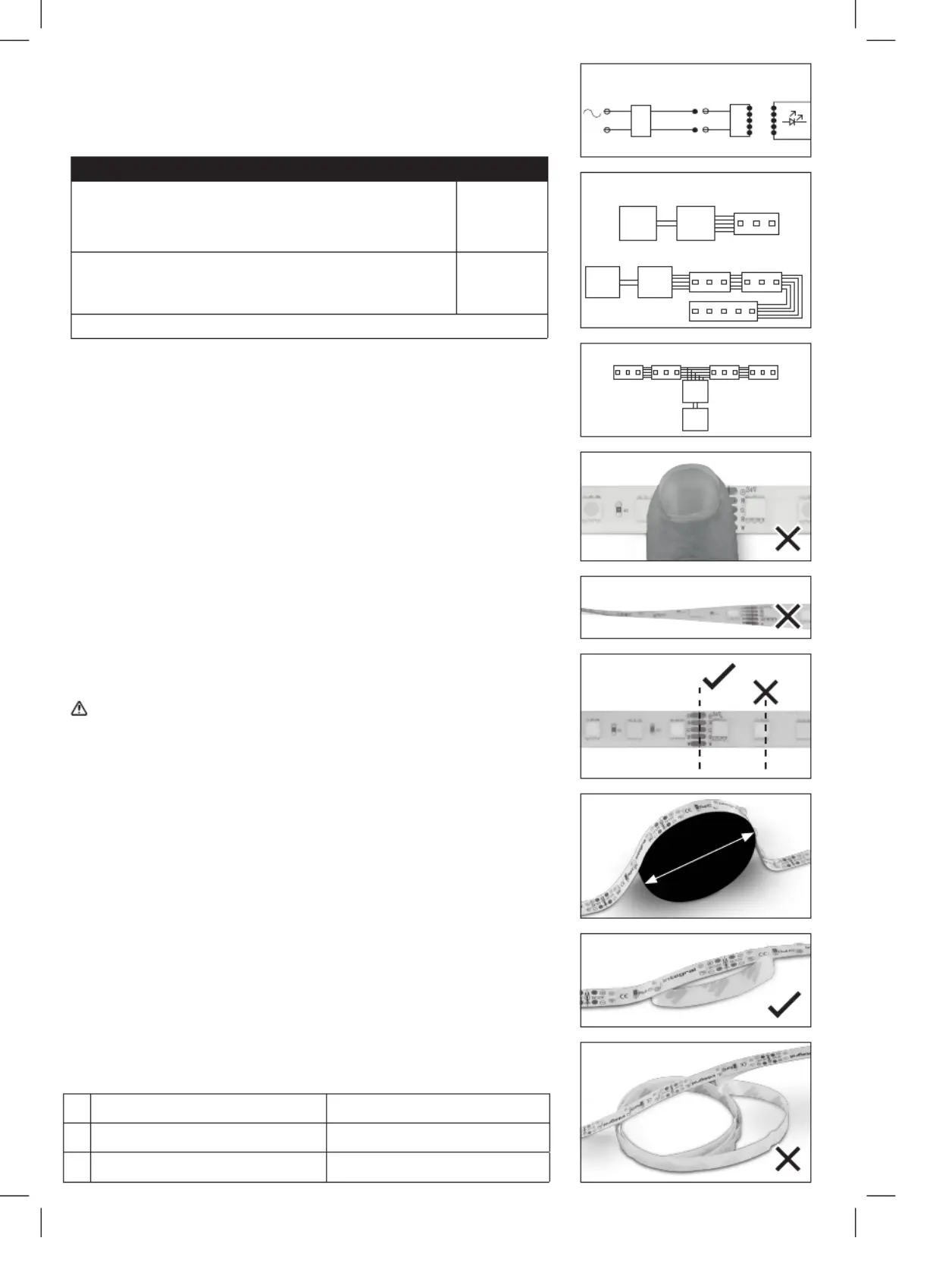

To avoid any damage to the LED strip or driver;

• Always disconnect or switch o the power supply before cutting or connecting an LED strip. Wait at least one minute before connecting to a recently

powered driver.

• Always handle the LED strip with care.

• Observe the correct polarity for 24V connections (g 1).

• Safely route and secure all wires so they cannot be pinched or damaged.

• Do NOT power the strip whilst in its packaging reel.

• Do NOT twist the LED strip or touch the LEDs on the strip surface.

• To avoid damage or malfunction, Do NOT coat the LED strip with paint, varnish or similar.

INTRODUCTION

• This installation guide is for exible, IP33 constant voltage self-adhesive LED strips produced by Integral LED.

• Depending on your installation, you can purchase additional accessories such as mounting clips and connectors.

A) CHOOSING A 24V LED DRIVER

• This LED strip operates with a 24V DC constant-voltage power supply known as a driver. Drivers are sold separately and are available in varying wattage outputs.

• The specication of the driver required will depend on the total power requirement of the connected strip(s). The power output of the driver (wattage

rating) must be at least 20% higher than the total required wattage of the strip(s) being powered.

For example, if you are installing 5 LED strips of 1M each and the power requirement of each 1M strip is 3W/metre – the total power requirement is 15W.

The power rating of the driver should be a least 20% above 15W i.e. A minimum of 18W.

B) PRE-INSTALLATION GUIDE

LED strips make a great addition to any domestic or commercial environment. They can change the mood and look of a space instantly and are very energy

ecient. The possibilities are endless so the requirement for each lighting project will be dierent.

It is worth taking some time to plan your project for the desired eect before removing the backing tape on the LED strip. The specication, length, mounting

position and distance from an object determines the appearance of a lit LED strip. You will also need to consider the placement and concealment, of the 24V

LED driver, control unit and wires, and the power switch to turn the LED strip ON and OFF.

We recommend that you test the strip by temporarily holding the LED strip in place by using a suitable tape, such as masking tape. Safely connect the power

supply - you can then carefully move the strip to try dierent angles and positions to gain the desired illumination eect and position. Check for light spots,

reections and shadows.

Please consider the surface you are applying the LED strip to; the surface should be stable, clean and smooth. On removal of a xed LED strip - damage to

paint, wallpaper or other substrates may occur. Take care in measuring the length required before cutting the strip, take into account the space required for the

connector. You may also consider using a spirit level, plumb line or other guide if required.

In the bag

1 X 5M ±5cm IP33 INTEGRAL LED RGBW STRIP on reel pre-tted with an

appropriate connector to connect to a suitable control unit and power supply.

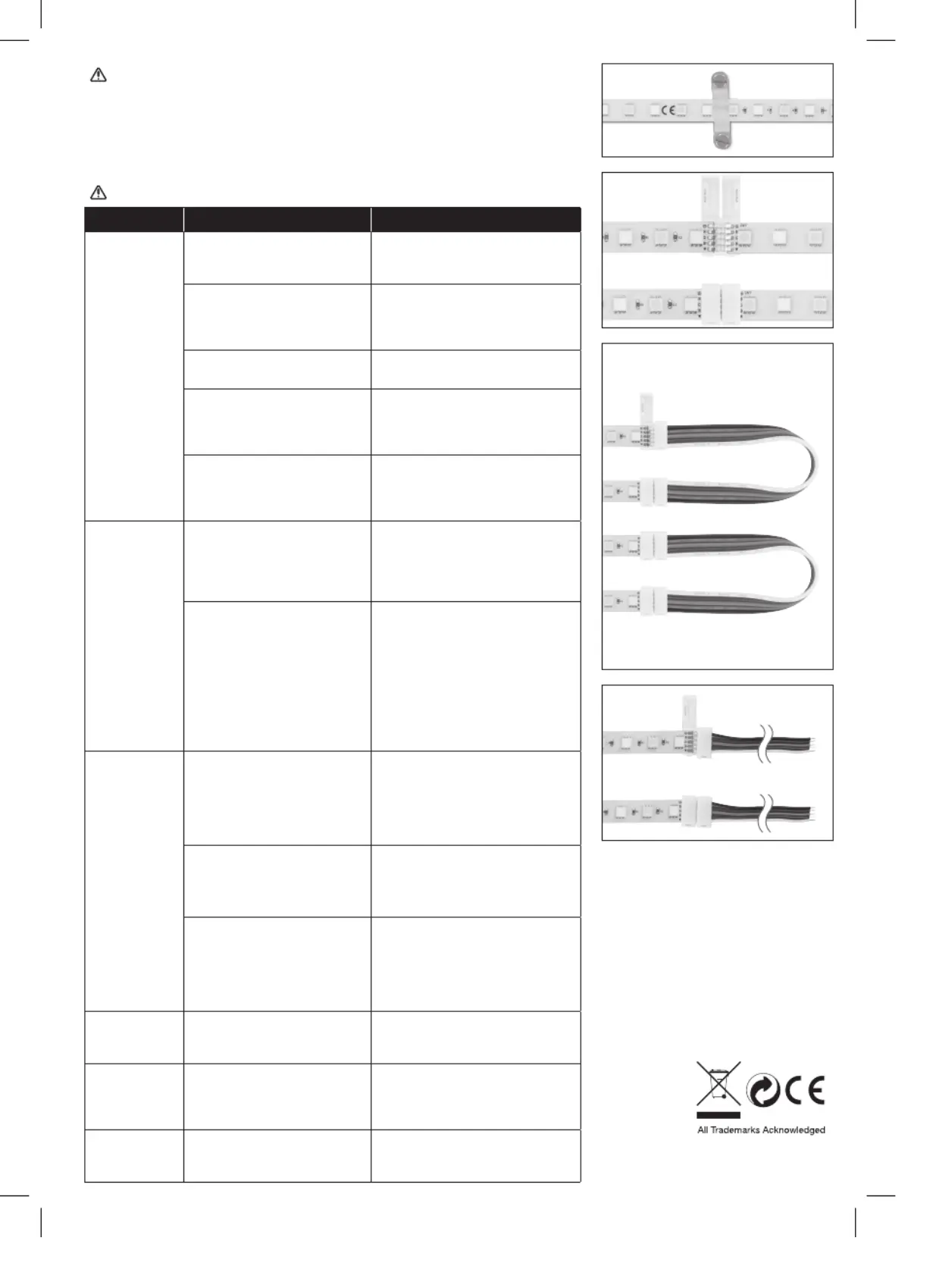

Accessories For IP33 LED Strip

1 X Clip-on strip connector

If you cut the strip into two pieces, you can use this connector to power the

remaining portion of the strip.

IP33

Pour des instructions en français,

merci de vous rendre à l’adresse www.

integral-led.com an de les télécharger

directement depuis la page du produit

(‘Product’ sur le site) dans la section

Téléchargement (‘Download’)

WARNING

DO NOT CONNECT THE LED STRIP DIRECTLY TO A MAINS SUPPLY.

THE LED STRIP MUST ONLY BE CONNECTED TO A SUITABLE 24V LED DRIVER.

Produktspecifikationer

Varumärke:	Integral LED
Kategori:	Lampa
Modell:	ILSTRGBWA027E
Vikt:	160 g
Bredd:	12 mm
Förpackningens bredd:	180 mm
Antal lampor:	360 lampor
Certifiering:	CE RoHS
Modell:	Universell belysningslist
Lampans livslängd:	18600 h
Fjärrstyrd:	Ja
skyddsklass:	III
Dimbar:	Ja
Färgåtergivningsindex (CRI):	80
Driftspänning:	24 V
Färgtemperatur (min):	3000 K
Garantiperiod:	3 År
Produktens färg:	Beige
Låddjup:	11 mm
Vikt inkl. förpackning:	165 g
Antal per förpackning:	1 styck
ljus färg:	Blue, Green, Red, White
Enkel installation:	Ja
Temperatur vid drift:	-25 - 60 ° C
Hållbarhetscertifiering:	Direktivet om lågspänning (LVD)
Internationellt skydd (IP) kod:	IP33
Lamptyp:	LED
Energiklass:	G
Material, hölje:	Polykarbonat
Placeringar som kan användas:	inomhus
Monteringssätt:	Självhäftande tejp
Strömkälla av typen:	DC
Produktlängd:	5000 mm
Energieffektivitetsskalning:	A till G
Plug & Play-kompatibel:	Ja
Lampor:	12 W
Spridningsvinkel:	115 °
Färgskiftande:	Ja
Total effekt:	60 W
Energiförbrukning per 1 000 timmar:	12 kWh
Lämplig belysningstyp:	Atmosfär
Integrerade LED-lampor:	Ja
LED-chipp:	5050
Flexibilitet:	Ja
