2±0.2m
350±5mm16.67±0.2mm
5010±10mm
6±0.2mm
100±1mm
+
-
DC
24V
+
-
DC
24V
+
-
+
-

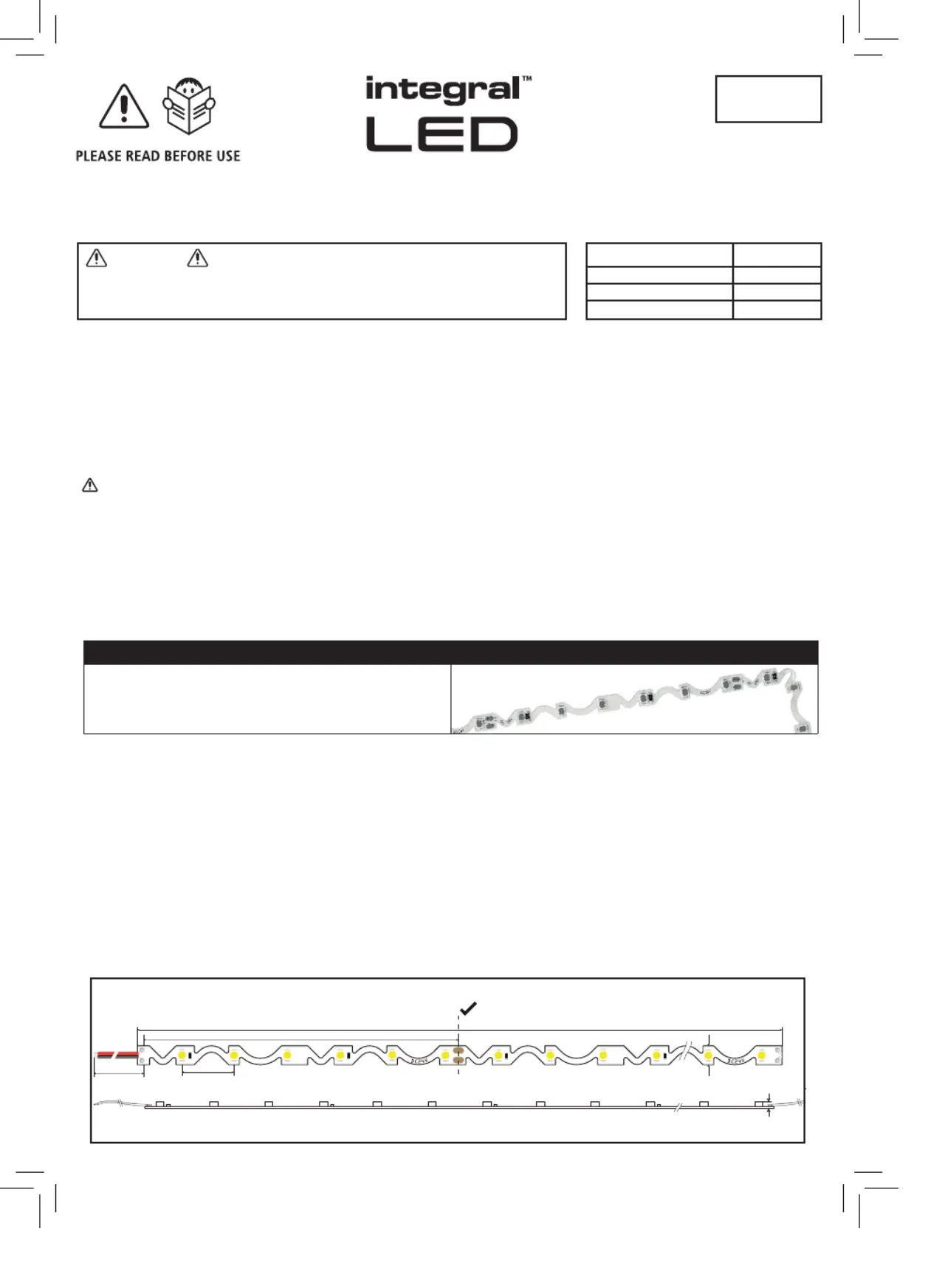

Flexible 24V INTEGRAL LED Bendy Strip IP20
Installation Guide
IMPORTANT NOTICE
• This product should be installed according to the instructions in this guide and by a qualied electrical installer.
• All electrical work must be completed in accordance with the latest IET wiring regulations (formally IEE) for the UK or in accordance with all applicable
regulations and laws in the country in which it is being installed. This product falls under a low voltage Class III circuit category.
• Switch OFF power at the mains before installing the LED strip
• Strip must only be installed indoors, in a dry area
• Avoid looking directly at the strip when turned on, for a long period of time
• Observe the operating temperature of the LED strip: -25C to +60C
To avoid any damage to the LED strip or driver;
• Always disconnect or switch o the power supply before cutting or connecting an LED strip.
Wait at least one minute before connecting to a recently powered driver.
• Always handle the LED strip with care.
• Observe the correct polarity for 24V connections, positive (+ RED) to positive and negative (–BLACK) to negative.
• Safely route and secure all wires so they cannot be pinched or damaged
• Do NOT power the strip whilst in its packaging reel
• Do NOT touch the LEDs on the strip surface
• To avoid damage or malfuction, DO NOT coat the LED strip with pount, varnish or similar.
INTRODUCTION
• This installation guide is for exible, IP20 constant voltage self-adhesive LED strips produced by Integral LED.
• Unlike standard LED strip, Integral LED Bendy Strip can be bent on dierent axis allowing easy installation to non-linear shape such as furniture or
signage letters.
• The LED Strip is dimmable with a suitable driver and dimmable controller.
A) CHOOSING A 24V LED DRIVER
• This LED strip operates with a 24V DC constant-voltage power supply known as a driver. Drivers are sold separately and are available in varying wattage
outputs.
• The specication of the driver required will depend on the total power requirement of the connected strip(s). The power output of the driver (wattage
rating) must be at least 10% higher than the total required wattage of the strip(s) being powered.
For example, if you are installing 2 LED strips of 1M each and the power requirement of each 1M strip is 6.6W/metre – the total power requirement is 13.2W.
The power rating of the driver should be a least 10% above 13.2W i.e. A minimum of 15W
• Recommended cable specication: 2x0.5mm
2
, when cables are required between strip and LED driver.
B) STRIP PROFILE
In the bag
1 X 5M IP20 INTEGRAL LED STRIP on reel pre-tted with an
appropriate connector to connect to a suitable power supply.
IP20
Integral PartcodeColour/Temp.
ILSTWHIA0100E3000K
ILSTWHIA0101E4000K
ILSTWHIA0102E6500K
WARNING
DO NOT CONNECT THE LED STRIP DIRECTLY TO A MAINS SUPPLY.
THE LED STRIP MUST ONLY BE CONNECTED TO A SUITABLE 24V LED DRIVER.
Unit: mm
Produktspecifikationer
| Varumärke: | Integral LED |
| Kategori: | Lampa |
| Modell: | ILSTWHIA100E |
| Vikt: | 100 g |
| Bredd: | 6 mm |
| Förpackningens bredd: | 210 mm |
| Antal lampor: | 300 lampor |
| Modell: | Universell belysningslist |
| Ljusflöde: | 550 LM |
| Lampans livslängd: | 25000 h |
| Fjärrstyrd: | Ja |
| skyddsklass: | III |
| Dimbar: | Ja |
| Färgåtergivningsindex (CRI): | 90 |
| Driftspänning: | 24 V |
| Färgtemperatur (min): | 3000 K |
| Garantiperiod: | 3 År |
| Produktens färg: | Vit |
| Låddjup: | 2 mm |
| Vikt inkl. förpackning: | 500 g |
| Antal per förpackning: | 1 styck |
| ljus färg: | Varmvitt |
| Enkel installation: | Ja |
| Temperatur vid drift: | -25 - 60 ° C |
| Hållbarhetscertifiering: | Direktivet om lågspänning (LVD) |
| Internationellt skydd (IP) kod: | IP20 |
| Lamptyp: | LED |
| Energiklass: | F |
| Material, hölje: | Polykarbonat |
| Placeringar som kan användas: | inomhus |
| Monteringssätt: | Självhäftande tejp |
| Strömkälla av typen: | DC |
| Produktlängd: | 5000 mm |
| Energieffektivitetsskalning: | A till G |
| Plug & Play-kompatibel: | Ja |
| Lampor: | 6.6 W |
| Spridningsvinkel: | 115 ° |
| Total effekt: | 33 W |
| Energiförbrukning per 1 000 timmar: | 7 kWh |
| Lämplig belysningstyp: | Atmosfär |
| Integrerade LED-lampor: | Ja |
| Flexibilitet: | Ja |
