intellinet-network.com

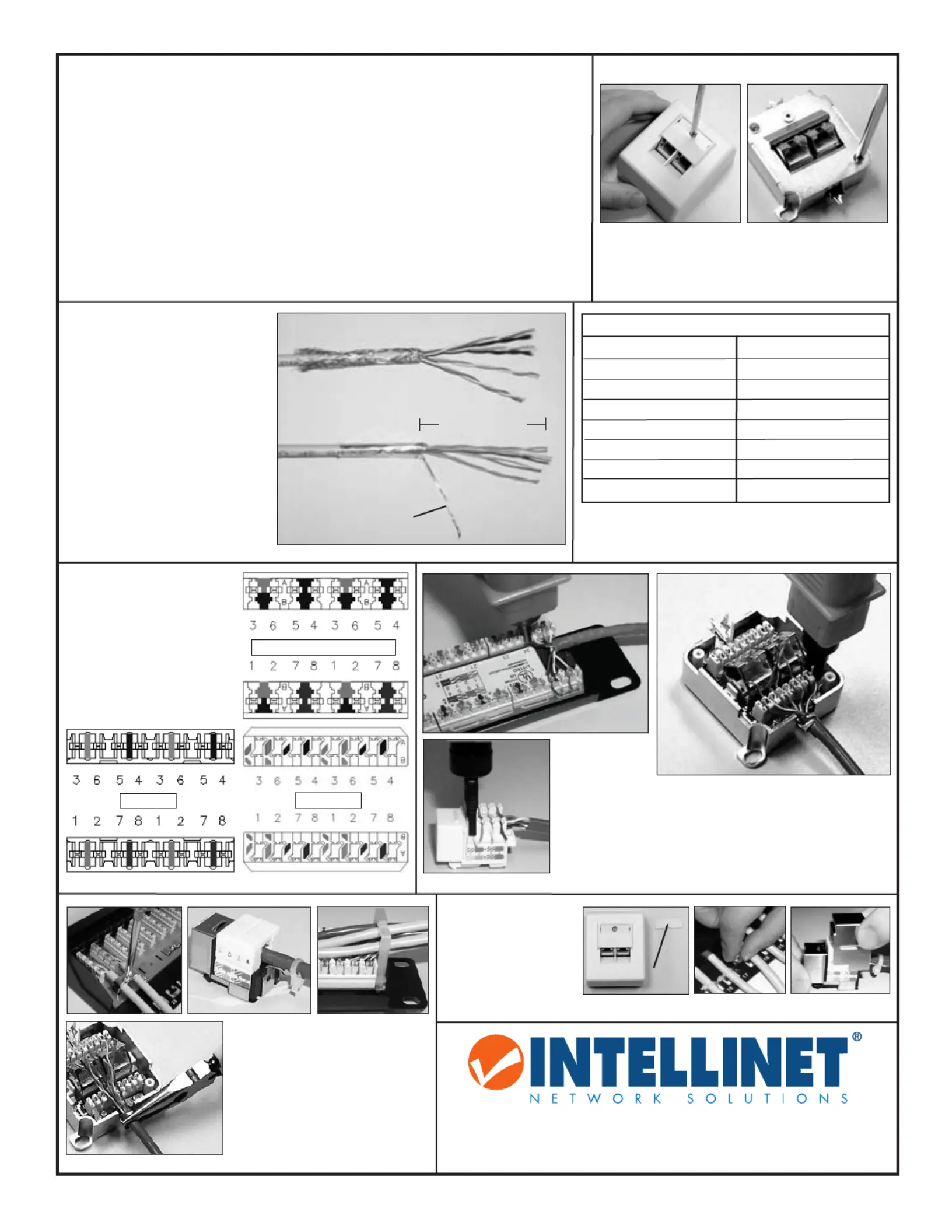

PUNCHDOWN
INSTRUCTIONS
INT-GEN-INST-0814-03
follow these steps for easy, reliable connections and use of a variety of Intellinet
Network Solutions products: Keystone Jacks, Patch Panels, Wall Plates, Wall/
Surface Mount Boxes, Couplers and other similar cable-junction items.
Determine how much of each
cable jacket needs to be stripped
away so that the bare wires will
reach the corresponding connector
pins on the product (approximately
30–50 mm is typical). Separate
the wires into four pairs.
If the cable has an inner wire
holder, fold it back for use as
a grounding wire or cut it even
with the remaining end of the
outer cable jacket.
Based on the IDC reference to the left, use either a
110 or Krone punch-down tool to crimp and secure
each pair of wires in place on the product. Examples
shown: Keystone Jack, left; Wall Mount Patch Panel,
above left; Surface Mount Box, above right.
Using pliers or a screw driver
as needed, secure the cable(s)
using any of several components
that may be included with the
product: clamps, left and above
left; cable ties, above center; or
cable holders, above right.
Replace any caps,
covers or lids and
fasten with screws,
as applicable.
Attach any
additional components, such as the Wall Plate nameplate, above left.
approx. 30 - 50 mm
Lift open or unscrew and remove any cover(s) or
cap(s) to expose the connection pins inside.
Example shown above: Surface Mount Box.
wire holder/grounding wire
T568A T568B
Pin 5 White/Blue Pin 5 White/Blue
Pin 4 Blue Pin 4 Blue
Pin 1 White/Green Pin 1 White/Orange
Pin 2 Green Pin 2 Orange
Pin 3 White/Orange Pin 3 White/Green
Pin 6 Orange Pin 6 Green
Pin 7 White/Brown Pin 7 White/Brown
Pin 8 Brown Pin 8 Brown
IDC
(3 options)
Follow the color code chart above to position
the wires on the corresponding connector pins.
110D TYPE
KRONE TYPE
110D & KRONE IDC COMPATIBLE
nameplate
© IC Intracom. All rights reserved.
Intellinet is a trademark of IC Intracom, registered in the U.S. and other countries.
