E) Attention
1. Please read this manual before using this product and follow the instructions
2. Should be used with the appropriate voltage labeled on product. Make sure the power button is set to off
before pressing the power button. Please remove the power connection if the light is not in-use. Don’t pull the
power cable directly. Please grip the power plug and pull it out from the socket.
3. Make sure your hand is dry when inserting and unplugging the power plug. Don’t touch the metal part
directly.
4. Keep the environment dry and ventilated when using the product. Do not leave or use the product in a
humid or dusty environment. And keep it away from fire or extreme heat.
5. Clean this product only with a soft and dry cloth.
6. Do NOT apply extreme pressure and do not drop the product.
7. Improper installation may damage the light, and there can be high voltage inside the unit. Please Do NOT
open or repair the unit yourself. If there is any defect, please contact Intellytech directly.
8. Only use the specific Li-ion camcorder batteries according to the model of the battery holder on the rear
panel. Do not install 24V batteries.
9. Please do not look at the LEDs directly or touch them. Please turn off the light if it is unattended.
10. Please make sure the product cools down and put it back in the case after being used. Don’t store the
product in a humid environment, and avoid direct sunshine. Avoid freezing temperatures.
D) Temperature Notice:
Instruction Manual
LiteCloth 3.0
MEGA-8FC / 6FC
Storing your Mega-LC in a cold or location?
For optimal power distribution, allow your Mega-LC 3.0 to warm up for
5 minutes using the following settings:
1: Set the bi-color LED’s to 5600k
2: Set the output to 10%
*This isn’t required but will help in evenly distributing power through
the LED’s. We recommend this if the light is being stored in a cold grip
truck or if it has recently shipped.
Need Help? Contact us now using Live Chat at www.intellytechusa.com.
We usually respond within 10 seconds during business hours and can help with
any questions.
Email: customerservice@intellytechusa.com

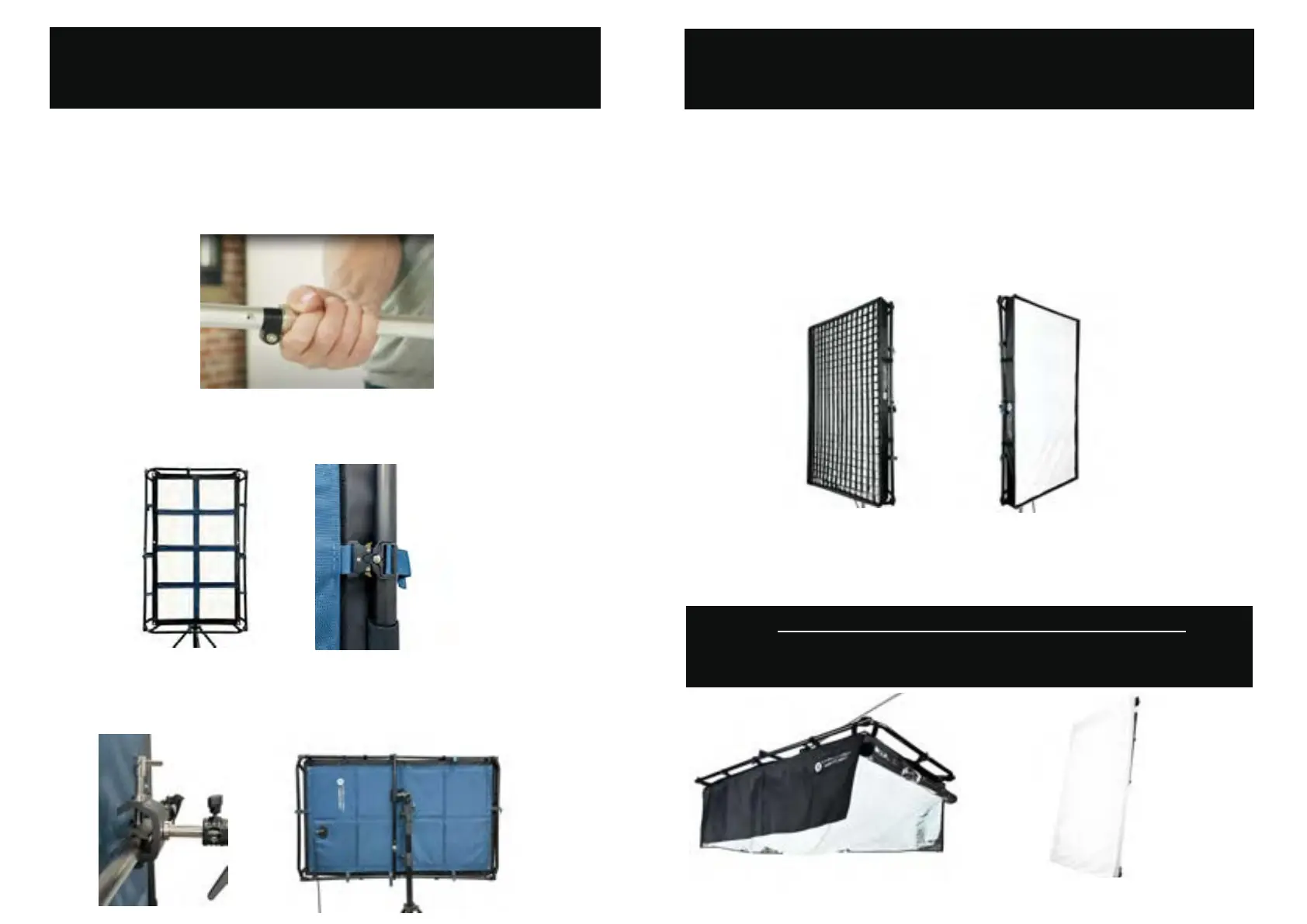

Connecting Mega LED Mat to Frame
1: Unfold Folding Frame, and tighten silver collar(s) to
lock in place.
(Make sure bar it is totally straight before
tightening silver collar).
2: Attach LED Mat to Frame by adding buckles and
straps.
3: Add CL-40L anywhere on center bar of the Folding
Frame.
Connecting 5" Softbox to LED Mat
1: Unfold Softbox, and lineup Velcro between the LED
Mat and Softbox.
** User Tip: Lean light and frame vertically against a wall
and then add softbox.
**Softbox Straps: These are optional and not required.
Attach these to reduce sag on your softbox.
**Optional lightweight modifiers shown below
(Using these will reduce the weight by 2-3 pounds compared to
using the included 5" deep softbox)
Pancake Lantern W/ Skirt
Pop-Up Diffuser
5
2

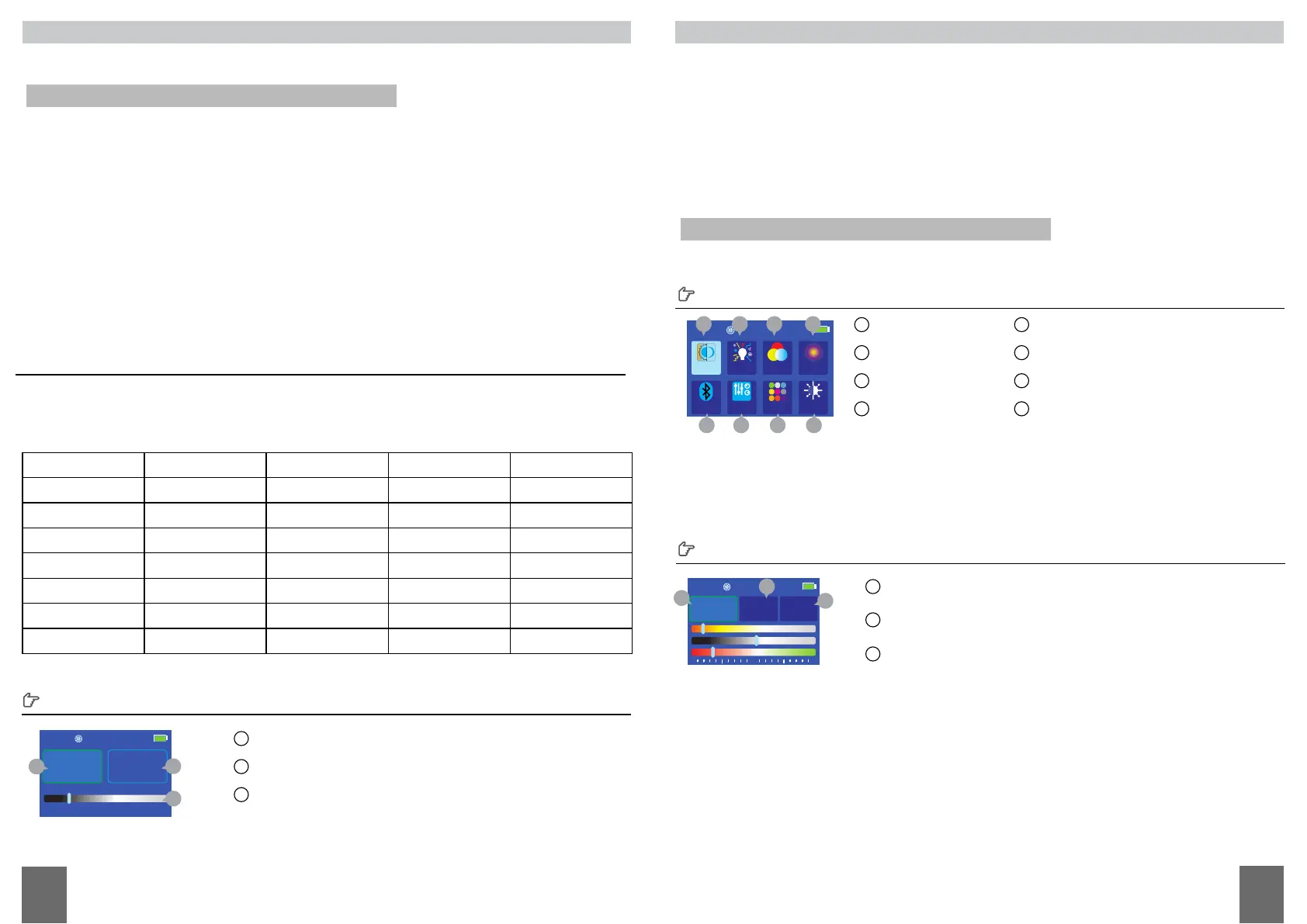

Operating Instructions
一、 LED lighting operation
CH 001
FAN ON 30℃
CCT
FX
FX
RGB HSI
BT_SET DMX SET
DMX
GEL SET
DIMMING
MODE
5 6 7 8
21 3 4
CCT
1
FX
2
RGB
3
HSI
4
5
6
7
8
BT_SET
DMX SET
GEL SET
DIMMING MODE
Menu interface
1. Before plugging in the power cord, please make sure that the power switch is in the off posion (press the power
switch to turn on the power, press it again to reset and turn off the power).
2. Aer connecng the power supply, press the power switch and the menu interface will be displayed on the
screen.
1
2
3
CCT
1. Press the "MENU" button to enter the menu interface, then rotate the "COLOR/SET" button to select the color
temperature mode (CCT), and press the "SELECT" button to enter the color temperature mode interface.
2. Adjust the color temperature: Press the "SELECT" button to select the color temperature display, then rotate the
"COLOR/SET" button to change the parameters. The color temperature adjustment range is 3000K-9999K.
3. Adjust the brightness: Rotate the "DIMMING" button to change the parameters. The brightness adjustment
range is 0%-100%.
4. Adjust the G/M color correction: Press the "SELECT" button to select the G/M color correction, then rotate the
"COLOR/SET" button to change the parameters. The G/M value adjustment range is 1.00M-0-1.00G.
CH 001
FAN ON 30℃
3850K 59% 0.65M
M
G
0
1
2
3
Color Temperature Display & Value
Output Display & Value
Green / Magenta Display & Value
CH 001
FAN ON 30℃
L GEL
002
R GEL
R51
1
2
3
GEL SET
Dimming
1
2
3
L GEL
R GEL
1. Press the "MENU" key to enter the menu interface, rotate the "COLOR/SET" key to select DMX setup (DMX SET),
and press the "SELECT" key to enter the DMX setup mode interface.
**Wireless DMX settings only apply to CRMX Models. If your unit wasn't ordered with CRMX, please ignore the
Wireless DMX settings and only used Wired DMX.
2. Wired DMX mode (Wired): Press the "SELECT" key to select DMX mode (DMX MODE), and rotate the "COLOR/
SET" key. When "Wired" is displayed below DMX MODE, the wired DMX mode is enabled.
When using wired DMX (Wired), the DMX512 console must be set to the same channel as the control box.
RGBWW DMX (Wired & WI DMX) utility table：
0
CH1 (MODE) CH2 (D1)
CH3 (D2) CH4 (D3)
Notes
MODE: 205 t0 255
DIM
CCT GM
CCT_MODE
MODE: 154 t0 204
RED
GREEN BLUE
RGB_MODE
MODE: 103 t0 153
HUE
SAT INT
HSI_MODE
MODE: 51 t0 102
GEL_DIM
GEL_L GEL_R
GEL_MODE
MODE: 1 t0 50
FX_DIM
FX_DATA FX_SPEED
FX_MODE
MODE:0(Not allowed)
NOT NOT NOT
BLACKOUT
CH1: 1--255 CH2: 0--255 CH3: 0--255 CH4: 0--255
0 0 0
1. Folding frame
2. Lighng panel
3. CL-40L C-clip
4. CLD-16
5. Signal Cabel
6. Dimming knob
7. Handle
8. Funcon switch/adjustment knob
9. LCD Display
10. Menu buon
11. Select buon
12. Fan on/off buon
13. Blackout buon
14.Firmware
15. Baery holder
16.Power switch
17. DC 48V input
18. Power socket
19. DC output
20. DMX input
21. DMX output
DMX Chart / Utility Table:
DMX Instructions:
