OWNER’S MANUAL
PureSpa™
SB-HW10
Do not forget to try these other fi ne Intex products: pools, pool
accessories, in-home toys, airbeds and boats available at fi ne
retailers or visit our website.
Due to a policy of continuous product improvement, Intex reserves
the right to change specifi cations and appearance, which may
result in updates to the instruction manual without notice.
For illustrative purposes only.
IMPORTANT
SAFETY RULES
Please read, understand, and follow all
instructions carefully before installing
and using this product. Keep for future
reference.
IMPORTANT!
DO NOT RETURN PRODUCT TO STORE
To purchase parts and accessories or to obtain non-technical assistance, visit
www.intexcorp.com
For technical assistance and missing parts call us toll-free (for U.S. and Canadian Residents):
1-800-234-6839
Monday through Friday, 8:30am to 5:00pm Pacifi c Time 346-*PO-R0-20--
346
PO
S AVE THESE INSTRUCTIONS
(346PO) SPA ENGLISH 7.5” X 10.3” PANTONE 295U 08/10/2019
English
Page 2
Warning.......................................................................................... 3-6
Parts............................................................................................... 7-8
Set-up............................................................................................. 9-14
Operation....................................................................................... 15-18
Minimize Heat Loss and Energy Consumption Advice............. 18
LED Code Chart............................................................................. 19
Maintenance and Chemicals........................................................ 20-24
Storage........................................................................................... 24
Troubleshooting............................................................................ 25-26
Filter pump motor disassembly................................................... 27
Warranty......................................................................................... 28
WARNING: Changes or modifi cations not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for a Class
B digital device, pursuant to part 15 of the FCC Rules. These limits are desi gned to
provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not occur
in a particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the user
is encouraged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and the receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver
is connected.
• Consult the dealer or an experienced radio/TV technician for help.
This device complies with part 15 of the FCC Rules. Operation is subject to the following
two conditions: (1) This device may not cause harmful interference, and (2) this device
must accept any interference received, including interference that may cause undesired
operation.
TABLE OF CONTENTS
346
PO
S AVE THESE INSTRUCTIONS
(346PO) SPA ENGLISH 7.5” X 10.3” PANTONE 295U 08/10/2019
English
Page 3
IMPORTANT SAFETY RULES
When installing and using this electrical equipment, basic safety precautions should always be followed, including the following.
READ AND FOLLOW ALL INSTRUCTIONS
• Risk of Accidental Drowning. Extreme caution must be exercised to prevent unauthorized access by
children. To avoid accidents, ensure that children cannot use this spa unless they are supervised at all
times.
• Risk of drowning. Inspect the spa cover regularly for leaks, premature wear and tear, damage, or signs of
deterioration. Never use a worn or damaged cover: it will not provide the level of protection required to
prevent unsupervised access to the spa by a child.
• Risk of injury. Replace damaged cord immediately. Do not bury cord. Connect to a grounded, grounding
type receptacle only.
• Risk of Injury. The suction fi ttings in this spa are sized to match the specifi c water fl ow created by the
pump. Should the need arise to replace the suction fi ttings or the pump, be sure that the fl ow rates are
compatible.
• To reduce the risk of injury, do not remove the suction fi ttings. Never operate a spa or hot tub if the suction
fi ttings are loose, broken, damaged, cracked or missing. Replace immediately. Never replace a suction
fi tting with one rated less than the fl ow rate marked on the original suction fi tting.
• To reduce the risk of drowning from hair and body entrapment, install a suction fi tting(s) with a marked fl ow
rate that equals or exceeds the fl ow rate marked on the equipment assembly.
• Ensure power outlet current & voltage is suitable for the electrical equipment. Never use an extension cord.
• Risk of Electric Shock. Install at least 5 feet (1.5 m) from all metal surfaces. As an alternative, a spa may
be installed within 5 feet (1.5 m) of metal surfaces if each metal surface is permanently connected by a
minimum 8 AWG (8.4 mm2) solid copper conductor to the wire connector on the terminal box that is
provided for this purpose.
• Risk of Electric Shock. Do not permit any electric appliance, such as a light, telephone, radio, or television,
within 5 feet (1.5 m) of a spa or hot tub.
• Risk of Electric Shock. Do not use the spa when it is raining, thundering or lightning.
• A wire connector is provided on this unit to connect a minimum 8 AWG (8.4 mm2) solid copper conductor
between this unit and any metal equipment, metal enclosures of electrical equipment, metal water pipe, or
conduit within 5 feet (1.5 m) of the unit.
• To reduce the risk of drowning and injury, do not permit children to use this product unless they are closely
supervised at all times.
• To reduce the risk of child drowning, attach and lock spa cover after each use.
• Never place any metalic objects on the surface of the control base recessed channel.
• To reduce the risk of drowning and injury:
a) Never use the spa alone or allow others to use the spa alone.
b) Before entering a spa or hot tub, the user should measure the water temperature with an accurate
thermometer since the tolerance of water temperature-regulating devices varies.
c) The water in a spa should never exceed 104°F (40°C). Water temperatures between 100°F (38°C) and
104°F (40°C) are considered safe for a healthy adult. Lower water temperatures are recommended for
young children and when spa use exceeds 10 minutes.
d) Pregnant and possible pregnant women should consult a physician before using a spa or hot tub.
e) Since excessive water temperatures have a high potential for causing fetal damage during the early months
of pregnancy, pregnant or possibly pregnant women should limit spa water temperatures to 100°F (38°C) .
Do not stay in spa for longer than 10 minutes.
f) The use of alcohol, drugs, or medication before or during spa use may lead to unconsciousness with the
possibility of drowning.
g) Obese persons and persons with a history of heart disease, low or high blood pressure, circulatory system
problems, or diabetes should consult a physician before using a spa.
h) Persons using medication should consult a physician before using a spa since some medication may
induce drowsiness while other medication may affect heart rate, blood pressure, and circulation.
i) Check with a doctor before use if pregnant, diabetic, in poor health, or under medical care.
DANGER
WARNING
346
PO
S AVE THESE INSTRUCTIONS
(346PO) SPA ENGLISH 7.5” X 10.3” PANTONE 295U 08/10/2019
English
Page 5

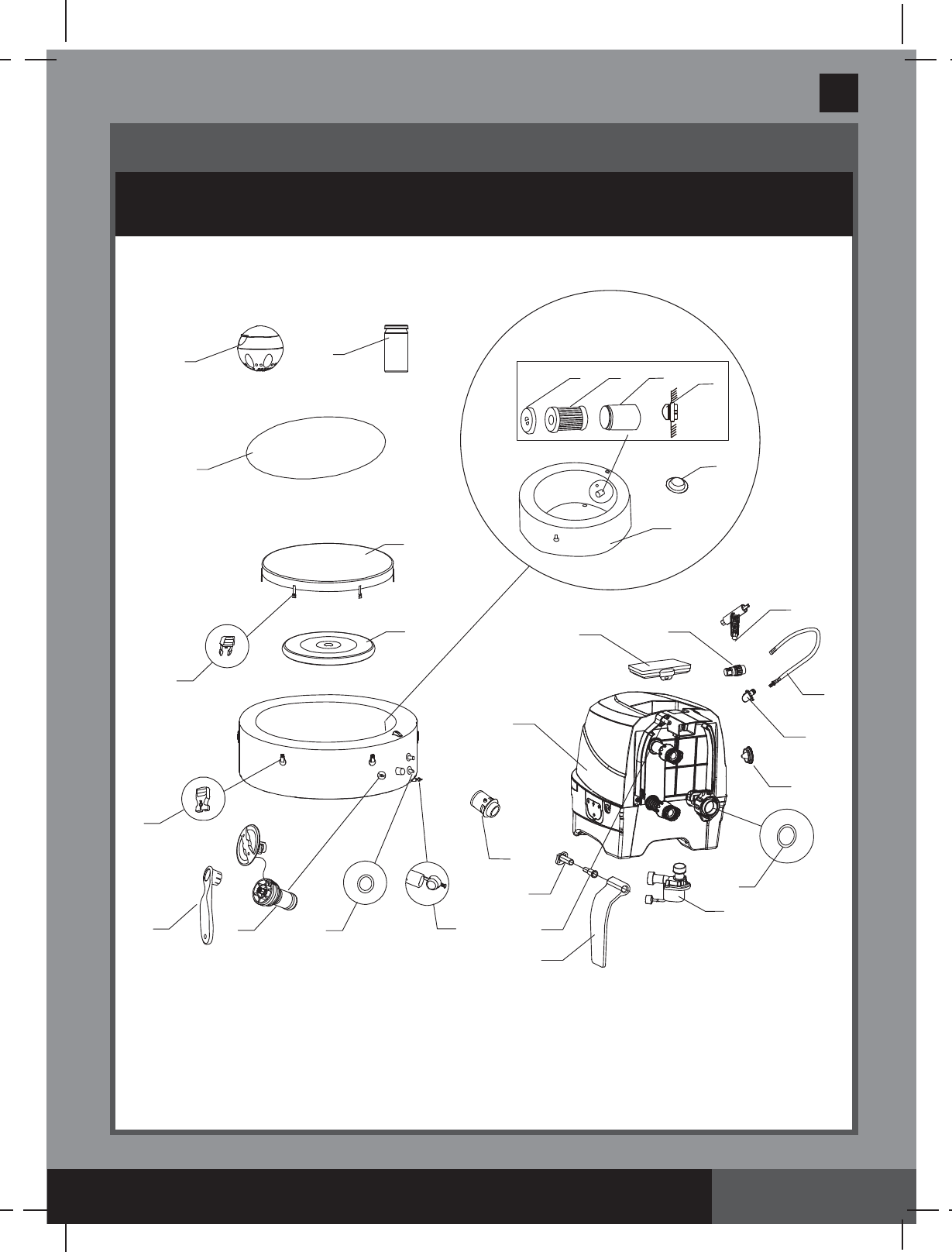

PARTS
Before assembling your product, please take a few minutes to check the contents
and become familiar with all the parts.
NOTE: Drawings for illustration purpose only. Actual product may vary. Not to scale.
20 21
19
26
25
22 23 810
16
15
14 13 12
18
17
11
1
6
2
3
4
29
9
28
5
24
27
7
30
346
PO
S AVE THESE INSTRUCTIONS
(346PO) SPA ENGLISH 7.5” X 10.3” PANTONE 295U 08/10/2019
English
Page 6
When ordering parts, be sure to quote the model number and part numbers.
PARTS (continued)
Before assembling your product, please take a few minutes to check the contents
and become familiar with all the parts.
REF.
NO. DESCRIPTION QTY. PART NO.
4 ADULTS 6 ADULTS
1 CONTROL BASE 1 12833 12833
2 SIDE COVER HINGE BASE 2 12771D 12771D
3 SIDE COVER HINGE FIXER 2 12772D 12772D
4 CONTROL BASE SIDE COVER 2 12770D 12770D
5 CONTROL PANEL 1 12839 12839
6 CONTROL PANEL BOLT WRENCH 1 11053 11053
7 SPA/COVER INFLATION HOSE 1 11830 11830
8 SPA CONTROL INLET/OUTLET O-RING 2 11699 11699
9 SPA CONTROL AIR INLET O-RING 1 11687 11687
10 SPA DRAIN PLUG 1 11995 11995
11 SPA DRAIN VALVE ADAPTOR 1 11713 11713
12 FILTER CARTRIDGE HOUSING 1 11798 11798
13 FILTER CARTRIDGE 2 11692 11692
14 FILTER CARTRIDGE HOUSING LID 1 11797 11797
15 INLET/OUTLET PLUG 3 11739 11739
16 SPA TUB 1 10067 12841
17 SPA COVER 1 11841W 12107W
18
SPA COVER INFLATABLE BLADDER (PRE-INSTALLED IN SPA COVER)
1 11689 12108
19 GROUND CLOTH 1 11717 12109
20 CHEMICAL DISPENSER 1 12735 12735
21 TEST STRIPS 1 11855 11855
22 WRENCH 1 11742 11742
23 AIR PRESSURE RELEASE VALVE CORE 1 12589D 12589D
24 HOSE ADAPTOR 1 12773 12773
25 MALE BUCKLE 6 11994 11994
26 FEMALE BUCKLE 6 11993 11993
27 DEFLATION OUTLET CAP 1 12775D 12775D
28 DEFLATION HOSE ADAPTOR 1 12774 12774
29 SPA FILTER MOTOR 1 12777 12777
30 SUCTION FITTING 3 11695 11695
SPA SUCTION FITTING
Self-contained spa fi ttings. – For multiple outlet use only. – Wall mounting only.
Replace suction fi ttings within 3 installed year. – Tool required: screwdriver.
Spa suction fi tting maximum fl ow rate: 8.5 gpm (510 gph)
• Check suction strainer fi tting and fasteners for damage or tampering before each use of the spa.
• For service and winterization instructions refer to “Maintenance” and “Storage” sections.
• Read and follow all instructions, save these instructions for future reference.
346
PO
S AVE THESE INSTRUCTIONS
(346PO) SPA ENGLISH 7.5” X 10.3” PANTONE 295U 08/10/2019
English
Page 7
PRODUCT SPECIFICATIONS
SET UP
Maximum seating capacity: 4 adults 6 adults
Water capacity: 210 gal (795 L) 290 gal (1098 L)
Inner/outer diameter: 57/77 in (145/196 cm) 65/85 in (165/216 cm)
Height: 28 in (71 cm)
Bubble air blower: 1.1 HP / 110-120 V / 60 Hz
Filter pump fl ow rate: 460 gal/hr (1,741 L/hr)
Heater power: 1,300 Watts / 110-120 V / 60 Hz
Temperature range: 68ºF – 104ºF (20ºC – 40ºC)
Temperature rise: 2-3ºF/hr (1-1.5ºC/hr) 1-2ºF/hr (0.5-1ºC/hr)
Number of Bubble Jets: 140 170
Spa tub recommended working air pressure: 0.083 bar (1.2 psi)
Cord-connected spa with pump, heater, blower, built-in hard water treatment and control panel.
WARNING: Risk of fi re: This product draws a minimum of 13 AMPS. Most household circuits are 15 or
20 AMPS. If the circuit breaker trips, please check that no other appliances or other large loads are on the
same circuit as the spa. Never use an extension cord. Unfold the line cord prior to use. Never place the plug
on combustible materials.
Note: the spa equipment features a complete grounding system that is also in contact with the spa water. It
is possible that a person may build up static electricity that discharges when touching the water. Regardless,
any electric shock experienced should be investigated by a qualifi ed electrician prior to use of the spa.
Unplug the spa until the cause is determined and any corrective action completed.
Site preparation and requirements
• The spa can be installed indoor or outdoor. For household use only.
• The spa must be setup on a level, fl at and smooth surface that is capable of supporting the maximum
load of the fi lled spa with four adult occupants: weight 2500 lbs (1136 kg); six adults: 3500 lbs (1592 kg).
• Make sure the area is free of sharp objects under or around the spa.
• Provide adequate drainage system around the spa to deal with overfl ow water and splashes.
• Provide a properly located power outlet to connect the spa and allow easy access for periodic testing of
the cord mounted GFCI/RCD.
• Make sure there is enough clearance around the spa for full access to the spa equipment for
maintenance and/or service.
• The area shall facilitate draining purposes during long term spa storage.
Additional requirements for indoor installation
• Make sure the fl oor can support the full weight of the fi lled spa with the maximum number of occupants.
Check with a qualifi ed contractor or a structural engineer to verify this requirement.
• Make sure the fl oor is water resistant and non-slip surface. Do not install the spa on carpet or other
materials that will be damaged by moisture, condensation.
• Do not install the spa indoors on a second fl oor above fi nished living space due to the possibility of water
and humidity damage.
346
PO
S AVE THESE INSTRUCTIONS
(346PO) SPA ENGLISH 7.5” X 10.3” PANTONE 295U 08/10/2019
English
Page 8
SET UP (continued)
Setup the spa with at least 2 persons.
1. Move the entire package to the selected site. Do not drag the spa tub across the ground as this can
cause damage and leakage.
Open the carton carefully as this carton can be used to store the spa during long term storage or when
not in use.
2. Lay out all the parts on the ground and make sure all the parts are accounted for. For missing or
damaged parts contact the appropriate Intex Service Center listed in the separate “Authorized service
Centers” sheet.
Safety Sign Card Posting
The Safety Sign card included with the manual shall be posted in an area visible to the users of the spa to
alert them of the safety rules and warnings. For replacement of the safety sign card, visit our website at
www.intexcorp.com for additional print copies. Laminate the printed safety sign copy for protection from the
elements.
Spa Control Panel Charging and Installation
1. Make sure the back of the control panel (3) and the control base recessed channel surface are clean
and dry.
2. Make sure the control base is plugged in and the RCD tested. Place the control panel (3) on the
control base recessed channel to charge the built-in battery (see drawing 1). See “Spa Control Panel”
operation section for more details.
3. Once the control panel battery is fully charged, you may place the control panel on top of the spa tub
wall (see drawing 2.1). To remove the control panel from the spa tub, lift the latch while pulling the
control panel away from the support stand (see drawing 2.2).
• Humidity is a natural side effect of indoor spa installation. The room shall be properly ventilated to allow
moisture to escape. Install a ventilating system to prevent excess condensation, moisture in the room.
Additional requirements for outdoor installation
• Spa owners may need to comply with local or states laws relating to childproof fencing, safety barriers,
lighting, and other safety requirements. Contact your local building code enforcement offi ce for further
details.
• Make sure the surface is level, fl at, smooth and strong enough to support the full weight of the fi lled spa.
• Do not setup the spa on grass or dirt, as this increases the amount of debris entering the spa, and
damage the spa fl oor.
• Do not expose the spa to direct sunlight for extended period of time. Provide protection from the
sun such as sunshade, tent, awning or gazebo.
• It is possible to install and leave the spa outside at a temperature not lower than 4°C (39°F) provided the
water temperature inside the spa is higher than 4°C (39°F) and the water inside the circulation system,
pump, pipe are not frozen. Put a “temp barrier mat” between the spa fl oor and the ground to prevent heat
loss from the bottom of the spa and to provide better heat retention. Do not use the spa if the ambient or
water temperature is 4°C (39°F) or lower.
• The spa control base unit shall be setup on a smooth and level cement ground.
1
32.2
3
2.1
1
2
346
PO
S AVE THESE INSTRUCTIONS
(346PO) SPA ENGLISH 7.5” X 10.3” PANTONE 295U 08/10/2019
English
Page 9
SET UP (continued)
Infl ation
Infl ate the Spa Tub Wall
1. Take out the ground cloth (19) and spread it over the cleared area. Then spread out the spa liner over
the ground cloth and point the drain valve towards a suitable draining area.
NOTE: Spread the ground cloth with the bubbles facing down over the cleared area where you intend
to setup your spa.
2. Flip up the control base side cover (36) to reveal the air blower infl ation outlet. Pull out the latch to open
the cover, insert the hose adaptor (24) and reattach the latch to the hose adaptor to secure it in place (see
drawing 3).
3. Attach the large end of the infl ation hose to the hose
adaptor.
4. Unscrew the air valve cap on the spa tub to reveal the
stem in the up position for infl ation. Insert the other end of
the infl ation hose (7) into the valve and turn to the right to
lock it in position (see drawing 4).
5. Press the button to turn on the control panel buttons
fi rst. Press the button to infl ate the spa tub wall for
8 to 10 minutes until it is fi rm to the touch but not hard
(see drawings 5 & 6).
IMPORTANT: Do not over infl ate or use high pressure
air compressor to infl ate.
3
1
2
34
5
4
7
1 2
5
346
PO
S AVE THESE INSTRUCTIONS
(346PO) SPA ENGLISH 7.5” X 10.3” PANTONE 295U 08/10/2019
English
Page 10
SET UP (continued)
6. Press the button again to turn it off.
7. Replace the air valve cap back.
The cap is designed to be screwed on and off. Never
exert force as this could cause the complete internal
infl ation system of the valve to come loose. See “Spa
Tub Air Valve Fastening” for valve maintenance.
NOTE: If there is a need to replace the spa tub air pressure
release valve core (5) due to wear and tear, use the included
wrench (22) to unscrew the core from the valve base.
Replace a new air pressure release valve core back. Make
sure the core is securely tightened (see drawing 7).
Infl ate the Spa Cover Air Bladder
1. Open the infl ation valve and insert the infl ation hose (7)
into the valve; press to infl ate until it is fi rm to the
touch but not hard (see drawing 8).
2. Disconnect the infl ation hose (7) from the air blower
infl ation outlet and the valve.
3. Replace the control base infl ation cap (9) back; close
and recess the infl ation valve.
NOTE: If there is a need to add some air to the spa tub wall
or spa cover air bladder after they have been setup, refer to
above “Infl ate the Spa Tub Wall” and “Infl ate the Spa Cover Air Bladder” sections. The cover air bladder is
preinstalled inside the spa cover. If it needs to be reinstalled, place the uninfl ated air bladder inside the spa
cover lip before infl ating the bladder.
7
22
5
8
7
6
IMPORTANT: To prevent damage to the air blower motor never
block the air blower outlet opening during infl ation.
346
PO
S AVE THESE INSTRUCTIONS
(346PO) SPA ENGLISH 7.5” X 10.3” PANTONE 295U 08/10/2019
English
Page 11
SET UP (continued)
The spa tub infl ation/defl ation valve incorporates an “air pressure release” function that automatically
releases excess air when the spa tub internal pressure is between 1.5 - 2.5 psi (0.103 - 0.172 bar).
Air pressure release valve.
Colder temperatures at night
cause the spa to seem less
infl ated.
Air expands in the midday
heat and correct air
pressure is restored.
Air expands in the midday heat.
Air pressure release valve kicks
in and releases excess air.
Infl ation of spa in the morning.
IMPORTANT
Defl ation
For Spa Tub Wall:
1. Unscrew the cap to reveal the stem, push the stem in and turn
90 degree right to secure it in the down position (see drawing 9).
2. Once the defl ation is completed, push the stem in and turn 90
degree left to return it to the infl ation position.
3. Replace the cap back.
NOTE:
To defl ate the spa tub for storage, see “STORAGE” section.
For Cover Air Bladder:
1. Pull valve cap out and squeeze the valve at its base until defl ated.
2. Close and recess the valve back.
9
346
PO
S AVE THESE INSTRUCTIONS
(346PO) SPA ENGLISH 7.5” X 10.3” PANTONE 295U 08/10/2019
English
Page 13
OPERATION
On/Off Button: Once the unit is plugged in, press this button to active the control panel
buttons. Press this button again to turn off all currently activated functions.
Lock/Unlock Button: Press and hold this button 3 seconds to lock/unlock the control buttons.
If you forget to lock the keypad controls, the system will automatically lock it after 1 minute of
inactivity. The icon on the display is green when locked.
Control Panel Battery Indicator: The battery indicator will turn green when it is fully charged;
turn red when it requires charging and fl ashing red when it is in charging mode.
Bubble Button: Use this button to activate the massage system, which has a 30-minute
auto-shutoff feature. The bubble icon on the displays is green when activated.
WARNING: Do not run Bubble system when the cover is attached, air can
accumulate inside the spa and cause irreparable damage and bodily harm.
Water Filter Button: This button turns the fi lter pump on and off. The water fi lter icon on the
display is green when activated and fl ashing 002H which is the minimum preset operating
hours. Press again to increase the preset time from 002H, 004H to 006H. Pressing the button
after the maximum number of hours (006H) will turn off the fi lter pump and the LED display
shows the spa water temperature. If you have selected too many hours keep pressing to repeat
the cycle. Once the operating time is set, the LED display will stop fl ashing after 10 seconds
and the fi lter pump starts working. The cycle repeats itself at the same time each day for the
number hours selected.
If the heating system is activated it will override the fi lter pump preset time function.
To view the preset time while the fi lter pump is operating, press
button, the display will
briefl y fl ash the preset hours for 10 seconds and then display back the remaining operating
hours. To adjust the preset time, press
button twice until the display is fl ashing and repeat
previous steps.
NOTE: The built-in hard water treatment function works automatically in conjunction with the
fi ltration system.
SPA CONTROL PANEL
A: On/Off Button
B: Lock/Unlock Button
C Control Panel Battery Indicator
D: Bubble Button
E: Water Filter Button
E
CB
DA
IMPORTANT
The spa control panel is resistant to water, but it is not designed to be completely submerged. Do not put
the control panel in the water. Submersion could cause water to enter the panel causing damage to the
electronics.
346
PO
S AVE THESE INSTRUCTIONS
(346PO) SPA ENGLISH 7.5” X 10.3” PANTONE 295U 08/10/2019
English
Page 14
SPA CONTROL PANEL
F: Heat Button
G: Celsius/Fahrenheit Toggle Button
H: Heat System Delay Timer (HSDT) Button
I: Heat System Operating Hours (HSOH) Button
OPERATION (continued)
Heat Button: Press this button to activate the heating system. Press or to set the desired
water temperature. The system will heat the spa water until the water temperature reaches the
set temperature. When the spa water temperature drops 2°F below the set temperature the
heating system will restart. When the fl ame icon on the display is red, the heating system is
activated. When the fl ame icon turns green, the water is at the set temperature. The heating
system is at rest and the fi ltration system will continue working nonstop. If the heating system is
activated the fi lter pump will start at the same time.
NOTE: To stop the fi ltration system while the heater is at rest mode, press the fl ame button
fi rst and then the fi lter button. Pressing the heat button only while the heater is at rest mode will
turn off the heating system only and the fi ltration system will operate for 1 more minute before it
turns off or continue with the fi lter pump preset operating hours.
IMPORTANT: The following conditions will lead to slow water heating.
• The ambient temperature is lower than 50ºF (10ºC).
• Outdoor wind speed is above 3.5-5.4 m/s (8-12 mph).
• The air bubble function is activated when heating the spa water.
• The spa is not properly covered with the spa cover when the water is heating.
Celsius/Fahrenheit Toggle button: The temperature can be displayed in either Fahrenheit or
Celsius. The system’s default is Celsius.
NOTE: The default temperature is 68°F (20°C). Temperature adjustment ranges from 50°F
(10°C ) to 104°F(40°C).
CAUTION: NEVER use the spa if indicated water temperature is more than 104ºF(40°C).
Heat System Delay Timer (HSDT) Button: Press this button and then press or to set
the heating system starting time timer, from 001 to 120 hours. The icon will fl ash red for a few
seconds and then stays red. Once the countdown timer reached 000, the heating system will
start operating. Repeat previous steps to reprogram this function. Set the Heat System Delay
Timer time to 000 to deactivate this function. Press the HSDT button twice any time to re-adjust
the preset hours.
Heat System Operating Hours (HSOH) Button: Press this button and then press or to
set the heating system operating hours from 000 to 048 hours. The icon will fl ash red for a few
seconds and then stays red. The heating system will operate for the amount of preset hours
only regardless if the preset spa water temperature is reached or not. The information shown on
the LED display alternates between the remaining operating hours and the water temperature,
provided the HSDT function is not set. Repeat previous steps to reprogram this function. Set
the Heat System Operating Hours to 000 to deactivate this function. Press the HSOH button
twice any time to re-adjust the preset hours.
HG
F
I
346
PO
S AVE THESE INSTRUCTIONS
(346PO) SPA ENGLISH 7.5” X 10.3” PANTONE 295U 08/10/2019
English
Page 15
OPERATION (continued)
Setting Examples
Water Temp
(oC/F) HSDT HSOH Action
40/104 000H 000H
HSDT & HSOH functions are off. Heating system has to
be activated manually by pressing (
) button. See “Spa
Control Panel” section for details.
40/104 000H 005H
HSDT is off. Heating system starts operating for 5 hours
and then stop, regardless if the water temperature has
reached 104°F/40°C or not. The information shown
on the LED display alternates between the remaining
operating hours and the water temperature.
40/104 012H 005H
The heating system will start after 12 hours and
then operate for 5 hours only, regardless if the water
temperature has reached 104°F/40°C or not. The
information shown on the LED display alternates
between the remaining countdown delay time and the
water temperature.
40/104 012H 000H
The heating system will start after 12 hours, then operate
until the water reaches 104°F/40°C and stop. When the
spa water temperature drops 1.8-3.6°F(1-2°C) below the
set temperature the heating system will restart. When the
fl ame icon on the display is red, the heating system is
activated. When the fl ame icon turns green, the water is
at the set temperature. The heating system is at rest and
the fi ltration system will continue working nonstop.
Adjustment Buttons: Press the increase or decrease buttons to adjust the desire function
settings. Press and hold the button will rapidly increase or decrease the numbers.
LED Display: Once plugged in the LED displays the current water temperature automatically.
If the control panel (3) is not placed on the control base recessed channel, the LED display
will go blank after 5 minutes. Press any button to resume the control panel.
K
J
L
J: Decrease Button
K: Increase Button
L: LED Display
SPA CONTROL PANEL
RF frequency band:2408~2476 MHz
Transmitter power: 10dBm
346
PO
S AVE THESE INSTRUCTIONS
(346PO) SPA ENGLISH 7.5” X 10.3” PANTONE 295U 08/10/2019
English
Page 16
OPERATION (continued)
Function ON OFF Information shown on LED display alternates between
Remaining fi lter pump time and water temperature
HSDT
HSOH
Remaining HSDT time and water temperature
HSDT
HSOH
Remaining HSDT/HSOH time and water temperature
HSDT
HSOH
Remaining HSOH time and water temperature
HSDT
HSOH
NOTE: Keep the spa control panel within 5m (16ft) range of the control base to ensure good
wireless transmission signal.
1) Always keep the spa cover on to minimize heat loss during heating of the spa between
uses (but not while it is being used). Ensure the cover is fi tted tightly, as per manufacturer’s
instructions to maximize insulation. It shall be recommended that the cover, when not in
use, should be kept off the ground to retain its cleanliness (particularly the surface in close
proximity to the water spa water surface). The cover should be stored in an appropriate
location, where it cannot be damaged, or cause damage.
2) Check the set water temperature and consider lowering it for the times when the spa will
typically not be in use.
3) Depending on external conditions, consider turning off the heater entirely if not using the spa
for an extended period of time (where the spa provides this option, but still maintains residual
disinfection/pH-values).
4) Consider that the comfortable temperature range during use may be lower than the maximum
safe temperature.
5) Use the included insulating ground cloth underneath the spa to minimize heat loss through
the bottom of the spa.
6) Maintain clean fi lters to preserve appropriate working conditions for the pump and avoid
unnecessary water replacement and re-heating.
MINIMIZE HEAT LOSS AND ENERGY CONSUMPTION ADVICE
346
PO
S AVE THESE INSTRUCTIONS
(346PO) SPA ENGLISH 7.5” X 10.3” PANTONE 295U 08/10/2019
English
Page 17
LED CODE CHART
LED Reading CAUSE SOLUTION
E81 Transmission signal failure
• Reset the RCD, restart all over again.
• Place the control panel within 5 m (16 ft) of the
control base unit.
• Press and hold POWER button for 5 seconds to
turn off and charge the panel again.
• If problem persists, contact Intex Service Center.
E90 No water fl ow
• Turn off and unplug the control unit.
• Ensure the outlet cover grid is clean and free from
obstructions.
• Clean or replace the cartridge, see Maintenance
and Storage section.
• Ensure the in/outlet connections on the spa tub and
fi lter pump are not blocked.
• Keep the spa water properly sanitized to ensure a
clean and unclogged fi lter cartridge.
• If problem persists, contact Intex Service Center.
E94 Water temperature too low
• If the ambient temperature is below 39°F (4°C), we
recommend not to use the spa.
• Turn off and unplug the control unit, add some
warm water to raise the spa water temperature
above 41°F (5°C), then press the
button to heat
up the water to the desired temperature.
• If problem persists, contact Intex Service center.
E95 Water temperature too high
• Turn off and unplug the control unit. When the water
has cooled down, plug the RCD and restart all over
again.
• Turn the heater off, then press the fi lter and bubble
buttons to lower the water temperature.
• If problem persists, contact Intex Service Center.
E96 System Error
• Turn off and unplug the control unit. Plug the RCD
and restart all over again.
• If problem persists, contact Intex Service Center.
E97 Dry-fi re Protection • Contact Intex Service Center.
E99 Water temperature sensor broken • Contact Intex Service Center.
END
After 72 hours of continuous
heating operation, the pump will
hibernate automatically. The rapid
heating function is disabled.
• Press the
button to re-active the fi lter pump.
BLANK
Control panel battery has no power
or in “Power Saving Mode” waiting
to be placed on the control base
recessed channel.
• Press any button to reactivate the control panel.
• Reset the RCD, restart all over again and charge
the control panel again.
• Make sure the surface between the back of the
control panel and the control base recessed channel
is clean, dry and free of obstruction.
• If problem persists, contact Intex Service Center.
346
PO
S AVE THESE INSTRUCTIONS
(346PO) SPA ENGLISH 7.5” X 10.3” PANTONE 295U 08/10/2019
English
Page 18
MAINTENANCE AND CHEMICALS
Water Sanitation
The spa owner must regularly check and keep the spa water sanitized with scheduled maintenance (daily, if
necessary). Adding sanitizer and other chemical will control bacteria and viruses present in the spa water.
The maintenance of a proper water balance through appropriate use of sanitizers is the single most important
factor in maximizing the life and appearance of the spa tub as well as ensuring clean, healthy and safe water.
Proper technique is important for water testing and treating the spa water. See your pool/spa professional for
chemical, sanitizer, test kits and testing procedures questions.
CAUTION: ALWAYS FOLLOW THE CHEMICAL MANUFACTURER’S DIRECTIONS, AND THE
HEALTH AND HAZARD WARNINGS.
Do not add chemicals if the spa is occupied. This can cause skin or eye irritation. Concentrated chlorine
solutions can damage the spa tub. In no event is Intex Recreation Corp., Intex Development Co. Ltd., their
related companies, authorized agents and service centers, retailers or employees liable to the buyer or any other
party for costs associated with the loss of spa water, chemicals or water damage.
Maintenance of Spa Water and Cartridge
Protect all the spa occupants from possible water-related illnesses by keeping the spa water clean and sanitized.
Always practice good hygiene. To ensure proper spa water quality follow these procedures:
1. Inspect and clean the fi lter cartridge once a week, and change the fi lter
cartridge as needed.
a. Unscrew the cartridge housing assembly from the spa tub wall and
remove the cartridge (see drawing 13).
b. Use a garden hose to rinse off the cartridge. If the cartridge remains
soiled and discolored it should be replaced. Keep spare cartridges
on hand.
c. Reinstall the clean cartridge back into the cartridge housing and
replace the cartridge housing assembly back onto the spa tub wall.
2. Change the spa water every 2~3 months, or it becomes cloudy and proper
water chemistry does not clear it up. See “Spa Tub Drainage” and “Spa
Tub Cleaning” sections for details.
3. Use spa chemicals to maintain proper water chemistry. Spa damage
resulting from misuse of chemicals and mismanagement of spa water
is not covered by the warranty.
4. All occupants must shower before entering the spa.
Water Chemistry Balance
Maintain the spa water pH level between 7.2 and 7.8, total alkalinity level between 80 and 120 ppm and free
chlorine level between 2 to 4 ppm.Use the included test strips to test the spa water chemistry before each use
of the spa and continue to test the water no less than once a week.
The Test Strips can test the “Free Chlorine”, “pH”, “Total Alkalinity” and “Calcium Hardness” levels at the same
time:
1. Dip the entire strip into the water and remove immediately.
2. Hold the strip level for 15 seconds. Do not shake excess water from the strip.
3. Compare the strip pad to the color chart on the packaging label. If necessary, adjust the chemical level
in the pool water.
NOTE: Check the expiry date of the test kit as the test results may be inaccurate if the kit is used after that date.
Low pH will damage the spa tub and pump. Damage resulting from chemical imbalance is not covered by the
warranty.
Use the included chemical fl oater dispenser to administer chlorine [chemical tablet size: less than 1” (2.5 cm)
diameter] into the spa water. Add 1 tablet into the dispenser. Always follow the chemical manufacturer’s
directions. Remove the chemical fl oater dispenser when the spa is in use.
Never let chlorine come in contact with the spa tub if it is not completely dissolved.
Flush all pipes with treated water by activating the bubble function for an hour a day.
IMPORTANT: Press the
button on the spa control panel to turn on the bubble air blower and help dissolve
the chemicals into the water. Never mix chemicals together. Add the chemicals to the spa water separately.
Thoroughly dissolve each chemical before adding another one to the water.
WARNING
Always unplug this product from the electrical outlet before removing, cleaning, servicing or
making any adjustment to the product.
13
14
12
13
346
PO
S AVE THESE INSTRUCTIONS
(346PO) SPA ENGLISH 7.5” X 10.3” PANTONE 295U 08/10/2019
English
Page 19
SPA WATER CHEMISTRY AND BALANCE
Preferred Water Chemistry Reading
Minimum Ideal Maximum
Free Chlorine 2 ppm 2 - 4 ppm 5 ppm
pH 7.2 7.2 - 7.6 7.8
Total Alkalinity (TA) 60 ppm 80 ppm 120 ppm
Calcium Hardness (CaCO3)100 ppm 150–250 ppm 350 ppm
Saturation Index (SI) –0.3 0 +0.3
Water Temperature 20ºC / 68ºF 20–40ºC / 68–104ºF 40ºC / 104ºF
Free chlorine: is the chlorine residual present in the spa water.
Result if too low – Inadequate level of disinfection.
Result if too high – cause odor problem, skin & eye irritation, corroded metals and other materials.
pH: a value that indicates how acidic or basic the spa water is.
Result if too low – Corroded metals, eye & skin irritation, and destruction of total alkalinity.
Result if too high – Scale formation, cloudy water, shorter fi lter/heater runs, eye & skin irritation, poor chlorine
effi ciency.
Total Alkalinity (TA): indicates the degree of the water’s resistance to pH change. It determines the speed
and ease of pH change, so always adjust total alkalinity before adjusting the pH level.
Result if too low – Corroded metals, eye & skin irritation. Low alkalinity will cause the pH to be unstable.
Result if too high – Scale formation, cloudy water, shorter fi lter/heater runs, eye & skin irritation, high chlorine
demand.
Calcium Hardness (CaCO3): refers to the amount of calcium and magnesium dissolved in the water.
Result if too low – Diffi culty balancing water, corrosion of metal components, eye & skin irritation and water
foaming.
Result if too high – Scale formation, cloudy water, eye & skin irritation, diffi culty balancing water and fi lter/
heater ineffi ciency.
Saturation Index (SI): temperature, calcium hardness concentration, total alkalinity and pH represent the
main factors infl uencing scale formation. The tendency of water to either form scale or corrode is indicated by
the Saturation Index (SI):
SI = pH+TF+CF+AF-12.1
*Where: TF = Temperature Factor; CF = Calcium Hardness Factor; AF = Total Alkalinity Factor
Water Temperature TF Calcium
Hardness (ppm) CF Total
Alkalinity (ppm) AF
(ºC) (ºF)
8 46 0.2 75 1.5 50 1.7
12 54 0.3 100 1.6 75 1.9
16 61 0.4 150 1.8 100 2.0
19 66 0.5 200 1.9 150 2.2
24 75 0.6 250 2.0 200 2.3
29 84 0.7 300 2.1 300 2.5
34 93 0.8 400 2.2 400 2.6
40 104 0.9 500 2.3 -- --
-- -- -- 1000 2.6 -- --
Test the water pH, Temperature, Calcium Hardness and Total Alkalinity levels. Use the equivalent Factors in
the SI equation.
SI = 0, Balance
If SI > 0, Scaling or cloudy water condition.
If SI < 0, Corrosive to metals or eye & skin irritating condition.
The SI is considered satisfactory if the value is within -0.3 to +0.3 range. Zero being perfect.
Produktspecifikationer
| Varumärke: | Intex |
| Kategori: | Friskvård |
| Modell: | SSP-10-1 PureSpa Wellness |
Behöver du hjälp?
Om du behöver hjälp med Intex SSP-10-1 PureSpa Wellness ställ en fråga nedan och andra användare kommer att svara dig
Friskvård Intex Manualer
27 Augusti 2024
27 Augusti 2024
27 Augusti 2024
27 Augusti 2024
Friskvård Manualer
- Friskvård Arctic Spas
- Friskvård Caldera
- Friskvård MSpa
- Friskvård Avenli
- Friskvård Netspa
- Friskvård Exit Toys
- Friskvård Sundance
- Friskvård Watkins
- Friskvård Seniotec
- Friskvård Balboa
- Friskvård Wellis
- Friskvård Fantasy
- Friskvård Canadian Spa Company
- Friskvård Venice
- Friskvård Gecko
Nyaste Friskvård Manualer
17 September 2024
15 September 2024
15 September 2024
15 September 2024
15 September 2024
15 September 2024
15 September 2024
15 September 2024
15 September 2024
15 September 2024
