Sida 1/7

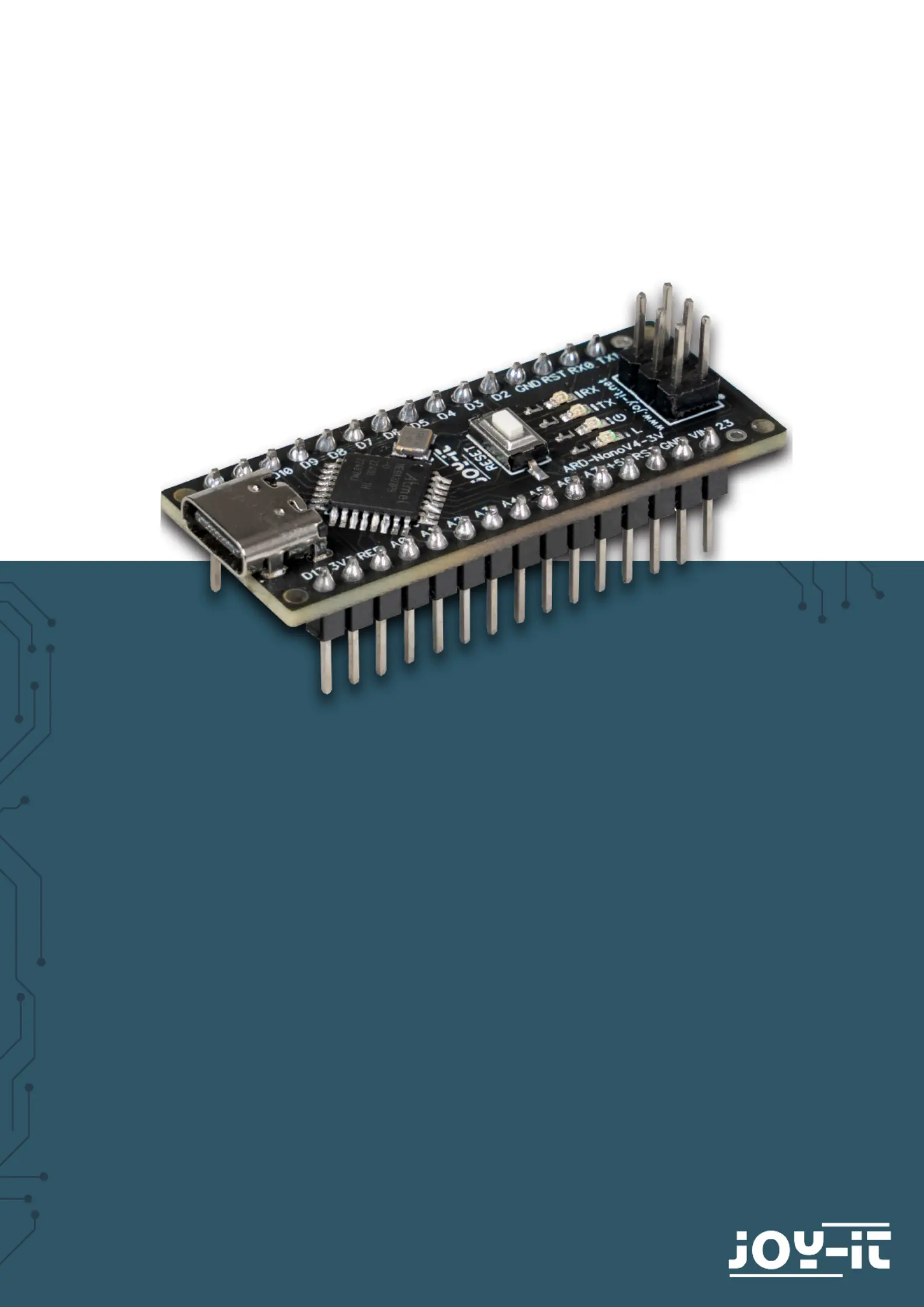

NANO V4 3V
ARD-NanoV4-3V
Joy-IT powered by SIMAC Electronics GmbH - Pascalstr. 8 - 47506 Neukirchen-Vluyn - www.joy-it.net
Dear customer,
thank you for choosing our product. In the following
we will show you what you need to bear in mind when commissioning and
using.
Should you encounter any unexpected problems during use, please do not
hesitate to contact us.
The ARD-Nanov4-3V is a particularly small microcontroller that has been
specially developed for working with plug-in boards, thanks to the pin
header that leads out at the bottom.
the integrated USB Type-C interface can be used to supply the circuit and
board with power and to transfer programmes to the microcontroller.
The logic level, 3.3V as standard, can easily be switched to 5V via a solder
bridge. The board also has a high-precision clock generator that is optimised
for demanding applications and precise time measurements.
1. GENERAL INFORMATION
i
Please ensure that you use the appropriate instructi-
ons for your specific board - either ARD-NANOV4-3V or
ARD-NANOV4-3V-MC. Both boards are very similar, but require die-
rent configurations of the development environment.
Using the wrong instructions will result in the board not working pro-
perly.
RXD0

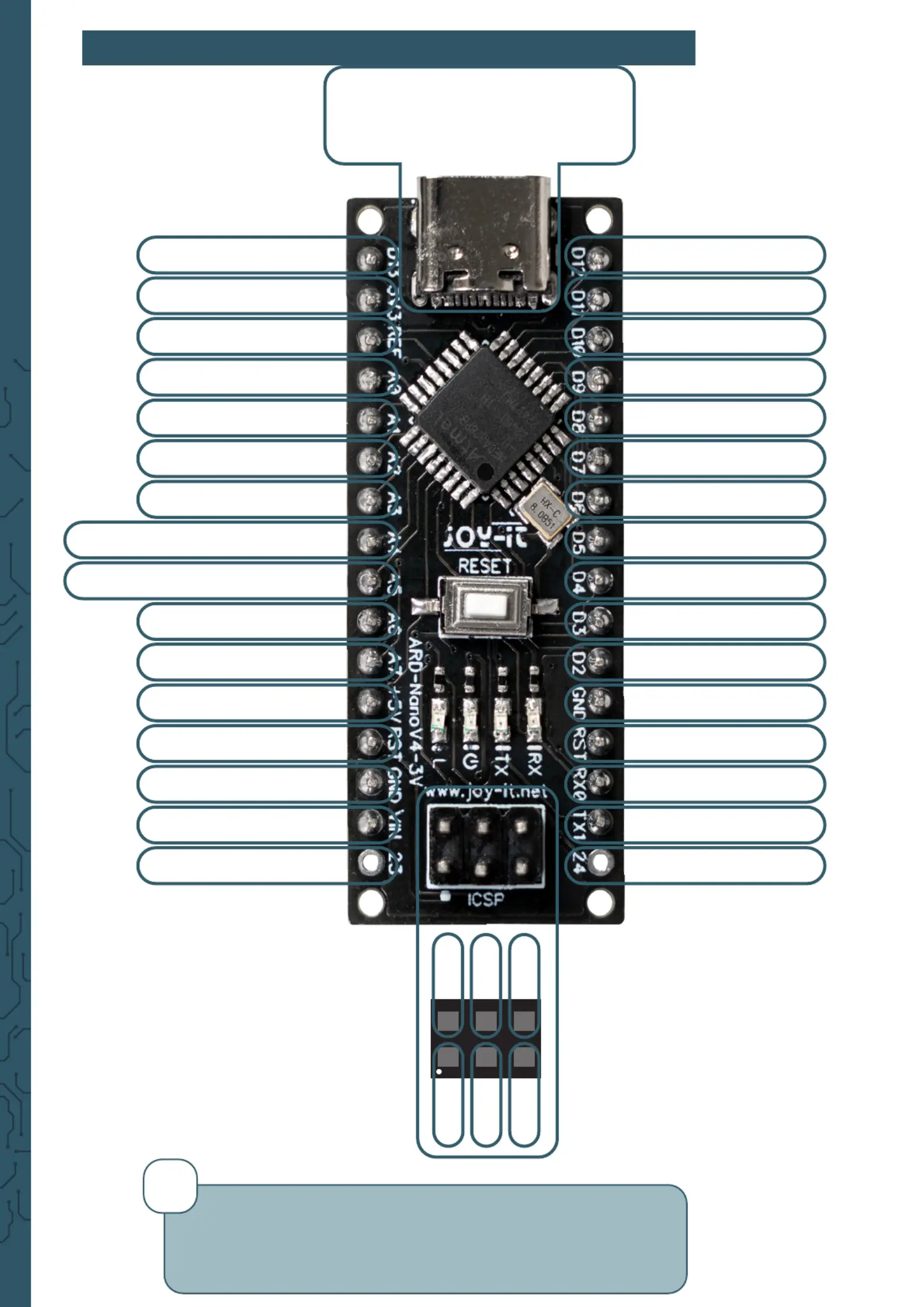

. DEVICE OVERVIEW
SCK0 D13
+3V3
AREF
ADC0 D14
ADC1 D15
ADC2 D16
ADC3 D17
ADC6 D20
ADC7 D21
+5V
RESET
GND
VIN
D23*
MISO0D12
MOSI0~D11
~D10
~D9
D8
D7
~D6
~D5
D4
~D3
D2
GND
RESET
TXD1
D24*
ADC5 D19
SCL0
D18
SDA0
ADC4
i
~ PWM pins
* Can only be used with minicore bootloader (ARD-NanoV4-3V-MC)
** 3.3V 5V depending on solder bridge /
VCC**
GND
~D11
D12
D13
RESET
USB-C
Programming interface
5 V voltage input
