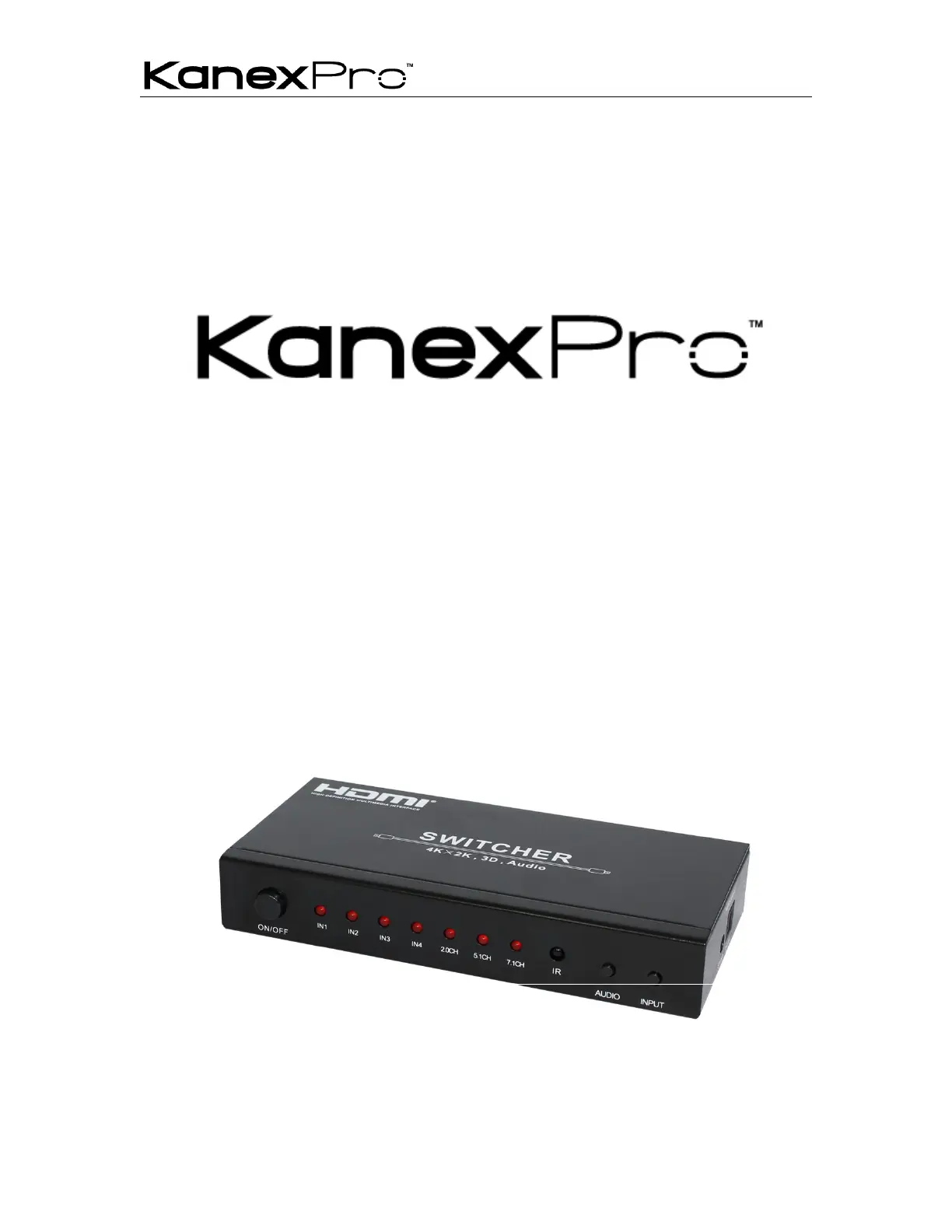

! ! !SW- 4X1AUD4KHD
!
!
!
!
!
!
!
!
!
!
!
!
SW- HD4X1AUD4K
4x1 HDMI Switcher with Digital Audio & 4K
! ! !SW- 4X1AUD4KHD
!
!
Table of Contents
!
1. Introduction .................................................................................................................................. 1
1.1. Introduction to SW 4X1AUD4K-HD .............................................................................. 1
1.2. Features ...................................................................................................................... 1
1.3. Package Contents ....................................................................................................... 1
1.4. Specifications .............................................................................................................. 2
1.5. Operation ontrols and unctionsC F ............................................................................... 3
1.6. Application Example .................................................................................................... 4
1.7. Remote Control Functions ........................................................................................... 5
2. Warranty ...................................................................................................................................... 6
! ! !SW- 4X1AUD4KHD
!
!
1
!
1. Introduction
1.1. - Introduction to SW HD4X1AUD4K
The KanexPro 4x1 HDMI Switcher is a compact design HDMI switcher that allows up to four
Ultra HD or 1080p sources to be routed to one Ultra HD display with dedicated digital and
stereo audio outputs. It supports resolutions up to 3840x2160 at 30p. Deep Color, 3DTV
pass and lossless audio formats such as LPCM 7.1, Dolby TrueHD, and DTS- through, -HD
Master Audio are also supported.
The 4x1 switcher features selectable audio outputs from 2.1, 5.1 & 7.1multi-channel audio
from either the front panel Ideal for home theater systems, retail establishments, multi-room
installations, hospitals, lobbies, sports bars, schools or any installation where multi-source 4K
HDCP-compliant content needs to be routed to a display.
1.2. Features
! Switch 4 inputs to one output with separate audio
! Supports 4K Ultra HD resolutions & 1080p HD
! HDCP & EDID compliant
! - 3DTV Pass through
! Up to 12-Bit Deep Color Support
! Dedicated, flexible audio input/output port
! Audio support: 3.5mm stereo & Toslink output
! - Lip Sync pass through
! Push button switching control
! Supports LPCM 7.1, Dolby TrueHD, Dolby Digital Plus, and DTS-HD Master Audio
! -Front panel LED’s for input/ output signal presence
! Ultra compact design
! 5VDC external power supply included
! IR / Remote control included
!
1.3. !Package Contents
! HDMI 4x1 Switcher
! 5V DC Power Supply
! Remote control
! Operation Manual
