! ! SW-HD5X14K!

SW-HD5X14K

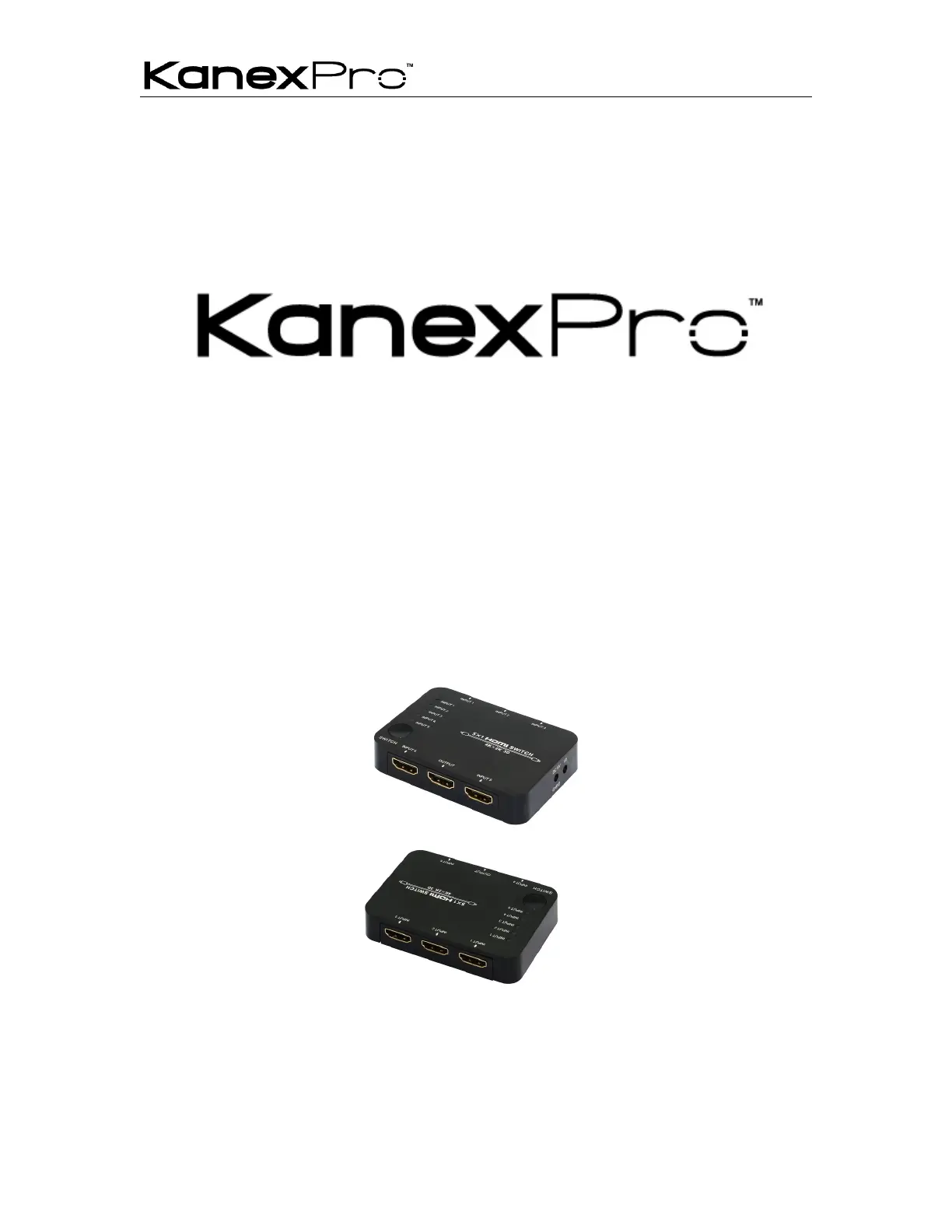

5x1 HDMI Switcher with 4K Support

! ! SW-HD5X14K!

Table of Contents

1. Introduction .................................................................................................................................. 1

1.1. Introduction to SW-HD5X14K ...................................................................................... 1

1.2. Features ...................................................................................................................... 1

1.3. Package Contents ....................................................................................................... 1

1.4. Specifications .............................................................................................................. 2

1.5. 5X1 Switch Operation controls and functions .............................................................. 3

1.6. Application Example .................................................................................................... 5

1.7. Remote Control Functions ........................................................................................... 6

2. Warranty ...................................................................................................................................... 7

! ! SW-HD5X14K!

1. Introduction

1.1. Introduction to SW-HD5X14K

The KanexPro 5x1 HDMI Switcher is a compact five input to one output switch providing 4K

ultra-HD resolutions. It is a nippy switcher designed to connect five HDMI sources such as

Apple TV, Blu-ray, PS4 or Xbox one to your 4K, HDTV or a projector. Perfect for home

theater and pro-sumers looking to connect HDMI based devices to an Ultra-HDTV.

1.2. Features

! Rapidly switch between 5 inputs to one output

! Supports resolutions up to 4K@30Hz

! Full HD 1080p & 1920x1200

! HDCP and EDID Compliant

! Supports all 3D formats

! Ultra-low power consumption, does not require a power supply

! Switch using a manual button or included IR remote

! Supports High Speed HDMI Specifications - (Deep color, HD lossless audio formats

& Lip Sync)

! Audio support: Dolby TrueHD, DTS-HD Master Audio 7.1ch

! Supports uncompressed audio such as LPCM and compressed audio such as DTS

Digital, Dolby Digital (including DTS-HD and Dolby True HD)

! Front-panel LED’s for input/ output signal presence

! Ultra compact design

! 5VDC external power supply included

! IR / Remote control included

1.3. Package Contents

! HDMI 1.4 5x1 Switcher

! 5V USB to DC Power Supply cable

! Remote control

! IR Receive Extend cable

! Operation Manual

Produktspecifikationer

Varumärke:	KanexPro
Kategori:	Router
Modell:	SW-HD5X14K
Vikt:	28.3 g
Bredd:	76.2 mm
Djup:	50.8 mm
Höjd:	43.2 mm
LED-indikatorer:	Ja
Videolägen som stöds:	1080i, 1080p, 480i, 480p, 576i, 576p, 720p
Certifiering:	FCC, Ce, UL
HDCP:	Ja
HDMI-version:	1.4a
Bandbredd:	2.95 Gbit/s
Antal HDMI-utgångar:	1
Fjärrkontroll ingår:	Ja
Produktens färg:	Svart
bruksanvisning:	Ja
Strömförbrukning (vanlig):	0.2 W
Produktstorlek (BxDxH):	76.2 x 50.8 x 43.2 mm
Temperatur vid drift:	0 - 40 ° C
Temperaturintervall (förvaring):	-20 - 60 ° C
Video porttyp:	HDMI
Kabel inkluderad:	IR
Garantisedel:	Ja
HDMI-in:	5
AC-adapter, frekvens:	50/60 hz
EDID (Extended display identification data):	Ja
