Sida 1/7
Sauter GmbH
Ziegelei 1
D-72336 Balingen
e-mail: info@kern-sohn.com
Phone : +49-[0]7433- 9933-0
Fax: +49-[0]7433- - 9933 149
Internet: www.sauter.eu
Instruction manual analog shore
hardness tester
SAUTER (&TI) HB
Version 2.0
03/2020
GB
HB- -e-2020 BA
PROFESSIONAL MEASURING
2 - -e-2020 HB BA
GB
SAUTER HB (&TI)
V. 2.0 03/2020
Instruction manual analog shore hardness tester
Thank you for purchasing the analogue Shore hardness tester from SAUTER. We
hope you will be very satised with the high quality of the hardness tester and its
functionality. For any questions, wishes and suggestions we are at your disposal.
Table of contents:
1 Before commissioning .................................................................................. 3
2 General overview ........................................................................................... 3
3 Technical data ................................................................................................ 4
4 Measurement method .................................................................................... 4
5 Storage ........................................................................................................... 4
6 SHORE DUROMETER TEST STAND with HB .............................................. 5
7 Introduction .................................................................................................... 5
8 Structure ......................................................................................................... 5
9 Operation ........................................................................................................ 6
10 Note ................................................................................................................. 7
11 Maintenance ................................................................................................... 7
HB- -e-2020 3 BA
1 Before commissioning
Before putting the device into operation, check the delivery for any transport damage
to the packaging, the plastic case and the device itself. Should this be the case,
SAUTER must be contacted immediately.
2 General overview
The hardness of plastic is generally measured with a Shore hardness tester, using
either the or the scale. This is the preferred method for rubber or Shore A Shore D
elastomers and also for "softer" plastics such as polyolens, uoropolymers and vinyl.
The Shore A scale is used for "softer" rubbers and the Shore D scale for the "harder"
rubbers.
Shore C/ Shore 0 is mainly used for tests with foam rubber, sponges, microporous
plastic, etc.

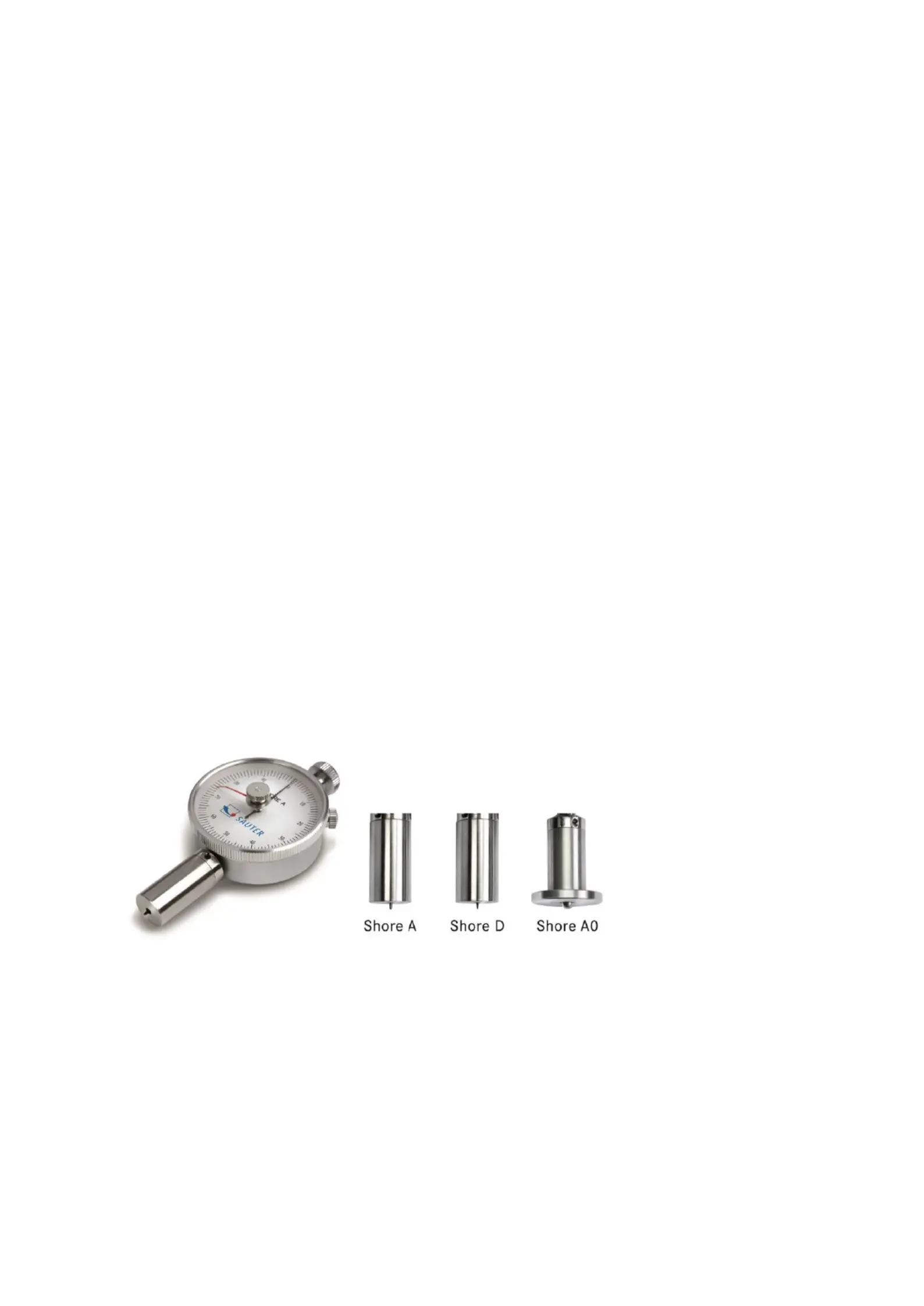

These three dierent tips (see gure above) are not interchangeable. For each
hardness range the corresponding Shore hardness tester must be purchased.
Developed according to the following standards:
• DIN 53505
• ASTM D2240
• ISO 868
This Shore hardness tester is especially recommended for internal comparison
measurements. Standard calibrations, e.g. to DIN 53505, are often not possible due to
very tightly specied standard tolerances and are therefore not oered by SAUTER.
Shore A, Shore C / Shore 0 and Shore D
