1
6
5
3
2
4
2
4
5
3
1
6
CONTENTS
1 Technical data1 .................................................................................................
2 Description .....................................................................................................2
3 General information3 .......................................................................................
3.1 Intended use3 ...................................................................................................
3.2 Warranty .........................................................................................................3
4 Basic safety information4 ................................................................................
4.1 Follow the instructions in the operating manual4 ..........................................
4.2 Warning .......................................................................................................4-5
5 Supplied items5 ................................................................................................
6 Before the first use6 .........................................................................................
7 Use/measurement .........................................................................................6
7.1 Zero point calibration7-8 .................................................................................
7.2 Additional advice9 ............................................................................................
7.3 Measuring procedure9-10 ...............................................................................
8 Cleaning and maintenance11 ..........................................................................
9 Storage .........................................................................................................11
10 Service .........................................................................................................11
11 Disposal .......................................................................................................12
12 Additional information.................................................................................12
13 Brix to refractive index
(
nD
)
conversion table13 ............................................
14 Annex ...........................................................................................................14
1. Technische Daten
Models
KERN
Measuring
range and
Scales
Scale
graduations
Accuracy
Dimensions
Product
Net weight
ORA 80BE
Brix: 0-50%
Brix: 50-80%
0,5 % Brix
0,5 % Brix
180x40x40mm0,400kg
Operating manual
Analogue refractometer
KERN & Sohn GmbH
KERN ORA 80 BE Analogue Expert
2x Brix scale
Ziegelei 1
D-72336 Balingen
E-Mail: info@kern-sohn.com
Tel: +49-
[
0
]
7433-9933-0
Fax: +49-
[
0
]
7433-9933-149
Internet: www.kern-sohn.com
3.General information
3.1 Intended use
The refractometer is a measuring instrument for determining the refractive index of
transparent substances in liquid or in some cases also in the solid state. It is used
to observe the behaviour of light as it passes from a prism with known properties
to the substance being tested.
Use of the refractometer for other purposes is contrary to its intended use and
may be hazardous. The manufacturer shall not be liable for any damages caused by
improper use.
3.2 Warranty
The warranty shall be void in the event of:
▸Failure to observe the instructions in the operating manual
▸Use for purposes other than those described
▸Modifications or opening the device housing
▸Mechanical damage and/or damage resulting from media,
liquids, natural wear and tear

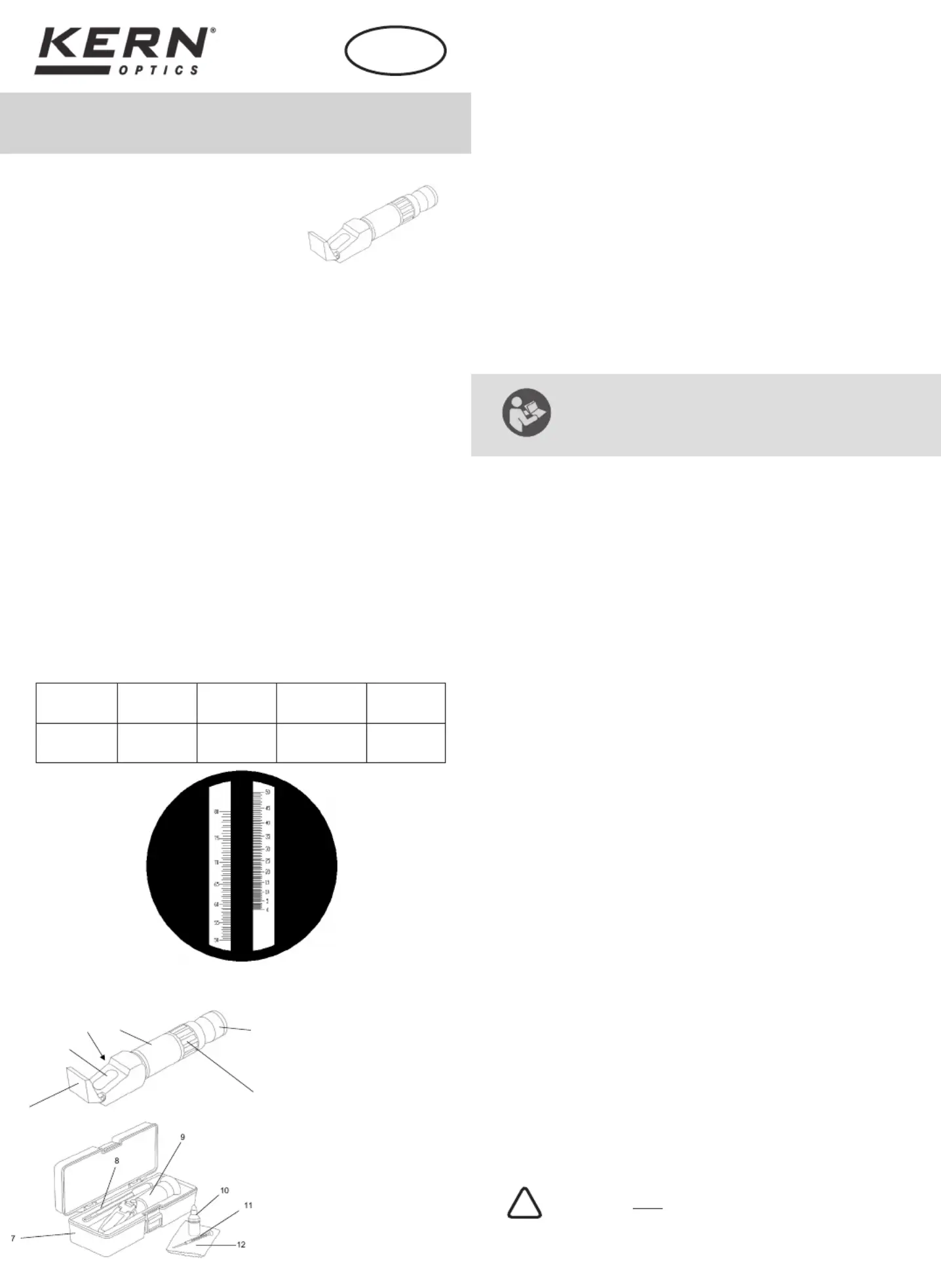

2.Description
1. Prism cover
2. Prism surface
3. Optical tubes with grip
4. Eyepiece with diopter adjustment ring
5. Adjusting wheel measuring range
6.Adjusting screw
Version 1. /2012 049
4.Basic safety information
4.1 Follow the instructions in the operating manual
▸Carefully read through the operating manual even if you have prior
experience with KERN refractometers.
▸Every language version includes a non-authoritative translation.
The original German document is the definitive version.
4.2 Warning
▸Do not let acids come into contact with skin or eyes. If acid comes into contact
with skin, flush with copious amounts of water. Shower if larger areas of skin are
affected.
▸If acid comes into contact with eyes, keep the eyelid open and flush the eye with
running lukewarm water from the outer corner to the inner corner. Flush eyes for
at least 15 minutes. Then consult a doctor or ophthalmologist immediately.
▸Thoroughly clean the refractometer aer each use.
▸The refractometer must not be exposed to extreme temperatures, high
mechanical stresses, strong direct sunlight or high humidity.
▸This refractometer is not a toy. Keep out of reach of children.
▸Make sure that you will not be hit by anything else while you are using the
refractometer, as this could cause serious eye injuries
▸The rubber eyeshade may cause irritation when in prolonged contact with the
skin. If this happens, consult your doctor.
▸Do not touch the lenses with your fingers.
5. Supplied items
Aer unpacking and before using the device for the first time, check that all
listed parts have been supplied. Replace damaged or faulty parts immediately
and do not put them into operation.
6.Before the first use
Remove the protective film
(
if present
)
from the prism surface
[
2
]
and check that
the rubber eye-cup
[
4
]
is fitted correctly.
7.Use/measurement
The refractometer can be used to quickly and accurately determine the refractive
index of transparent substances, liquid or solid ones. To ensure correct measure-
ment, the measuring device should be adjusted before measurements are carried
out. Please make sure your hands are dry before handling the measuring device.
The measuring instrument has two measuring ranges. To switch between the two
measuring ranges rotate the housing ring
[
5
]
between the eyepiece
[
4
]
and the
optical tube
[
3
]
.
Example scale on
ORA 80 BE
GB
7. Storage box
8.Pipette
9.Refractometer
10.
Calibration liquid
(Distilled water)
11. Adjustment tool
12. Cleaning cloth
▸ Refractometer
▸ Storage box
▸ Pipette
▸ Adjustment tool
▸ Cleaning cloth
▸ alibration Cliquid (Distilled water)
!
The refractometer cannot be used for the measurement of oil-based fluids.
