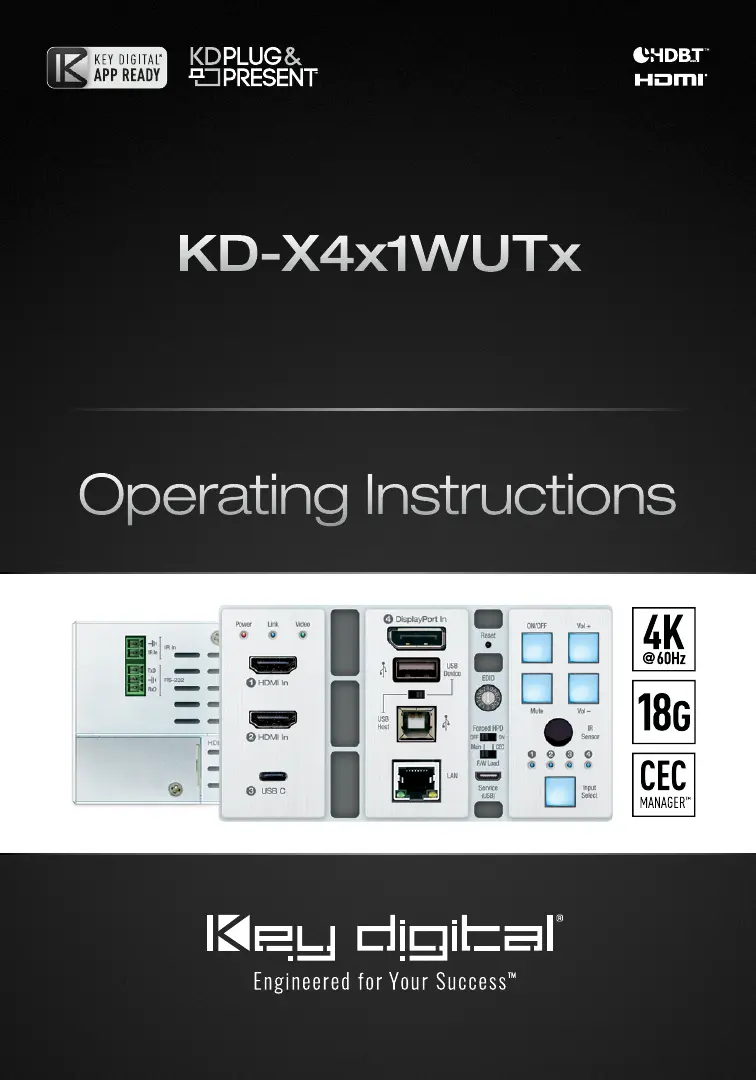

4x1 4K/18G 100m HDBT PoH Wall Plate Switcher with
2x HDMI, DP, USB-C, USB, LAN, ARC, IR, RS-232,
IP Control, CEC Manager
™
. Transmitter Only.
Operating Instructions
KD-X4x1WUTx
2
Table of Contents
Quick Setup Guide ............................................................... 2
Integration Options ............................................................... 3
Connections, Buttons, and LEDs...................................................... 9
TCP/IP Commands .............................................................. 14
Specifications .................................................................. 16
Important Product Warnings & Safety Instructions: .......................................17
Contacting Key Digital ............................................................ 17
Warranty Information............................................................. 17
Always follow the instructions provided in this Operating Manual.
Please visit www.keydigital.com for the latest product
documentation and software downloads. Product features
and specifications are subject to change without notice.
Introduction
Key Digital
®
KD-4x1WUTx is an HDBaseT wall-plate transmitter + universal presentation switcher +
soft-codec enabling interface with two HDMI, one Display Port, and one USB-C input, as well as one
USB-A and USB-B connection. KD-X4x1WUTx is ideal for professional video installations in conference
rooms, class rooms, lecture halls, auditoriums, and more. KD-X4x1WUTx is natively received by KD-
X100MRx black box HDBaseT Rx or by KD-UPS52U Presentation Switcher. Both Rx options have audio
de-embedding for ease of integration with audio systems. Additional Key Digital Presentation Switchers
also support integration with KD-X4x1WUTx. KD-X4x1WUTx features push-button or TCP/IP switching
selection of the desired source and is KD-App Ready. Key Digital CEC Manager
™
enables basic controls
of the connected display for a simplistic all-in-one integration system. KD-X4x1WUTx is HDCP 2.2
compliant and supports 4K/UHD 24/25/30/60 (4:4:4) resolutions with up to 18Gbps bandwidth. 4K/
UHD signals are extended up to 100m / 328ft and 1080p up to 150m / 492ft via single CAT5e/6 cable.
In addition to AV signals, KD-X4x1WUTx extends USB 2.0, IR, RS-232 for controlling remotely located
equipment. The wall-plate unit fits in a standard US three-gang box and is powered by the Rx unit or
Presentation Switcher for convenient installation.
Default IP Address: 192.168.1.239, Port 23
