Sida 1/9
Manual Contents
__________________________________________
Manual Contents 1-0
Welcome! Product Description 1-1
System Requirements for Setup 1-2
Installation 1-3
Self-EDID Programming Procedure 1-5
Troubleshooting, Maintenance, Technical Support 1-6
Product Specifications 1-7
Warranty Information 1-9
Warning for Medical Usage 1-10
UL/EN Statement 1-11
Guidance and Manufacturer’s Declaration 1-12
Pictorials
Figure 1 – Connection Diagram of Optical DVI
Extension Modules 1-1
Figure 2 – Connection of power adapter to the
transmitter and receiver 1-3
Figure 3 – Connection of optical fiber 1-3
Figure 4 – Connection of the transmitter to DVI source
and receiver to the display 1-4
Figure 5 – Connection diagram using optical splitter 1-4
Figure 6 – Position of EDID-PRG. Button and
Status LED 1-5
1-0 Manual Contents
User Manual
DVFX-110
Doc No. : OE-D201223-12 / Rev1.9
1 (One) Fiber Detachable
DVI module
www.opticis.com
System Requirements for Setup
Hardware requirements
You must have a DVI graphic controller or card having a DVI port
in your PC, SUN or Mac systems. It should support the maximum
graphic resolution feature of displays to be connected.
No special requirements for memory size, CPU speed and
chipsets, if you’ve already properly installed your DVI graphic
controllers or cards.
Software requirements
No special restrictions, if you’ve already properly installed your
DVI graphic controller in your OS.
AC/DC Power Adapter Technical Advisory
The transmitter (Tx) module of DVFX-110-TR is designed for power
protection circuit from conflict of power supply between the external
AC/DC power adapter and your DVI source by #14 pin.
We strongly recommend to use external AC/DC adapter for
Transmitter (Tx) for stable power supplying. In case of Receiver (Rx),
power should be supplied by AC/DC adapter due to no internal power
supplying from the displays.
1-2 System Requirements for Setup
Welcome!
Congratulations on your purchase of the Stretch DVI
TM
DVFX-110-TR
Optical DVI (Digital Visual Interface) Extension Module. This manual contains
information that will assist you in installing and operating the product.
Product Description
The DVFX-110-TR optical DVI module transmits four (4) optical data, Red,
Green, Blue and clock and can be extended up to 1,500 (4,920ft) over one (1)
SC single or 500meters (1,640ft) over multi-mode fiber at WUXGA
(1920x1200), 60Hz vertical refresh rate. The EDID (Extended Display
Identification Data) in a display can be read and restored by just plugging once
transmitter to the display. This Self-EDID programming feature makes the
installation of DVFX-110-TR more easy and flexile at any variable resolution
display systems. The key features of DVFX-110-TR is, by using an optical
splitter (OPS-116S), one (1) signal from transmitter can be copied up to
sixteen (16) times and it gives you a cost effective and space saving
installation for various application. For your convenience, UXGA EDID would
have been done before shipment as a default.
Shipping Group
DVFX-110-TR Optical DVI Extension Module: One (1) pair
AC/DC power adapter: Two (2) units of +5V, 2A
User Manual

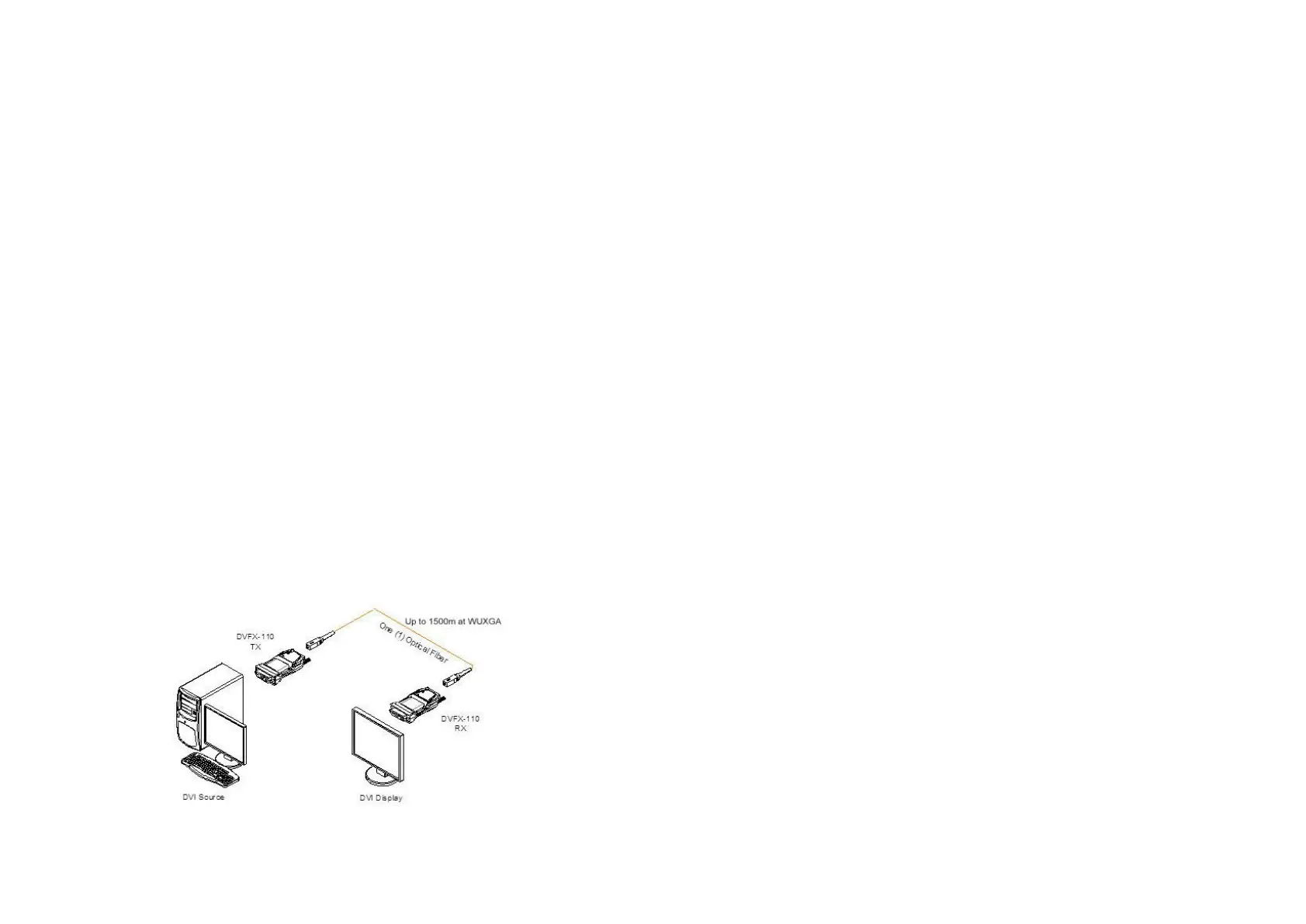

Figure 1 – Connection Diagram of Optical DVI Extension Module
1-1 Welcome, Product Description
