Manual Contents
__________________________________________
Manual Contents
1-0
Welcome! Product Description
1-1
System Requirements for Setup, Shipping group
1-2
Installation; Connection with Copper cable
1-3
Connection with Copper cable and Optical
Extender (RX side)
1-4
Connection with Copper cable and Optical
Extender (TX side)
1-5
Troubleshooting
1-6
Maintenance, Technical Support, and Service
1-7
Product Specifications
1-8
Warranty Information
1-9
Pictorials
Figure 1 – Overall Connection of DPAX
1-1
Figure 2 – Connection of DPAX with Copper cable
1-3
Figure 3 – Connection of DPAX with Copper cable
and Optical fiber (RX side)
1-4
Figure 4 – Connection of DPAX with Copper cable
and Optical fiber (TX side)
1-5
1-0 Manual Contents
User Manual
DPAX
Doc No. : OE-H201106-00 / Rev1.1
DisplayPort 1.2
Data Recovery Repeater
Welcome!
Congratulations on your purchase of the DisplayPort 1.2 Data Recovery
Repeater, DPAX. This manual contains information that will assist you in
installing and operating the product.
Product Description
The new DisplayPort 1.2 Data Recovery Repeater, DPAX is an active repeater
for DisplayPort video signal to increase video transmission of a DisplayPort
signal up to combined length of 8m (26ft) over DisplayPort 1.2 copper cables.
3m (10ft) from the Source - 5m (16ft) to the Display at DP1.2
5m (16ft) from the Source - 10m (33ft) to the Display at DP1.1
DPAX complies with DisplayPort 1.2 standards, and supports Ultra High
Definition (up to 4096x2160) at 60Hz with auxiliary channel, MST function.
DPAX has been especially designed to work with Opticis fiber-optic
DisplayPort extenders, DPFX-700, DPFX-300, DPFX-250, DPFX-100, DHFC-
200D and M1-5000. So it can extend transmission of DisplayPort signal even
longer.

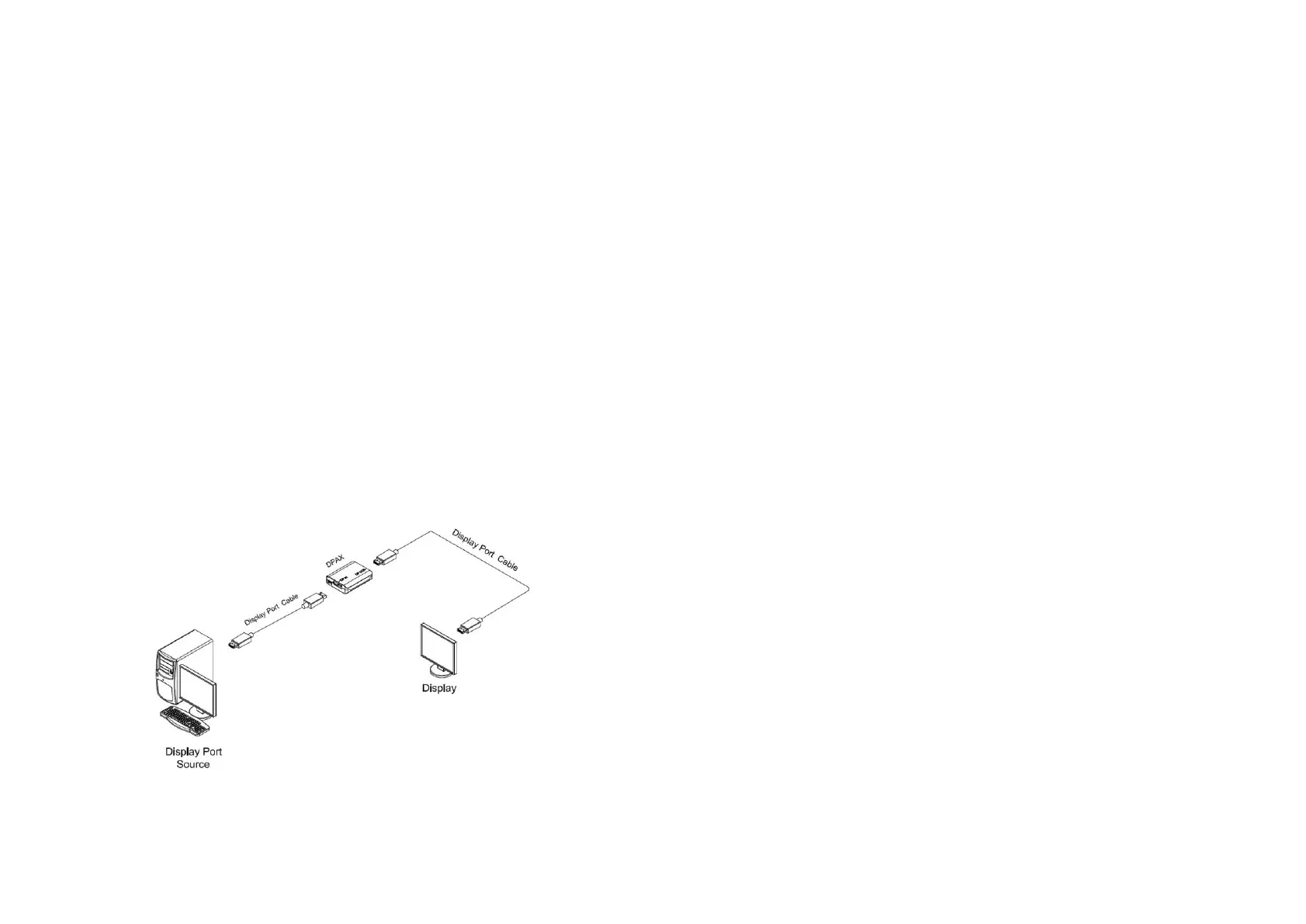

Figure 1 – Overall Connection of DPAX
1-1 Welcome, Product Description
System Requirements for Setup
□ Hardware requirements
▪ You must have a DisplayPort source and Display. It should
support the maximum graphic resolution feature of displays to
be connected.
▪ No special requirement of memory size, CPU speed and
chipsets, if you’ve already installed graphic card that supports
DisplayPort system properly on your Display Source.
▪ For proper initial trial of the entire platform with its application,
using a short length copper cable is recommended prior to
install with the product.
□ Software requirements
▪ No special restrictions, if you’ve already properly installed your
DisplayPort system.
□ Connection Advisory
▪ It is highly recommended that both Display Source and Display
are capable of High-resolution transmission. For Optical fiber
transmission, DPAX is specially designed to couple with Opticis
DisplayPort Extender models. Connecting with other Optical
fiber products can result in showing inappropriate display or
having undesired resolution.
Shipping Group of DPAX;
One (1) DPAX
One (1) USB Power Cable
User Manual
Optional Products:
DC +5V, 1A power adapter
1-2 System Requirements for Setup, Shipping Group
