User Manual
M1-201DA-TR
Doc No. : OE-D210222-201DA / Rev1.6

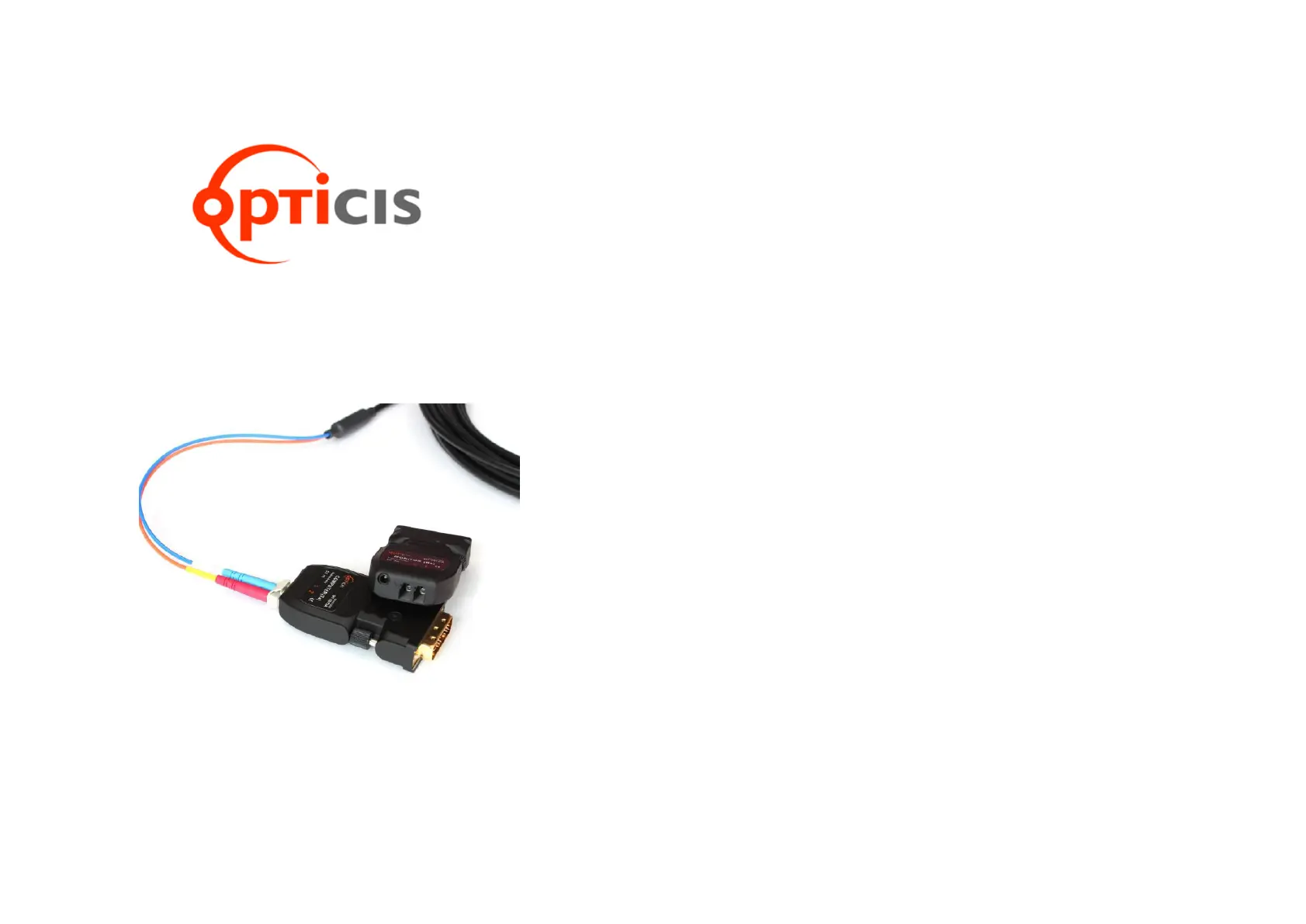

Two (2) Fiber Detachable
DVI Module
Welcome!
Congratulations on your purchase of the Stretch DVI
TM
M1-201DA-TR
Optical DVI (Digital Visual Interface) Extension Module. This manual contains
information that will assist you in installing and operating the product.
Product Description
The M1-201DA-TR optical DVI module transmits four (4) optical data, Red,
Green, Blue and clock and can be extended up to 500meters (1,640ft) over
two LC single-mode fiber at 2K resolution at 60Hz or 1500 meters (4,920ft)
over two LC multi or single-mode fiber at WUXGA (1920x1200) at 60Hz
vertical refresh rate. The EDID (Extended Display Identification Data) in a
display can be read and restored by just plugging once transmitter to the
display. This Self-EDID programming feature makes the installation of M1-
201DA-TR more easy and flexile at any variable resolution display systems.
For your convenience, UXGA EDID would have been done before shipment
as a default.
Shipping Group
M1-201DA-TR Optical DVI Extension Module: One (1) pair
DC power adapter: Two (2) units
User Manual

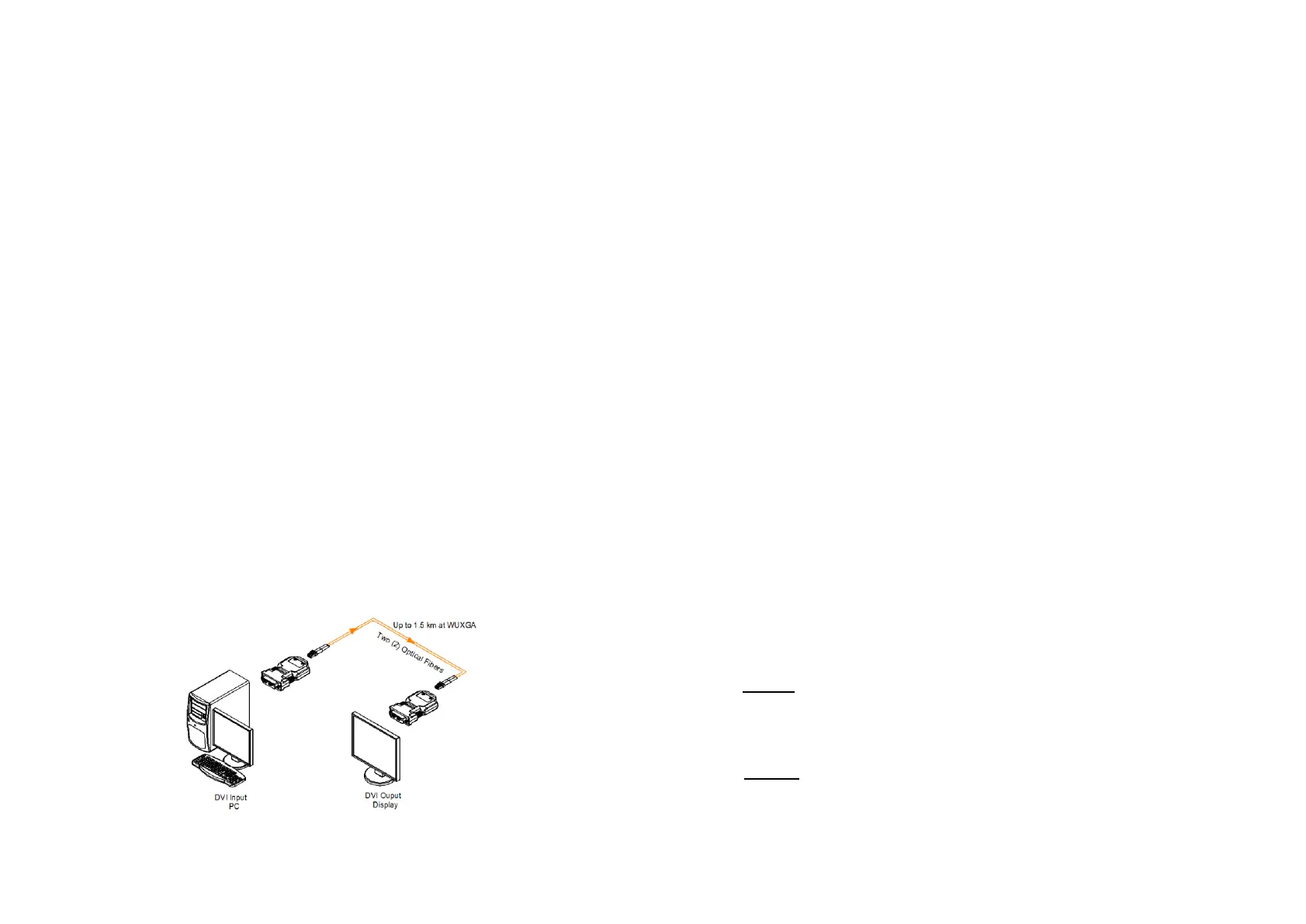

Figure 1 – Schematic Connection Diagram of Optical DVI Extension Modules
1-1 Welcome, Product Description
System Requirements for Setup
Hardware requirements
You must have a DVI graphic controller or card having a DVI port
in your PC, SUN or Mac systems. It should support the maximum
graphic resolution feature of displays to be connected.
No special requirements for memory size, CPU speed and
chipsets, if you’ve already properly installed your DVI graphic
controllers or cards.
Software requirements
No special restrictions, if you’ve already properly installed your
DVI graphic controller in your OS.
AC/DC Power Adapter Technical Advisory
The transmitter (TX) module of M1-201DA-TR is designed for power
protection circuit from conflict of power supply between the external
DC power adapter and your graphic card through the DVI pin. It offers
an option of whether to use an AC/DC power adapter depending on
power supply capability of the graphic card through the +5V pin, you
are using.
However, the receiver (Rx) module should be supplied by an AC/DC
power adapter.
Note 1: In general, most of laptops or desktop PCs with PCI Express
graphic card require using an AC/DC power adapter for the transmitter
module.
Note 2: If you use laptop or Desktop PC with PCI Express graphic card,
we recommend using 5V power adapter for the transmitter.
1-2 System Requirements for Setup
