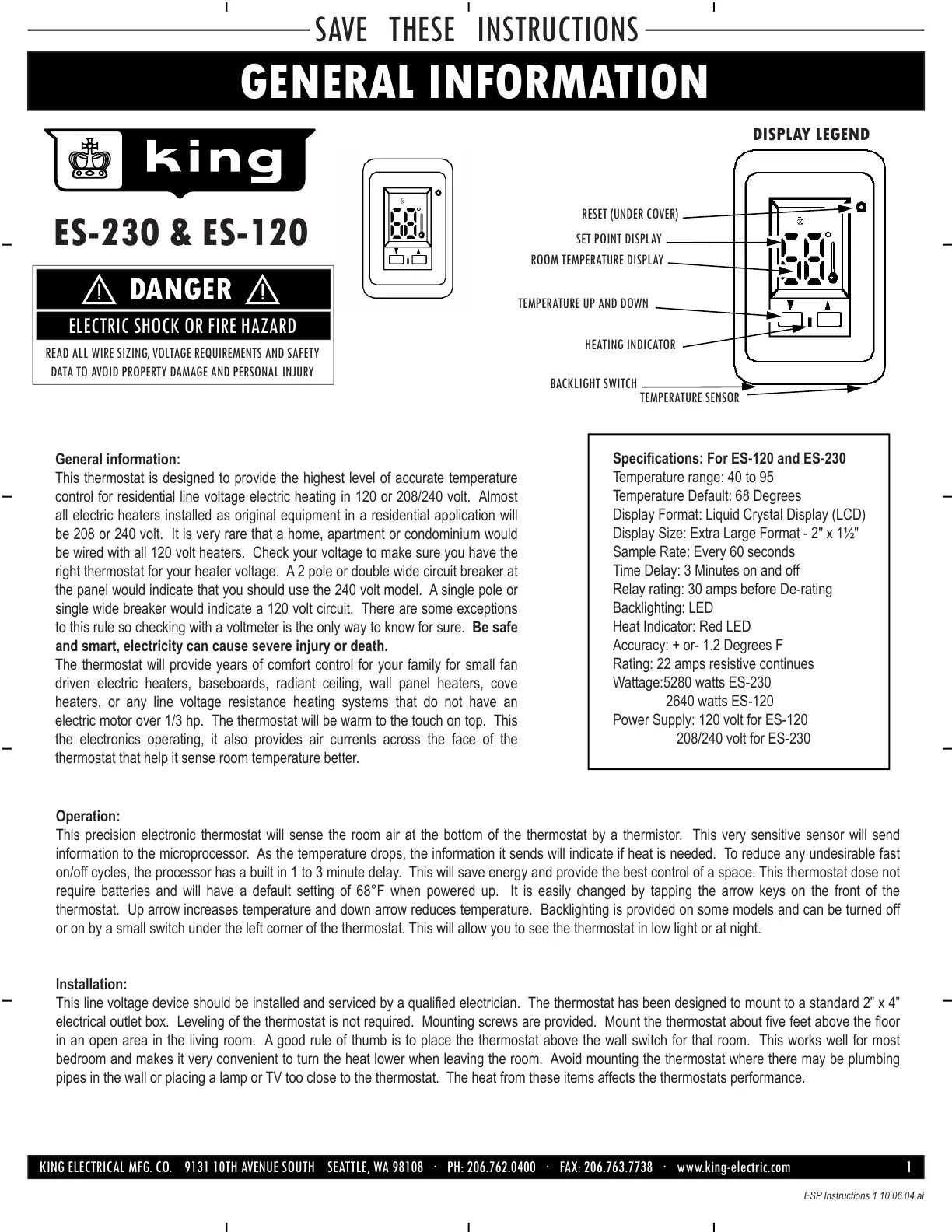

GENERALINFORMATION

DANGER

ELECTRICSHOCKORFIREHAZARD

READALLWIRESIZING,VOLTAGEREQUIREMENTSANDSAFETY

DATATOAVOIDPROPERTYDAMAGEANDPERSONALINJURY

Generalinformation:

Thisthermostatisdesignedtoprovidethehighestlevelofaccuratetemperature

controlforresidentiallinevoltageelectricheatingin120or208/240volt.Almost

allelectricheatersinstalledasoriginalequipmentinaresidentialapplicationwill

be208or240volt.Itisveryrarethatahome,apartmentorcondominiumwould

bewiredwithall120voltheaters.Checkyourvoltagetomakesureyouhavethe

rightthermostatforyourheatervoltage.A2poleordoublewidecircuitbreakerat

thepanelwouldindicatethatyoushouldusethe240voltmodel.Asinglepoleor

singlewidebreakerwouldindicatea120voltcircuit.Therearesomeexceptions

tothisrulesocheckingwithavoltmeteristheonlywaytoknowforsure.Besafe

andsmart,electricitycancausesevereinjuryordeath.

Thethermostatwillprovideyearsofcomfortcontrolforyourfamilyforsmallfan

drivenelectricheaters,baseboards,radiantceiling,wallpanelheaters,cove

heaters,oranylinevoltageresistanceheatingsystemsthatdonothavean

electricmotorover1/3hp.Thethermostatwillbewarmtothetouchontop.This

theelectronicsoperating,italsoprovidesaircurrentsacrossthefaceofthe

thermostatthathelpitsenseroomtemperaturebetter.

Operation:

Thisprecisionelectronicthermostatwillsensetheroomairatthebottomofthethermostatbyathermistor.Thisverysensitivesensorwillsend

informationtothemicroprocessor.Asthetemperaturedrops,theinformationitsendswillindicateifheatisneeded.Toreduceanyundesirablefast

on/offcycles,theprocessorhasabuiltin1to3minutedelay.Thiswillsaveenergyandprovidethebestcontrolofaspace.Thisthermostatdosenot

requirebatteriesandwillhaveadefaultsettingof68°Fwhenpoweredup.Itiseasilychangedbytappingthearrowkeysonthefrontofthe

thermostat.Uparrowincreasestemperatureanddownarrowreducestemperature.Backlightingisprovidedonsomemodelsandcanbeturnedoff

oronbyasmallswitchundertheleftcornerofthethermostat.Thiswillallowyoutoseethethermostatinlowlightoratnight.

Installation:

Thislinevoltagedeviceshouldbeinstalledandservicedbyaqualifiedelectrician.Thethermostathasbeendesignedtomounttoastandard2”x4”

electricaloutletbox.Levelingofthethermostatisnotrequired.Mountingscrewsareprovided.Mountthethermostataboutfivefeetabovethefloor

inanopenareainthelivingroom.Agoodruleofthumbistoplacethethermostatabovethewallswitchforthatroom.Thisworkswellformost

bedroomandmakesitveryconvenienttoturntheheatlowerwhenleavingtheroom.Avoidmountingthethermostatwheretheremaybeplumbing

pipesinthewallorplacingalamporTVtooclosetothethermostat.Theheatfromtheseitemsaffectsthethermostatsperformance.

ES-230&ES-120

DISPLAYLEGEND

RESET(UNDERCOVER)

SETPOINTDISPLAY

ROOMTEMPERATUREDISPLAY

TEMPERATUREUPANDDOWN

HEATINGINDICATOR

BACKLIGHTSWITCH

Specifications:ForES-120andES-230

Temperaturerange:40to95

TemperatureDefault:68Degrees

DisplayFormat:LiquidCrystalDisplay(LCD)

DisplaySize:ExtraLargeFormat-2"x1½"

SampleRate:Every60seconds

TimeDelay:3Minutesonandoff

Relayrating:30ampsbeforeDe-rating

Backlighting:LED

HeatIndicator:RedLED

Accuracy:+or-1.2DegreesF

Rating:22ampsresistivecontinues

Wattage:5280wattsES-230

2640wattsES-120

PowerSupply:120voltforES-120

208/240voltforES-230

SAVETHESEINSTRUCTIONS

TEMPERATURESENSOR

KINGELECTRICALMFG.CO.913110THAVENUESOUTHSEATTLE,WA98108·PH:206.762.0400·FAX:206.763.7738·www.king-electric.com1
