Sida 1/23

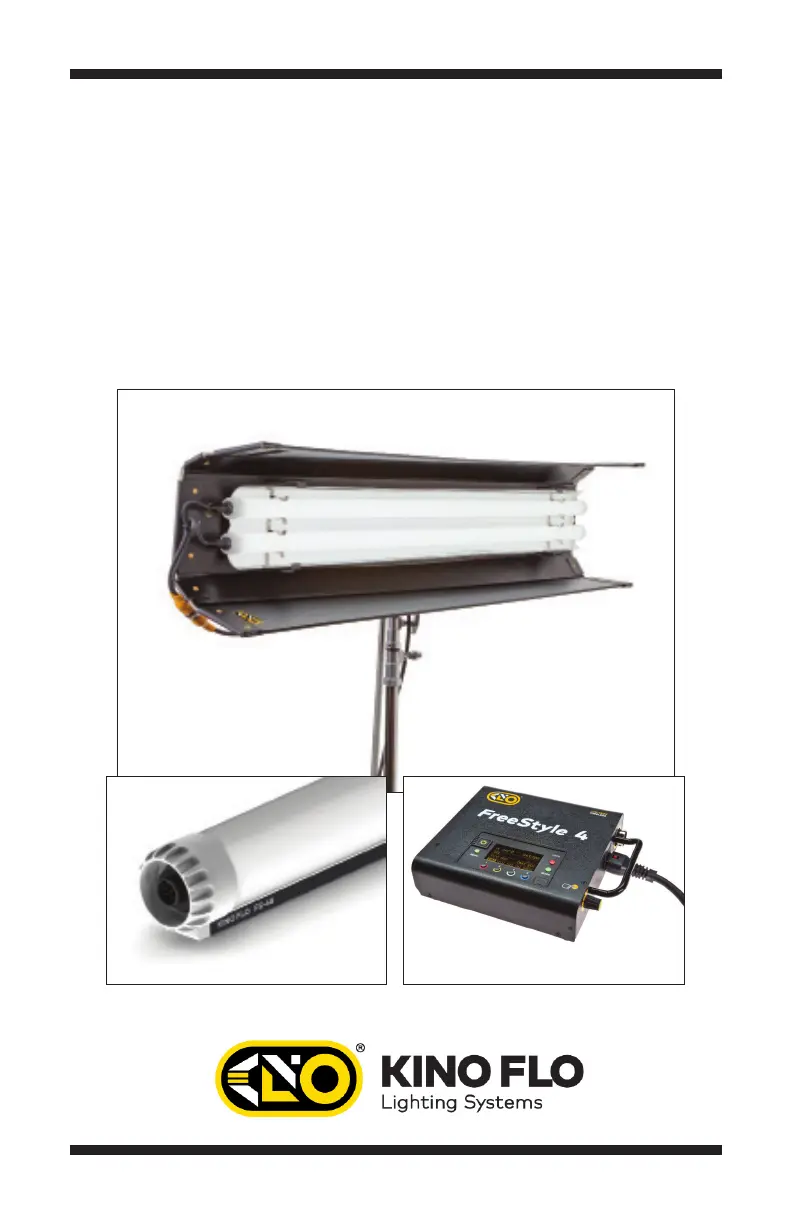

Operation Manual
FreeStyle T42/T22 LED
Part No. 3100126 Rev B 05-01-2021
LED-140X
CFX-F482
FS-48
FS-24
(True Match
Firmware 5.0)
®
(RDM)
FreeStyle T42/T22 System Components
LED-140X-120U
FreeStyle 140 LED DMX Controller, Univ 120U
LED-140X-230U
FreeStyle 140 LED DMX Controller, Univ 230U
CFX-F482 FreeStyle T42 Fixture
CFX-F242 FreeStyle T22 Fixture
MTP-KG41 KinoGrip 41K Mount w/ 3/8” Pin
(10mm)
X12-F425 FreeStyle/4 Extension, 25ft
2
FreeStyle T42/T22 Systems
SYS-FT42U
FreeStyle T42 LED DMX System, Univ
SYS-FT22U
FreeStyle T22 LED DMX System, Univ
FreeStyle T42/T22 LED System consists of:
1 FreeStyle T42/T22 Fixture
1 Mounting Plate
1 FreeStyle/4 Extension Cable
1 LED Controller
2 FreeStyle 4ft (or 2ft) LED Tubes
FS-48 FreeStyle 4ft LED Tube
FS-24 FreeStyle 2ft LED Tube
3
Power
DC Input
The FreeStyle 140 LED DMX can also
be operated on 24VDC (input range
18-36VDC) through a 3-Pin XLR.
The pin polarity is:
Pin # 1 – Ground
Pin # 2 + 18-36VDC
Pin # 3 not used
AC Input
The FreeStyle 140 LED DMX
Controller is powered AC and includes
an IEC connection. It also includes a
12ft power cord with a locking IEC
connector.
The FreeStyle 140 LED DMX has a
built-in power supply with universal
input from 100-240VAC.
Ambient Operating Temperature
The FreeStyle 140 LED DMX is designed
to operate at temperatures from
14°F to 104°F (-10°C to 40°C).
Note:
A low voltage warning will display
if input DC voltage is under 18VDC.
Photo example: LOW VDC: 16
