1
E F G
Manuel d’utilisation
Bedienungsanleitung
Owner’s manual
2
Precautions
Location
Using the unit in the following locations can result in a
malfunction.
• In direct sunlight
• Locations of extreme temperature or humidity
• Excessively dusty or dirty locations
• Locations of excessive vibration
• Close to magnetic fields
Power supply
Please connect the designated AC adapter to an AC
outlet of the correct voltage. Do not connect it to an AC
outlet of voltage other than that for which your unit is
intended.
Interference with other electrical devices
Radios and televisions placed nearby may experience
reception interference. Operate this unit at a suitable
distance from radios and televisions.
Handling
To avoid breakage, do not apply excessive force to the
switches or controls.
Care
If the exterior becomes dirty, wipe it with a clean, dry
cloth. Do not use liquid cleaners such as benzene or
thinner, or cleaning compounds or flammable polish-
es.
Keep this manual
After reading this manual, please keep it for later refer-
ence.
Keeping foreign matter out of your equipment
Never set any container with liquid in it near this equip-
ment. If liquid gets into the equipment, it could cause a
breakdown, fire, or electrical shock.
Be careful not to let metal objects get into the equip-
ment. If something does slip into the equipment, un-
plug the AC adapter from the wall outlet. Then contact
your nearest Korg dealer or the store where the equip-
ment was purchased.
3
THE FCC REGULATION WARNING (for USA)
This equipment has been tested and found to comply
with the limits for a Class B digital device, pursuant to
Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful inter-
ference in a residential installation. This equipment gen-
erates, uses, and can radiate radio frequency energy
and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio
communications. However, there is no guarantee that
interference will not occur in a particular installation. If
this equipment does cause harmful interference to ra-
dio or television reception, which can be determined
by turning the equipment off and on, the user is en-
couraged to try to correct the interference by one or
more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and
receiver.
• Connect the equipment into an outlet on a circuit dif-
ferent from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV tech-
nician for help.
Unauthorized changes or modification to this sys-
tem can void the user’s authority to operate this equip-
ment.
Notice regarding disposal (for EU)
If this “crossed-out trash can” symbol is shown
on the product or in the operating manual, you
must dispose of the product in an appropriate
way. Do not dispose of this product along with
your household trash. By disposing of this prod-
uct correctly, you can avoid environmental harm
or health risk. The correct method of disposal
will depend on your locality, so please contact
the appropriate local authorities for details.
* Company names, product names, and names of formats
etc. are the trademarks or registered trademarks of their
respective owners.
4
Table of Contents
Play mode .............................................. 16
Selecting a program ................................................ 16
PROGRAM MEMORY [A], [B], [C], [D] buttons ......... 16
Using foot switches to select programs ......................... 16
Master level ...............................................................16
Bypass/Mute ............................................................. 17
Tuner ...........................................................................17
Specifying the function of the Value encoder .. 18
Key Lock function ................................................... 18
Rhythm & Bass mode .............................. 19
PTN (Pattern play) ...................................................19
CHAIN (Chain play) ...............................................21
SONG (Song play) ................................................... 23
Phrase Trainer mode ............................... 25
Select the recording mode .....................................25
Recording .................................................................. 26
Playback ..................................................................... 27
Pause ........................................................................... 27
Saving ......................................................................... 27
Precautions ............................................... 2
Introduction ..............................................6
Main features ........................................... 6
Turning on the power ................................ 7
Controls and connectors ............................ 8
LCD screen ................................................................ 10
Making connections ................................ 11
Connecting to your Computer ..............................13
Using the editor software ............................................... 13
Transferring audio data .................................................. 13
Initial Settings ......................................... 15
Quick Edit ................................................................. 15
5
Edit mode ............................................... 28
Select the effect that you wish to edit .................28
Editing each effect ................................................... 28
DYNA: Dynamics & Pickup Modeling ......................... 28
AMP: Amp Modeling ...................................................... 29
CAB: Cabinet Modeling .................................................. 29
MOD: Modulation & Filter Effect Modeling ................ 30
DLY: Delay Modeling ...................................................... 30
DLY: Delay Time .............................................................. 30
REV: Reverb Modeling .................................................... 30
NR: Noise reduction ........................................................ 31
RENAME .......................................................................... 31
WRITE ............................................................................... 31
Utility mode ............................................ 32
Select a utility function .......................................... 32
Change settings for each utility function .......... 32
BACKLIGHT: LCD backlight on/off ............................ 32
KEY-TRN: Key transpose ................................................ 32
KTR+BC: Key transpose + bass cancel .......................... 33
AMP/LIN: Amp/line select ........................................... 33
FOOTSW: Foot switch pedal settings ............................ 34
USBSEND: USB Send ...................................................... 35
USB RCV: USB Receive ................................................... 35
AUX>USB: USB audio interface .................................... 35
MIDDRUM: MIDI Drum/Bass ...................................... 36
Loading the factory-set data ................... 36
Effect Parameter List ............................... 37
DYNA: Dynamics & Pickup modeling ............... 37
AMP: Amp Modeling ............................................. 39
CAB: Cabinet modeling ......................................... 43
MOD: Modulation & Filter Effect Modeling .... 45
DLY: Delay Modeling ............................................. 49
REV: Reverb Modeling ........................................... 50
Preset Program Names ........................... 51
Rhythm Pattern List ................................. 52
Troubleshooting ...................................... 53
Specifications.......................................... 55
9
10. DC4.5V
The separately sold AC adapter (DC4.5V ) is con-
nected here.
11. RHYTHM button
Use this button to enter Rhythm & Bass mode (☞p.19).
12. PHRASE TRAINER button
Use this button to enter Phrase Trainer mode (☞p.25).
13. UTILITY button
Use this button to enter Utility mode (☞p.32).
14. PROGRAM MEMORY [A] [B] [C] [D] buttons
You can assign your favorite programs to these four but-
tons (A–D) (☞p.16).
15. ENTER/REC button
This button is used to switch an effect on/off, to edit
patterns in Rhythm & Bass mode, or to start recording
in Phrase Trainer mode.
16. EXIT button
Returns to Play mode or to the preceding screen.
17. TAP/BYPASS button
In Edit mode this button lets you specify the delay time
for delay effects ( p.15), or the rhythm tempo for rhythm☞
& bass mode ( p.19). In Play mode, this button will By-☞
pass or Mute the , and activate the Tuner (PX5D ☞p.17).
18. USB connector
Use the included USB cable to connect this to your com-
puter. You’ll be able to use the editor software to edit the
PX5D or transfer audio data between the PX5D and your
computer.
19. Value encoder
Use this to adjust the master level, edit effects, and se-
lect programs.
10

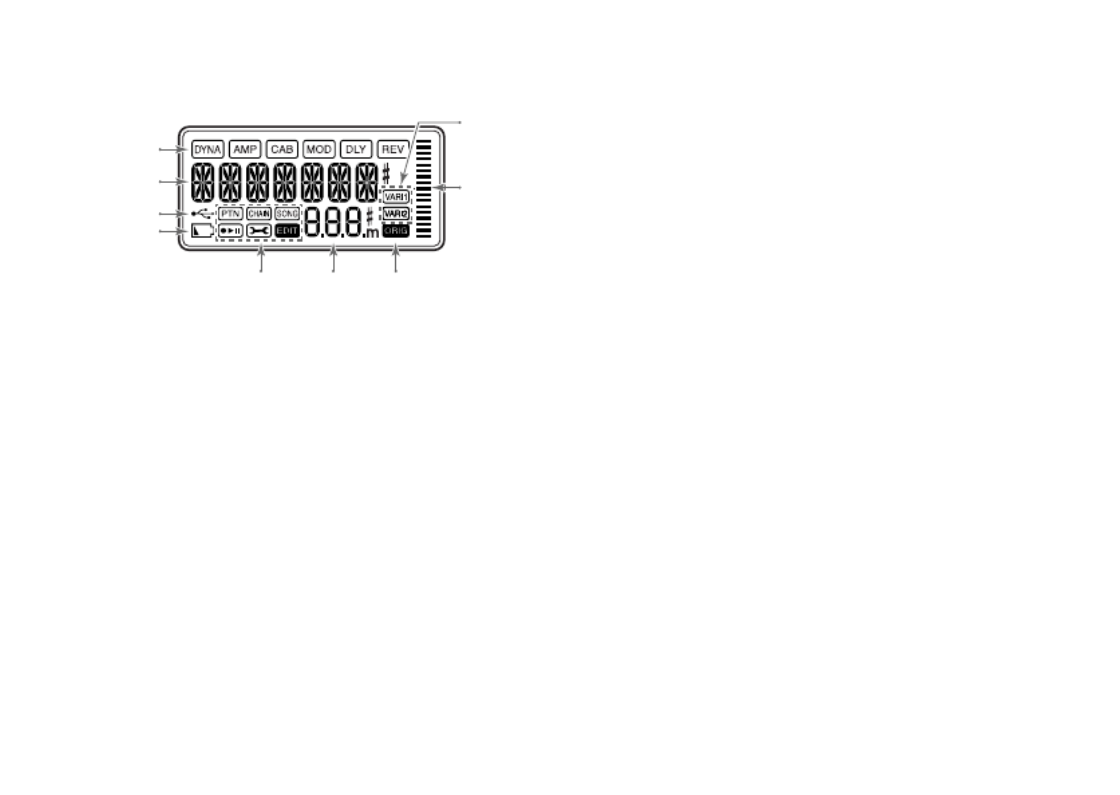

LCD screen
1
2
3
4
567
8
9
1. Effect chain
This area indicates the on/off status of the DYNA, AMP,
CAB MOD, , DLY REV , and effects.
2. Program name/Effect type display
This area shows the program name or effect type. When
the PX5D is bypassed or muted, this will function as the
tuner.
3. USB icon
This is shown if the is connected to your comput-PX5D
er via the USB port.
4. Low Battery icon
This icon will light when the batteries run low.
5. Mode icons
These are shown when you enter the corresponding
mode.
6. Program number/value display
This displays the program number. When you change
the Master Level, its value will be displayed here for sev-
eral seconds. During editing, this displays the parame-
ter values.
7. ORIG (Original) icon
If the parameter or value being edited matches the value
that is written in the program, the ORIG icon will light.
8. Bar graph
In Play mode or Edit mode, this graph indicates the mas-
ter level or the value of a parameter. In Rhythm mode,
this indication will change according to the rhythm pat-
tern that’s playing.
9. Variation icons (VARI1, VARI2)
This shows the variation of the rhythm pattern or rhythm
& bass pattern you’re using in Rhythm mode (☞p.20).
11

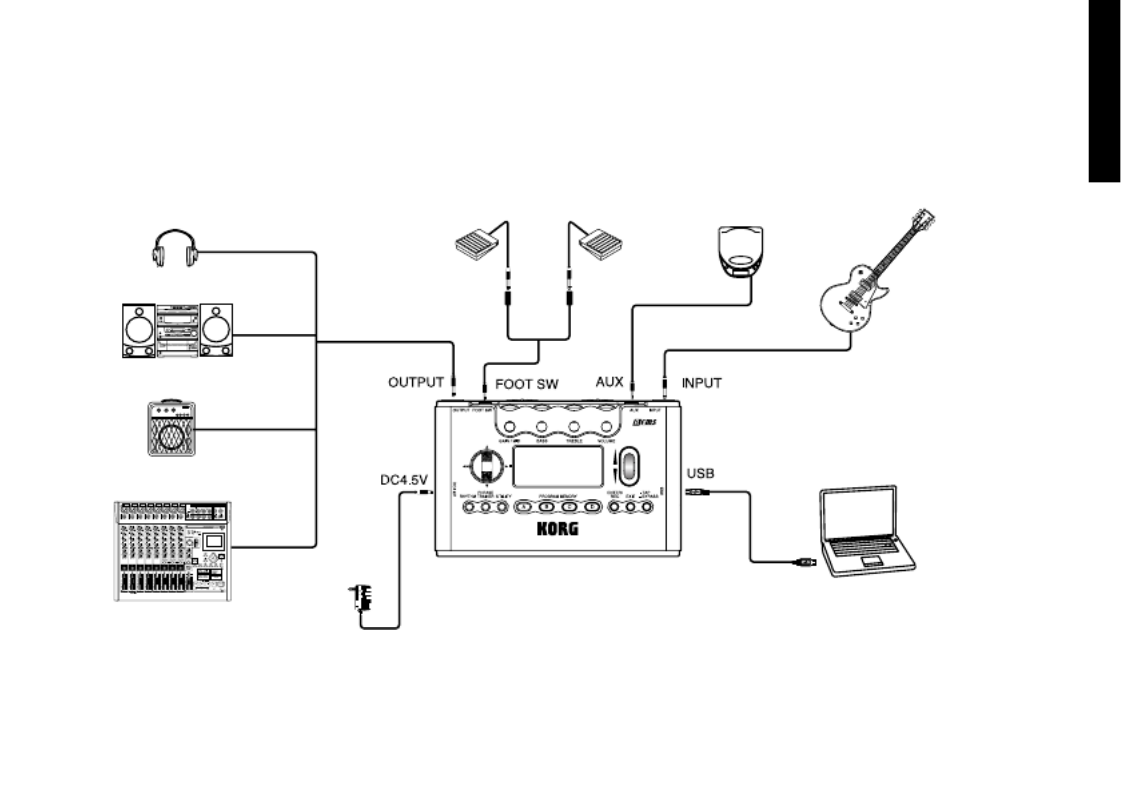

Making connections
When connecting an external device (ie-guitar amp, bass amp, CD player, AC adapter, etc.) be sure to turn the unit
off.
*3
*6
*7
headphone*4
mini-component /
stereo etc.
guitar amp /bass amp/
powered monitor
CD player etc.*2
guitar or bass
AC adapter *1
Computer
Digital recorder
Foot switch *5
14

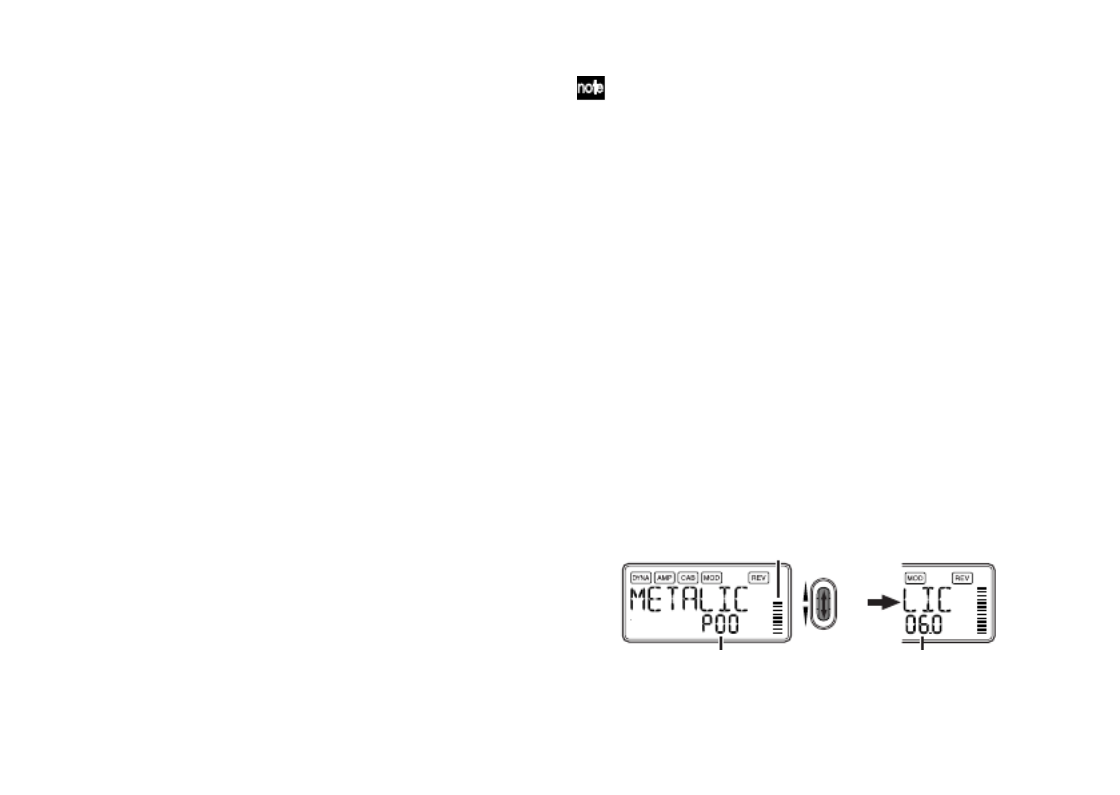

Adjust the master level setting to change the volume of
the audio signal that’s sent from the ’s OUTPUTPX5D
jack ( p.16 “Master level”).☞
Adjust the Utility mode “USBSEND” setting to change
the volume of the audio signal that’s sent from the
PX5D’s USB connector to the computer (☞p.35 “USB-
SEND”).
Adjust the Utility mode “USB RCV” setting to change
the volume of the audio signal that’s input from the com-
puter to the p.35 “USB RCV”).PX5D (☞
Normally, the signal that’s being input from the AUX
jack is not sent to the USB connector. If you want the
input signal from the AUX jack to be sent to your com-
puter, access the Utility mode “AUX > USB” screen
(☞p.35 “AUX>USB”).
If you’re recording the effect output onto an au-PX5D’s
dio track of your DAW software, turn off the “audio in
thru” function of your software to prevent echo-back.
For details on using your DAW software, refer to the op-
eration manual included with your software.
16
Play mode
Play mode is the mode in which you will normally use
the PX5D.
Selecting a program
Use the to select a program. The pro-π †/ CURSOR
gram/effect type display will show the program name,
and the value display will show the program number.
You can select from one hundred user programs (U00–
U99) and one hundred preset programs (P00–P99). You
can select programs even if you’re in Rhythm & Bass
mode, Phrase Trainer mode (except while recording), or
Utility mode (except while in certain screens).
PROGRAM MEMORY [A], [B], [C], [D] buttons
You can assign four of your favorite programs to the PROGRAM
MEMORY [A]–[D] buttons. While you perform, simply press
the corresponding PROGRAM MEMORY [A]–[D] button and
the selected program will be recalled instantly.
Here’s how to assign a program to a button. In this example,
we’ll assign the selected program to button [A].
1Use the π †/ CURSOR to select the program you
want to assign to button [A].
2
Press and hold the PROGRAM MEMORY [A] button
for approximately one second. The LCD will indicate
“PGM>A,” and the selected program will be assigned
to button [A].
You can use a foot switch connected to the FOOT SW
jack to switch between the four programs assigned to
PROGRAM MEMORY [A]–[D] ( p.34 “FOOTSW”).☞
Using foot switches to select programs
If you connect foot switches to the ’s FOOT SW jackPX5D
and use Utility mode to assign the Pedal Switch function,
you’ll be able to use the foot switches to select programs.
Use the included cable for FOOT SW jack to connect your
foot switches. The red jack on one end of the cable will be
Program Up, and the other white jack will be Program
Down ( p.11 “Making connections,” p.34 “ FOOTSW”).☞
Master level
When you turn the Value encoder to adjust the master
level, the master level value will be shown in the program
number/value display for several seconds. The bar graph
will also change to indicate the level. The master level is
remembered even when the power is turned off.
Master level valueProgram number display
Bar gragh
Produktspecifikationer
| Varumärke: | Korg |
| Kategori: | DJ-utrustning |
| Modell: | PX5D |
Behöver du hjälp?
Om du behöver hjälp med Korg PX5D ställ en fråga nedan och andra användare kommer att svara dig
DJ-utrustning Korg Manualer
27 Januari 2025
14 December 2024
14 December 2024
8 Oktober 2024
27 September 2024
26 September 2024
23 September 2024
17 September 2024
17 September 2024
15 September 2024
DJ-utrustning Manualer
- Silvercrest
- Audio-Technica
- Vonyx
- Martin
- Karcher
- Keith MCmillen
- Konig & Meyer
- AlphaTheta
- Dual
- IK Multimedia
- Stanton
- Pioneer
- Ricatech
- Nevir
- MWM
Nyaste DJ-utrustning Manualer
25 Augusti 2025
25 Augusti 2025
17 Augusti 2025
10 Augusti 2025
10 Augusti 2025
10 Augusti 2025
10 Augusti 2025
8 Augusti 2025
8 Augusti 2025
5 Augusti 2025
