For additional self-service support options and community forums, please visit: www.StarTech.com/support

Revision: January 5, 2026

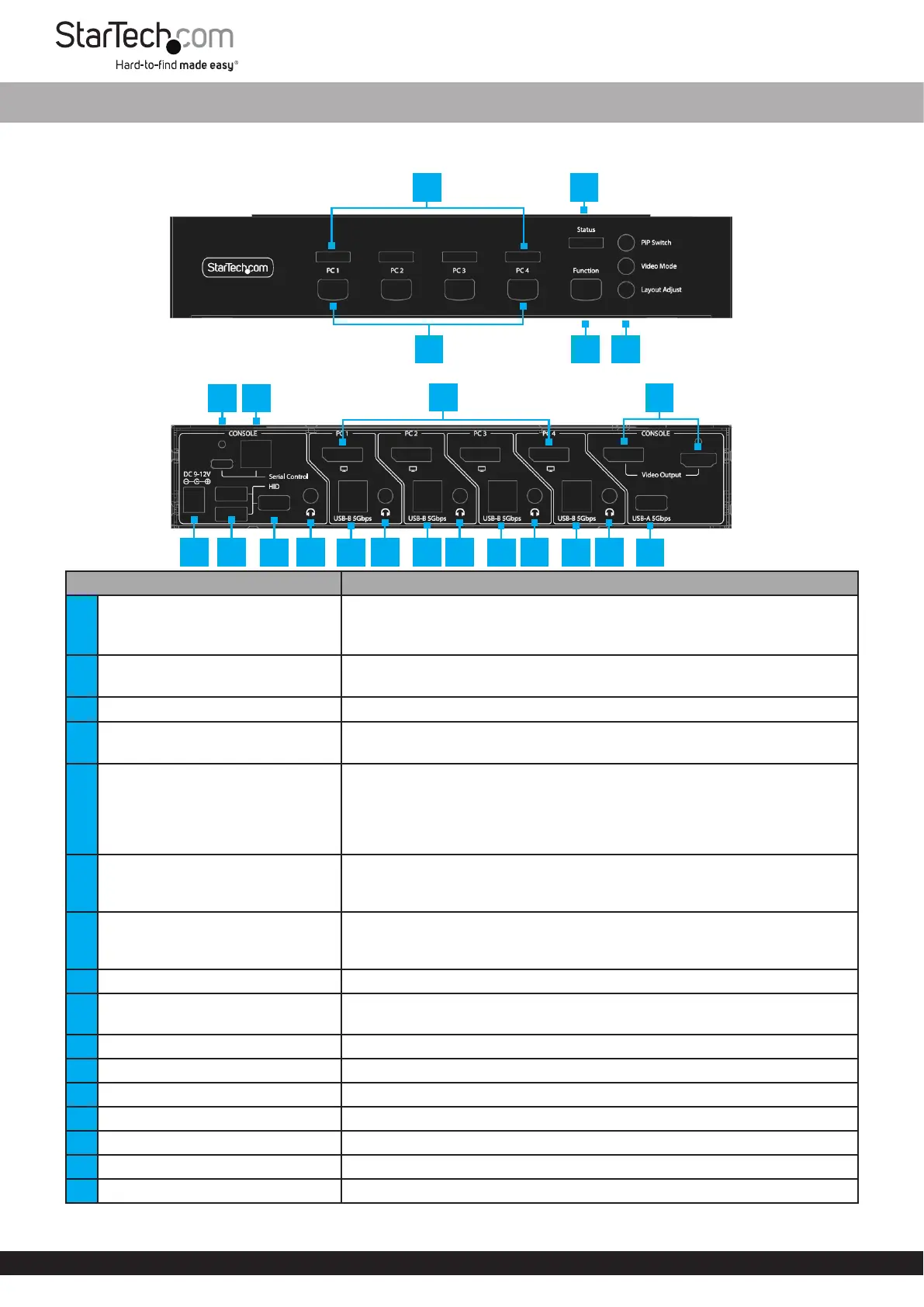

Quick-Start Guide

Product ID

P4AD122M-KVM-SWITCH

Front

Rear

ComponentFunction

1LED Indicators

• Green: Indicates a Host Connection is detected

• Red: Indicates when the PC Port selected for Console View

• Blue: Indicates the PC Port is selected for Picture-in-Picture (PiP) View

2Status LED

• Solid Green: KVM Switch is powered on

• O: KVM Switch is not receiving power

3Push Button Selectors• Press the Button to switch to the corresponding PC Port

4Function Button

• Used for Command Input

• Refer to the Full Manual for more information

5Video Buttons

• PiP Switch: Swap between Console and PiP View

• Video Mode: Press to swap between Full-screen to PiP, or Full-screen to

Quad-View

• Layout Adjust: Press to swap between 1+3 Mode and 3+1 viewing modes,

or change the location of PiP window

6USB Type-C Conguration Port

• Connect to a Host’s USB-A or USB-C Port to control the KVM Switch via

Serial Commands

• Cable not included

7RJ11 Serial Conguration Port

• Connect to a Host’s RS-232 Serial Port to control the KVM Switch via Serial

Commands

• Adapter not included

8DisplayPort Inputs PC 1 - 4• Connect to a DisplayPort Output Port on PC 1 - 4

9Console DisplayPort/HDMI Outputs

• Connect to a DisplayPort or HDMI Monitor

• If two displays are connected at the same time, the output is mirrored

10DC Power Input Port• Connect the supplied Universal Power Adapter to power the KVM Switch

11USB HID Port• Connect a Keyboard and Mouse

12Number Pad Port• Connect a USB Number Pad

13Console Audio Port• Green: Connect an Audio Device (e.g. Speakers or Headphones)

14PC 1 - 4 USB Host Connection• Connect to a USB 5Gbps Port on PCs 1 - 4

15PC 1 - 4 Audio Port• Connect to an Audio Output Port on PC 1 - 4

16USB 5Gbps Hub Port• Connect a USB 5Gbps Peripheral

4-Port DisplayPort KVM with Mouse Roaming and Picture-in-Picture - 4K 60Hz

3

45

1

2

8

76

9

10

13

15

15

1515

14

14

1414

16

11

12
